Trim - A-Pillar - Upper - LH (Remove and Replace)

Correction code 1518400215184002
Parent topic: 1518 - Pillar and Sill Trim

Remove

  1. Open the LH front door.
  2. Remove the LH instrument panel end cap. See End Cap - Instrument Panel - LH (Remove and Replace).
  3. Remove the LH middle A-Pillar trim. See Trim - A-Pillar - Middle - LH (Remove and Replace).

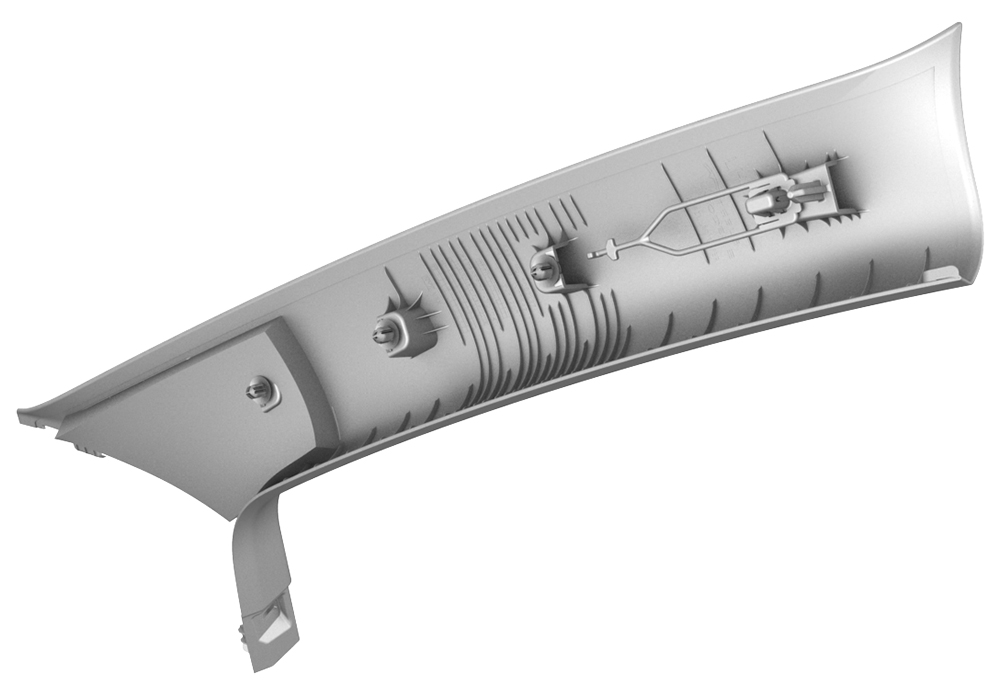

  4. Release the clips that attach the LH upper A-pillar trim to the A-pillar.
    Note: Release the top clip first and work forward and down.

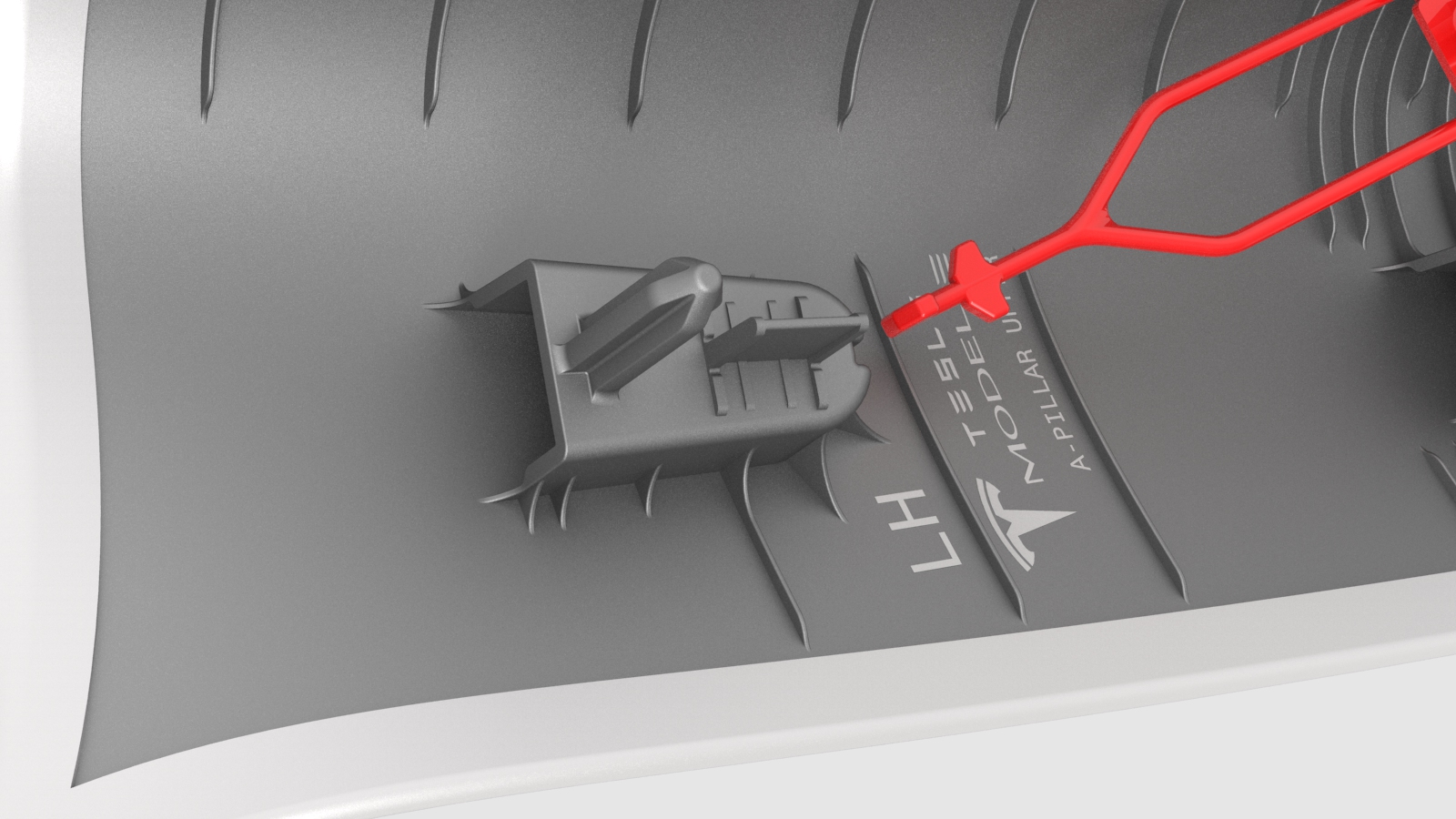

  5. Release the LH upper A-pillar trim tether by twisting and pulling the tether hooks (x3) away from the LH upper A-pillar trim.
    Caution:
    Do not remove the LH upper A-pillar trim tether from the body side. If removed from the body side, the tether will have to be replaced.

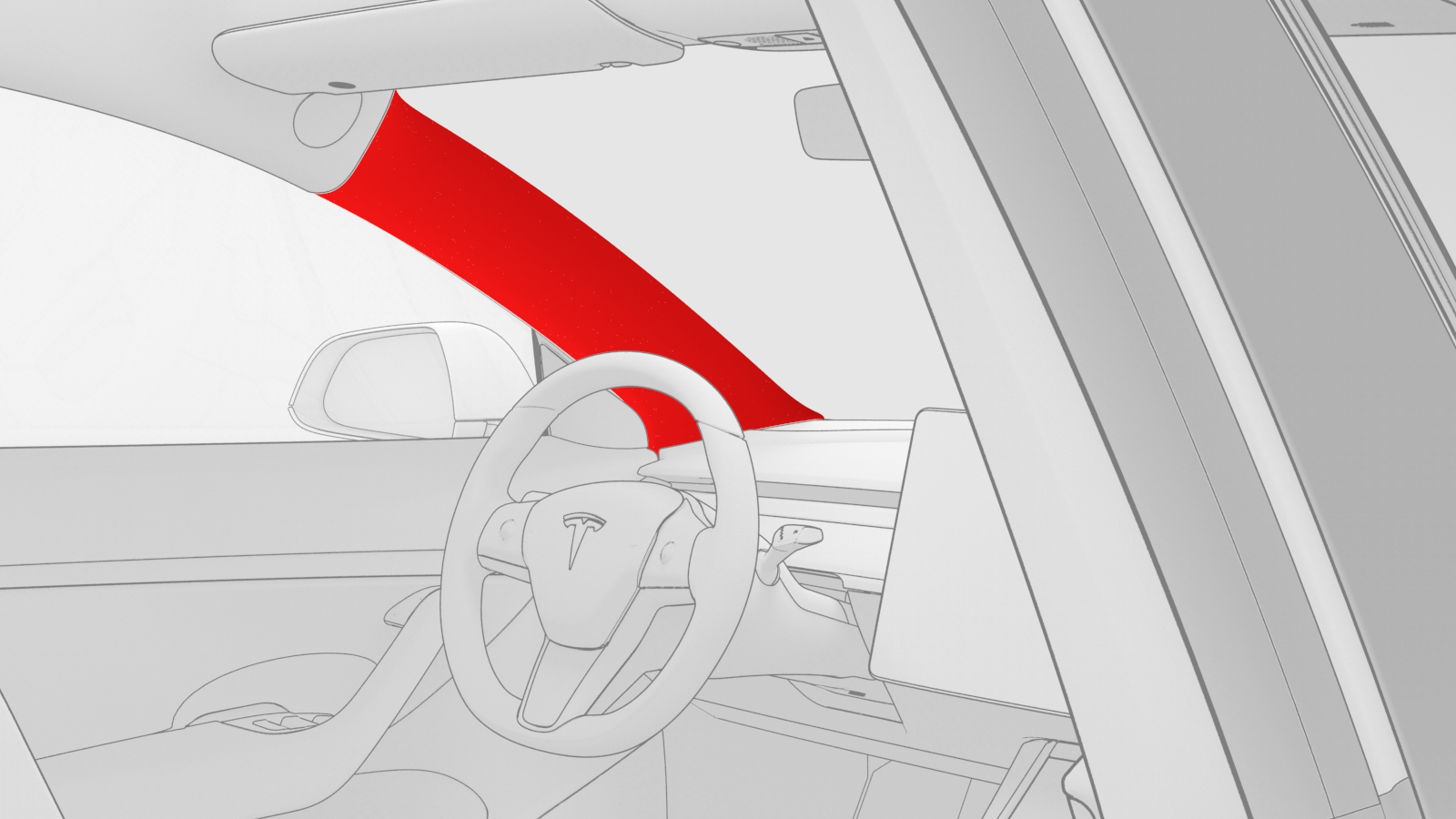

  6. Pull upwards to remove the LH upper A-pillar trim from the vehicle.
    Note: Remove any remaining LH upper A-pillar trim clips from the LH A-pillar, and if the LH upper A-pillar trim is to be later installed, remove all clips from the trim.
1Open the LH front door.
2Remove the LH instrument panel end cap. See End Cap - Instrument Panel - LH (Remove and Replace).
3Remove the LH middle A-Pillar trim. See Trim - A-Pillar - Middle - LH (Remove and Replace).
4Release the clips that attach the LH upper A-pillar trim to the A-pillar.
Note: Release the top clip first and work forward and down.
5Release the LH upper A-pillar trim tether by twisting and pulling the tether hooks (x3) away from the LH upper A-pillar trim.
Caution:
Do not remove the LH upper A-pillar trim tether from the body side. If removed from the body side, the tether will have to be replaced.
6Pull upwards to remove the LH upper A-pillar trim from the vehicle.
Note: Remove any remaining LH upper A-pillar trim clips from the LH A-pillar, and if the LH upper A-pillar trim is to be later installed, remove all clips from the trim.

Install

  1. If reusing the same LH upper A-pillar trim, install new clips onto the trim.
  2. Make sure that the clips are undamaged, and at the correct positions on the trim.
  3. Fasten the tether hooks (x3) to the LH upper A-pillar trim.
  4. Insert the front lower edge of the trim into the instrument panel carrier, and then firmly fasten the clips that attach the LH upper A-pillar trim to the A-pillar.
    Note: Fasten the top clip first, and then work toward the front of the vehicle.
    Note: Look through the windshield from outside of the vehicle to check that the LH upper A-pillar trim is flush with the A-pillar.
  5. Install the LH middle A-Pillar trim. See Trim - A-Pillar - Middle - LH (Remove and Replace).
  6. Install the LH instrument panel end cap. See End Cap - Instrument Panel - LH (Remove and Replace).
1If reusing the same LH upper A-pillar trim, install new clips onto the trim.
2Make sure that the clips are undamaged, and at the correct positions on the trim.
3Fasten the tether hooks (x3) to the LH upper A-pillar trim.
4Insert the front lower edge of the trim into the instrument panel carrier, and then firmly fasten the clips that attach the LH upper A-pillar trim to the A-pillar.
Note: Fasten the top clip first, and then work toward the front of the vehicle.
Note: Look through the windshield from outside of the vehicle to check that the LH upper A-pillar trim is flush with the A-pillar.
5Install the LH middle A-Pillar trim. See Trim - A-Pillar - Middle - LH (Remove and Replace).
6Install the LH instrument panel end cap. See End Cap - Instrument Panel - LH (Remove and Replace).
