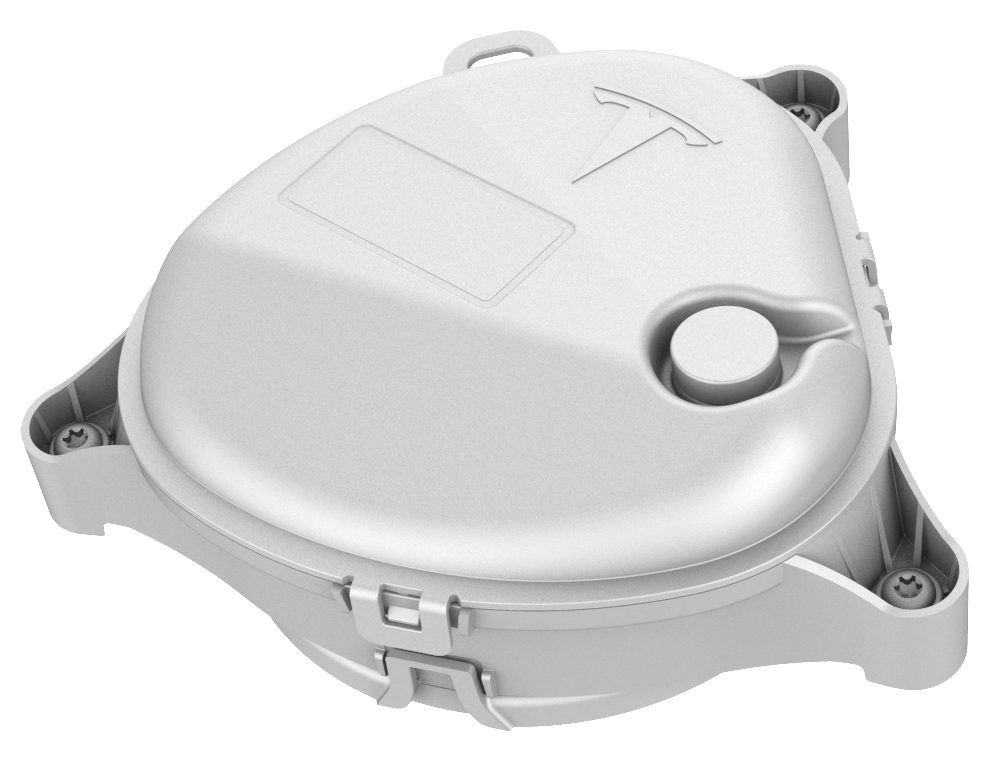

Speaker - Pedestrian Warning (Remove and Replace)

Correction code 1754100217541002

Remove

Remove the front fascia. See Fascia - Front (Remove and Install).

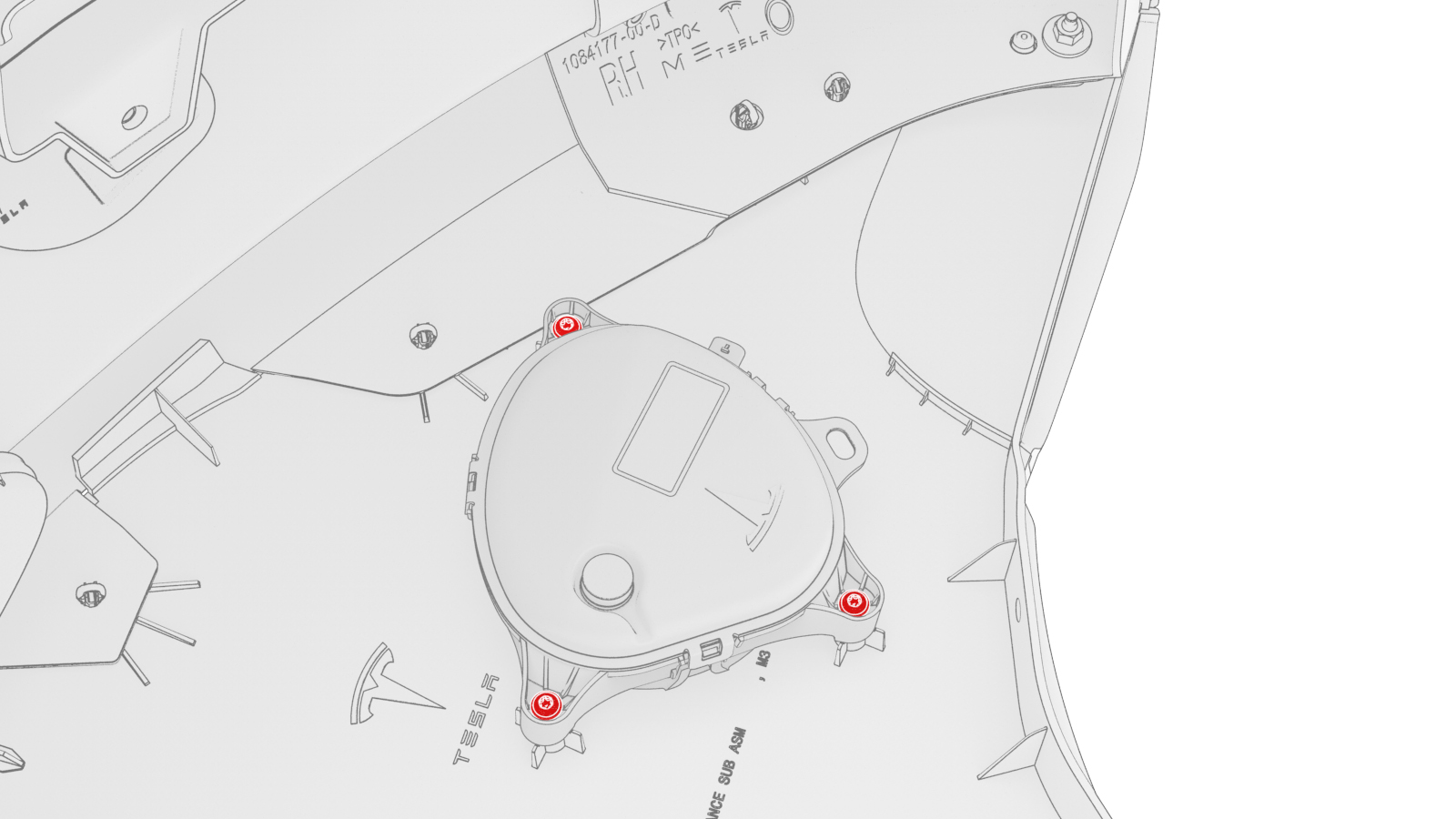

Remove the screws that attach the pedestrian warning speaker assembly to the front fascia, and then remove the speaker from the fascia.

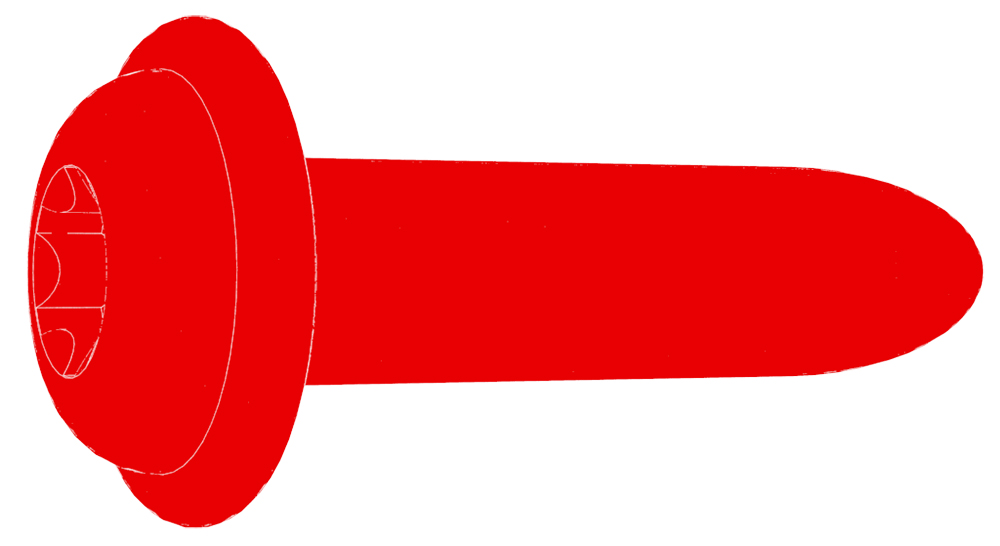

Torque 1.8 Nm

		1	Remove the front fascia. See Fascia - Front (Remove and Install).
		2	Remove the screws that attach the pedestrian warning speaker assembly to the front fascia, and then remove the speaker from the fascia. Torque 1.8 Nm

Install

Installation procedure is the reverse of removal.
