Skid Plate - HV Battery - Rear (Remove and Replace)

Correction code 1610220216102202

DRAFT

from-cad
Warning:

This procedure was derived from pre-production computer models, and might not reflect the real-world situation. Warnings and cautions might be missing. Follow safety requirements and use extreme caution when working on or near high voltage systems and components.

Do not redistribute this content. Provide corrections and feedback to servicemanualfeedback@tesla.com.

Parent topic: 1610 - HV Battery Enclosure

Remove

  1. Remove the mid aero shield. See Panel - Aero Shield - Mid (Remove and Replace).

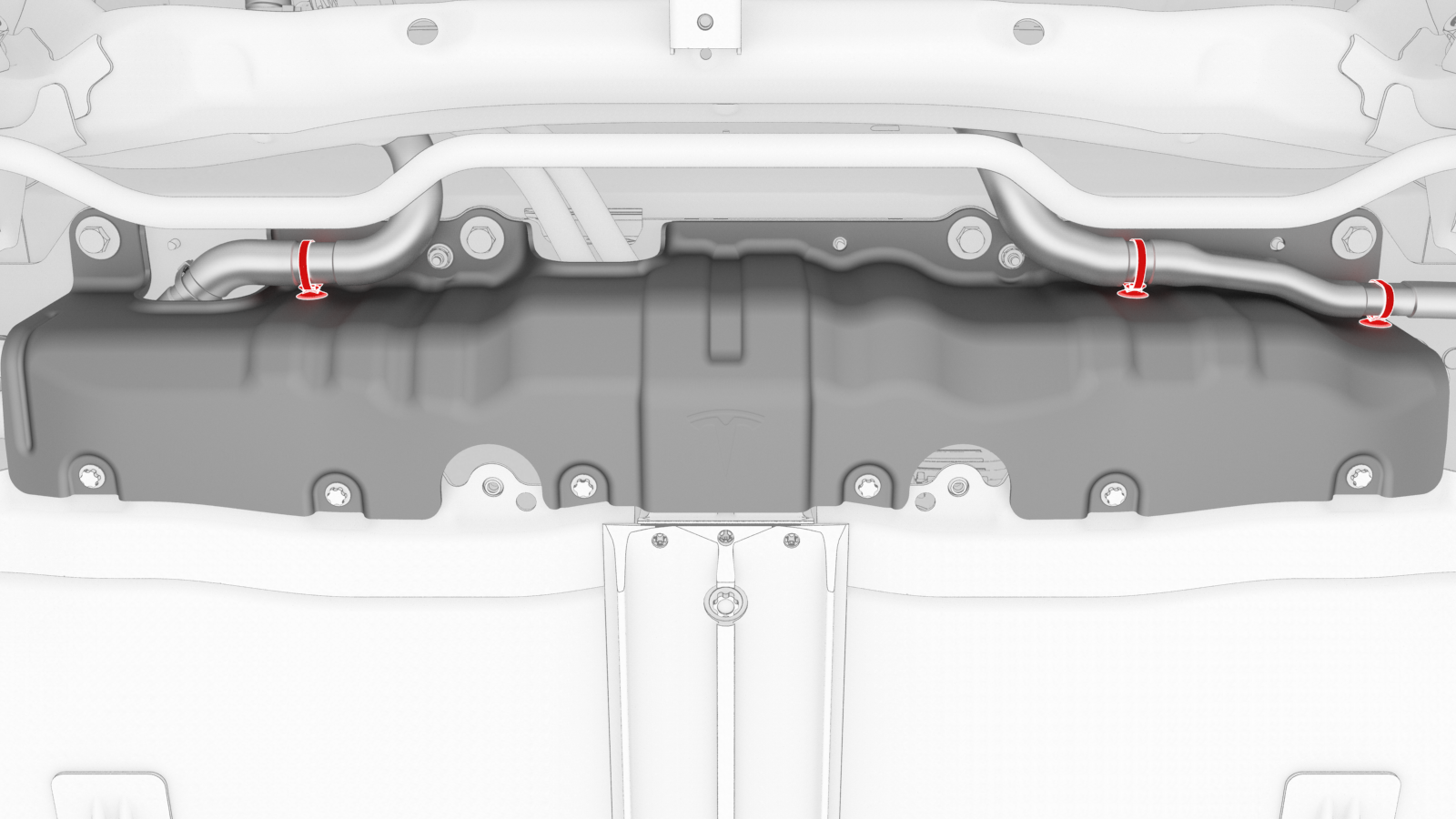

  2. Release the clips that attach the hoses to the rear HV battery skid plate

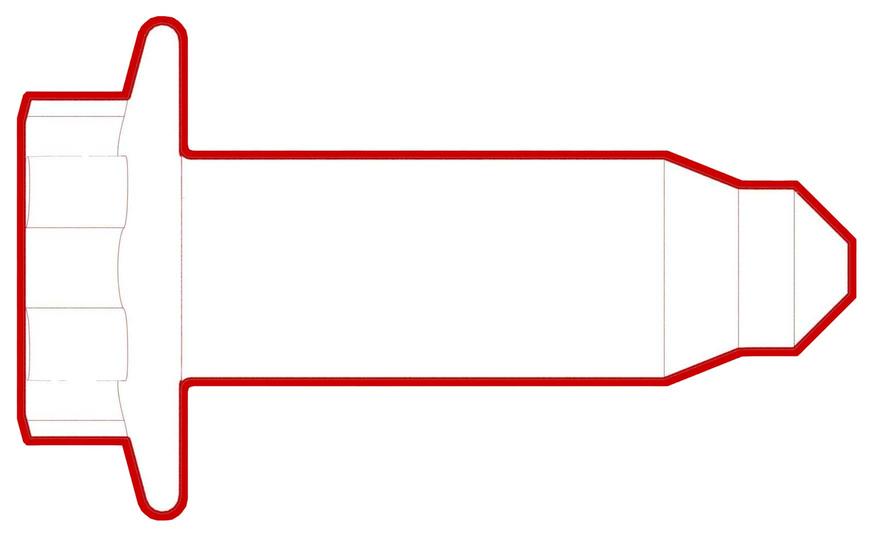

  3. Remove the lower bolts that attach the skid plate to the HV battery.
    Torque 13 Nm

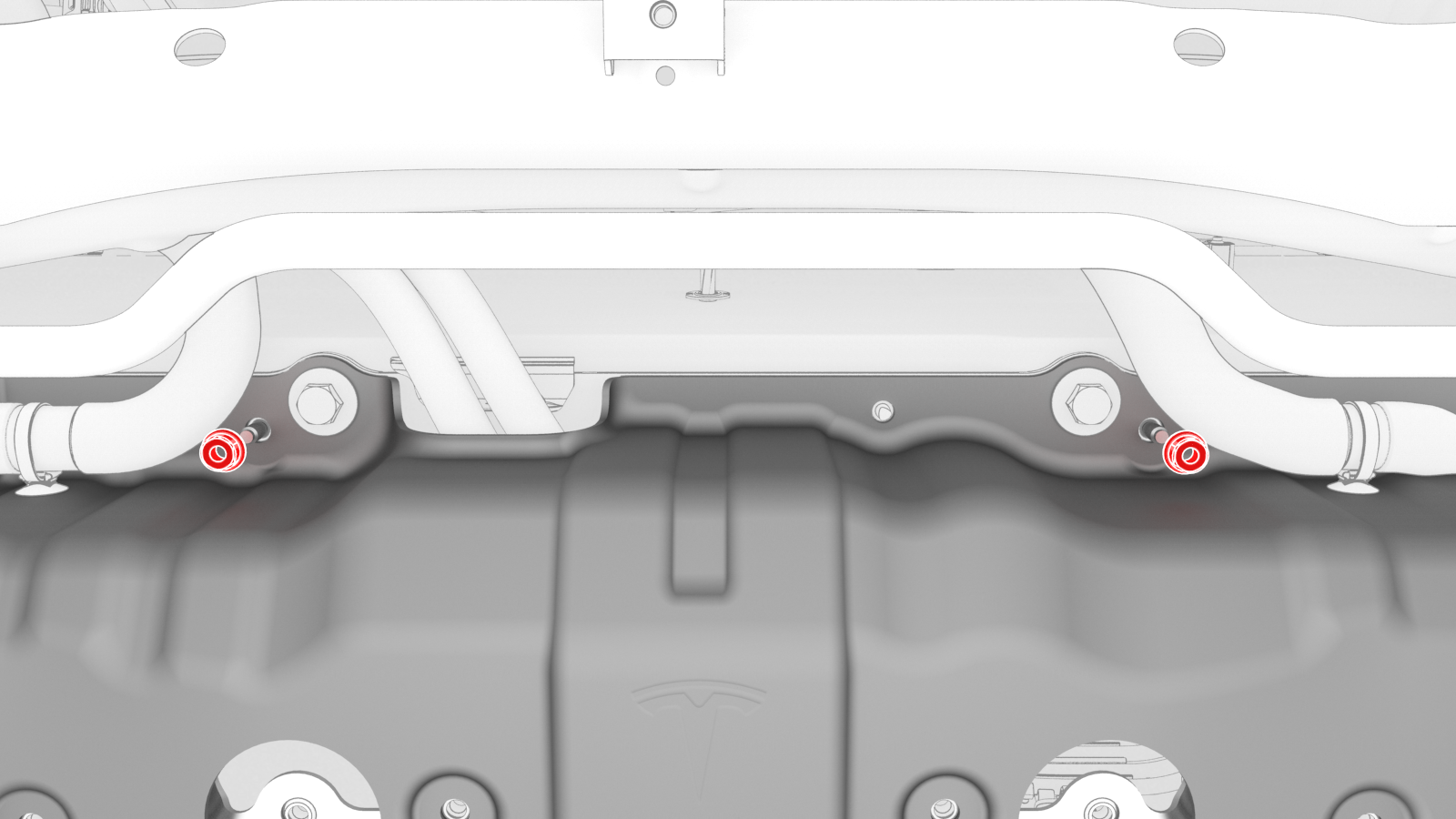

  4. Remove the upper nuts that attach the skid plate to the HV battery.
    Torque 13 Nm

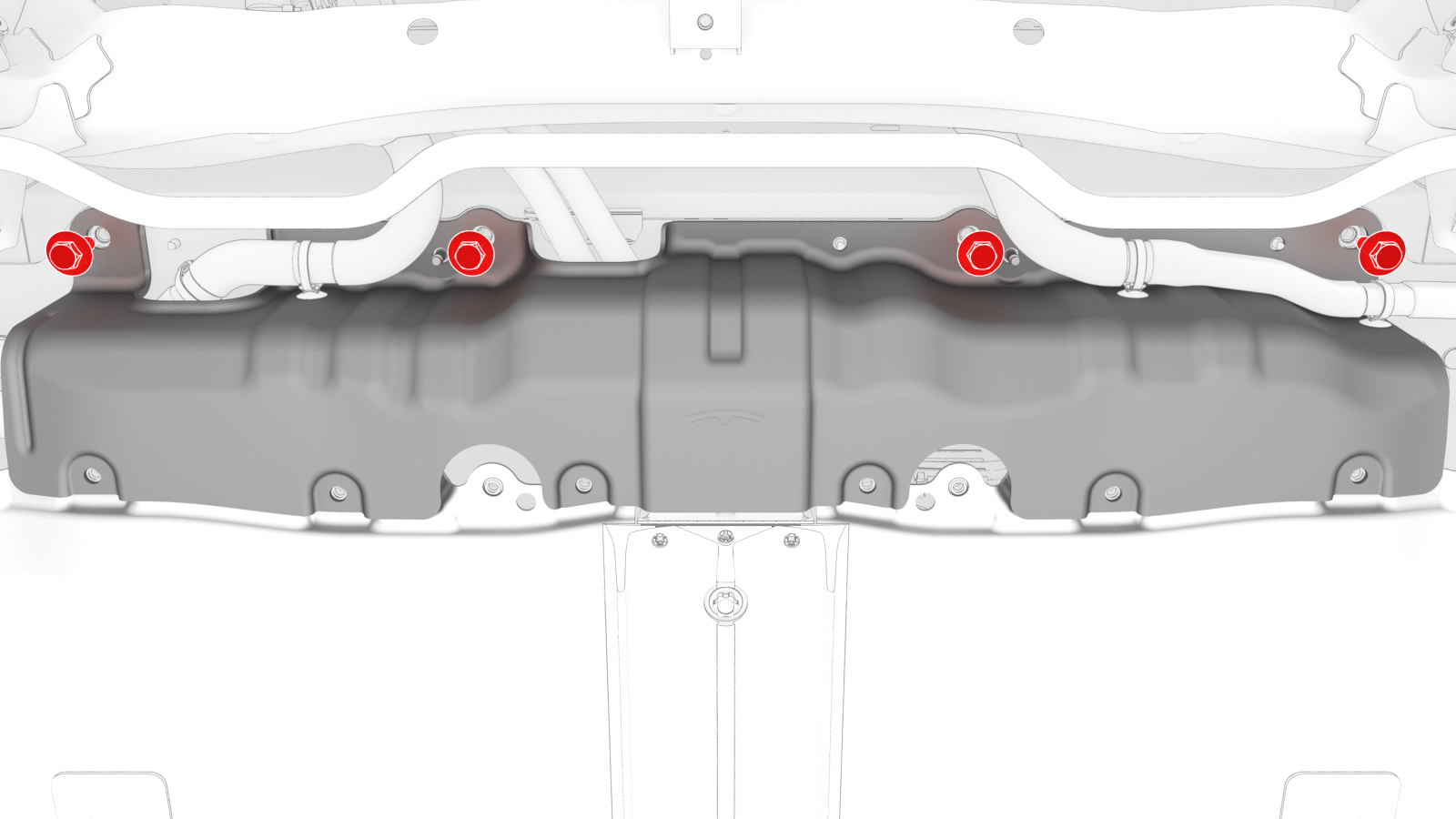

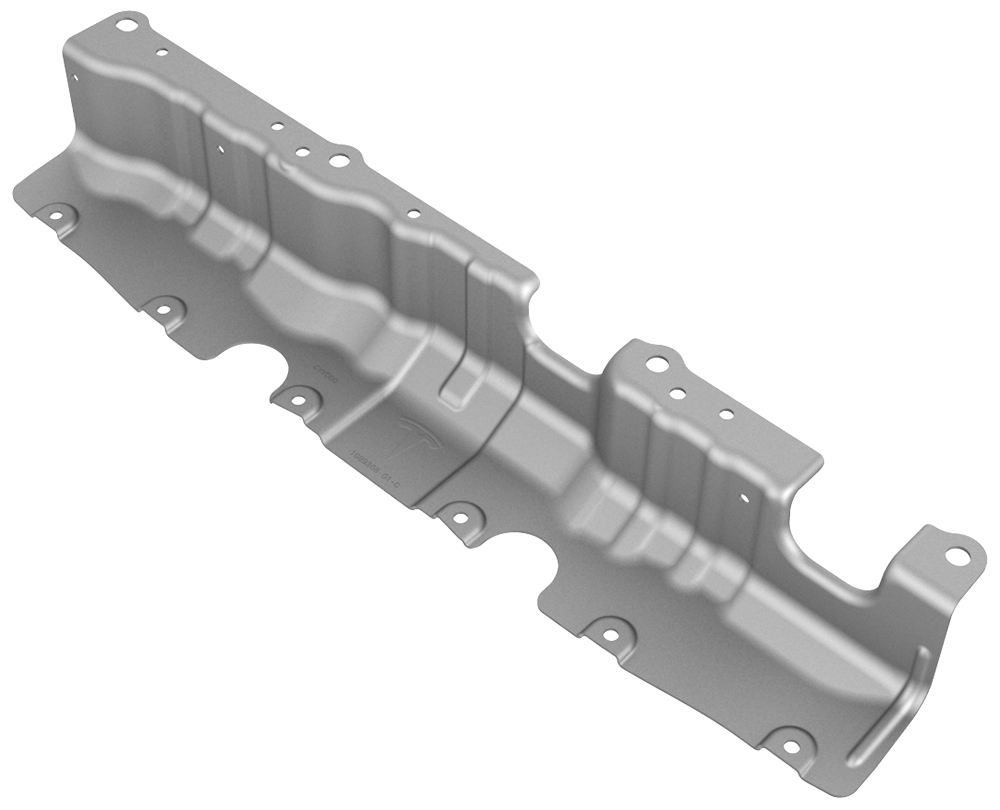

  5. Remove the upper bolts that attach the skid plate to the HV battery, and then remove the skid plate from the HV battery.
    Torque 30 Nm
1Remove the mid aero shield. See Panel - Aero Shield - Mid (Remove and Replace).
2Release the clips that attach the hoses to the rear HV battery skid plate
3Remove the lower bolts that attach the skid plate to the HV battery.
Torque 13 Nm
4Remove the upper nuts that attach the skid plate to the HV battery.
Torque 13 Nm
5Remove the upper bolts that attach the skid plate to the HV battery, and then remove the skid plate from the HV battery.
Torque 30 Nm

Install

Installation procedure is the reverse of removal.
