Overhead Console - Rear (Remove and Replace)

Correction code 1520240215202402
Parent topic: 1520 - Headliner

Remove

  1. Release the clips (x2) that attach the rear overhead console to the headliner, and then lower the console from the headliner.
    Caution:

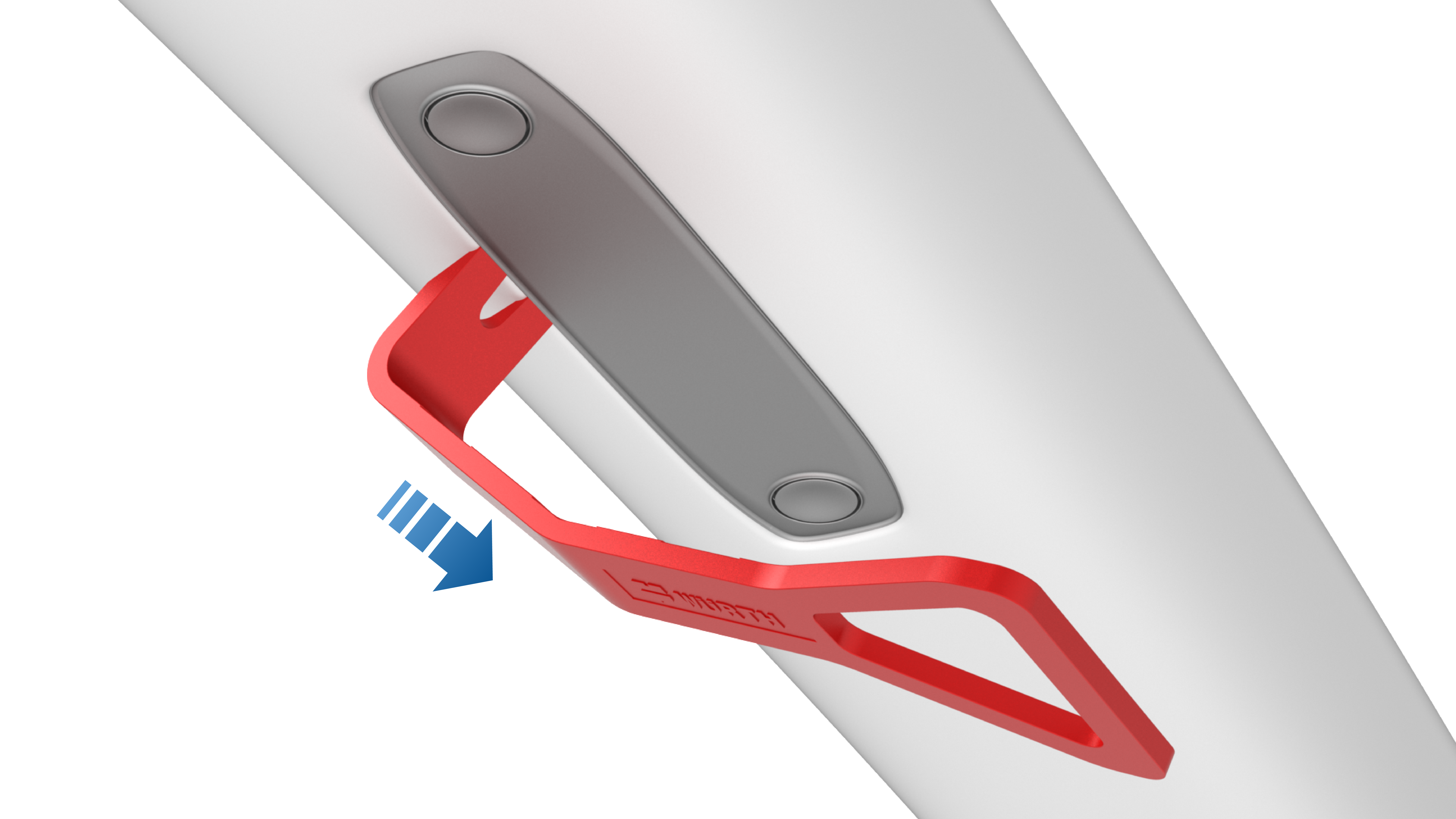

    To avoid damaging the headliner, do not pry against the headliner. Insert a 90 degree trim tool near the dome light and pull downwards to release the clip, and then move to the other side to release the remaining clip.
  2. Disconnect the electrical wiring connector from the rear overhead console, and then remove the console from the vehicle.
1Release the clips (x2) that attach the rear overhead console to the headliner, and then lower the console from the headliner.
Caution:
To avoid damaging the headliner, do not pry against the headliner. Insert a 90 degree trim tool near the dome light and pull downwards to release the clip, and then move to the other side to release the remaining clip.
2Disconnect the electrical wiring connector from the rear overhead console, and then remove the console from the vehicle.

Install

Installation procedure is the reverse of removal.
