Switch - Back Rest and Cushion Adjust - Driver Seat (Remove and Replace)

Correction code 1301510213015102

Remove

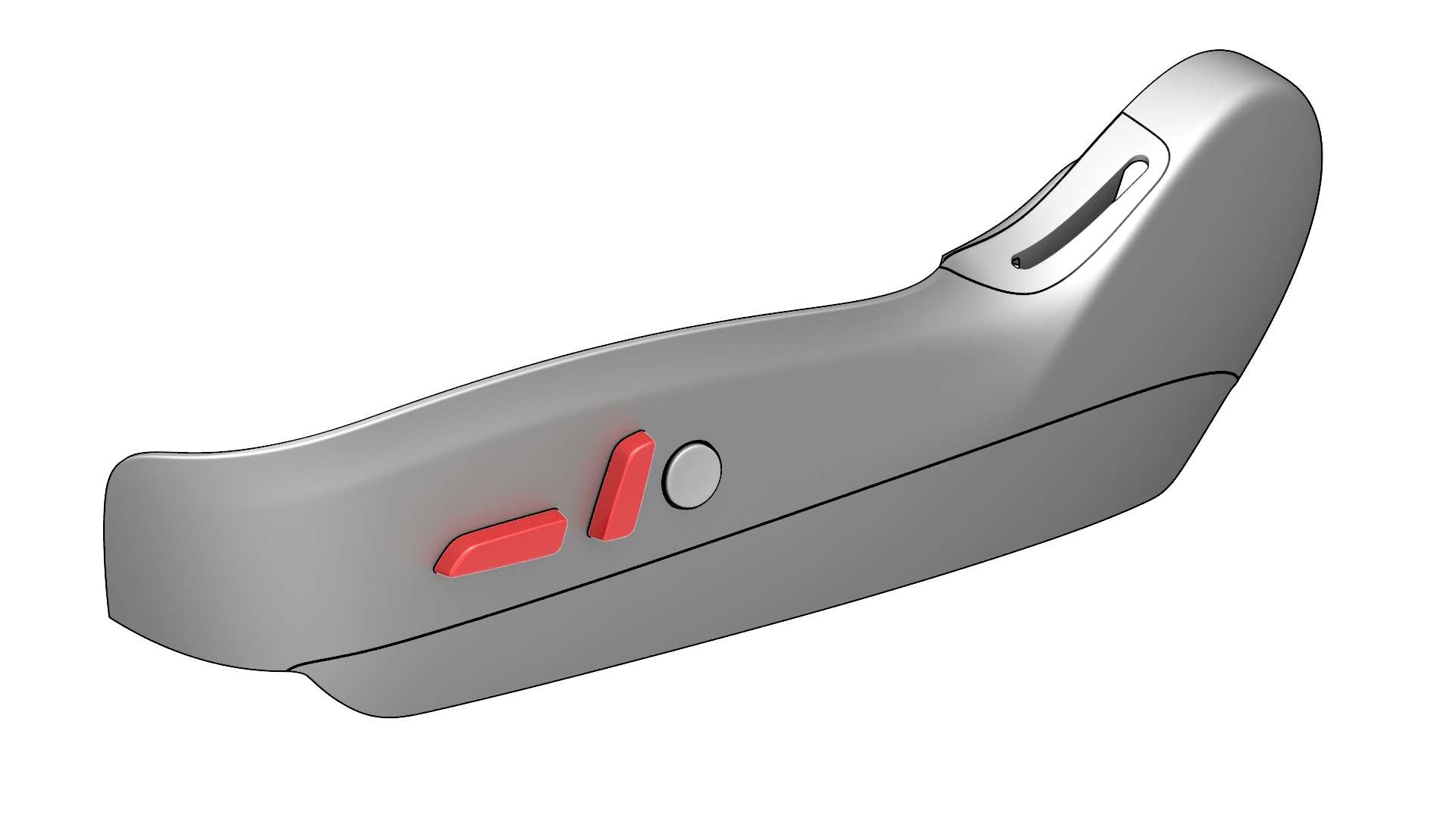

Remove the drivers seat outer side cover. See Cover - Outer Side - Driver Seat (Remove and Install).

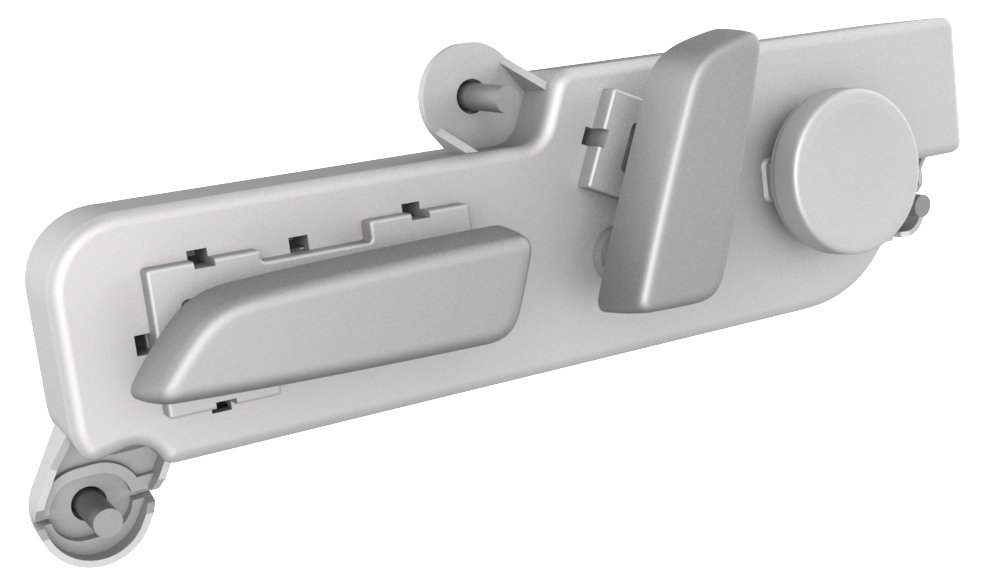

Carefully release the clips that attach the seat cushion and seat back buttons to the driver seat backrest and cushion adjust switch, and then remove the buttons from the outer side cover.

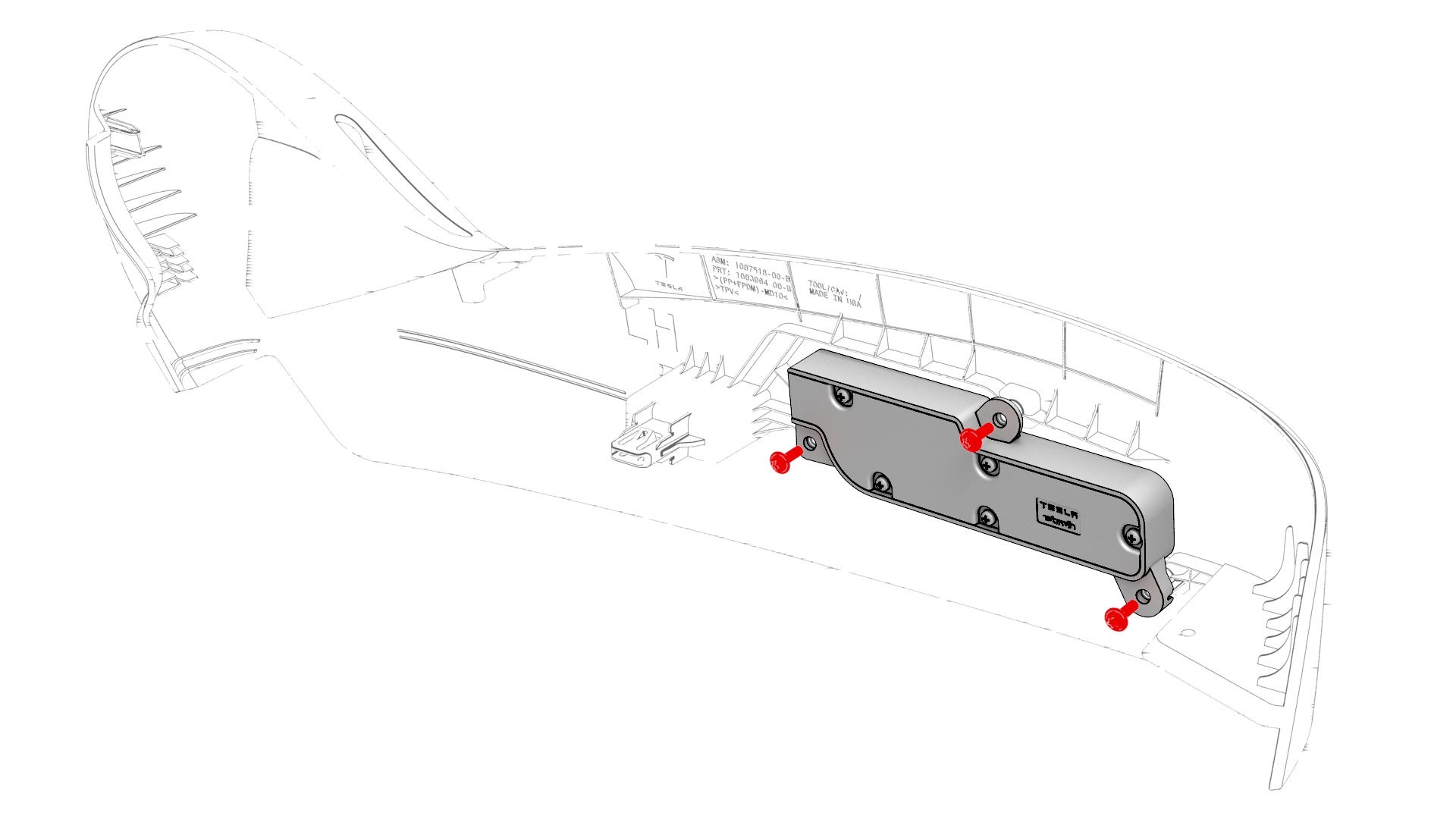

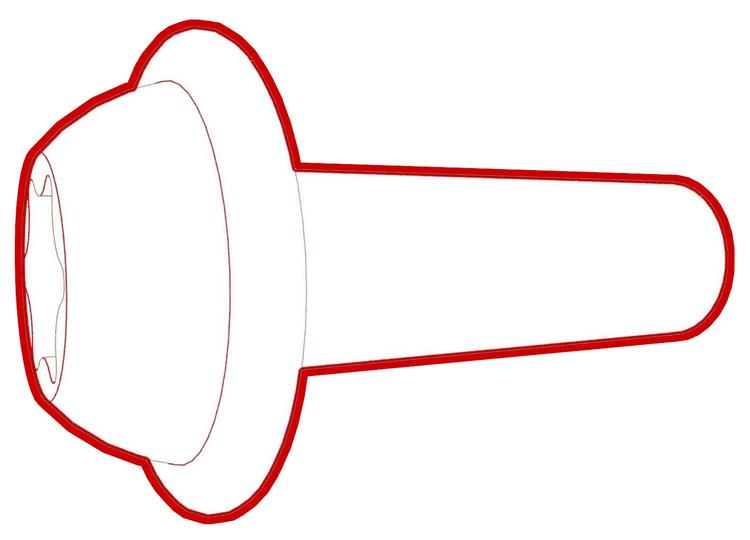

Remove the screws that attach the driver seat backrest and cushion adjust switch to the outer side cover, and remove the switch from the cover.
Torque 1.7 Nm

		1	Remove the drivers seat outer side cover. See Cover - Outer Side - Driver Seat (Remove and Install).
		2	Carefully release the clips that attach the seat cushion and seat back buttons to the driver seat backrest and cushion adjust switch, and then remove the buttons from the outer side cover.
		3	Remove the screws that attach the driver seat backrest and cushion adjust switch to the outer side cover, and remove the switch from the cover. Torque 1.7 Nm

Install

Installation procedure is the reverse of removal.
