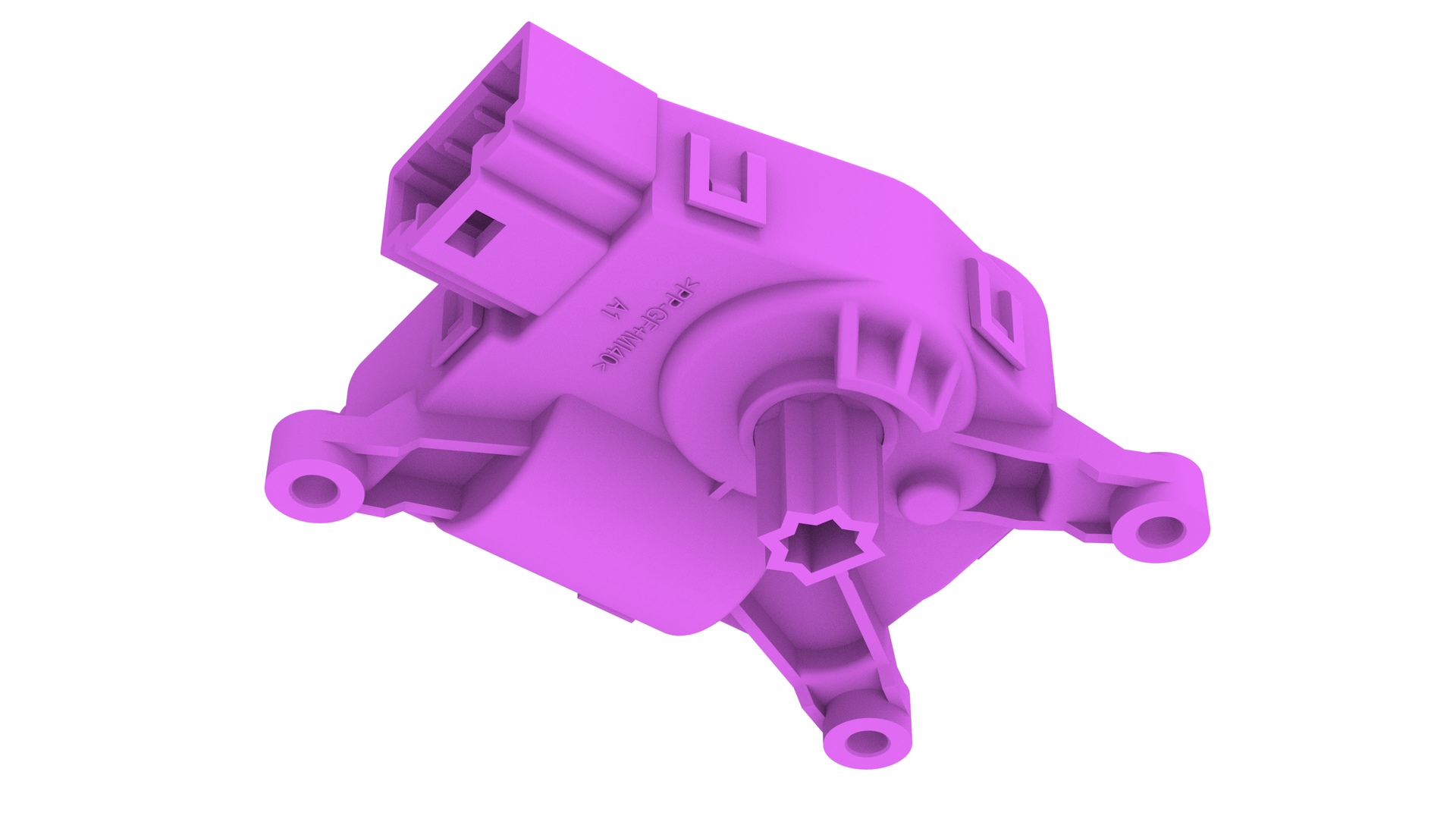

Actuator - Intake (Remove and Replace)

Correction code 1810200218102002
Parent topic: 1810 - Cabin HVAC

Remove

  1. Remove the HVAC assembly. See HVAC Assembly (Remove and Replace).

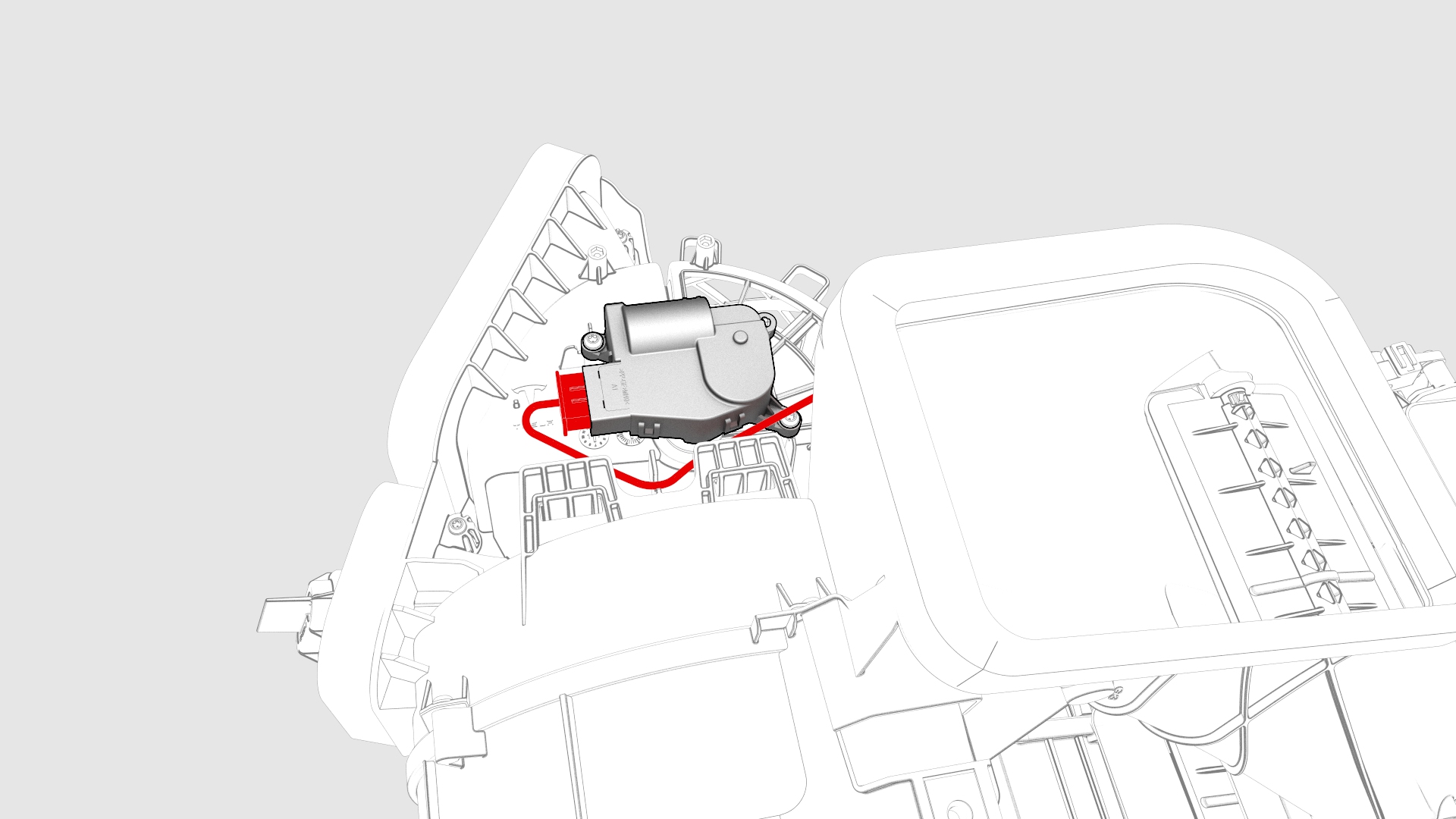

  2. Disconnect the electrical harness from the intake actuator connector.

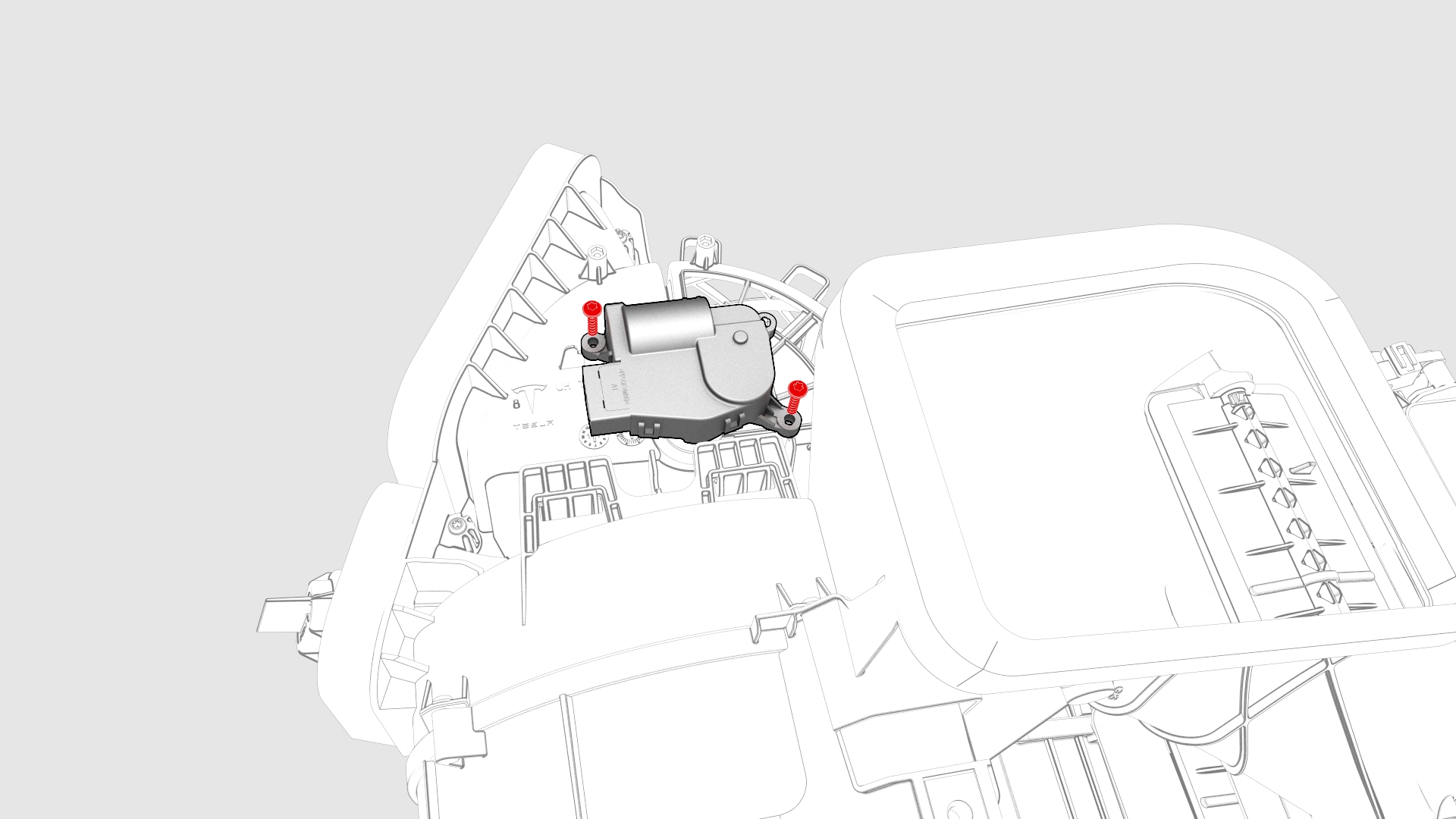

  3. Remove the screws (x2) that attach the intake actuator to the HVAC module, and then remove the actuator from the HVAC module.

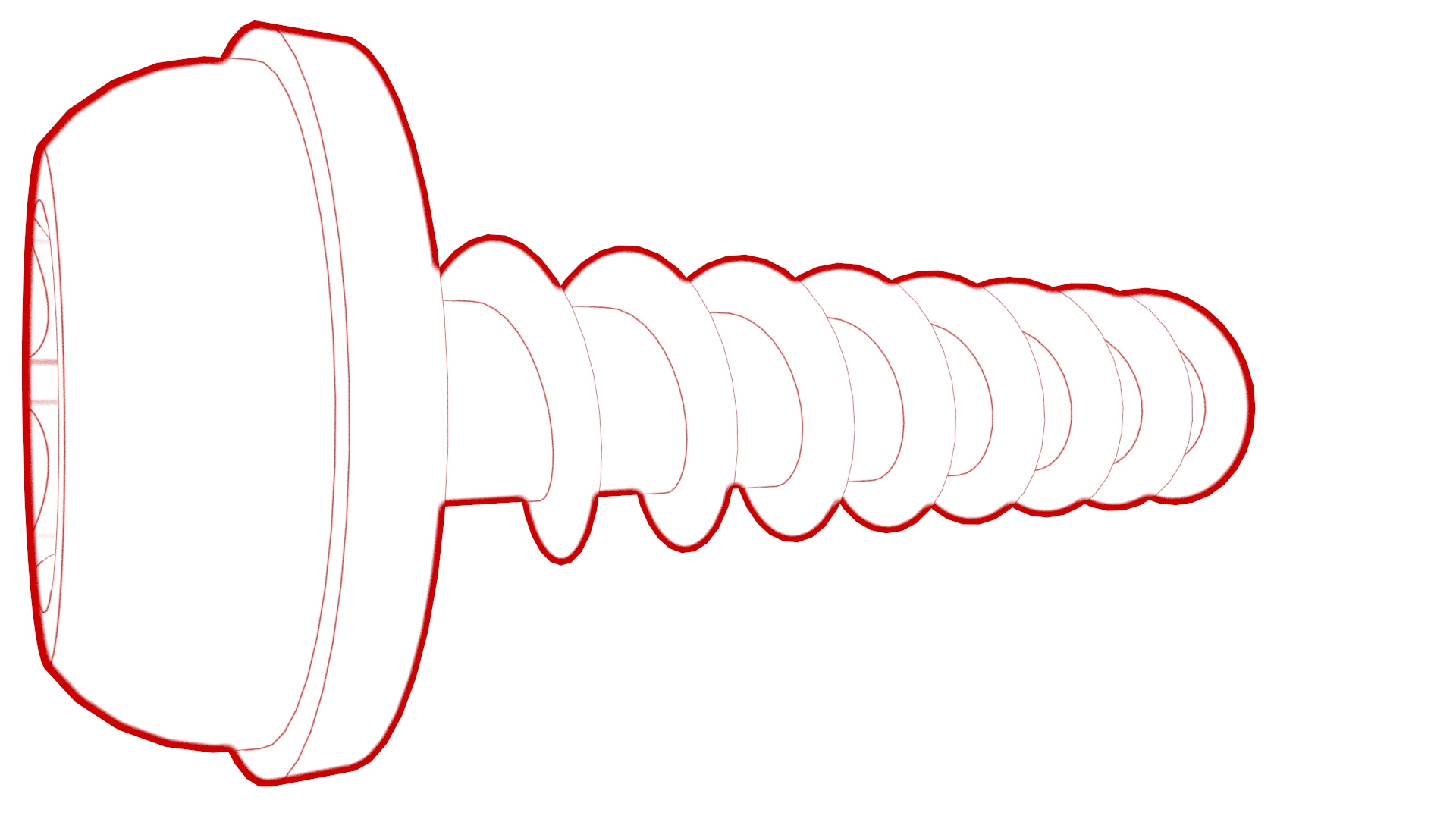

    Torque 1.2 Nm
1Remove the HVAC assembly. See HVAC Assembly (Remove and Replace).
2Disconnect the electrical harness from the intake actuator connector.
3Remove the screws (x2) that attach the intake actuator to the HVAC module, and then remove the actuator from the HVAC module.
Torque 1.2 Nm

Install

Installation procedure is the reverse of removal.
