Power Socket 12V - Center Console (Remove and Replace)

Correction code 1730320217303202
Parent topic: 1730 - Interior Switches

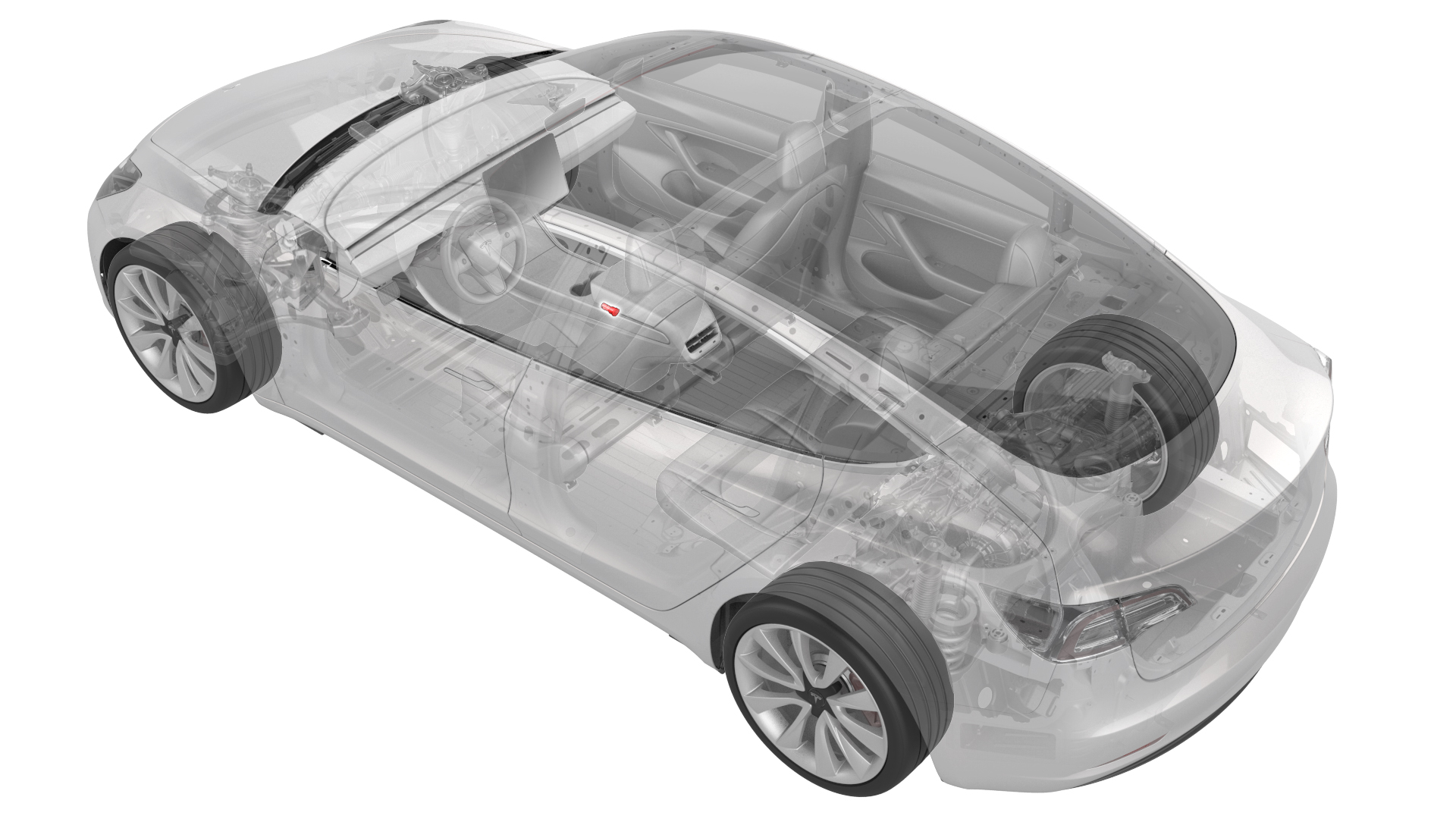

Remove

  1. Disconnect 12V power. See 12V Power (Disconnect and Connect).
  2. Remove the center console decor trim. See Decor Trim - Center Console (Remove and Replace).

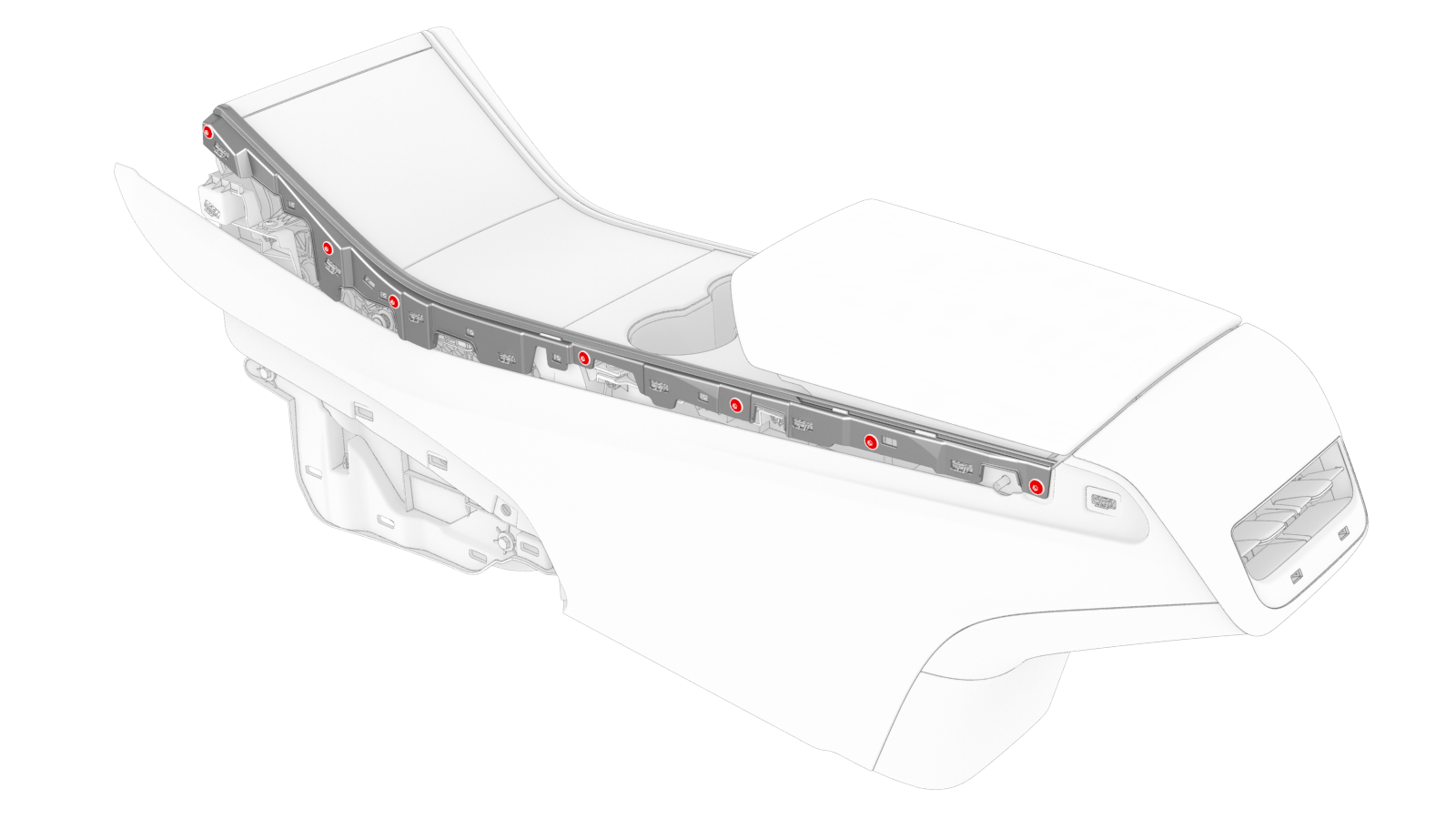

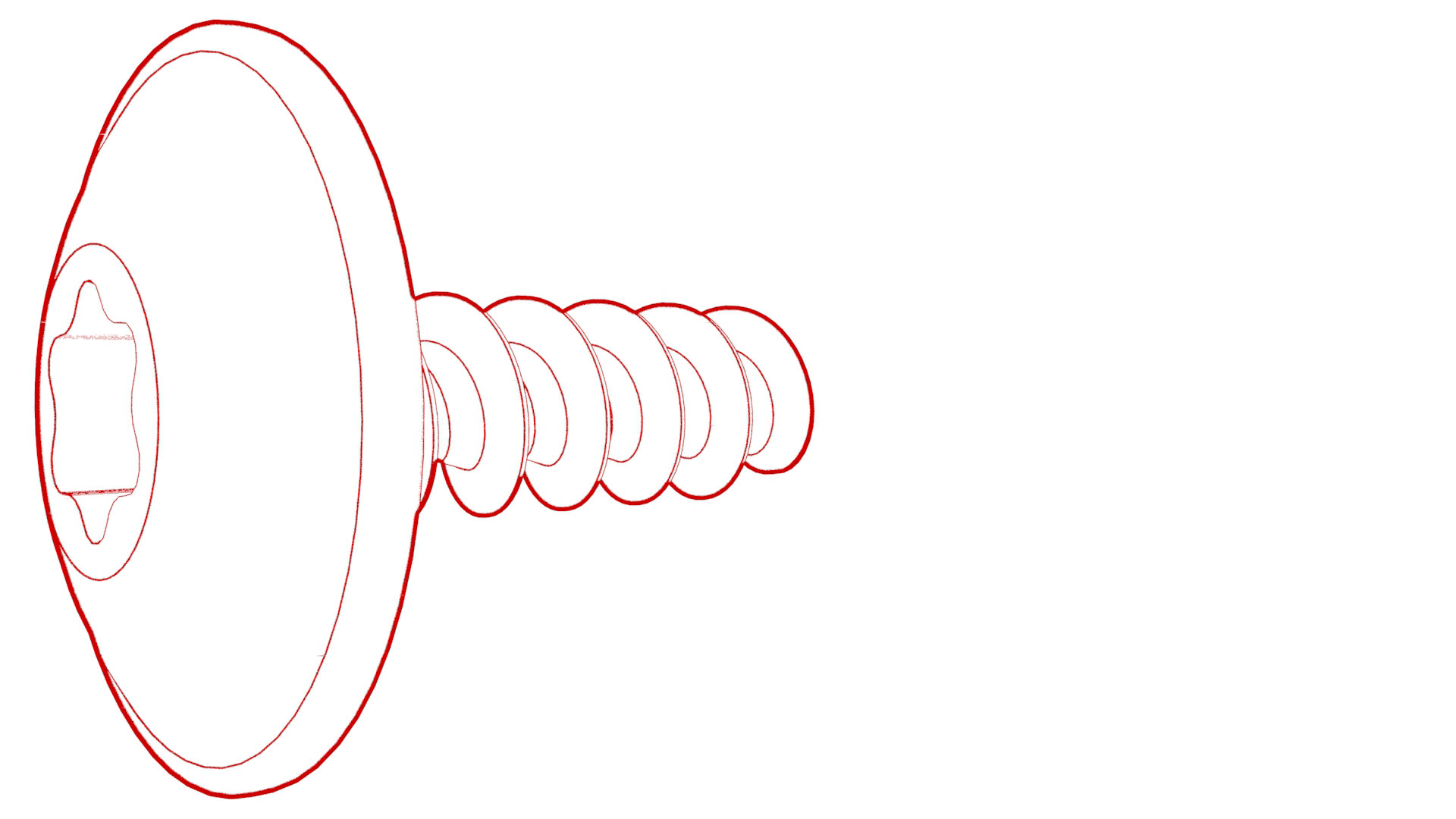

  3. Remove the screws and release the tabs that attach LH and RH bright strips to the center console, and then remove the strips from the console.
    Torque 1.6 Nm
  4. Open the armrest.

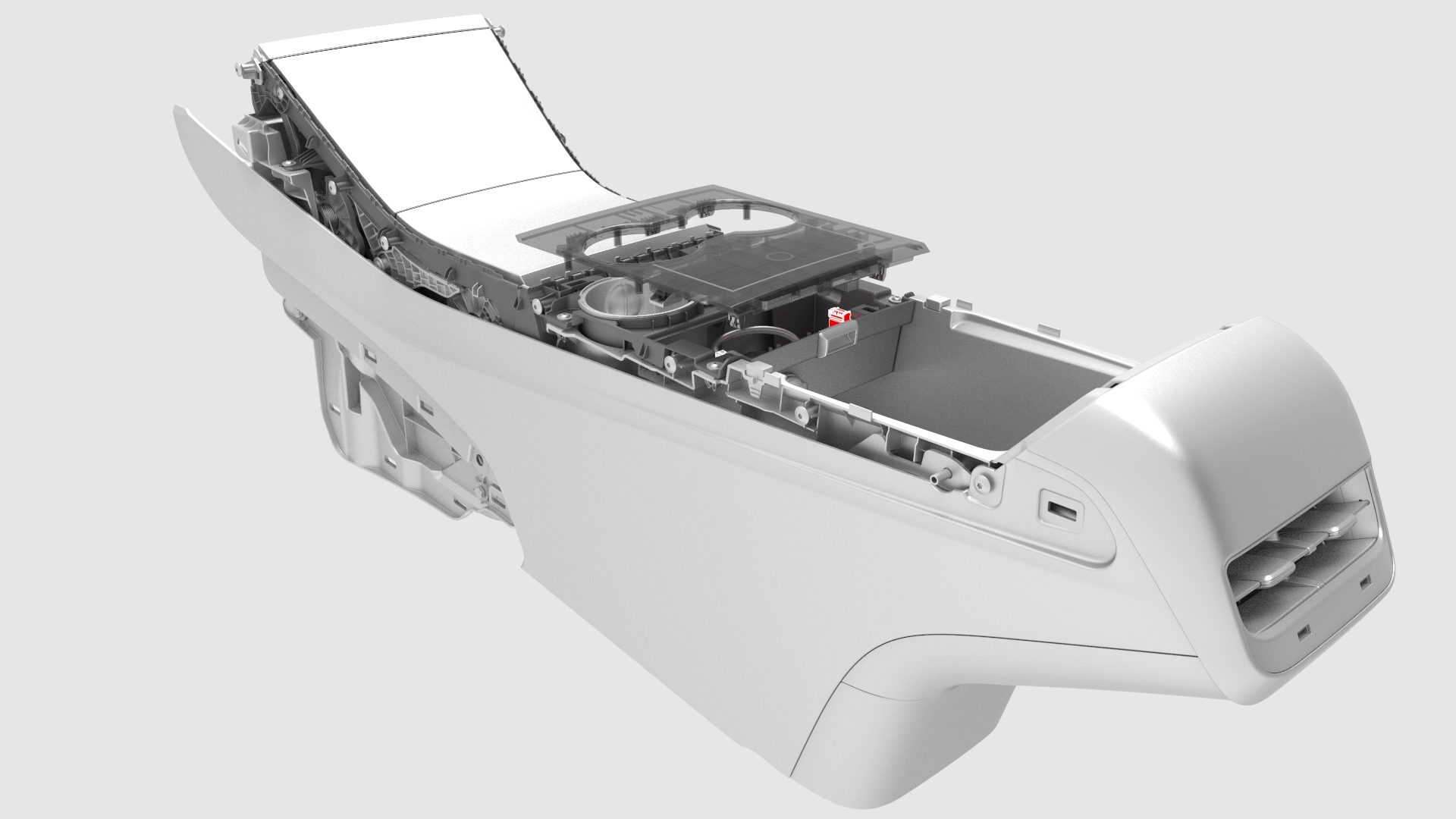

  5. Release the clips (x6) that attach the cupholder decor trim to the cupholder assembly, and then separate the trim from the center console assembly.
  6. Disconnect the electrical harness from the security body controller module connector, and then remove the trim from the vehicle.

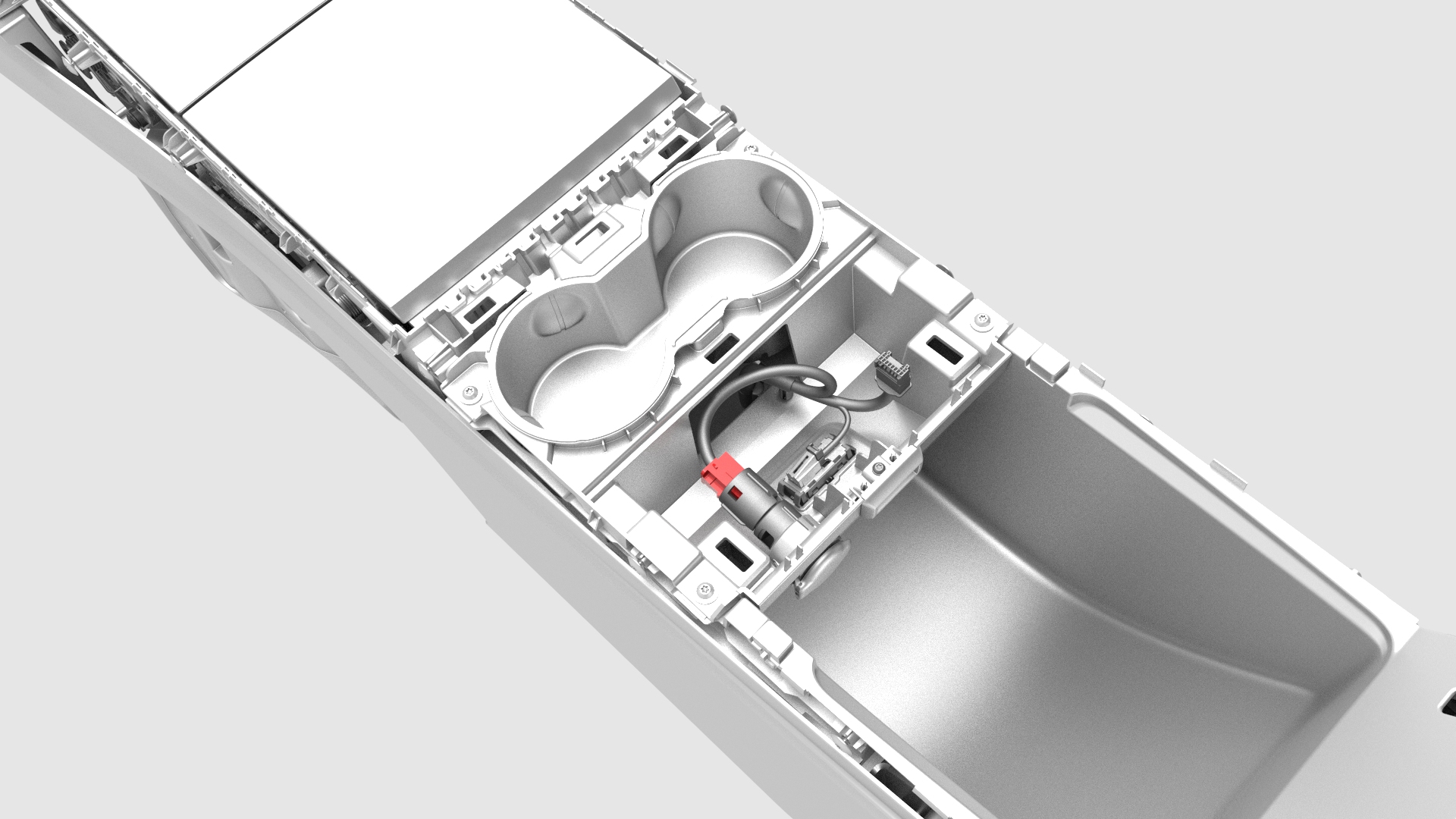

  7. Disconnect the electrical harness from the center console power socket connector.

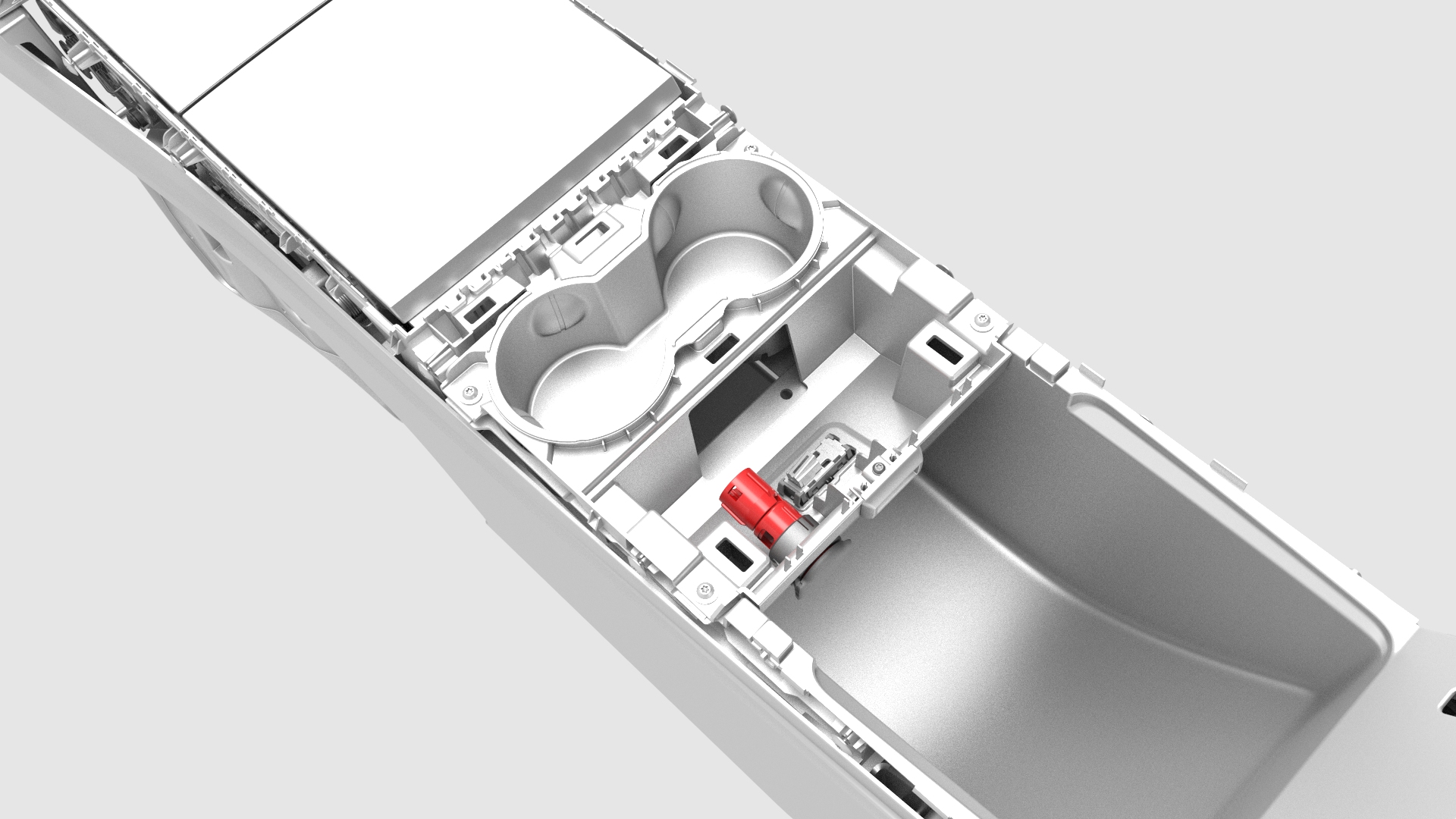

  8. Release the small tabs on the spring cap and slide the power socket inside the cap, so that the openings in the side of the socket align with the large tabs of the cap.

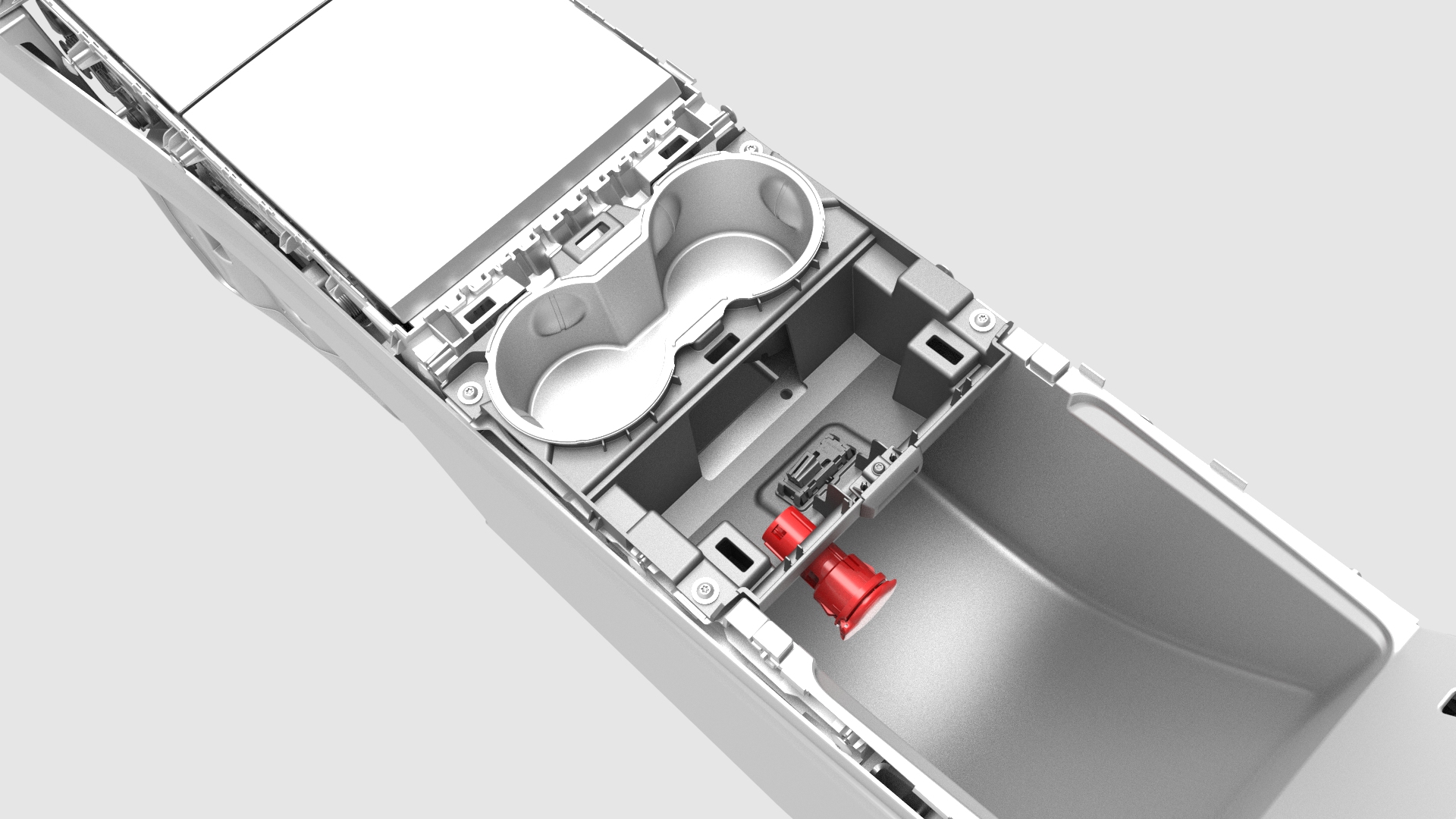

  9. Release the tabs of the cap and move the power socket and cap together out through the cupholder assembly.

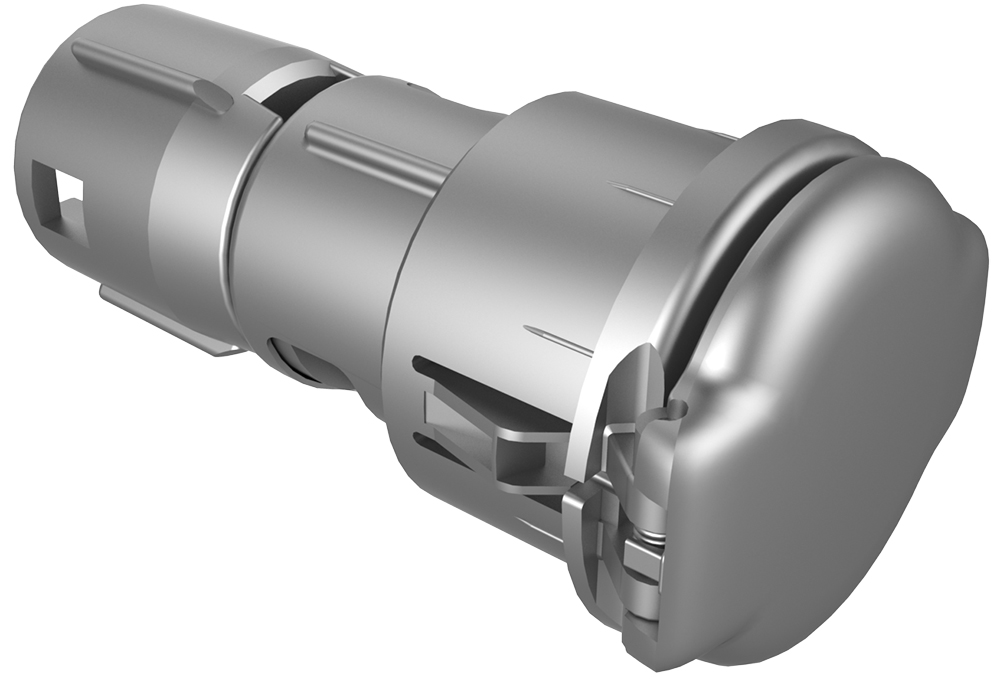

  10. Separate the power socket from the cap.
1Disconnect 12V power. See 12V Power (Disconnect and Connect).
2Remove the center console decor trim. See Decor Trim - Center Console (Remove and Replace).
3Remove the screws and release the tabs that attach LH and RH bright strips to the center console, and then remove the strips from the console.
Torque 1.6 Nm
4Open the armrest.
5Release the clips (x6) that attach the cupholder decor trim to the cupholder assembly, and then separate the trim from the center console assembly.
6Disconnect the electrical harness from the security body controller module connector, and then remove the trim from the vehicle.
7Disconnect the electrical harness from the center console power socket connector.
8Release the small tabs on the spring cap and slide the power socket inside the cap, so that the openings in the side of the socket align with the large tabs of the cap.
9Release the tabs of the cap and move the power socket and cap together out through the cupholder assembly.
10Separate the power socket from the cap.

Install

Installation procedure is the reverse of removal.
