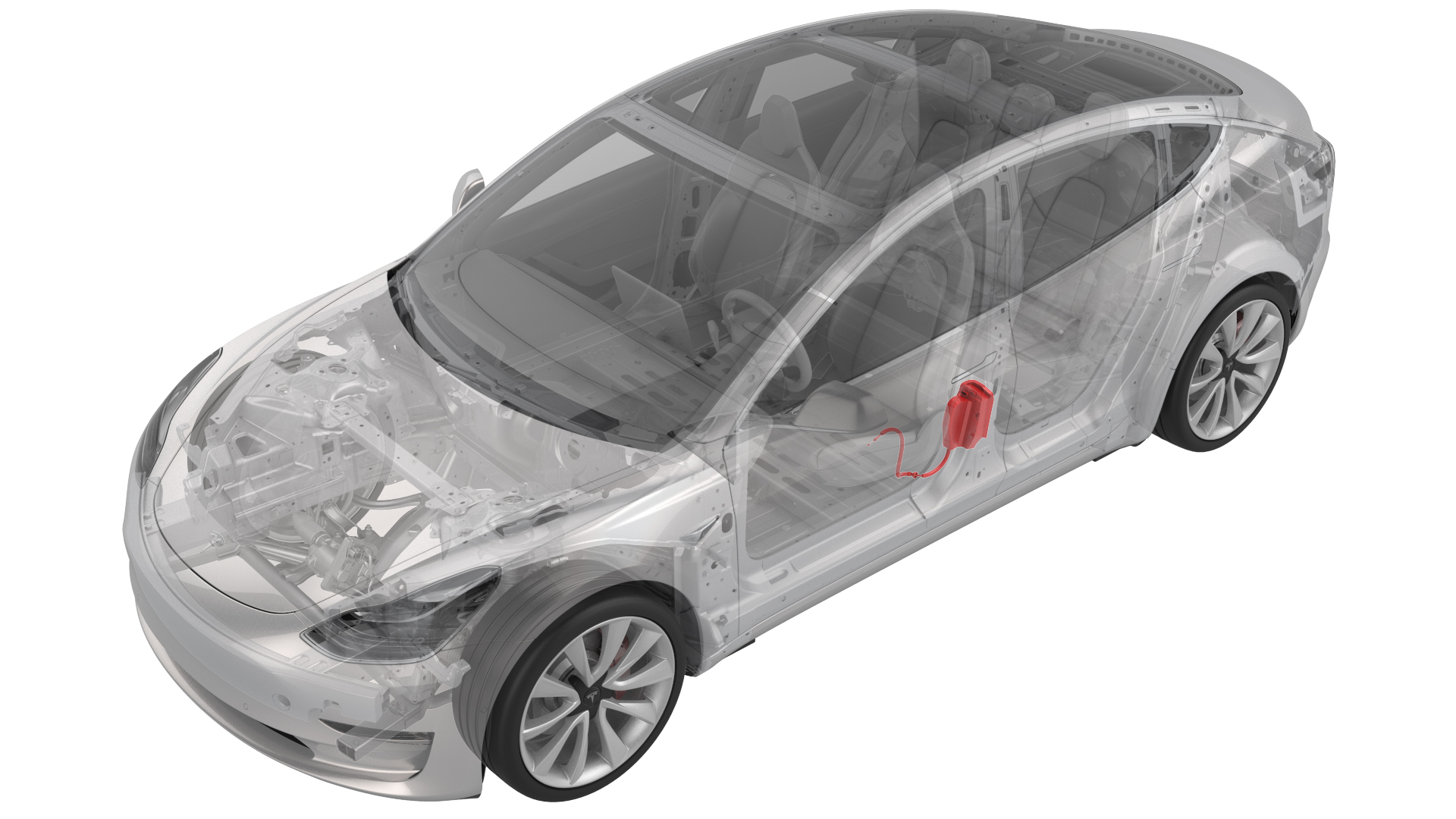

Latch - Door - Front - LH (Remove and Replace)

Correction code 1135100211351002
Parent topic: 1135 - Latches Strikers and Pinch Sensors

Remove

  1. Remove the front LH door closeout panel. See Closeout Panel - Door - Front - LH (Remove and Install).

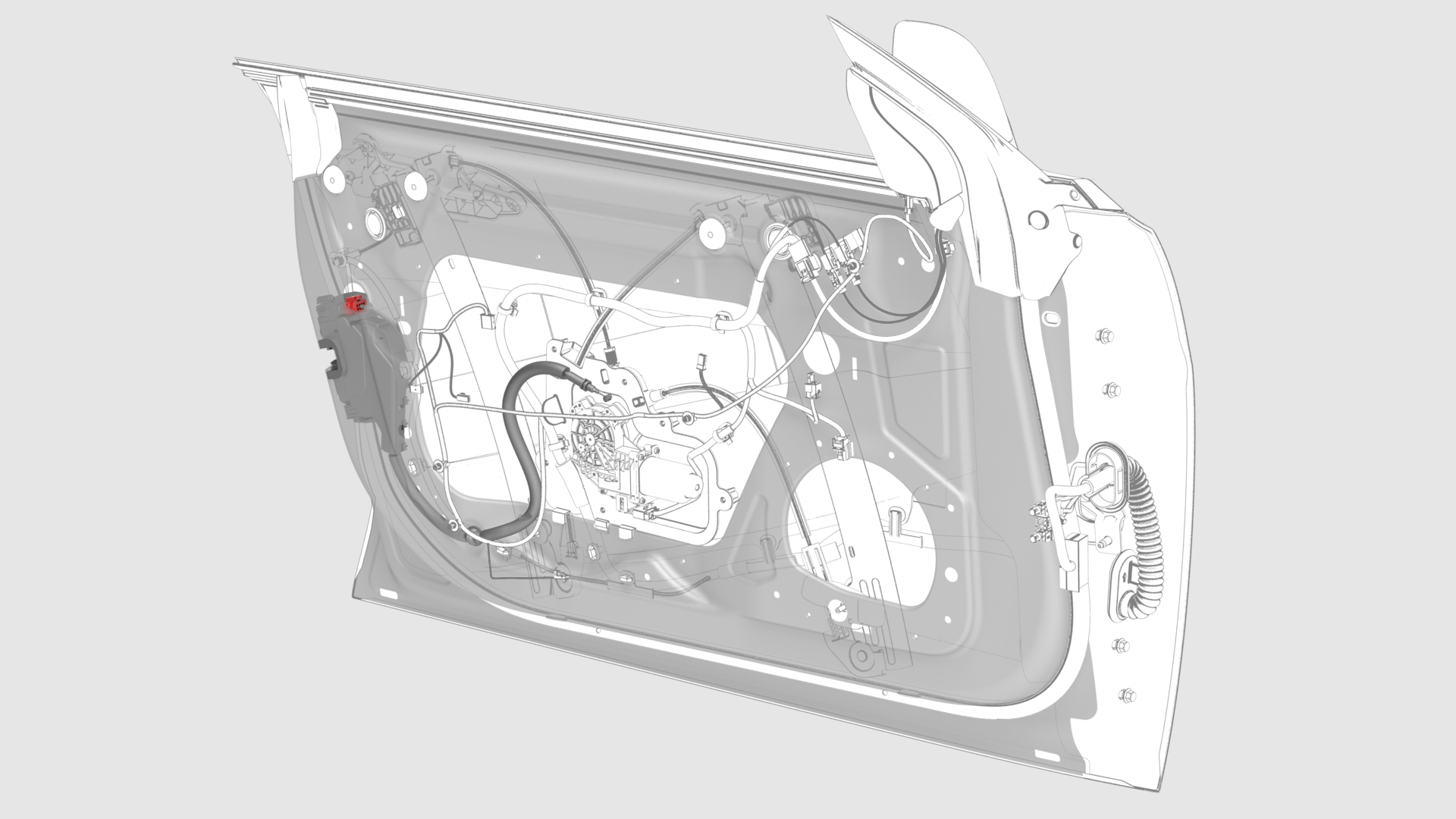

  2. Disconnect the electrical harness from the door latch connector.

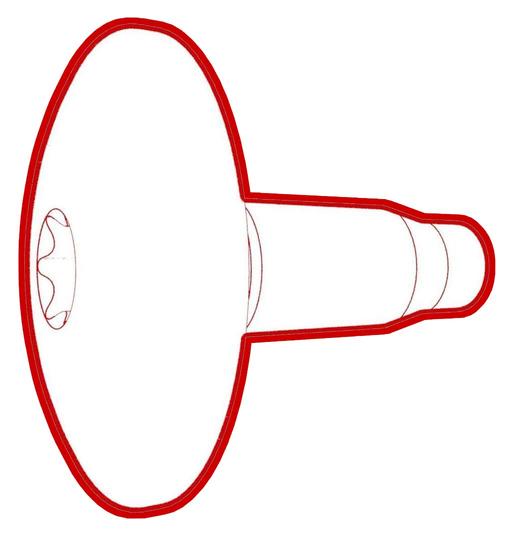

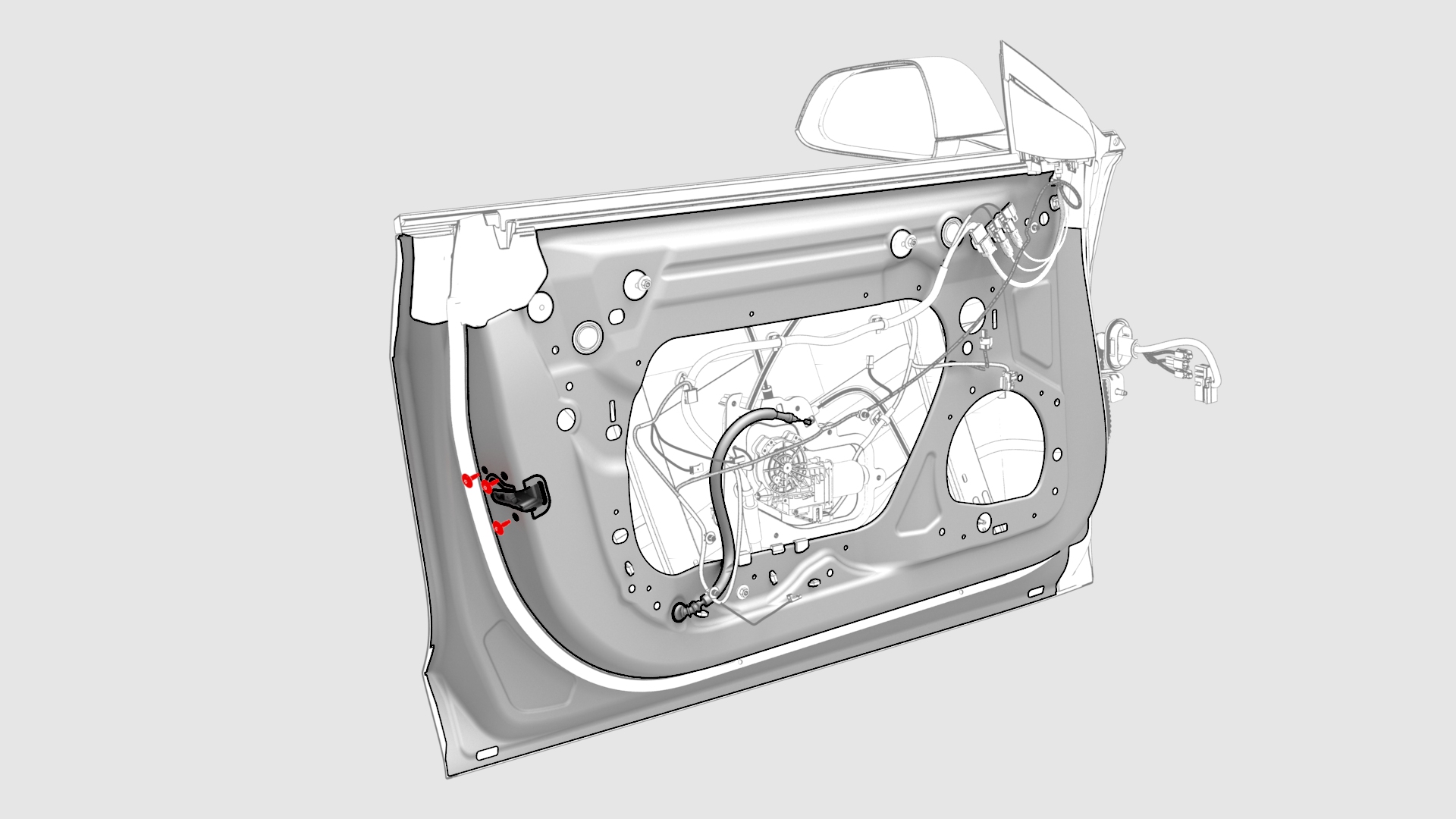

  3. Remove the bolts that attach the latch to the rear of the door.
    Torque 10 Nm

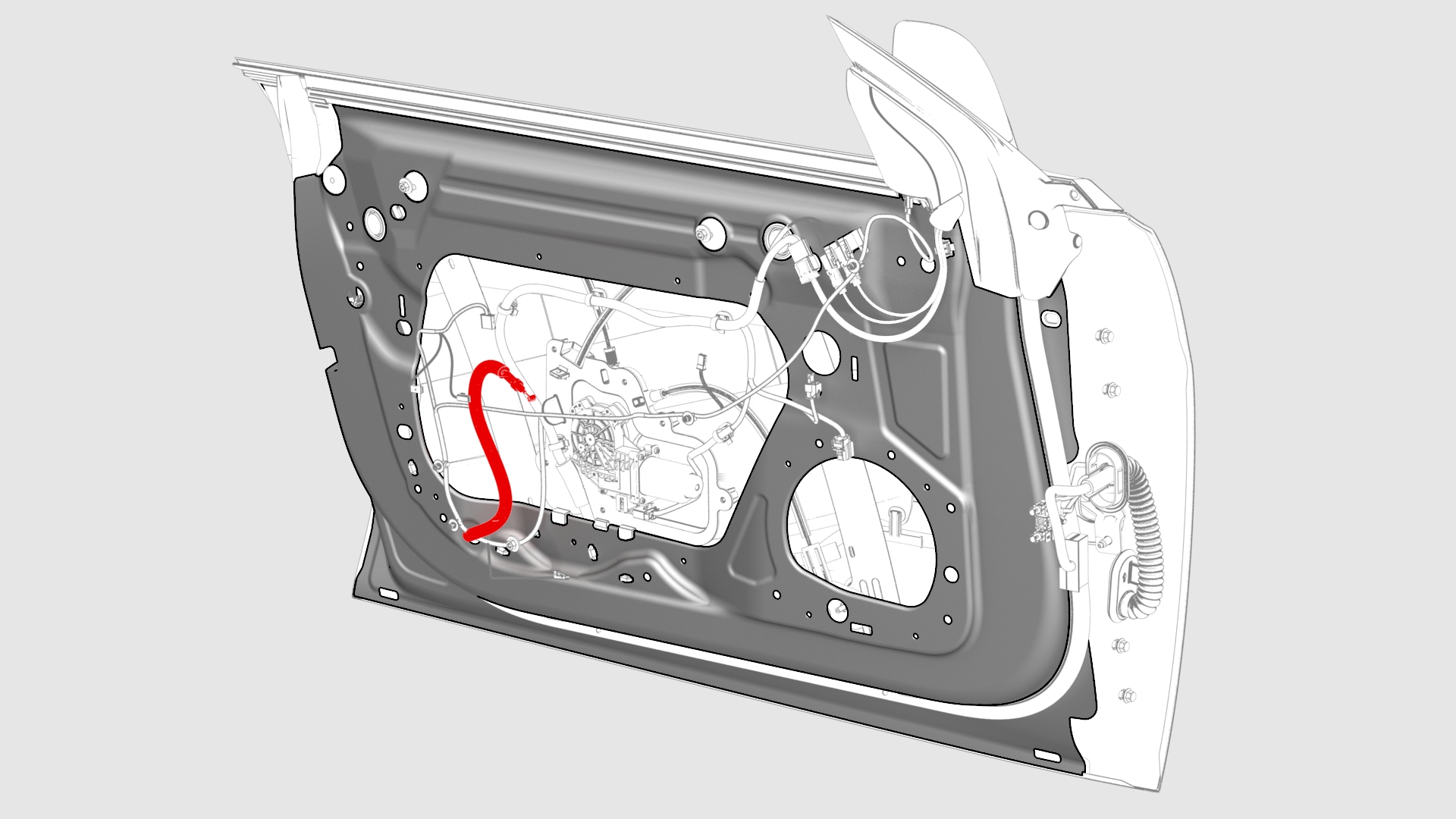

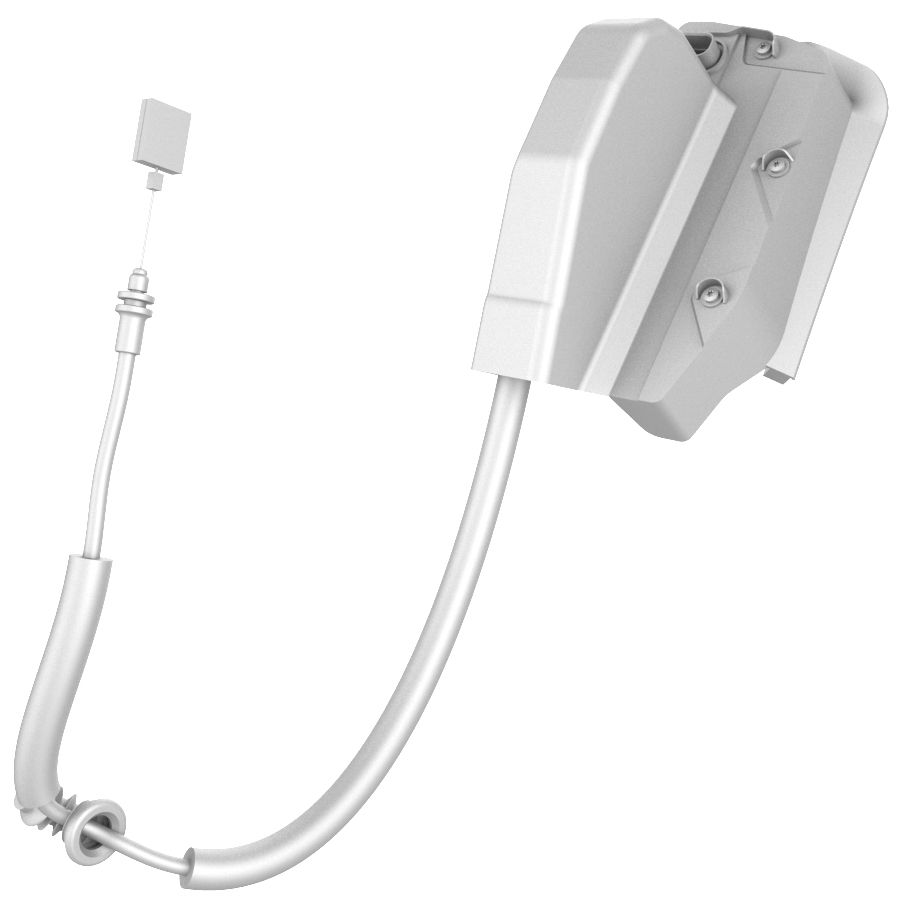

  4. Press the latch cable grommet in through the door, and move the cable in through the opening while simultaneously removing the latch from the door.
1Remove the front LH door closeout panel. See Closeout Panel - Door - Front - LH (Remove and Install).
2Disconnect the electrical harness from the door latch connector.
3Remove the bolts that attach the latch to the rear of the door.
Torque 10 Nm
4Press the latch cable grommet in through the door, and move the cable in through the opening while simultaneously removing the latch from the door.

Install

Installation procedure is the reverse of removal, except for the following:

Note: When installing the latch, pull on the grommet and not the cable to seat the grommet in the door.
