Breathers - HV Battery (Remove and Replace)

Correction code 1610230216102302
Parent topic: 1610 - HV Battery Enclosure

Remove

  1. Remove the mid aero shield panel. See Panel - Aero Shield - Mid (Remove and Replace).
  2. Release the fir tree clips that attach the coolant hoses to the LH shear plate.
  3. Remove and discard the HV battery breather from the LH HV battery vent shroud assembly.
  4. Release the fir tree clips that attach the coolant hoses to the RH shear plate.
  5. Remove and discard the HV battery breather from the RH HV battery vent shroud assembly.
1Remove the mid aero shield panel. See Panel - Aero Shield - Mid (Remove and Replace).
2Release the fir tree clips that attach the coolant hoses to the LH shear plate.
3Remove and discard the HV battery breather from the LH HV battery vent shroud assembly.
4Release the fir tree clips that attach the coolant hoses to the RH shear plate.
5Remove and discard the HV battery breather from the RH HV battery vent shroud assembly.

Install

  1. Use an IPA wipe to clean the holes where the breathers will install.

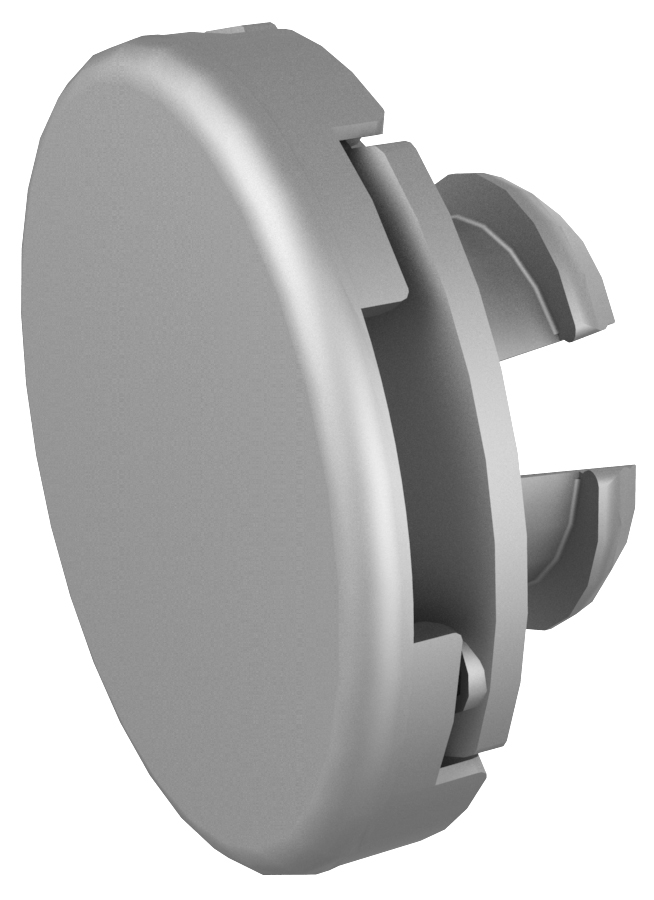

  2. Install a new HV battery breather into the LH HV battery vent shroud assembly.
    Note: Press at the center of the breather, and then press at 3 points forming a triangle pattern on the breather, to make sure that the HV battery breather is fully seated.
  3. Apply sideways pressure on the HV battery breather at several locations to verify that it is attach in the LH HV battery vent shroud.
  4. Fasten the fir tree clips that attach the coolant hoses to the LH shear plate.
  5. Install a new HV battery breather into the RH HV battery vent shroud assembly.
    Note: Press at the center of the breather, and then press at 3 points forming a triangle pattern on the breather, to make sure that the HV battery breather is fully seated.
  6. Apply sideways pressure on the HV battery breather at several locations to verify that it is attach in the RH HV battery vent shroud.
  7. Fasten the fir tree clips that attach the coolant hoses to the RH shear plate.
  8. Install the mid aero shield panel. See Panel - Aero Shield - Mid (Remove and Replace).
1Use an IPA wipe to clean the holes where the breathers will install.
2Install a new HV battery breather into the LH HV battery vent shroud assembly.
Note: Press at the center of the breather, and then press at 3 points forming a triangle pattern on the breather, to make sure that the HV battery breather is fully seated.
3Apply sideways pressure on the HV battery breather at several locations to verify that it is attach in the LH HV battery vent shroud.
4Fasten the fir tree clips that attach the coolant hoses to the LH shear plate.
5Install a new HV battery breather into the RH HV battery vent shroud assembly.
Note: Press at the center of the breather, and then press at 3 points forming a triangle pattern on the breather, to make sure that the HV battery breather is fully seated.
6Apply sideways pressure on the HV battery breather at several locations to verify that it is attach in the RH HV battery vent shroud.
7Fasten the fir tree clips that attach the coolant hoses to the RH shear plate.
8Install the mid aero shield panel. See Panel - Aero Shield - Mid (Remove and Replace).
