Cap - Wheel (Remove and Replace)

Correction code 18 inch pinwheel: 18 inch pinwheel: 34015021, 19 inch stiletto: 34015011

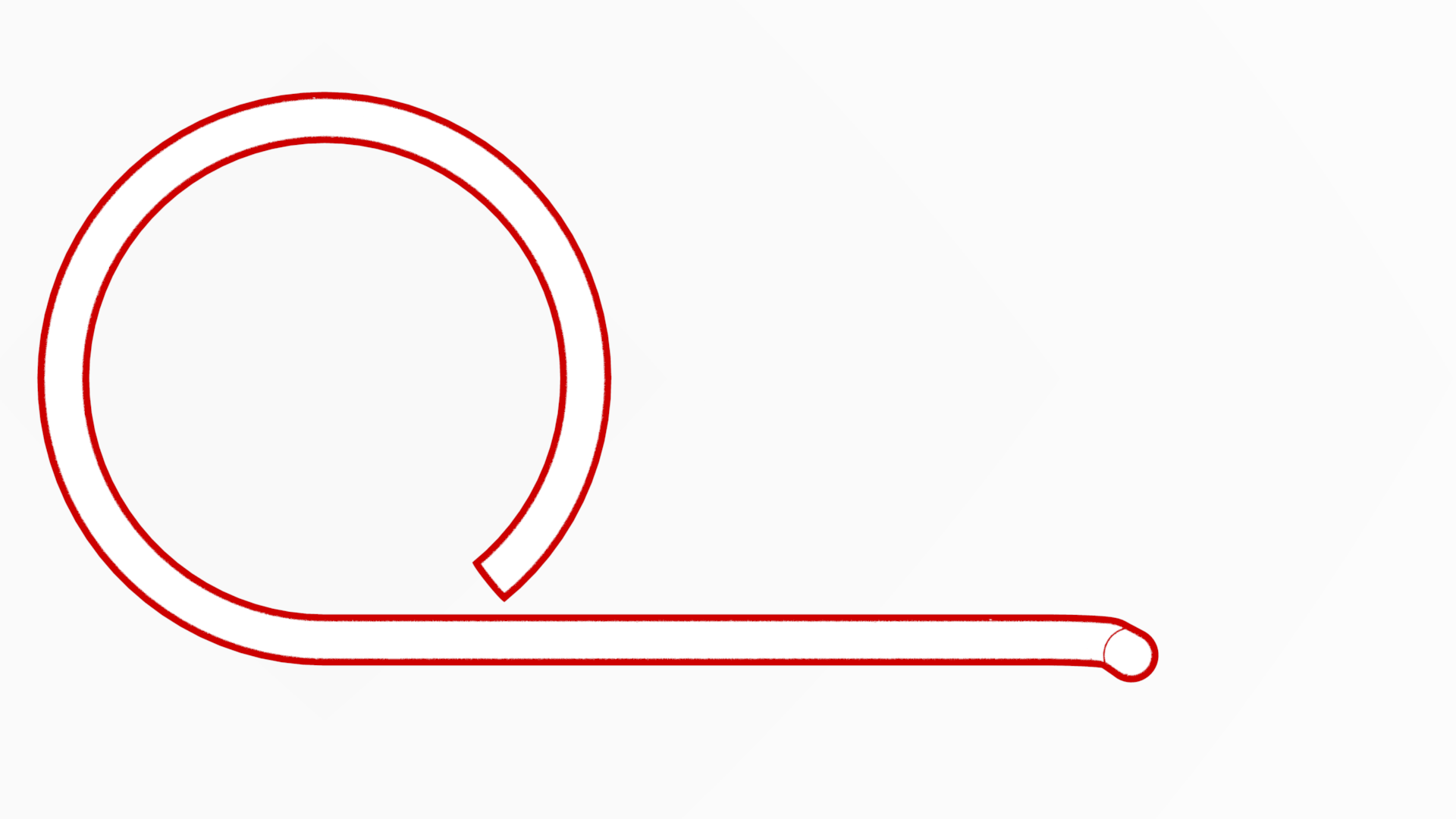

1044206-00-A Wheel Trim Removal Tool

SPECIAL TOOLS

Wheel Trim Removal Tool (1044206-00-A)

Remove

Remove the wheel cap according to the type of wheel.
- 18 inch pinwheel wheel: See step 2
- 19 inch stiletto wheel: See step 3

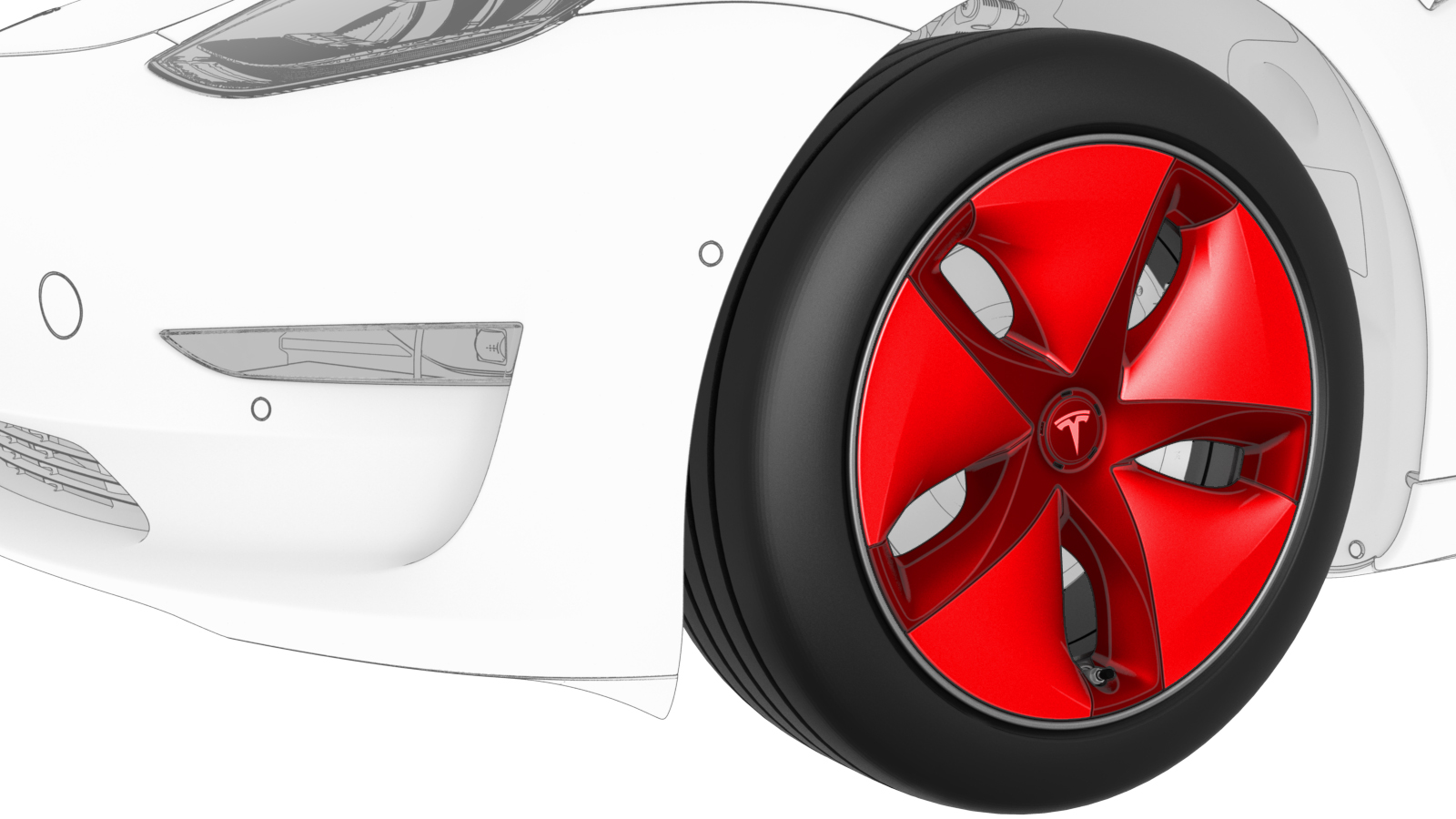

Gently pull the wheel cap with both hands to release the clips that attach the wheel cap to the wheel.

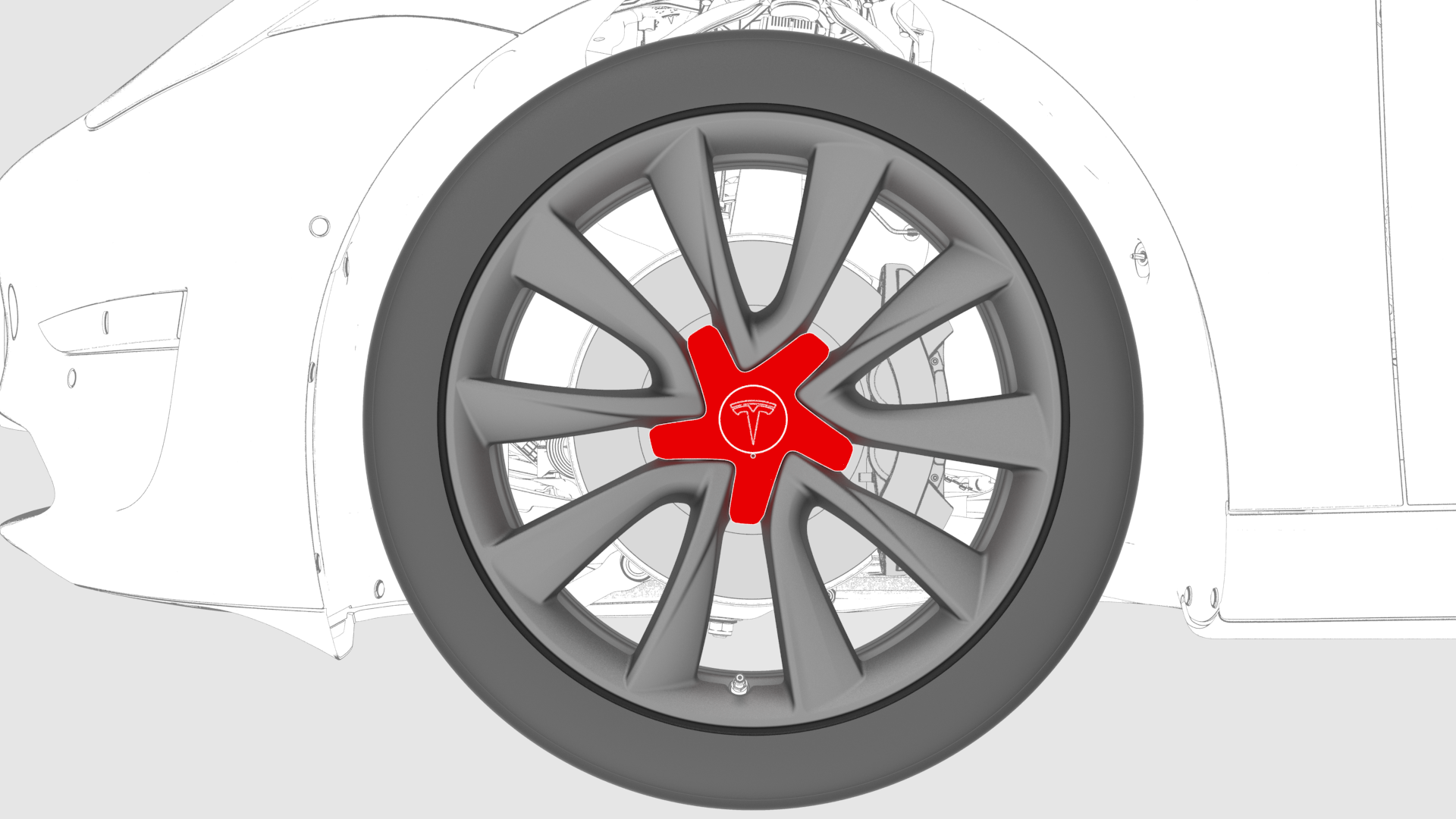

Insert the wheel trim removal tool in the hole on the center cap, and then pull to remove the center cap.

Wheel trim removal tool

Wheel trim removal tool inserted

Wheel center cap

	1	Remove the wheel cap according to the type of wheel. 18 inch pinwheel wheel: See step 2 19 inch stiletto wheel: See step 3
	2	Gently pull the wheel cap with both hands to release the clips that attach the wheel cap to the wheel.
Wheel trim removal tool Wheel trim removal tool inserted Wheel center cap	3	Insert the wheel trim removal tool in the hole on the center cap, and then pull to remove the center cap.

Install

Position the wheel cap over the wheel with the bottom of the Tesla "T" pointing to the valve stem.

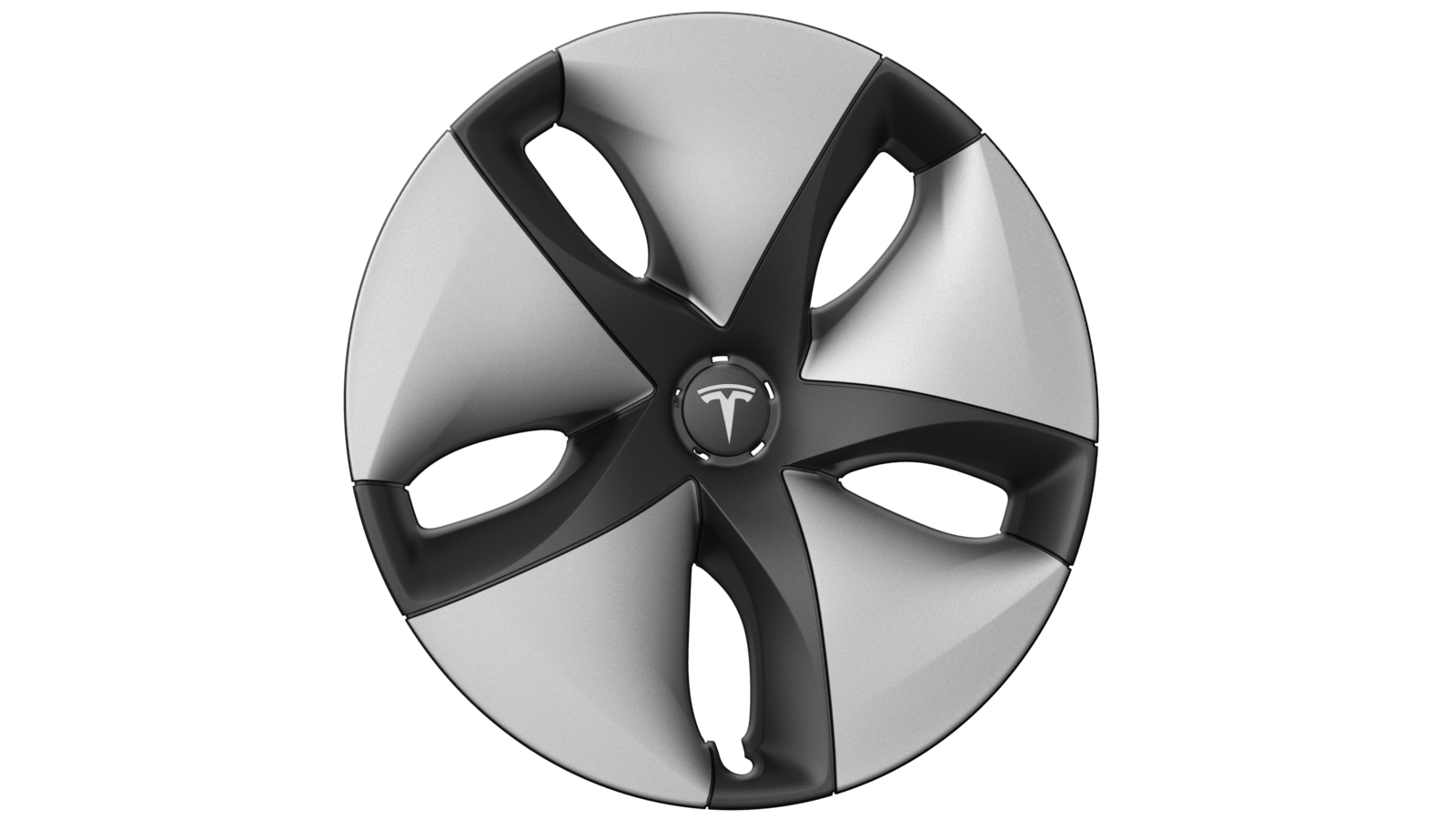

18 inch pinwheel "aero" wheel cap

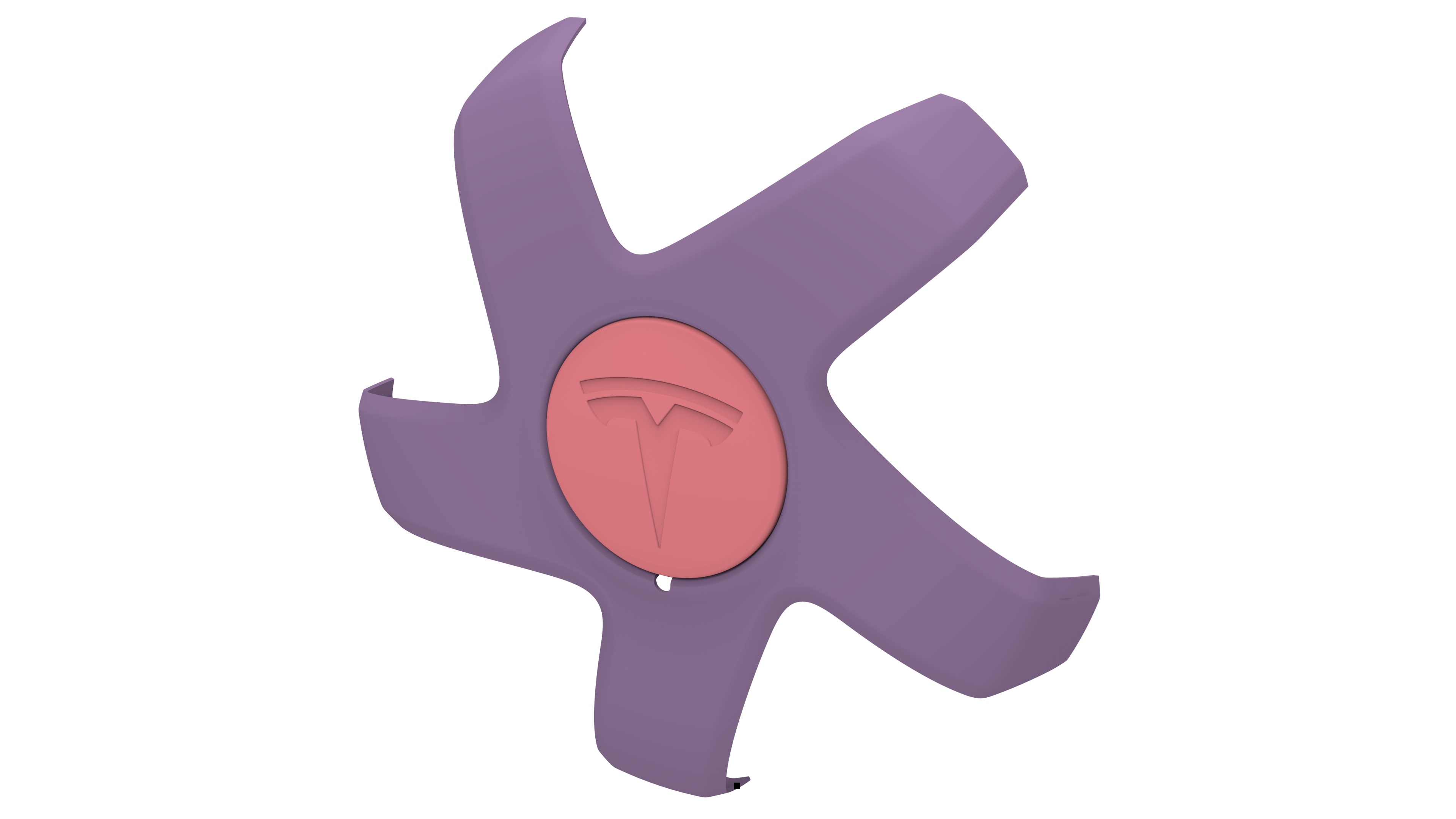

19 inch stiletto wheel cap
Press the center of the cap firmly onto the wheel.

18 inch pinwheel "aero" wheel cap 19 inch stiletto wheel cap		1	Position the wheel cap over the wheel with the bottom of the Tesla "T" pointing to the valve stem.
		2	Press the center of the cap firmly onto the wheel.
