Striker - Seat Back - 2nd Row - RH (Remove and Replace)

Correction code 1305640213056402

Remove

Remove the 2nd row lower seat cushion. See Seat Cushion - Lower - 2nd Row (Remove and Replace).
Remove the LH and RH 2nd row seat side bolsters. See Bolster - Side - Seat - 2nd Row - LH (Remove and Replace).
Remove the LH side rail trim. See Trim - Side Rail - LH (Remove and Replace).
Remove the LH upper C-pillar trim. See Trim - C-Pillar - Upper - LH (Remove and Replace).
Remove the RH side rail trim. See Trim - Side Rail - LH (Remove and Replace).
Remove the RH upper C-pillar trim. See Trim - C-Pillar - Upper - LH (Remove and Replace).
Release the clips (x4) that attach the front of the package tray to the body.
Pull the package tray forward, and then lift up the package tray to access the seat back striker.

Note: Support the package tray in the raised position.

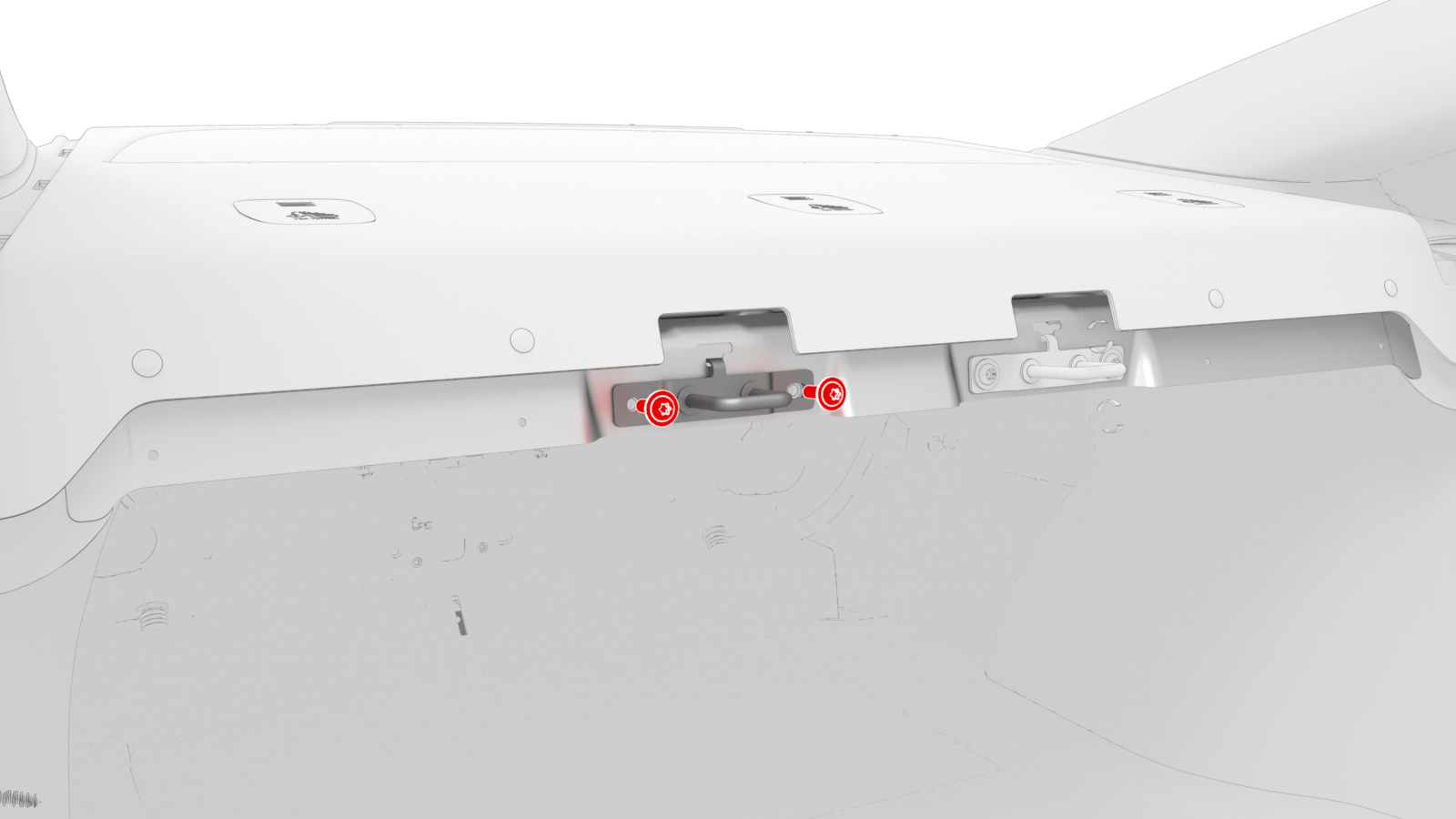

Remove the bolts that attach the 2nd row RH seat back striker to the body, and then remove the striker from the vehicle.
Torque 16 Nm

		1	Remove the 2nd row lower seat cushion. See Seat Cushion - Lower - 2nd Row (Remove and Replace).
		2	Remove the LH and RH 2nd row seat side bolsters. See Bolster - Side - Seat - 2nd Row - LH (Remove and Replace).
		3	Remove the LH side rail trim. See Trim - Side Rail - LH (Remove and Replace).
		4	Remove the LH upper C-pillar trim. See Trim - C-Pillar - Upper - LH (Remove and Replace).
		5	Remove the RH side rail trim. See Trim - Side Rail - LH (Remove and Replace).
		6	Remove the RH upper C-pillar trim. See Trim - C-Pillar - Upper - LH (Remove and Replace).
		7	Release the clips (x4) that attach the front of the package tray to the body.
		8	Pull the package tray forward, and then lift up the package tray to access the seat back striker. Note: Support the package tray in the raised position.
		9	Remove the bolts that attach the 2nd row RH seat back striker to the body, and then remove the striker from the vehicle. Torque 16 Nm

Install

Installation procedure is the reverse of removal.
