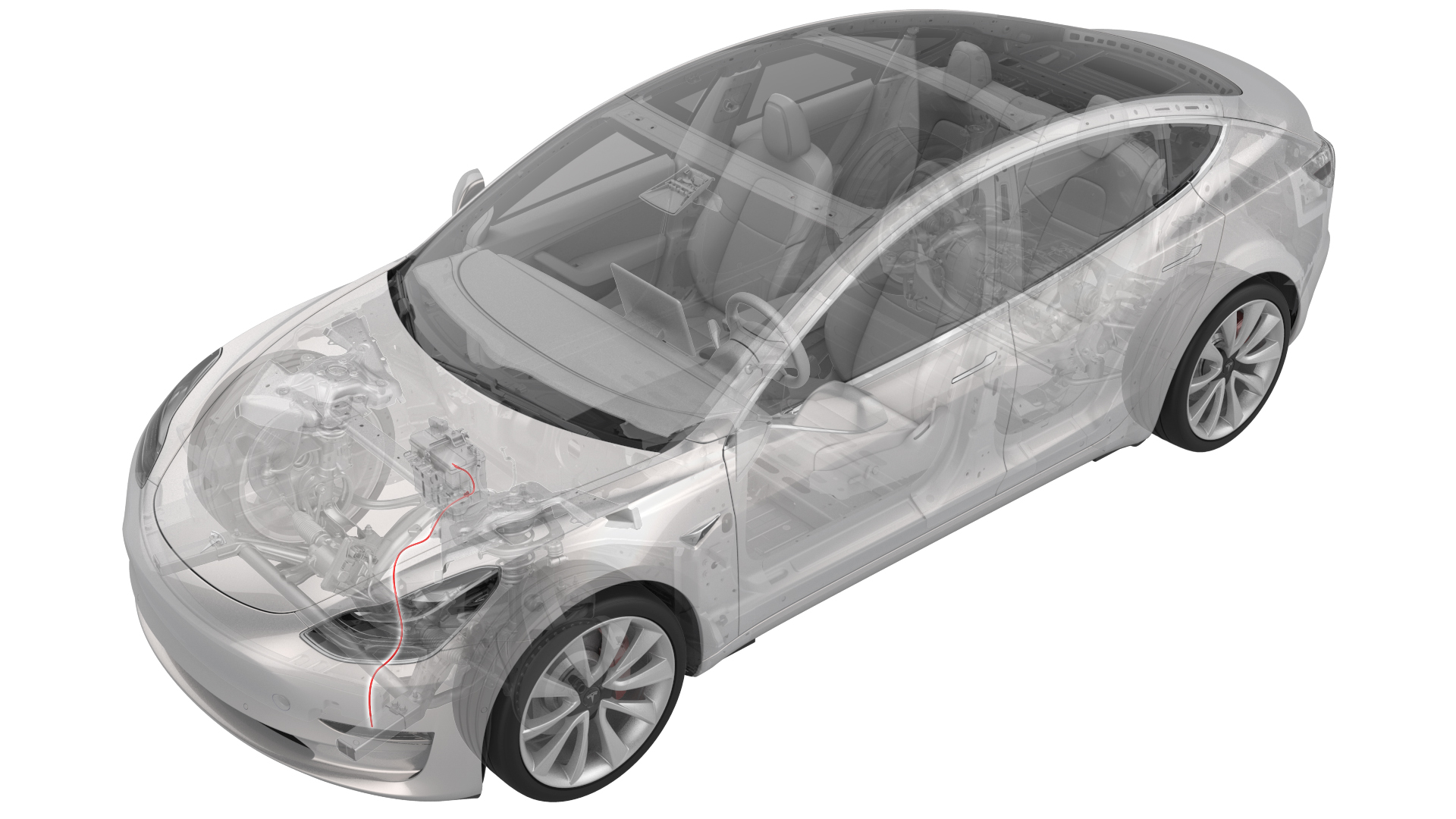

Vent Hose - 12V Battery (Remove and Replace)

Correction code 1701100217011002

Remove

Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
Remove the cabin intake duct. See Duct - Cabin Intake (Remove and Replace).
Remove the hood latch cover. See Cover - Hood Latch (Remove and Replace).
Remove the underhood storage unit. See Underhood Storage Unit (Remove and Replace).

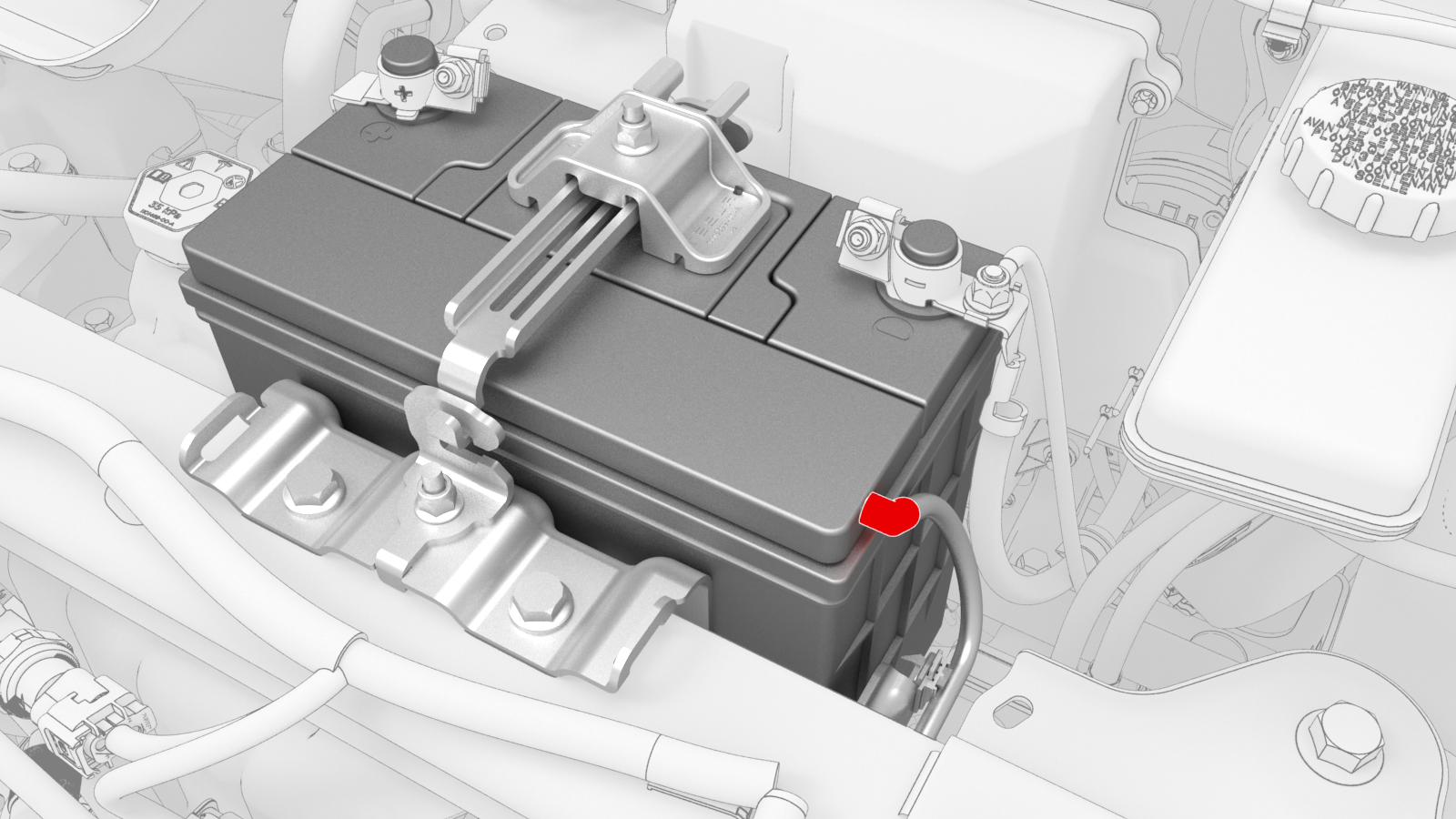

Remove the 12V battery vent hose from the LH side of the 12V battery.

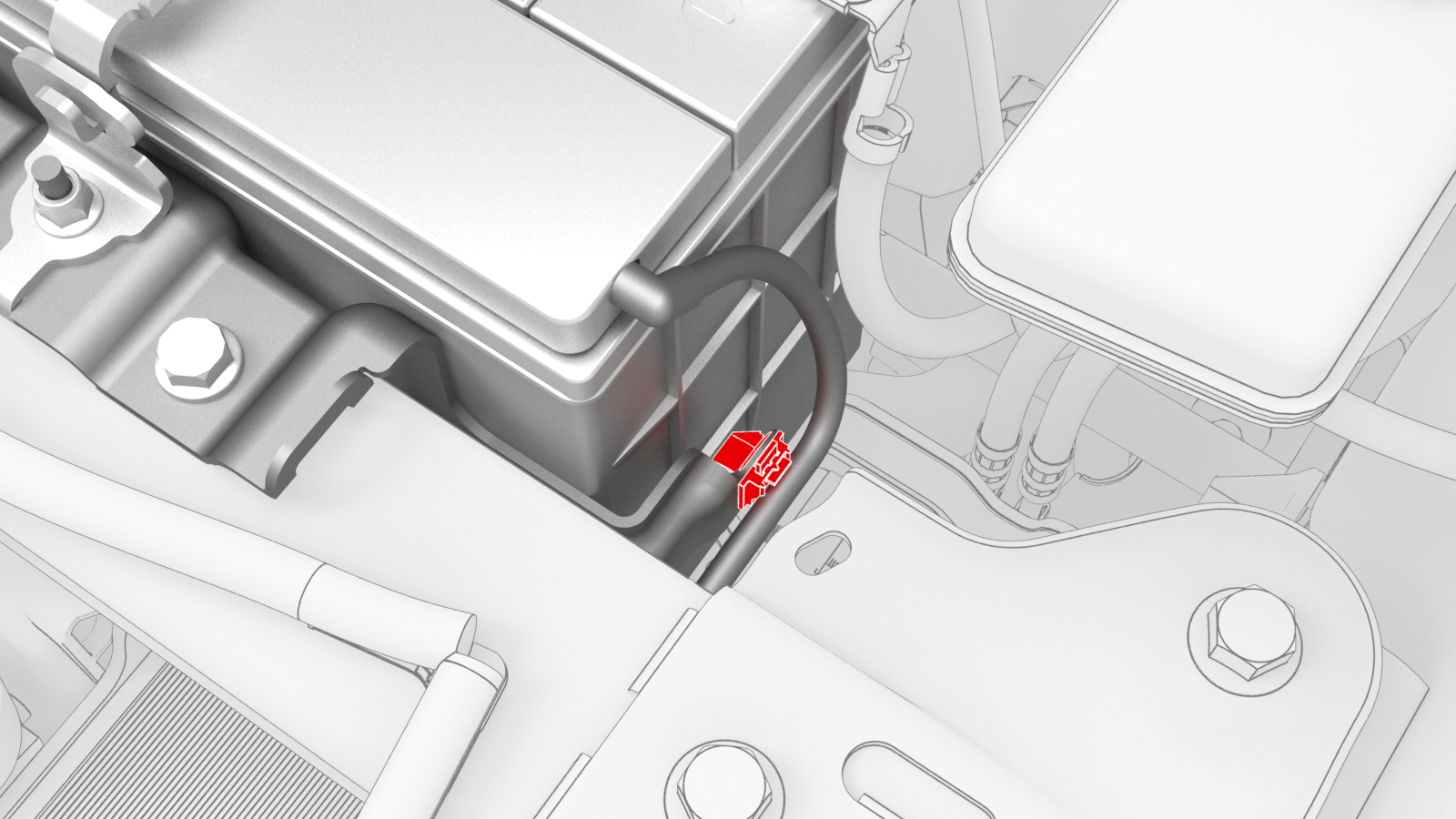

Release the 12V battery vent hose clip from the 12V battery bracket.

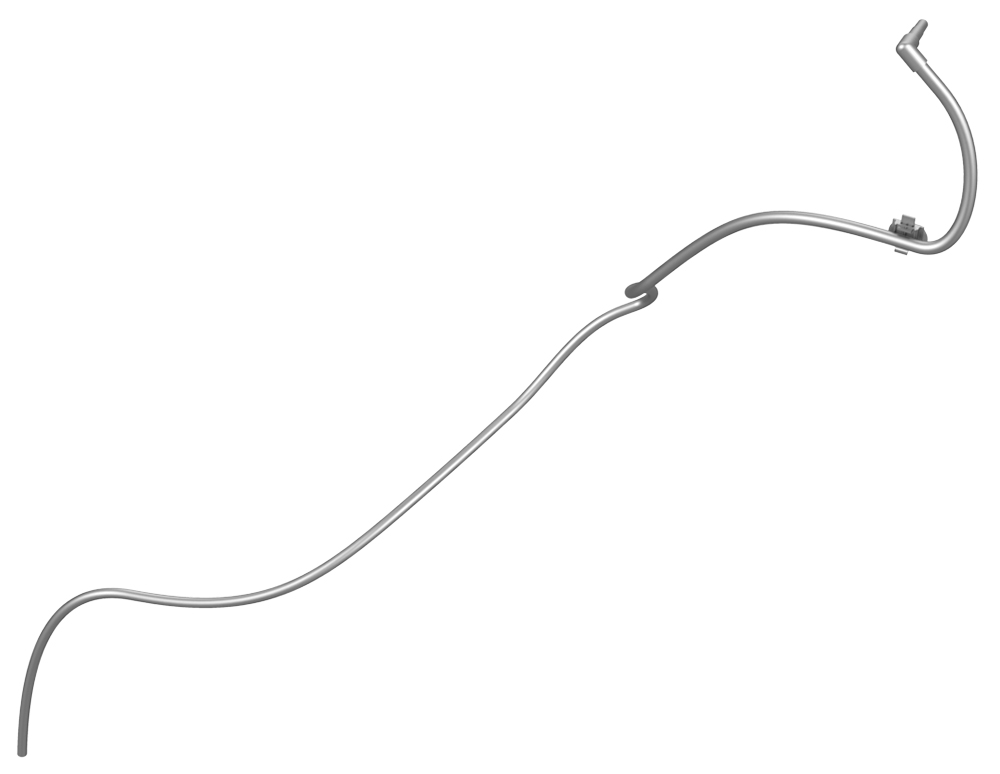

Release the clips that attach the 12V battery vent hose to the vehicle, and then remove the vent hose.

		1	Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
		2	Remove the cabin intake duct. See Duct - Cabin Intake (Remove and Replace).
		3	Remove the hood latch cover. See Cover - Hood Latch (Remove and Replace).
		4	Remove the underhood storage unit. See Underhood Storage Unit (Remove and Replace).
		5	Remove the 12V battery vent hose from the LH side of the 12V battery.
		6	Release the 12V battery vent hose clip from the 12V battery bracket.
		7	Release the clips that attach the 12V battery vent hose to the vehicle, and then remove the vent hose.

Install

Installation procedure is the reverse of removal.
