Trim - Floor - Trunk (Remove and Replace)

Correction code 1524530215245302

Remove

Open the rear trunk.

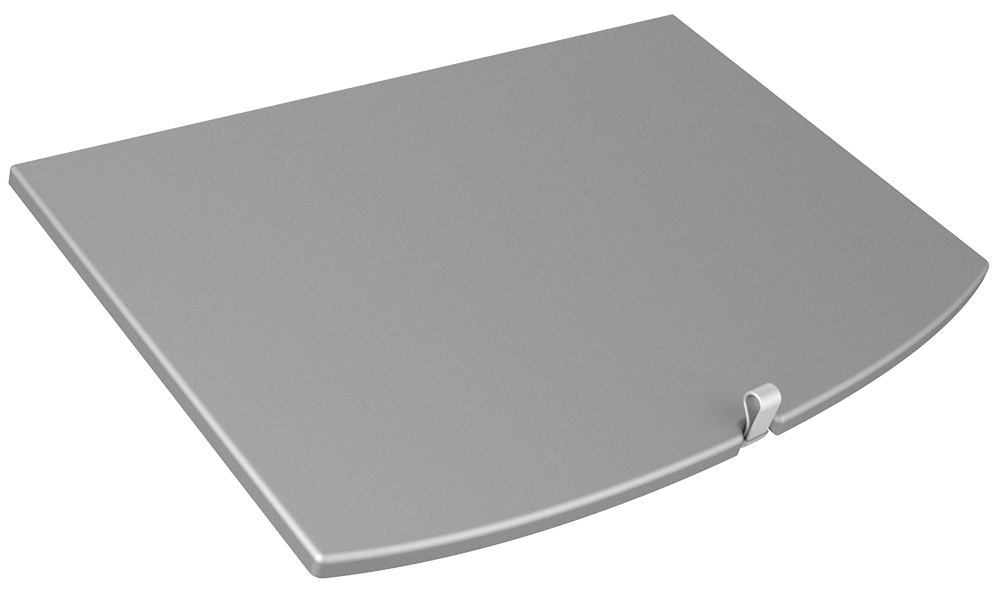

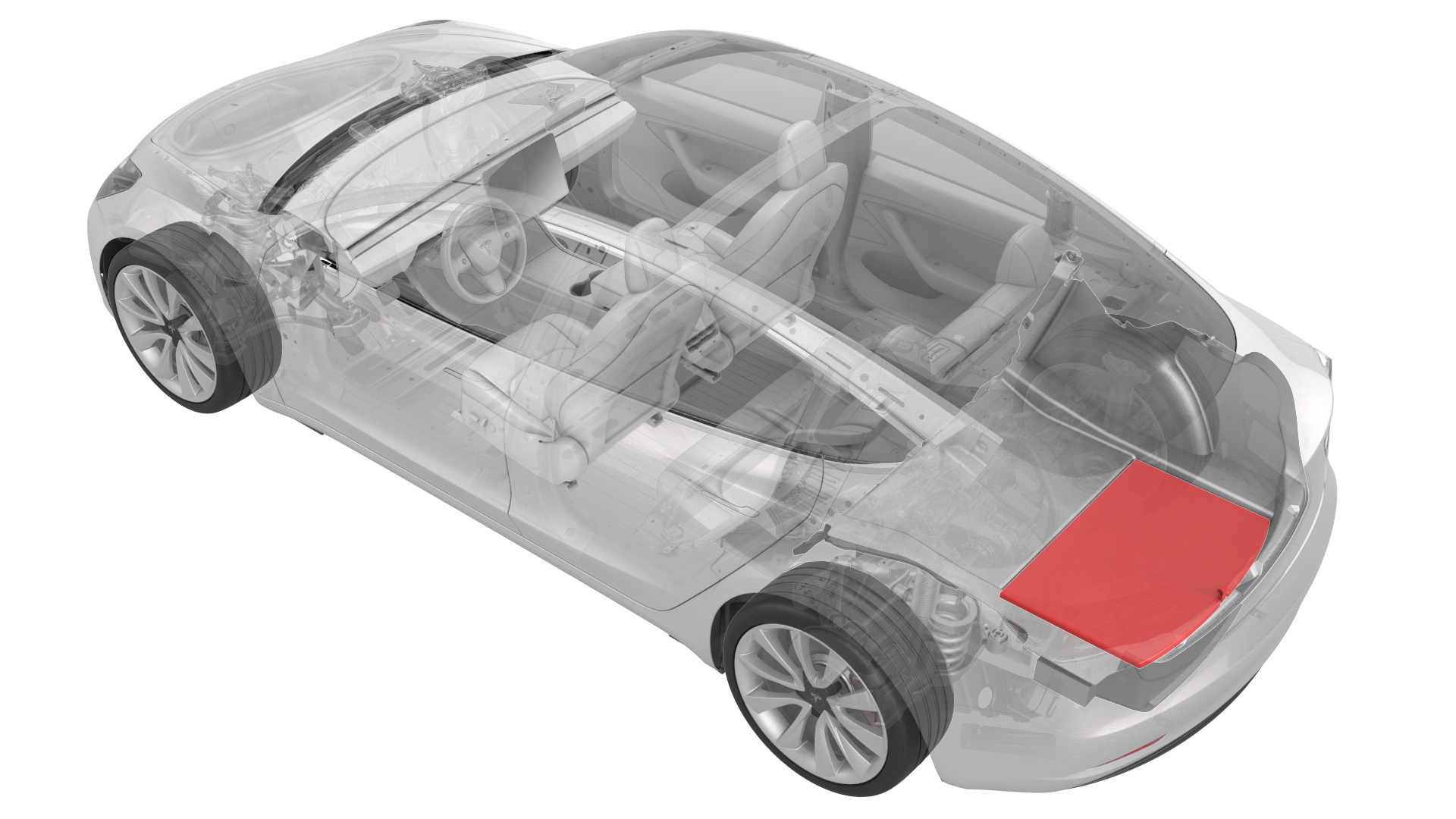

Lift up the trunk floor trim and remove it from the vehicle.

Tip: Use the pull tab located at the rear edge of the trunk floor trim.

		1	Open the rear trunk.
		2	Lift up the trunk floor trim and remove it from the vehicle. Tip: Use the pull tab located at the rear edge of the trunk floor trim.

Install

Installation procedure is the reverse of removal.
