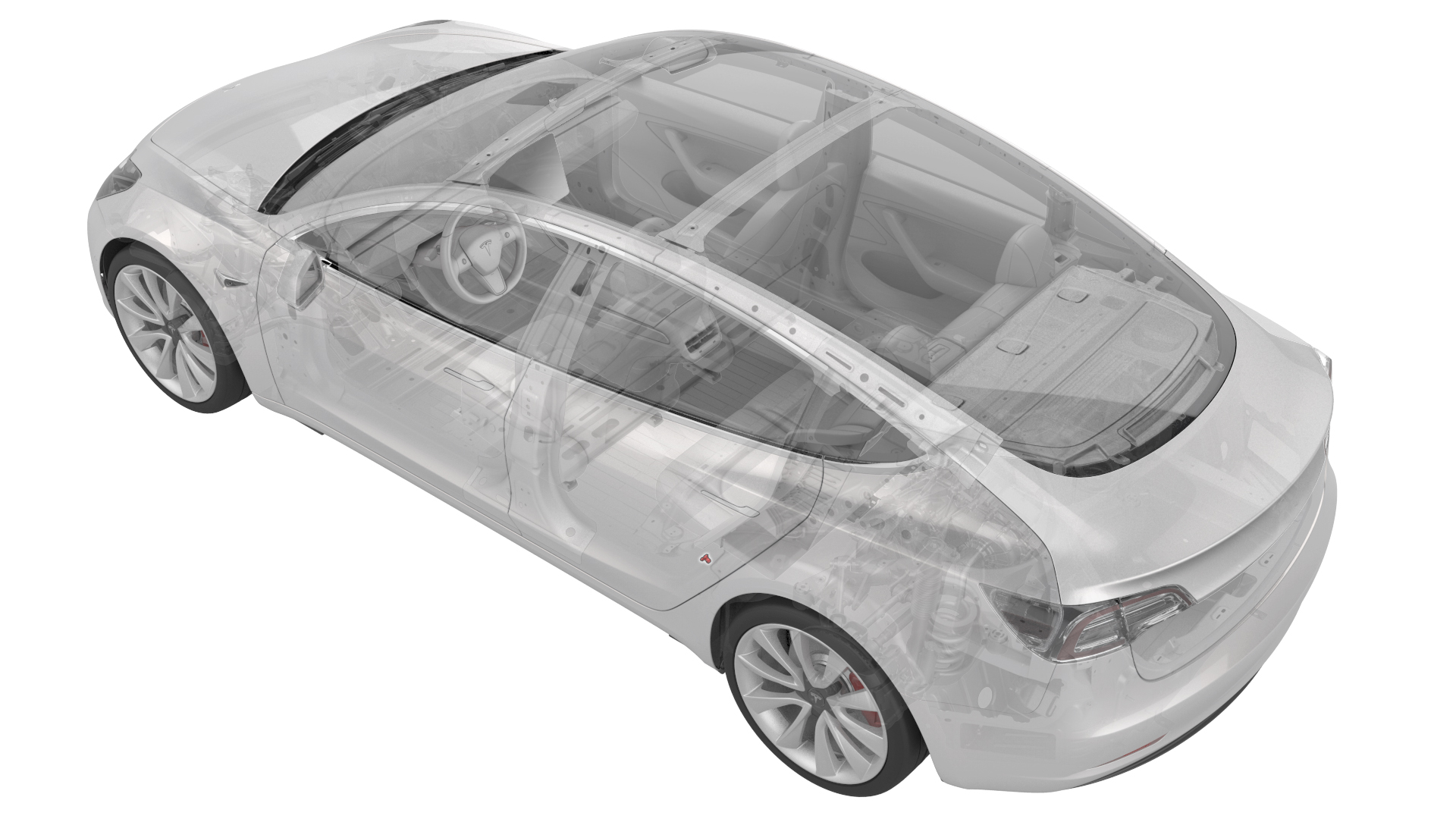

Sensor - Airbag - C-Pillar - LH (Remove and Replace)

Correction code 2020070220200702
Parent topic: 2020 - Sensors

Remove

  1. Open all doors.
  2. Lower all windows.
  3. Remove the 2nd row lower seat cushion. See Seat Cushion - Lower - 2nd Row (Remove and Replace).
  4. Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
  5. Disconnect 12V power. See 12V Power (Disconnect and Connect).
  6. Remove the LH 2nd row seat side bolster. See Bolster - Side - Seat - 2nd Row - LH (Remove and Replace).
  7. Remove the LH rear sill panel trim. See Trim - Sill Panel - Rear - LH (Remove and Replace).

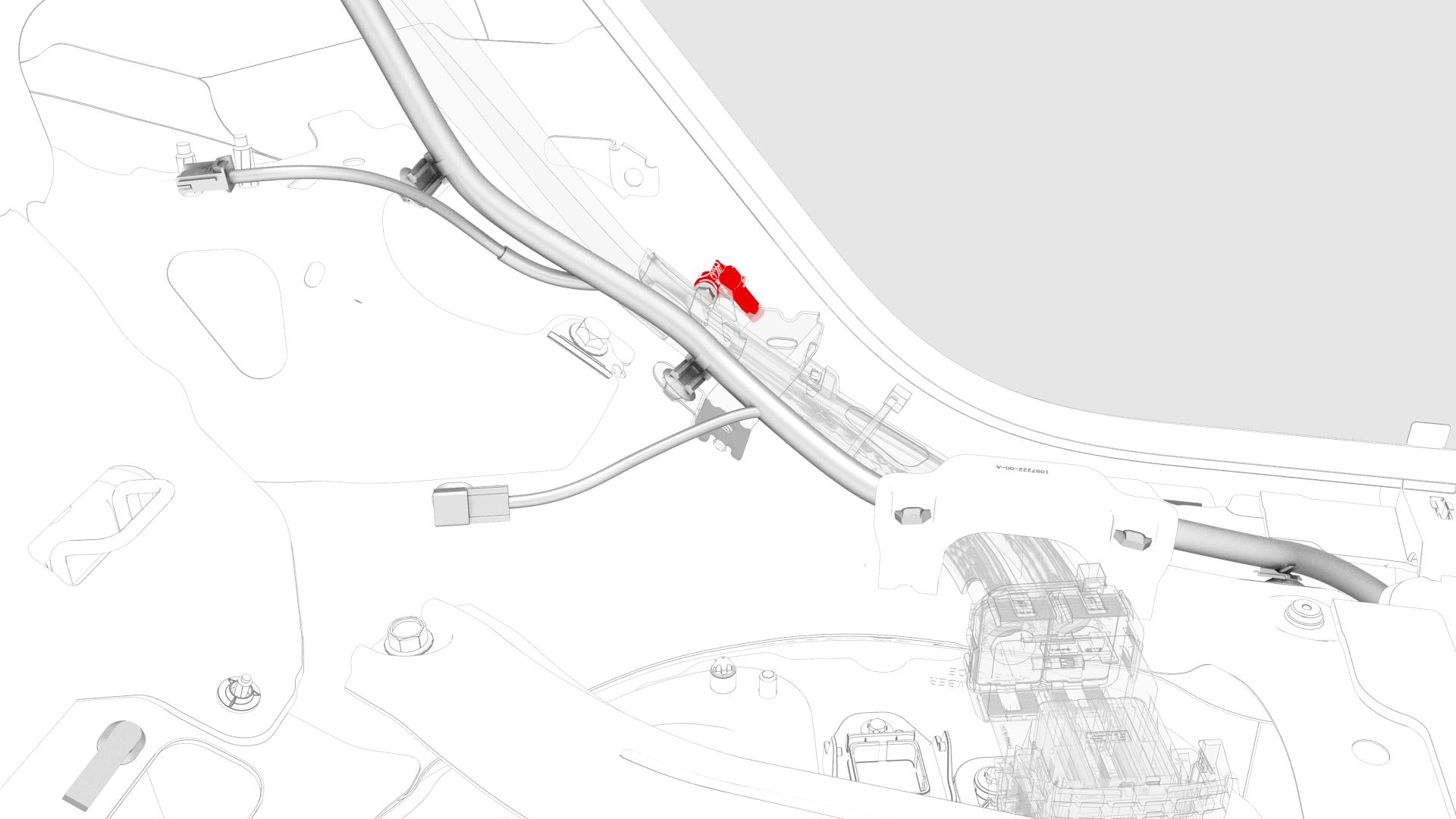

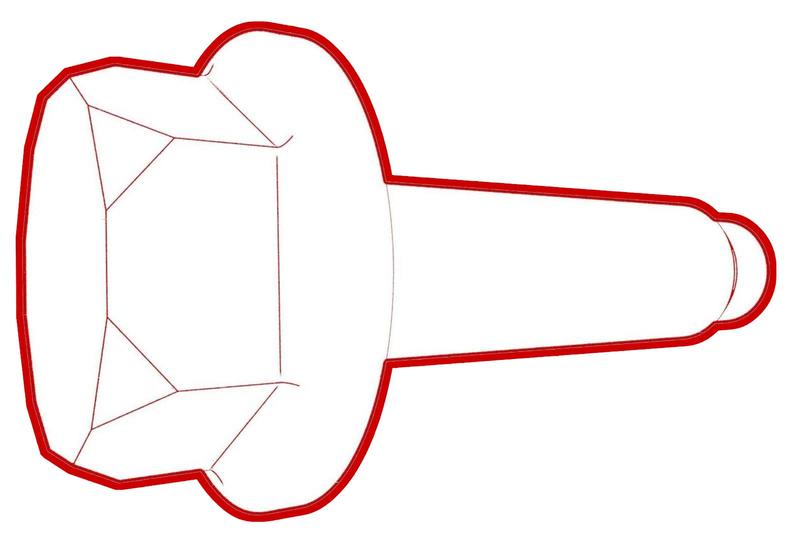

  8. Remove the bolt that attaches the charge port harness bracket to the body, and then move the charge port harness away from the C-pillar.
    Torque 10 Nm

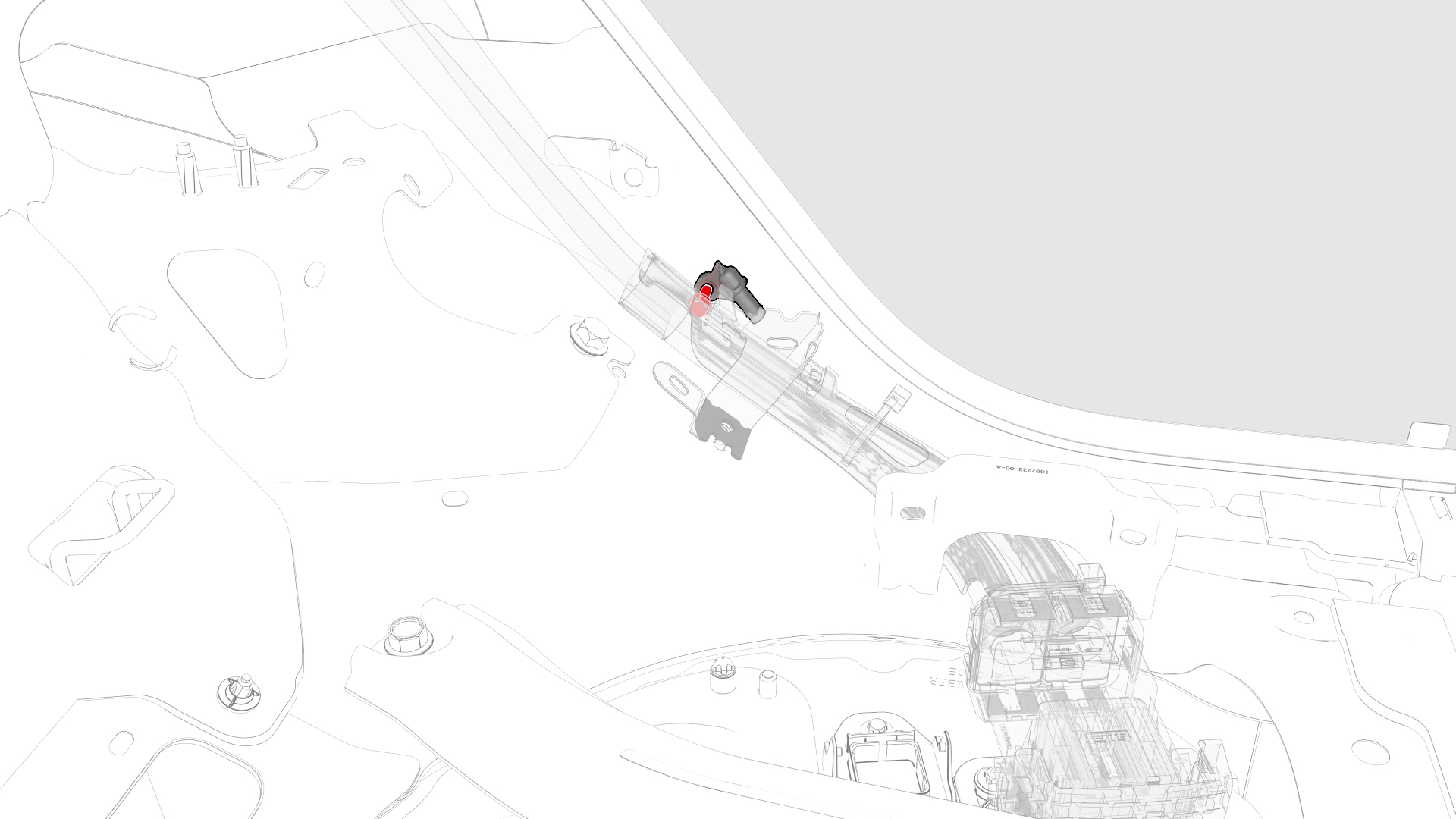

  9. Disconnect the electrical harness from the airbag sensor connector.

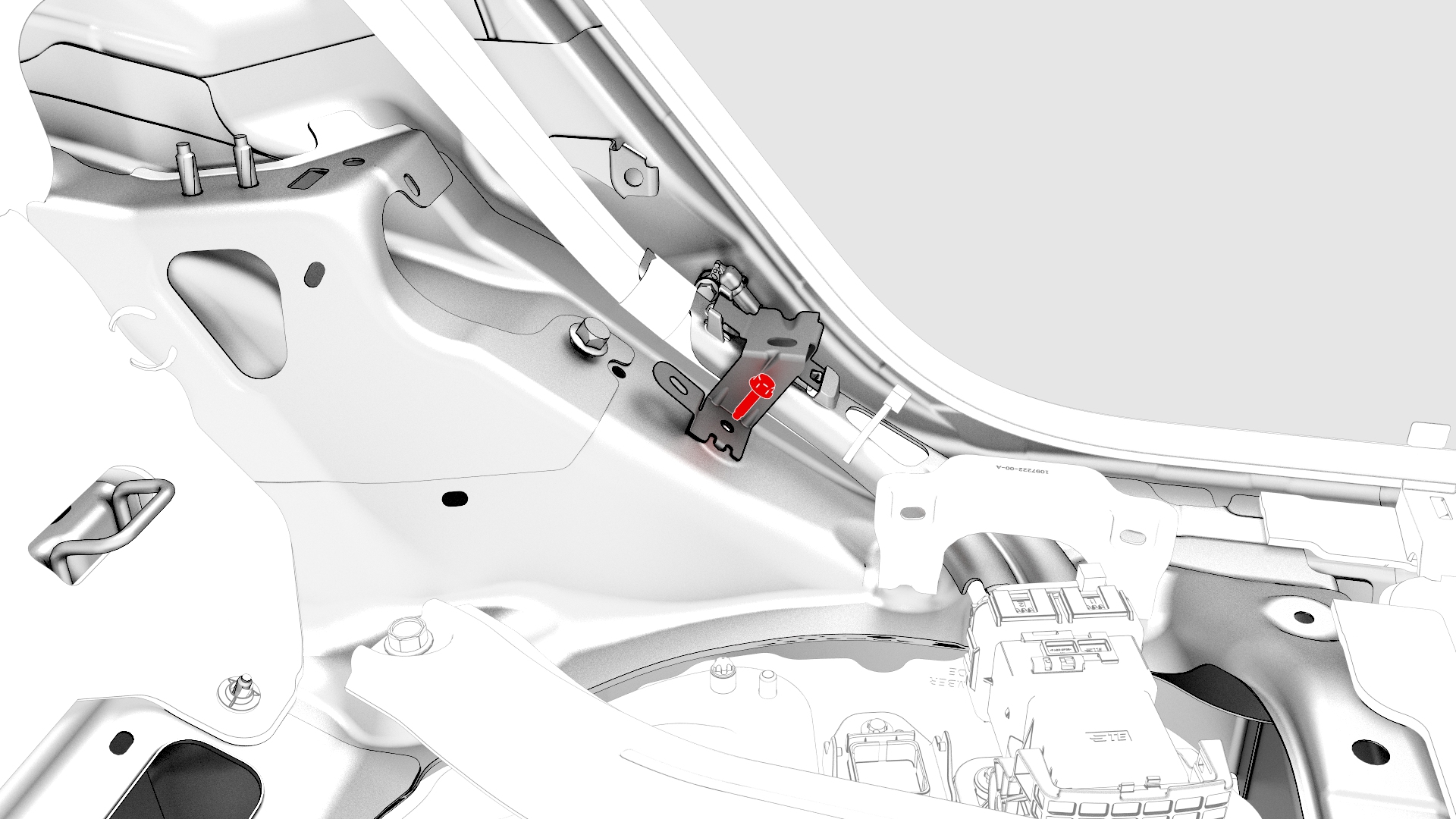

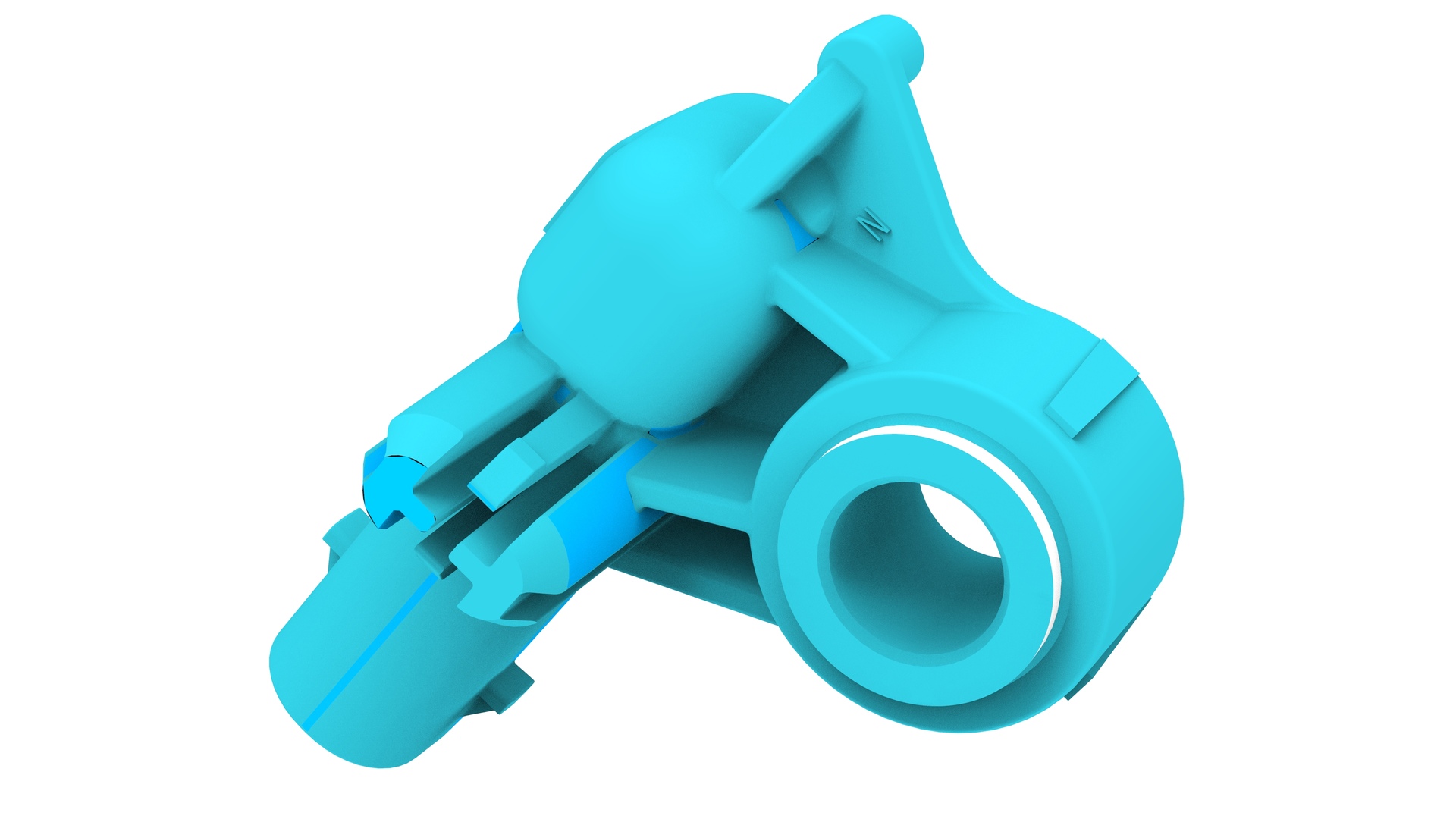

  10. Remove the bolt that attaches the airbag sensor to the C-pillar, and then remove the sensor from the vehicle.
    Torque 8 Nm
1Open all doors.
2Lower all windows.
3Remove the 2nd row lower seat cushion. See Seat Cushion - Lower - 2nd Row (Remove and Replace).
4Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
5Disconnect 12V power. See 12V Power (Disconnect and Connect).
6Remove the LH 2nd row seat side bolster. See Bolster - Side - Seat - 2nd Row - LH (Remove and Replace).
7Remove the LH rear sill panel trim. See Trim - Sill Panel - Rear - LH (Remove and Replace).
8Remove the bolt that attaches the charge port harness bracket to the body, and then move the charge port harness away from the C-pillar.
Torque 10 Nm
9Disconnect the electrical harness from the airbag sensor connector.
10Remove the bolt that attaches the airbag sensor to the C-pillar, and then remove the sensor from the vehicle.
Torque 8 Nm

Install

Installation procedure is the reverse of removal.
