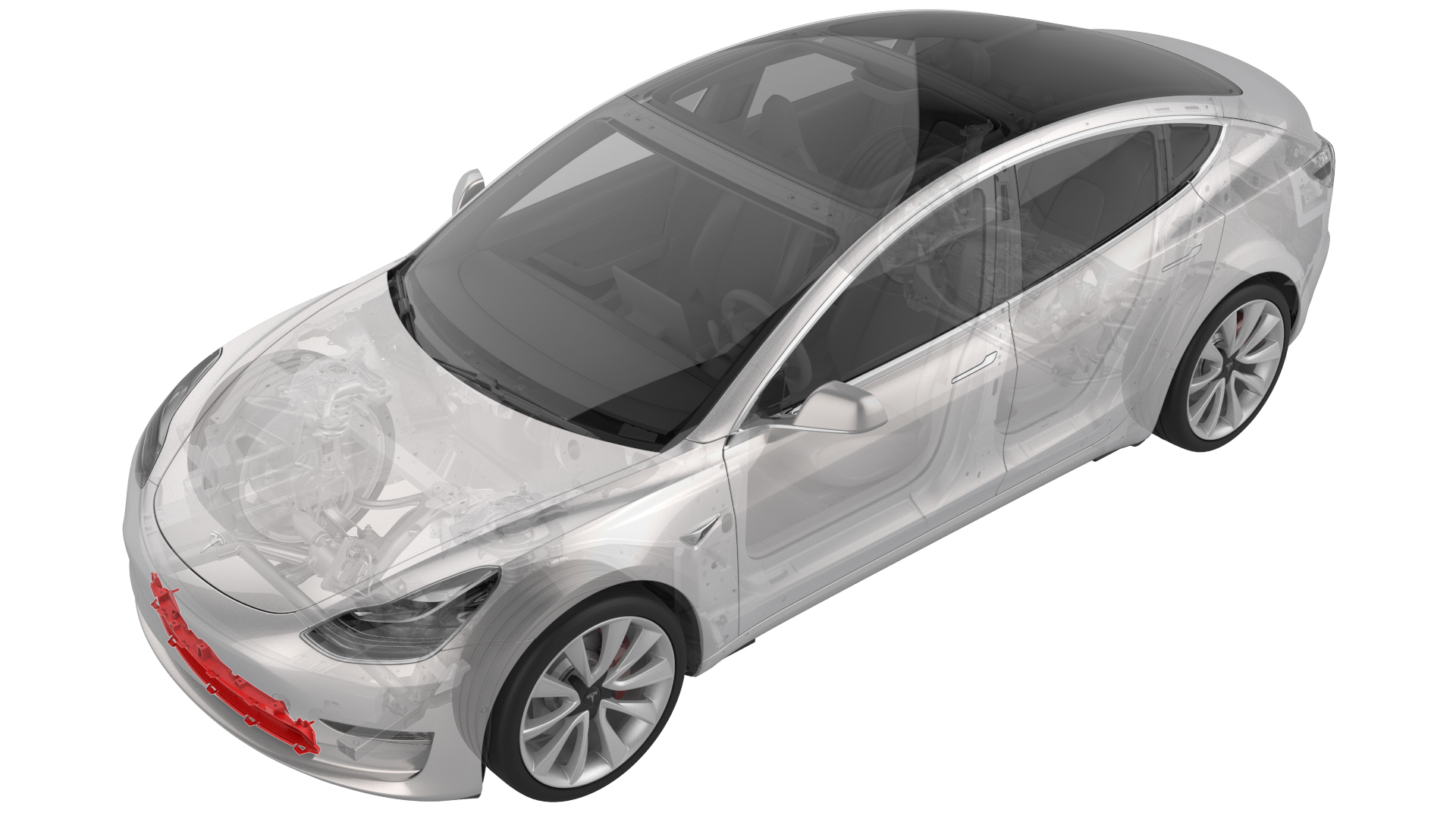

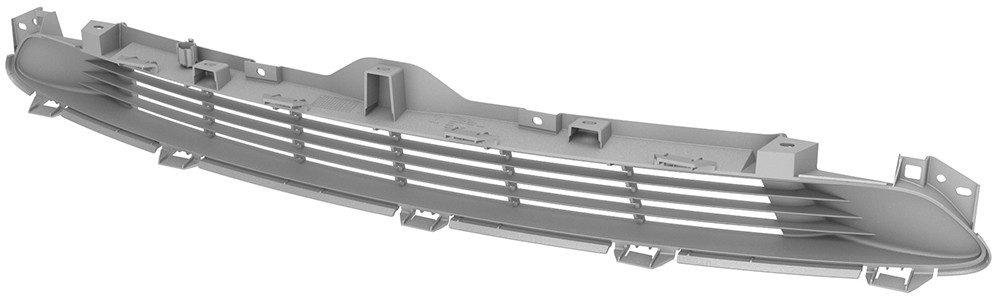

Grille - Fascia - Front (Remove and Replace)

Correction code 1001150210011502

DRAFT

from-cad

Warning:

This procedure was derived from pre-production computer models, and might not reflect the real-world situation. Warnings and cautions might be missing. Follow safety requirements and use extreme caution when working on or near high voltage systems and components.

Do not redistribute this content. Provide corrections and feedback to servicemanualfeedback@tesla.com.

Remove

Remove the front fascia. See Fascia - Front (Remove and Install).

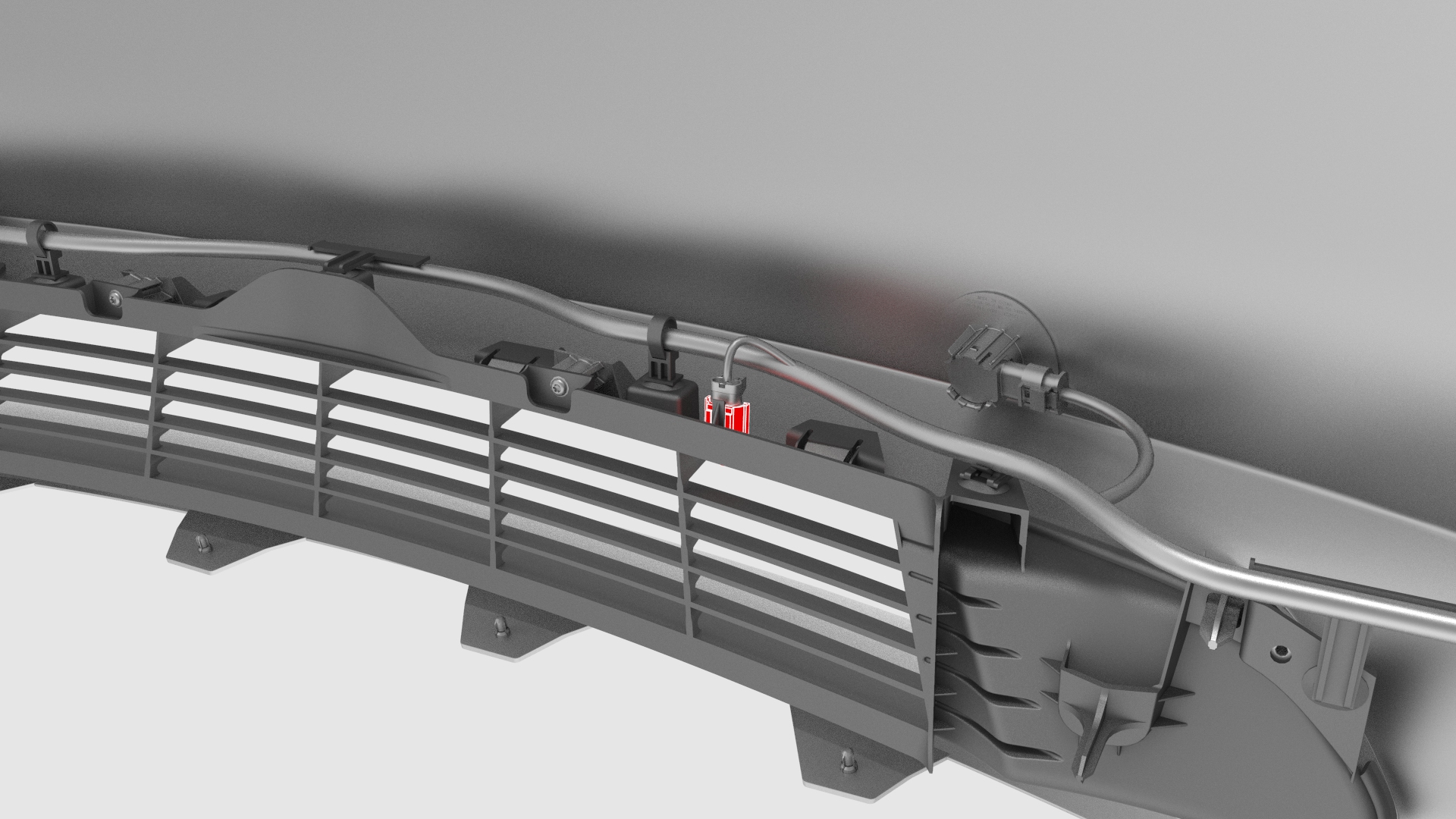

Release the clip and remove the ambient air temperature sensor from the grille.

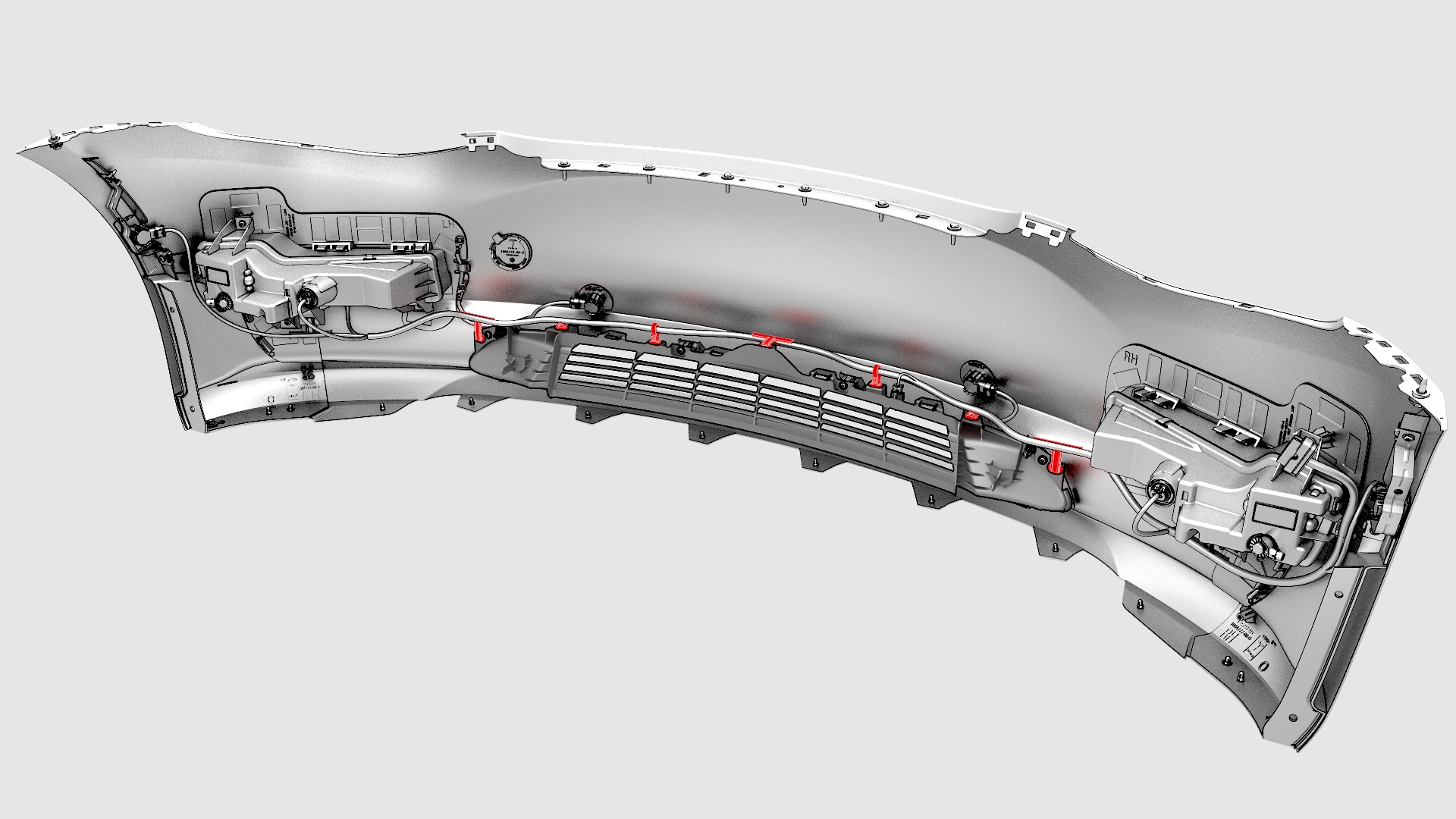

Release the clips that attach the electrical harness to the grille.

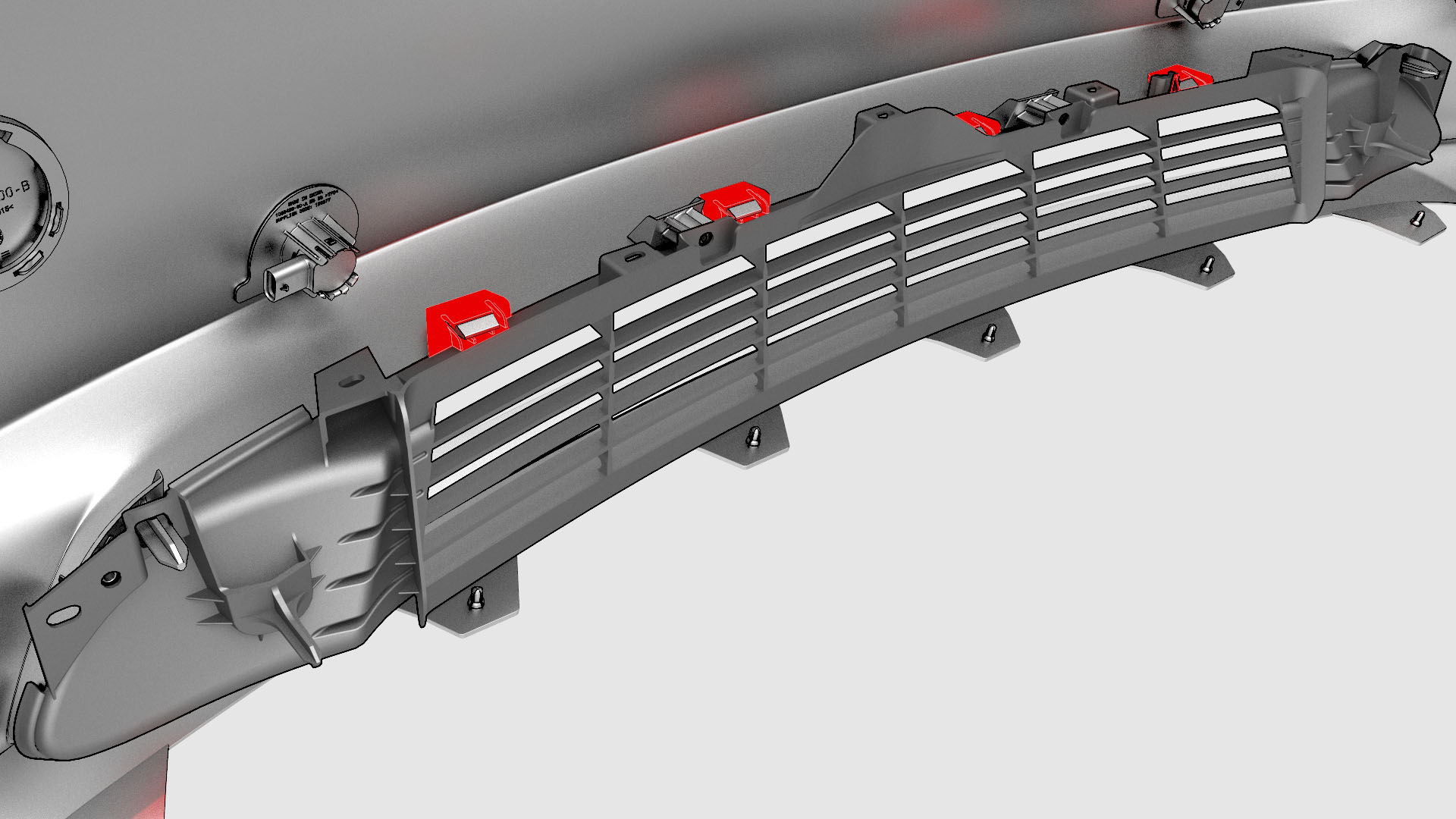

Remove the screws that attach the grille to the front fascia.
Torque 1.8 Nm

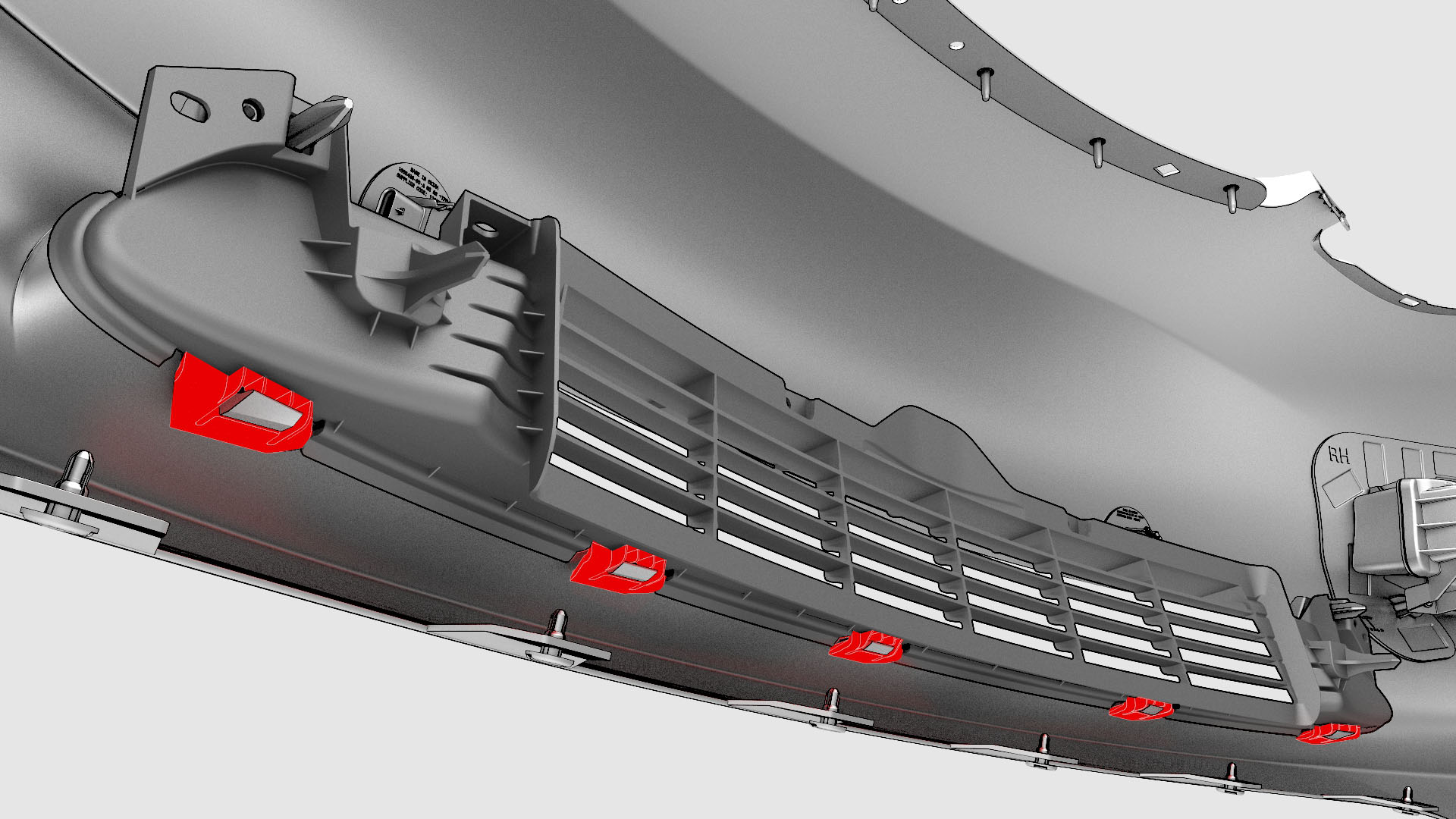

Release the clips that attach the grille to the front fascia, and then remove the grille from the fascia.

Top

Bottom

	1	Remove the front fascia. See Fascia - Front (Remove and Install).
	2	Release the clip and remove the ambient air temperature sensor from the grille.
	3	Release the clips that attach the electrical harness to the grille.
	4	Remove the screws that attach the grille to the front fascia. Torque 1.8 Nm
Top Bottom	5	Release the clips that attach the grille to the front fascia, and then remove the grille from the fascia.

Install

Installation procedure is the reverse of removal.
