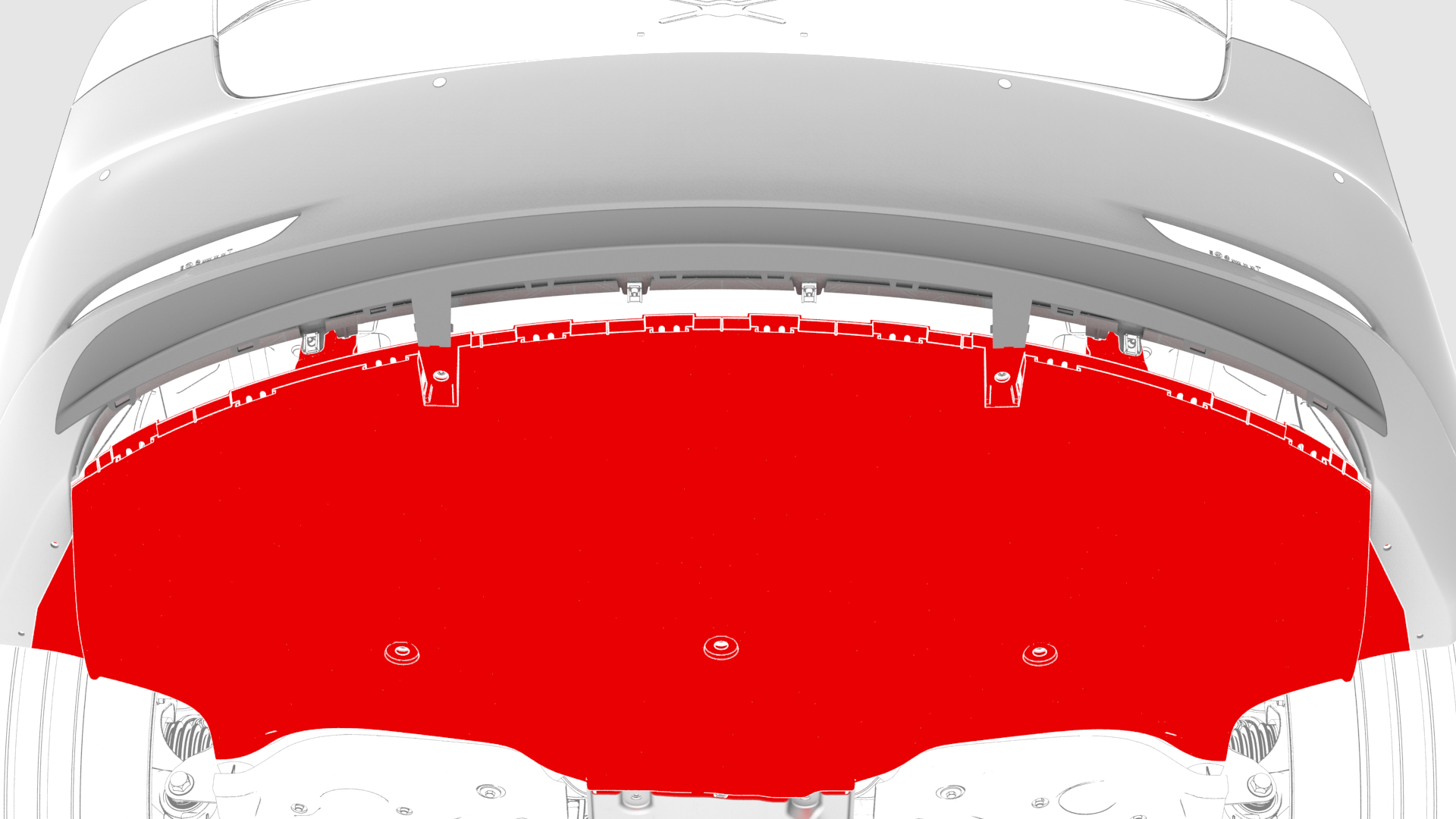

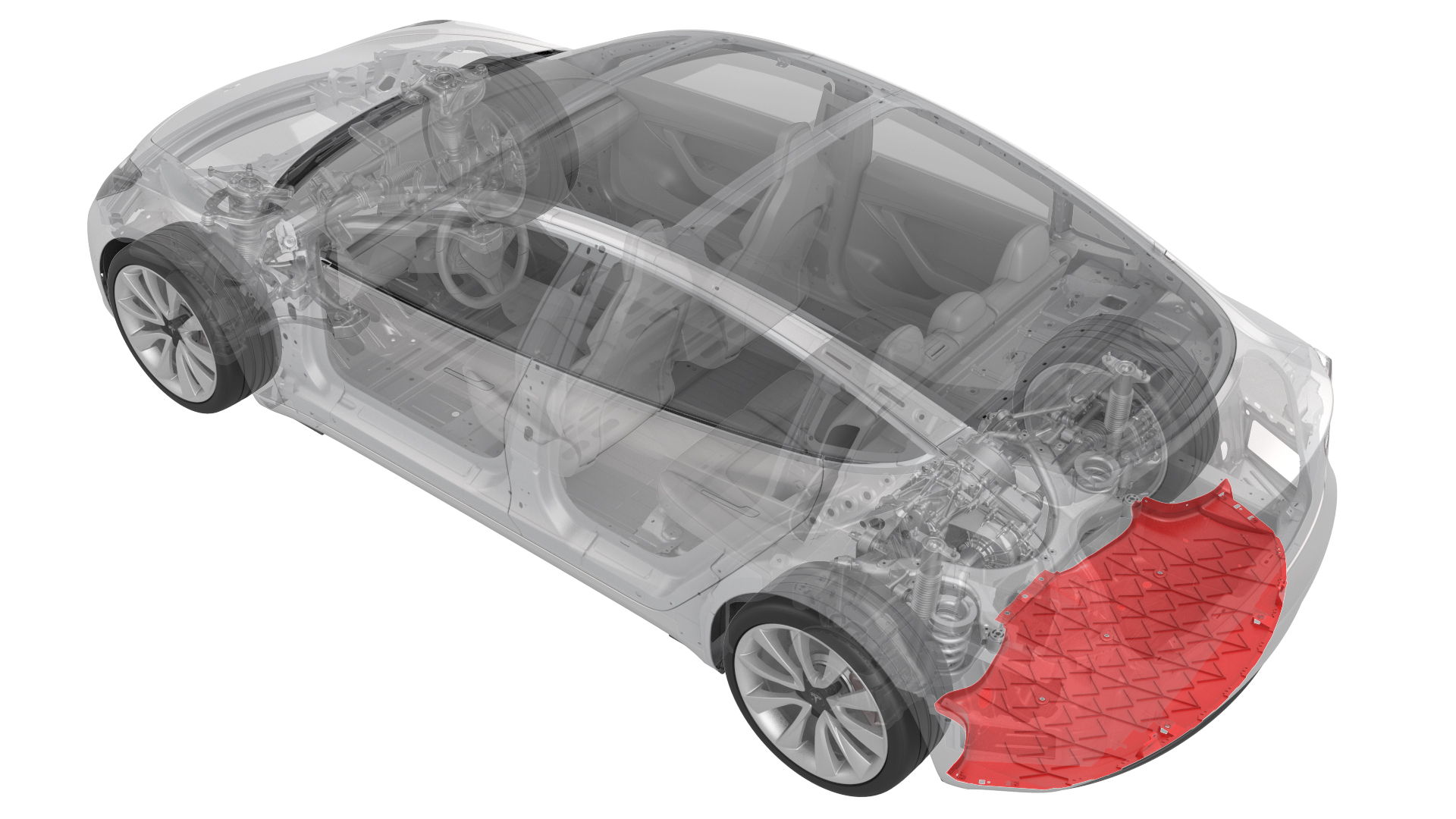

Diffuser - Rear Fascia (Remove and Replace)

Correction code 1203080212030802
Parent topic: 1203 - Undertray and Diffuser

Remove

  1. Raise and support the vehicle. See Raise Vehicle - 2 Post Lift.

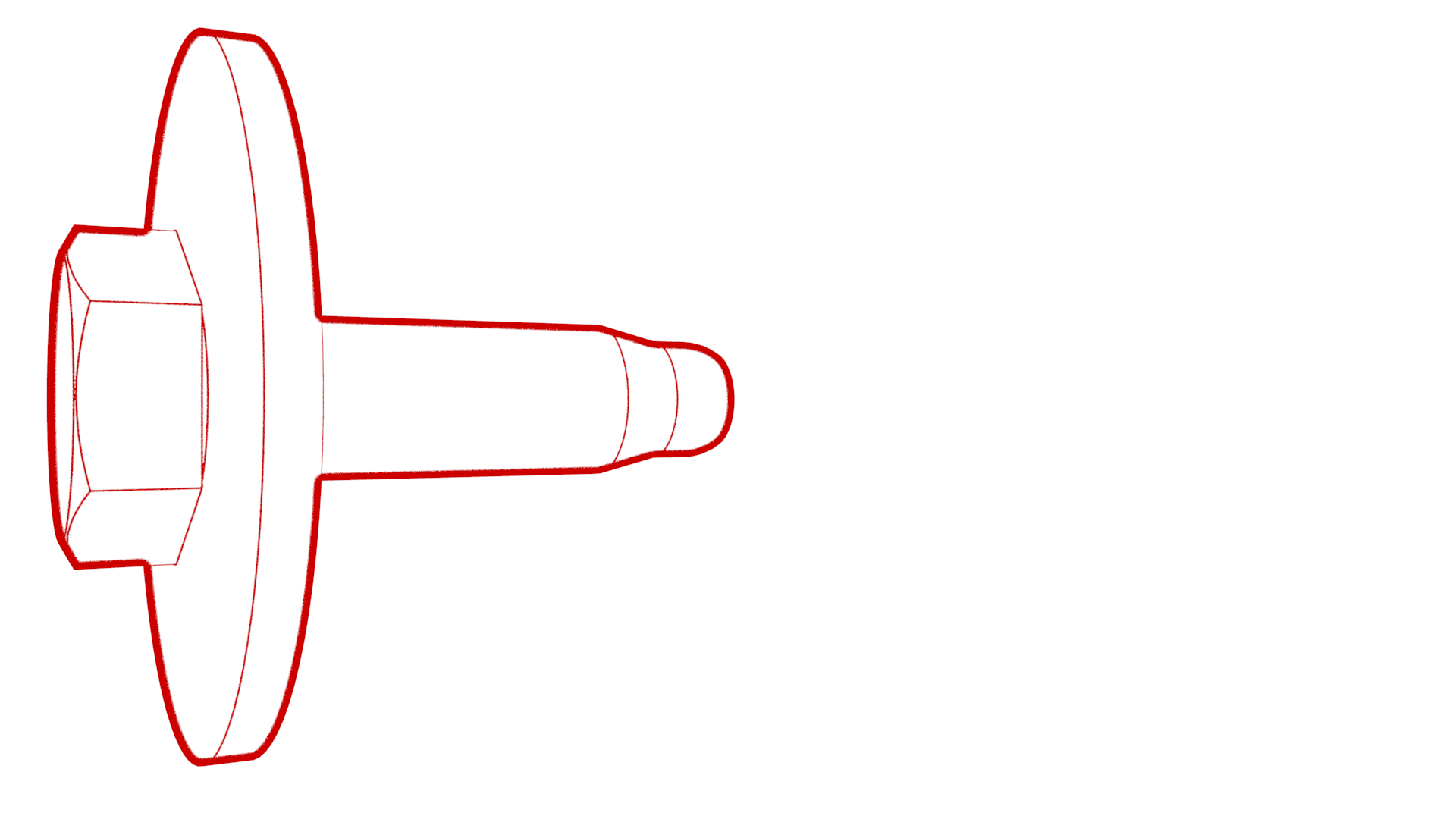

  2. Remove the bolts that attach the rear fascia diffuser to the mid aero shield.
    Torque 5 Nm

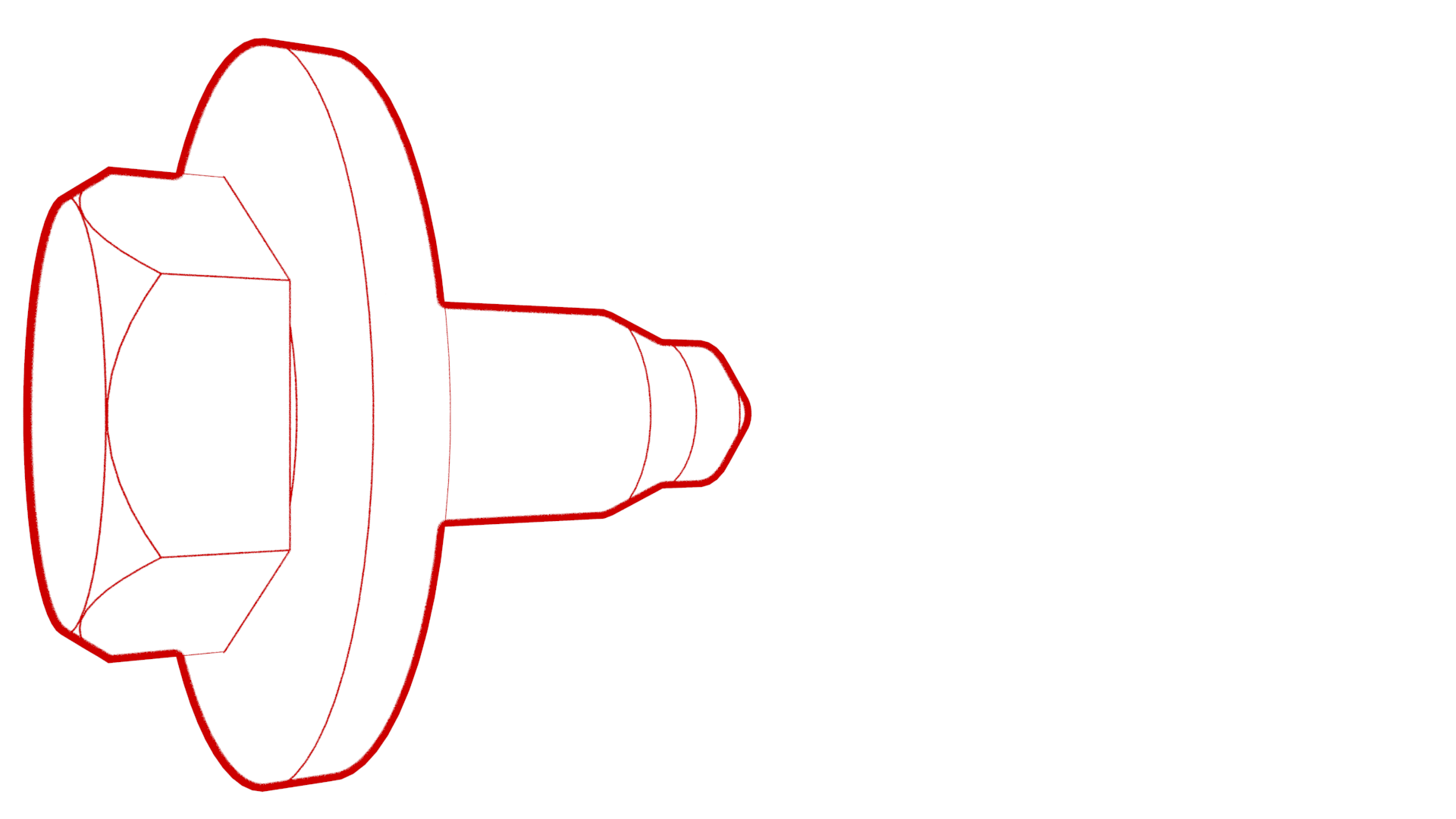

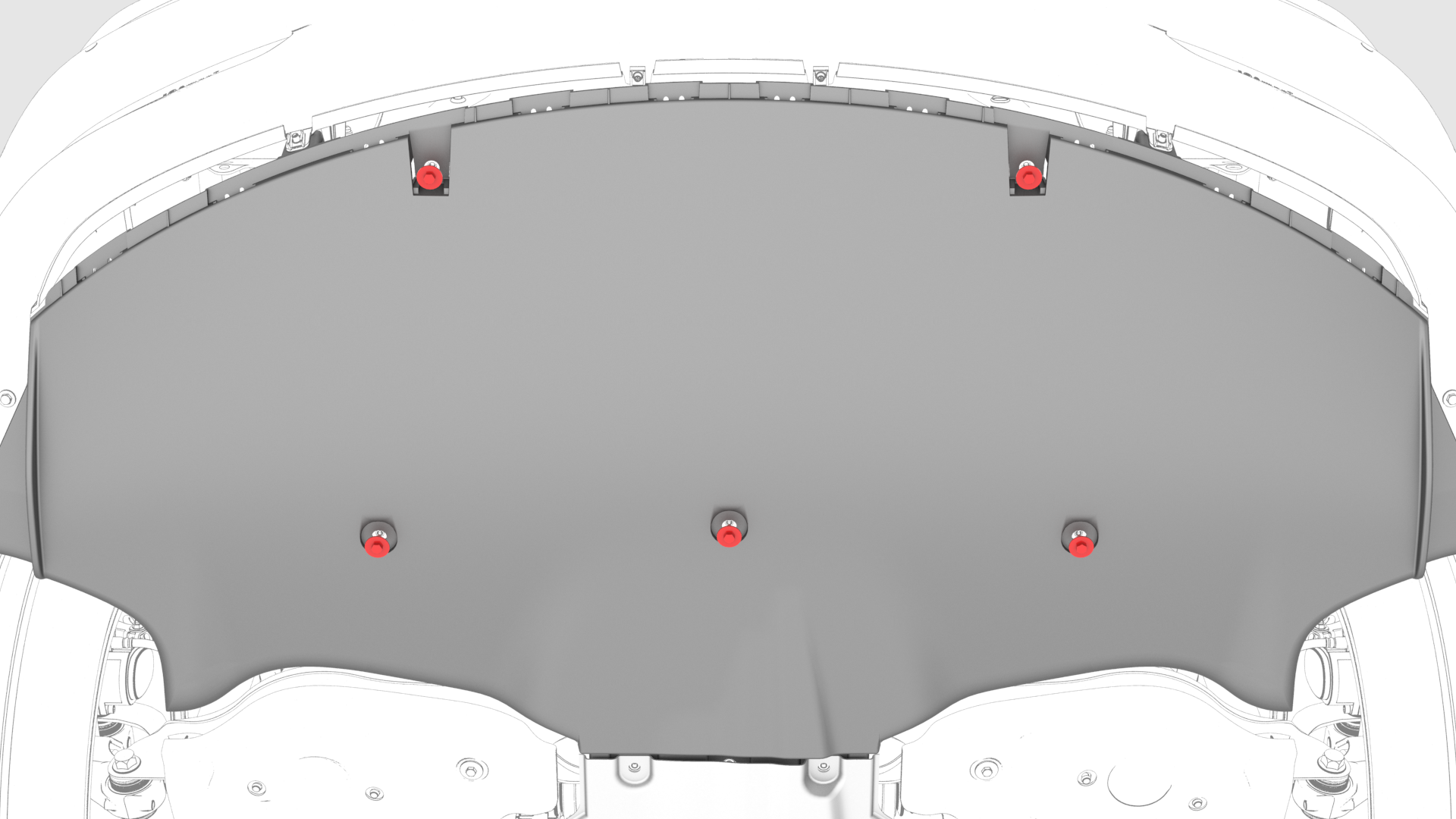

  3. Remove the fastener covers, and then remove the bolts that attach the rear fascia diffuser to the vehicle.
    Torque 4 Nm

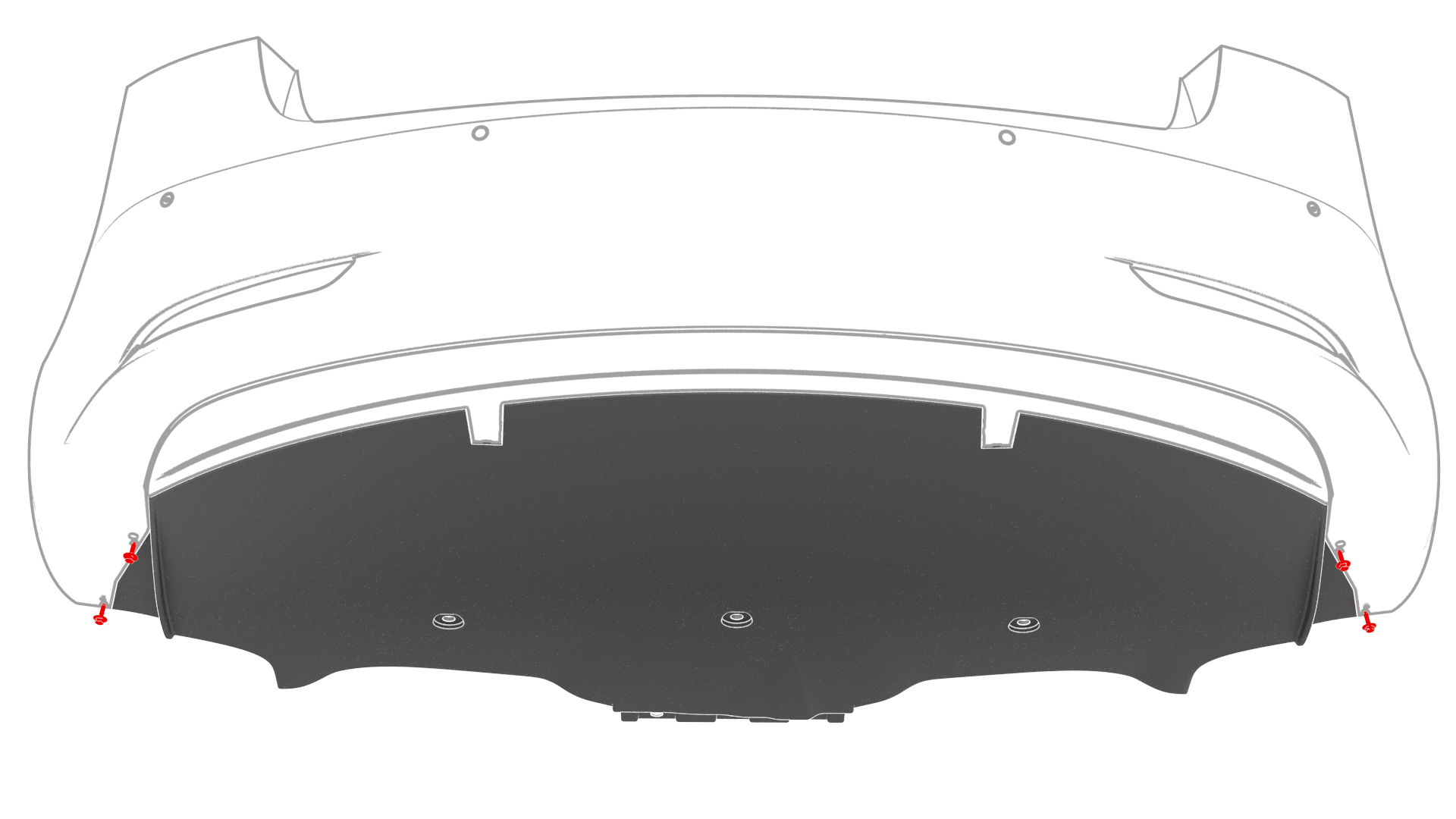

  4. Remove the bolts that attach the rear fascia diffuser to the outer edge of the rear fascia.
    Torque 3 Nm

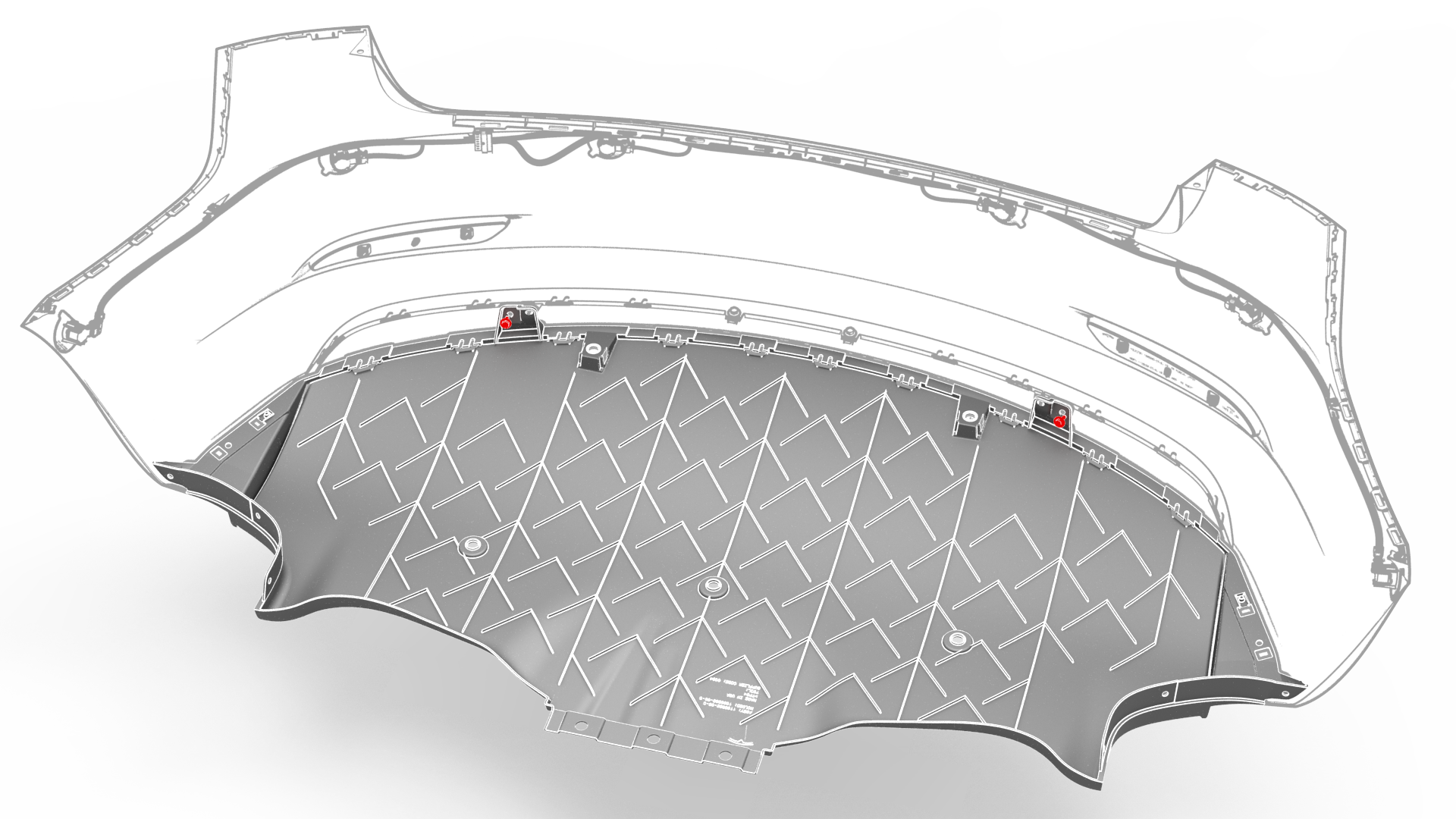

  5. Remove the bolts that attach the rear fascia diffuser to the inside of the rear fascia.
    Torque 3 Nm
    Note: Reach into the loosened rear fascia diffuser to access these bolts.

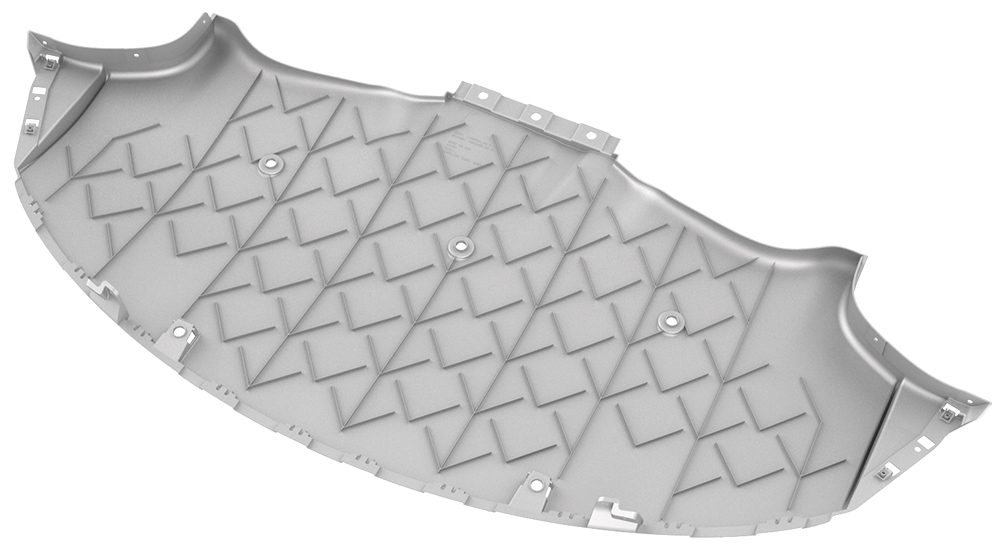

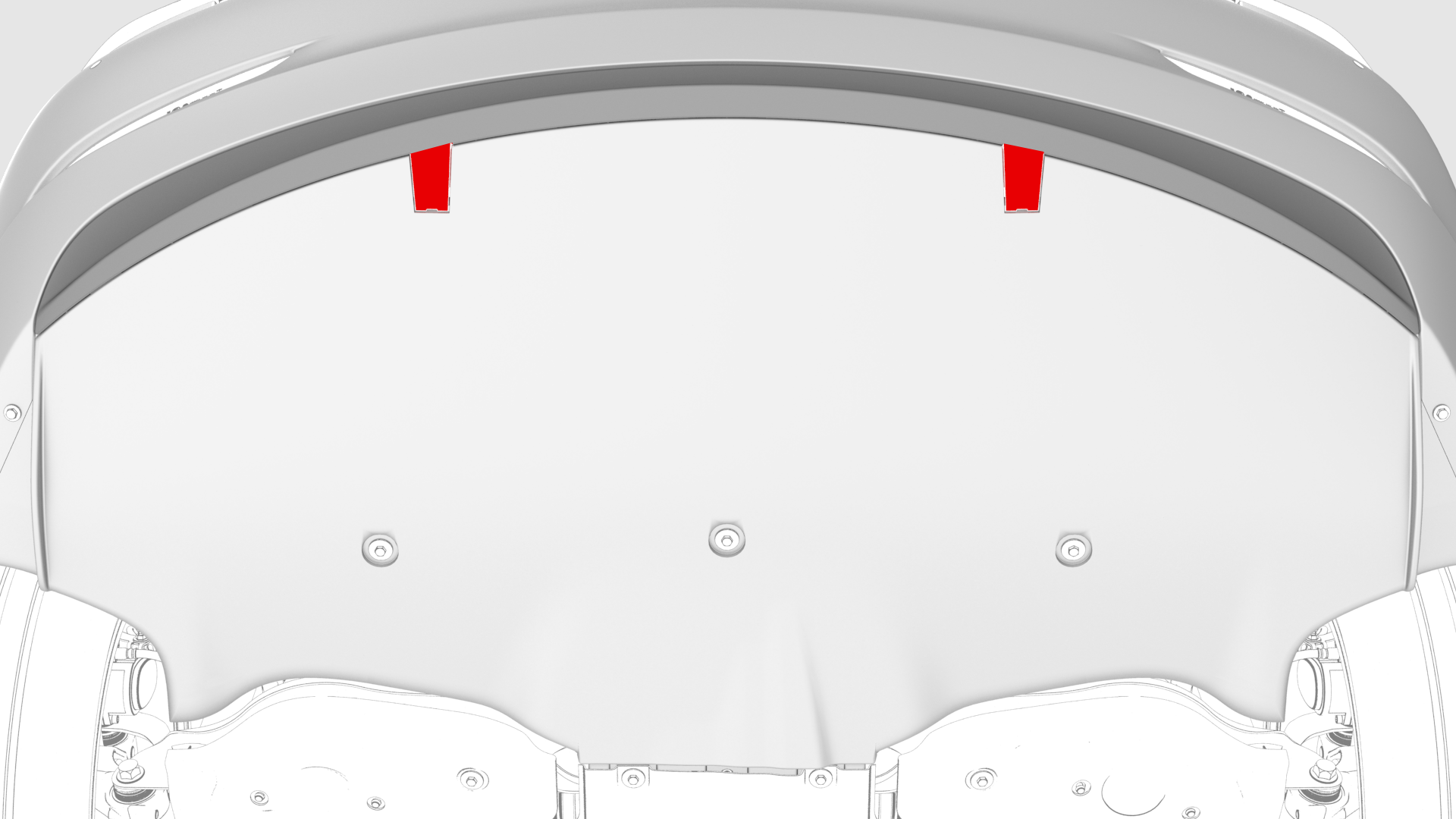

  6. Release the tabs that attach the rear fascia diffuser to the rear fascia, and then remove the diffuser.
1Raise and support the vehicle. See Raise Vehicle - 2 Post Lift.
2Remove the bolts that attach the rear fascia diffuser to the mid aero shield.
Torque 5 Nm
3Remove the fastener covers, and then remove the bolts that attach the rear fascia diffuser to the vehicle.
Torque 4 Nm
4Remove the bolts that attach the rear fascia diffuser to the outer edge of the rear fascia.
Torque 3 Nm
5Remove the bolts that attach the rear fascia diffuser to the inside of the rear fascia.
Torque 3 Nm
Note: Reach into the loosened rear fascia diffuser to access these bolts.
6Release the tabs that attach the rear fascia diffuser to the rear fascia, and then remove the diffuser.

Install

Installation procedure is the reverse of removal.
