Cover - Rear - Seat Track - 1st Row Seat (Remove and Replace)

Correction code 1301182213011822

Remove

Move the seat fully forward.

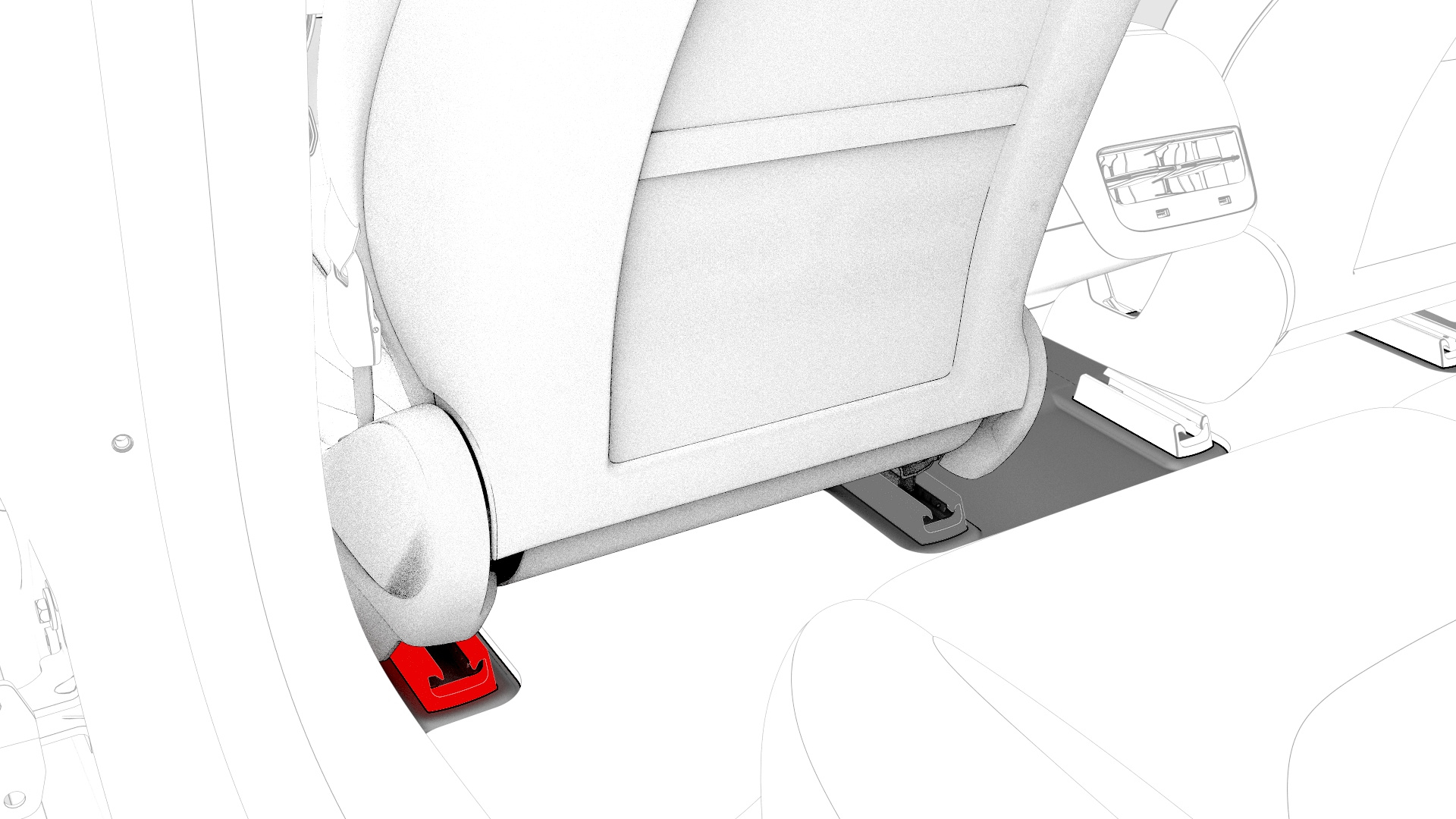

Release the clips at the front of the seat track rear cover that attach the cover to the seat track, and then slide the cover rearward off the track.

		1	Move the seat fully forward.
		2	Release the clips at the front of the seat track rear cover that attach the cover to the seat track, and then slide the cover rearward off the track.

Install

Slide the seat track rear cover forward over the seat track, and then fasten the clips that attach the cover to the seat track.
Return the seat to the original position.

		1	Slide the seat track rear cover forward over the seat track, and then fasten the clips that attach the cover to the seat track.
		2	Return the seat to the original position.
