Sensor - Cabin Temperature (Remove and Replace)

Correction code 1810750218107502
from-rc
Note:

This procedure was formulated using a release candidate or production model. Follow safety requirements and use extreme caution when working on or near high-voltage systems and components.

Provide corrections and feedback to servicemanualfeedback@tesla.com.

Parent topic: 1810 - Cabin HVAC

Remove

  1. Open the LH front door.
  2. Lower the LH front window.

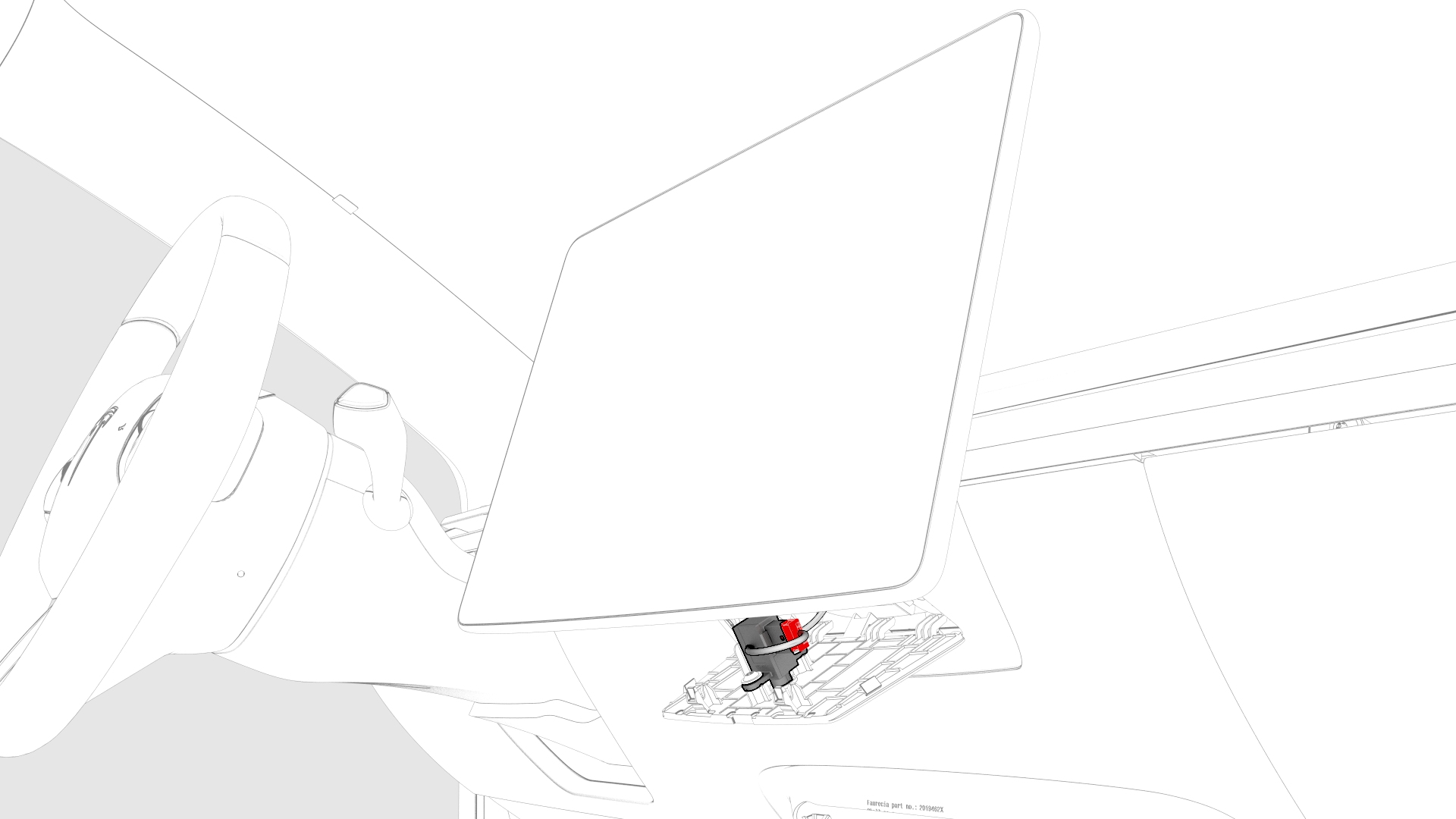

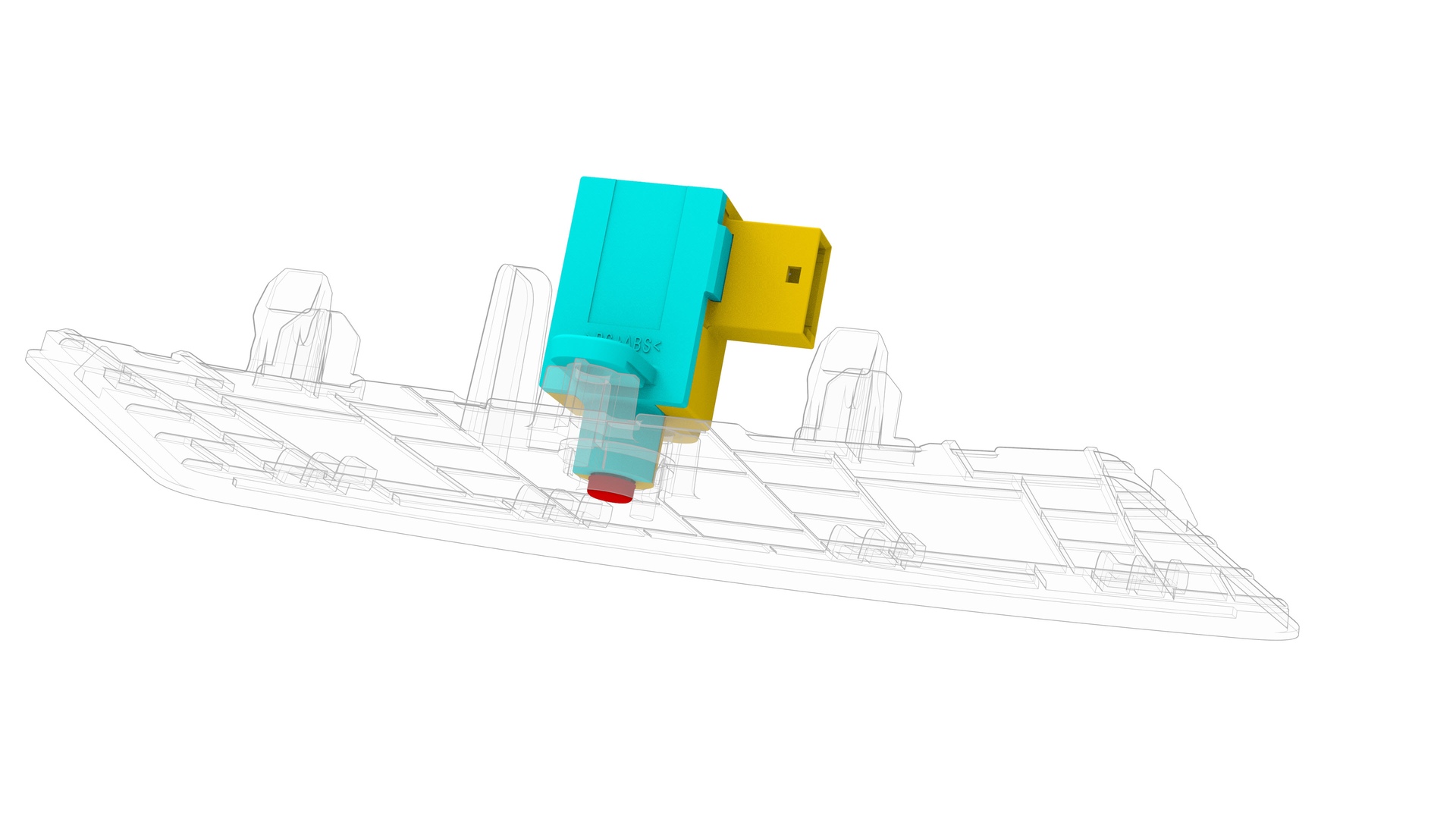

  3. Release the clips that attach the service panel to the touchscreen, and then disconnect the electrical connector from the sensor.

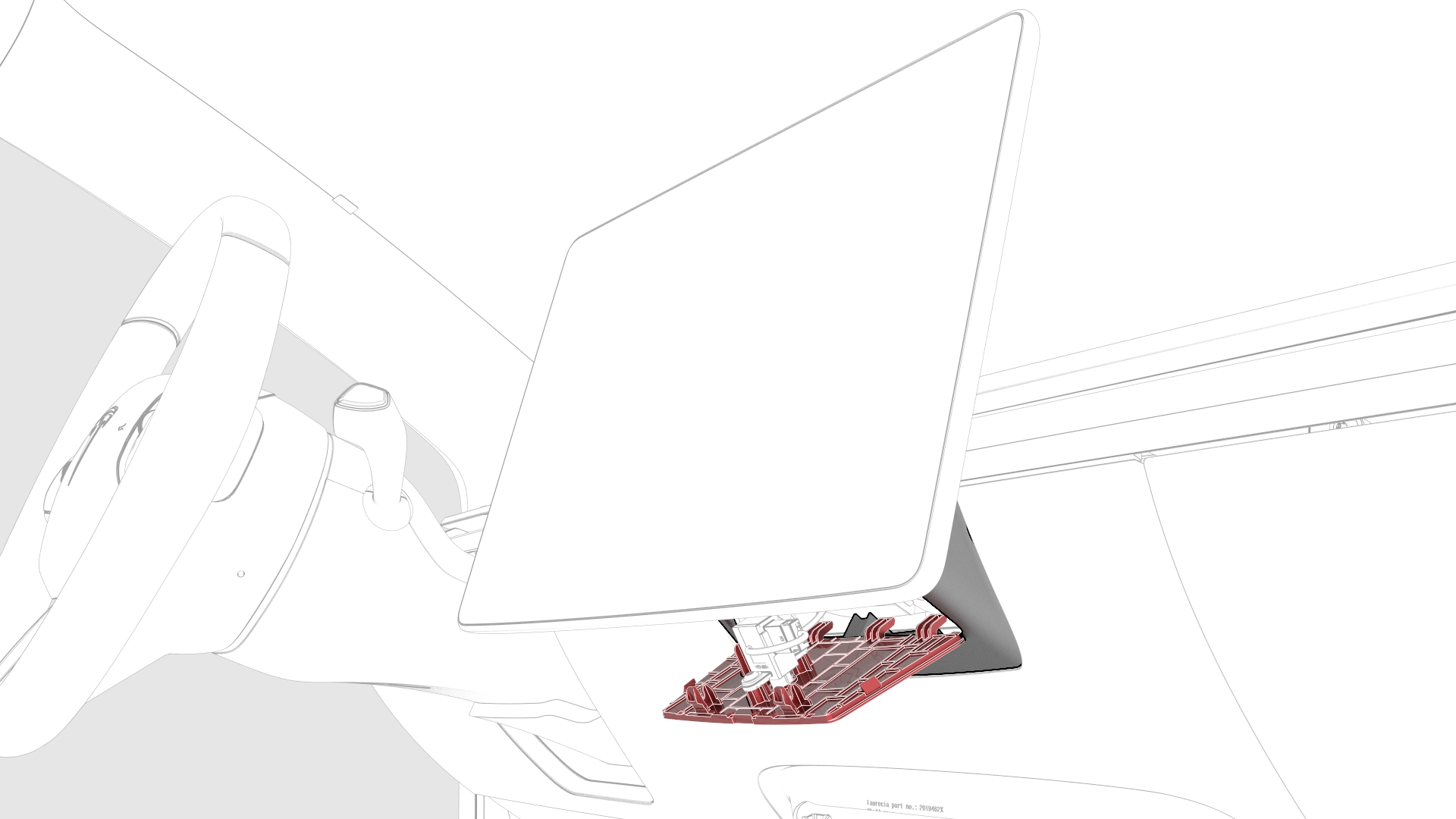

  4. Remove the service panel from the touchscreen.

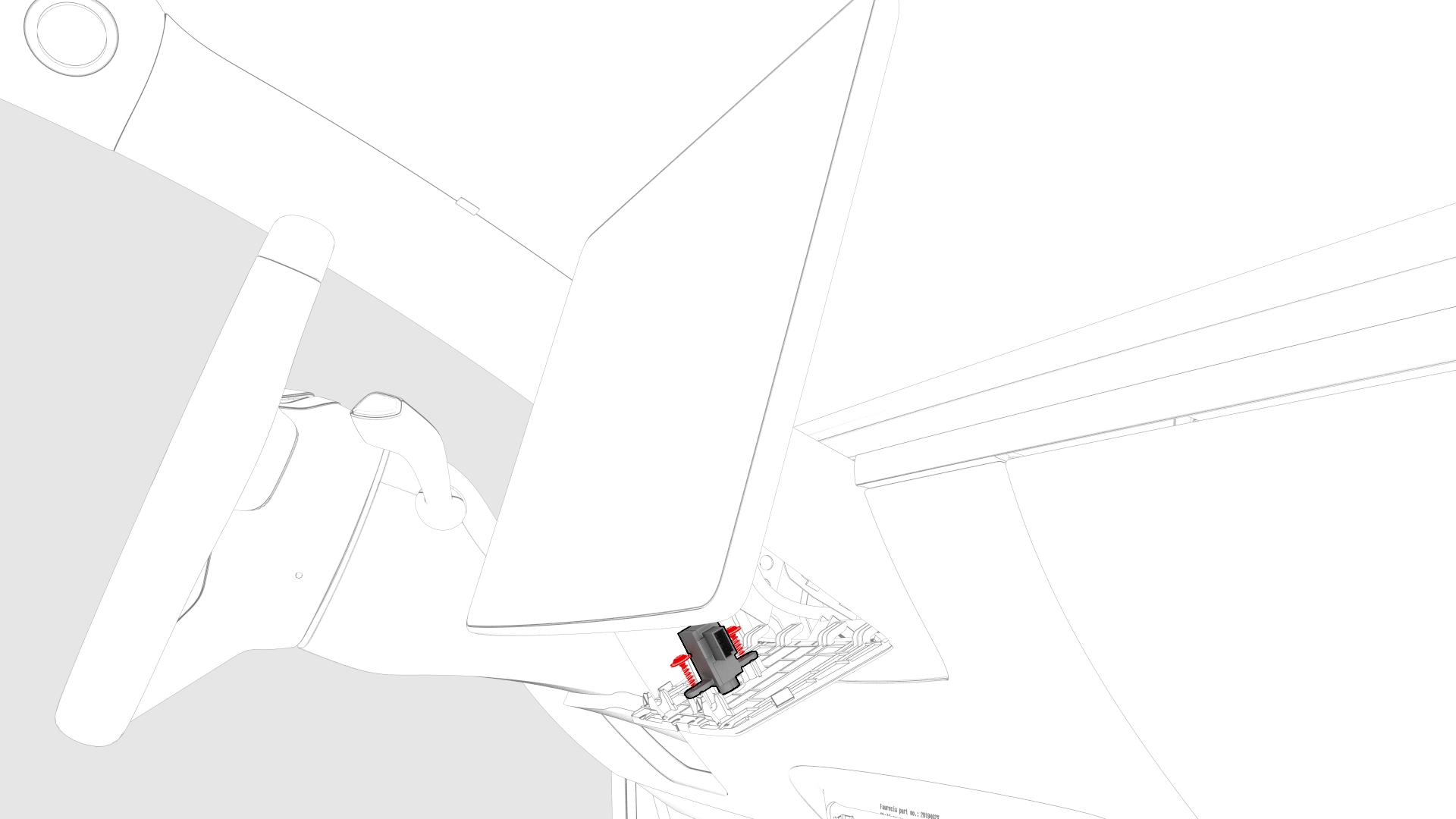

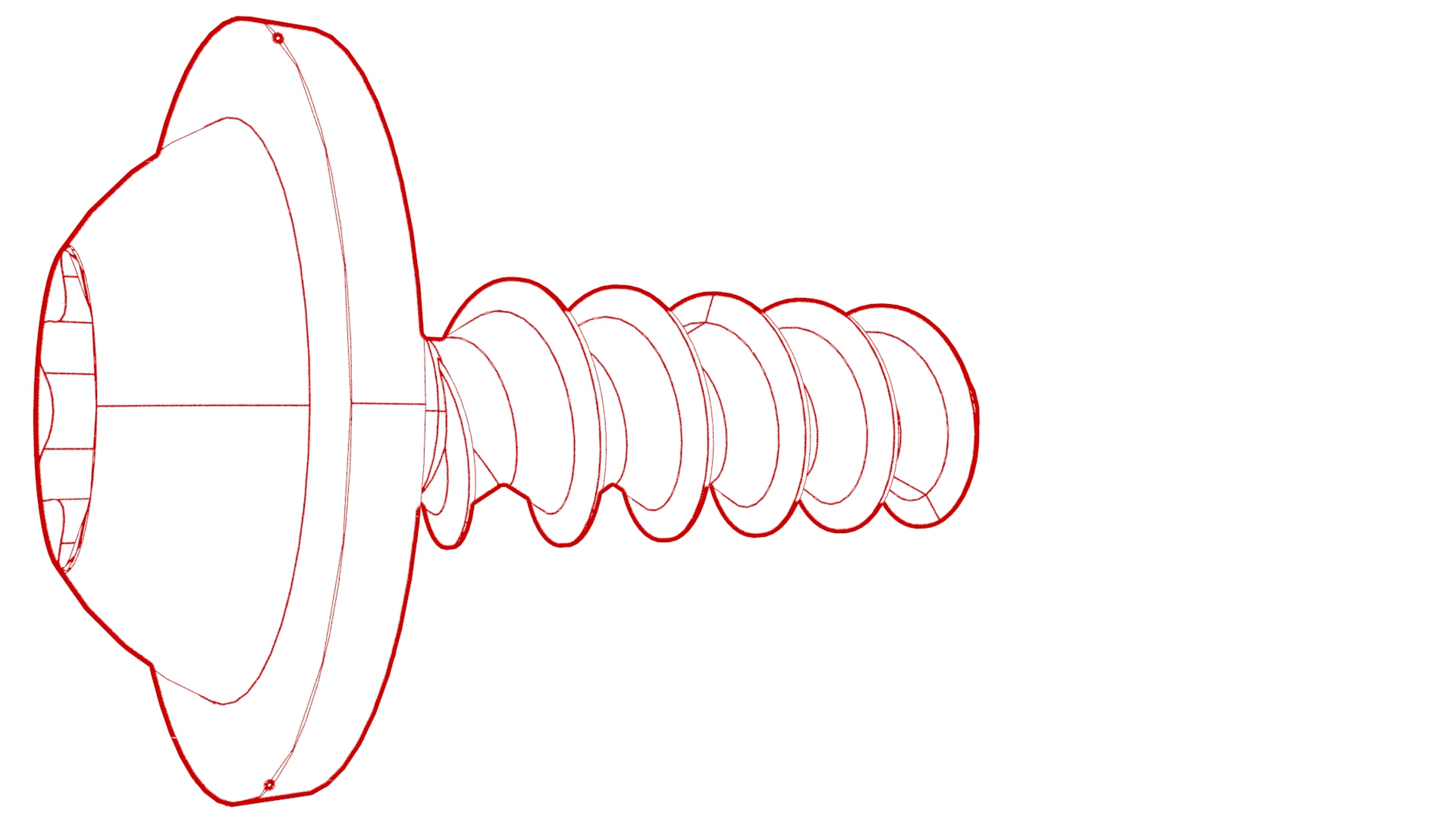

  5. Remove the bolts that attach the cabin temperature sensor to the touchscreen, and then remove the sensor.
    Torque 0.7 Nm
1Open the LH front door.
2Lower the LH front window.
3Release the clips that attach the service panel to the touchscreen, and then disconnect the electrical connector from the sensor.
4Remove the service panel from the touchscreen.
5Remove the bolts that attach the cabin temperature sensor to the touchscreen, and then remove the sensor.
Torque 0.7 Nm

Install

Installation procedure is the reverse of removal.
