Shield - Dust - Brake - Front - LH (Remove and Replace)

Correction code 3301160233011602

Remove

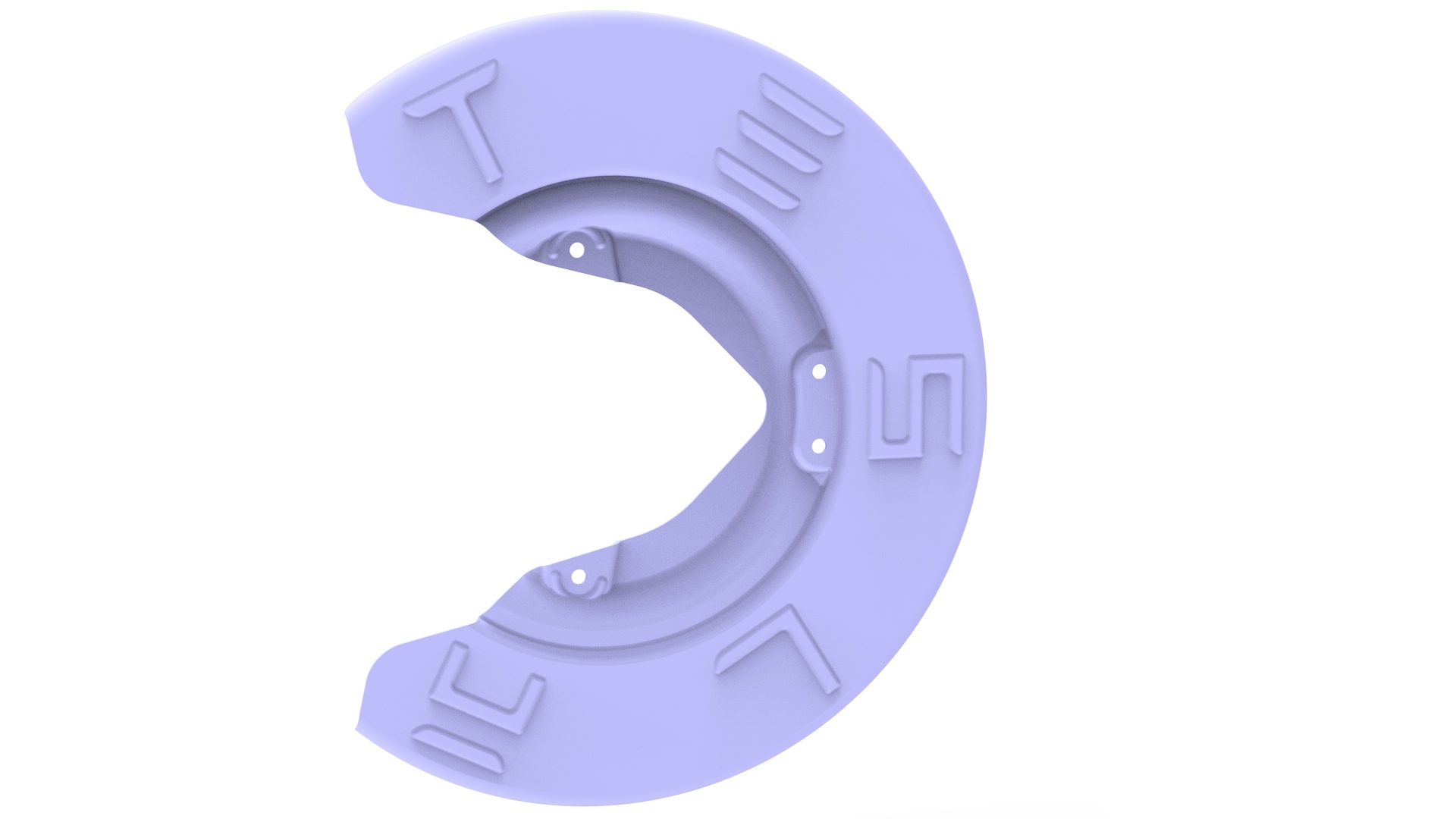

Note: This procedure is applicable to both Model 3 base and sport brake dust shields.

Remove the LH front brake rotor. See Brake Rotor - Front - LH (Remove and Replace).

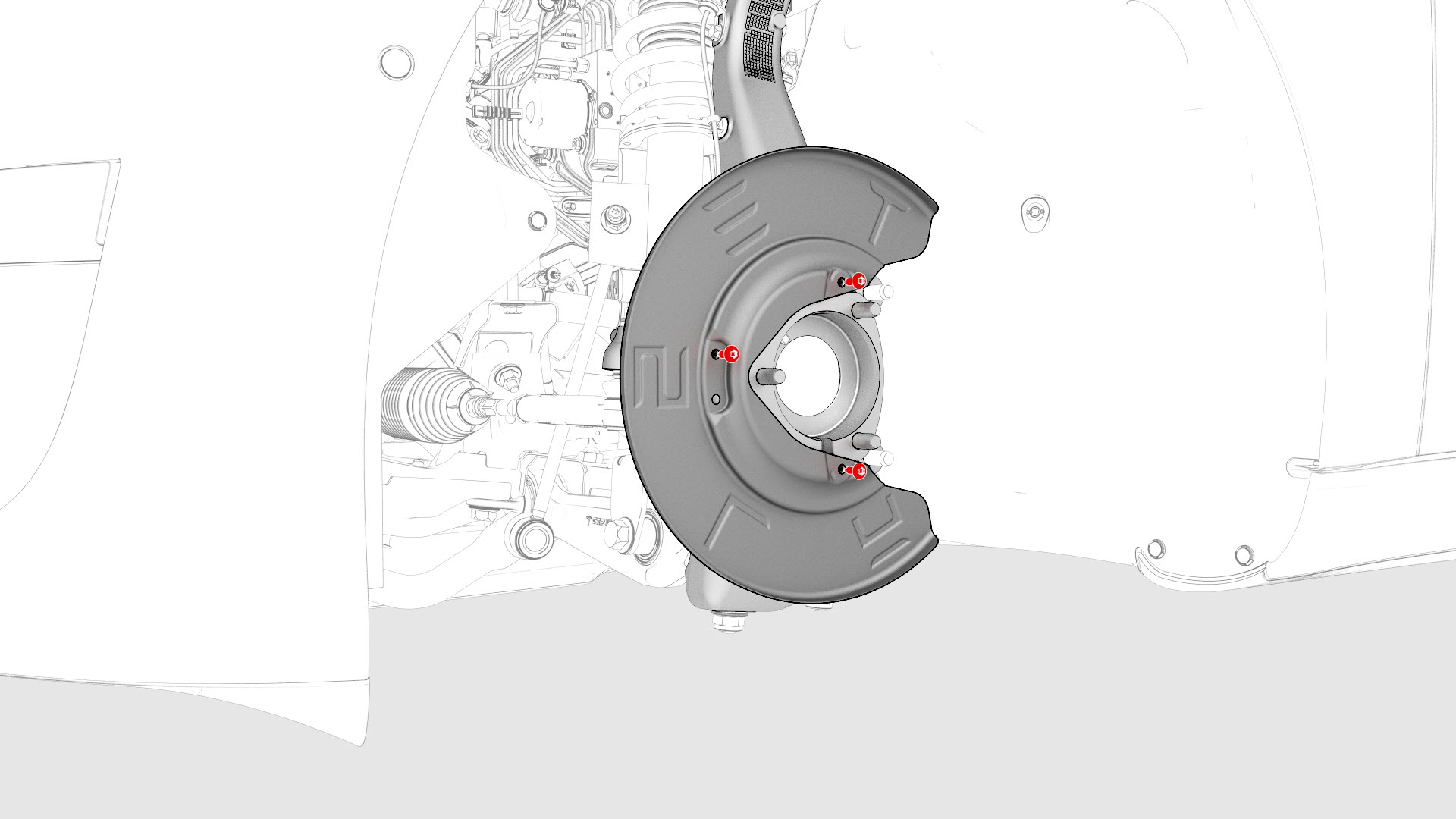

Remove the bolts that attach the LH front brake dust shield to the knuckle, and then remove the dust shield from the vehicle.
Torque 8 Nm

		1	Remove the LH front brake rotor. See Brake Rotor - Front - LH (Remove and Replace).
		2	Remove the bolts that attach the LH front brake dust shield to the knuckle, and then remove the dust shield from the vehicle. Torque 8 Nm

Install

Installation procedure is the reverse of removal.
