Cover - Rocker Panel - Lower - LH (Remove and Replace)

Correction code 1220260212202602

Remove

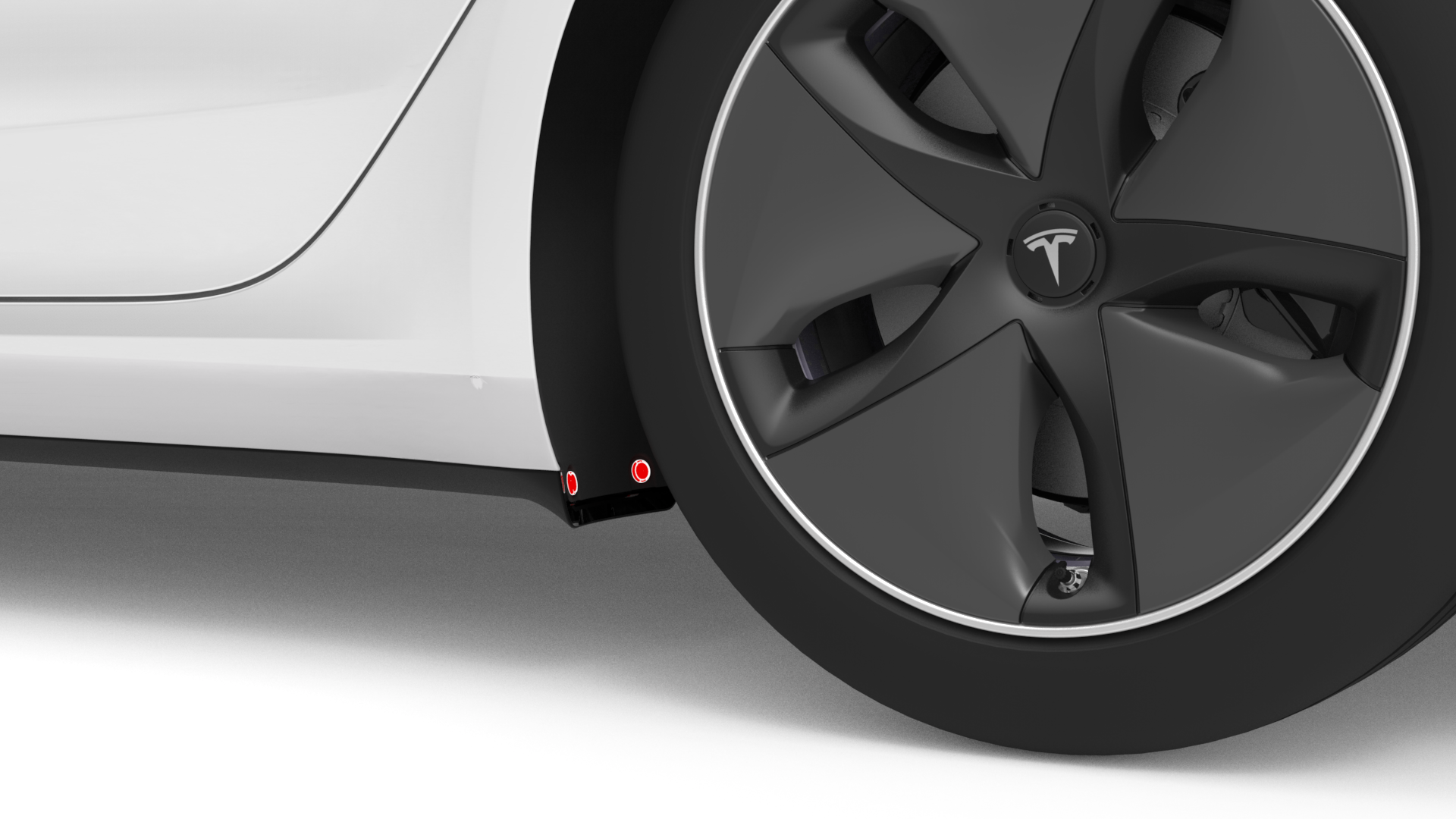

Release the LH lower rocker panel bolt covers.

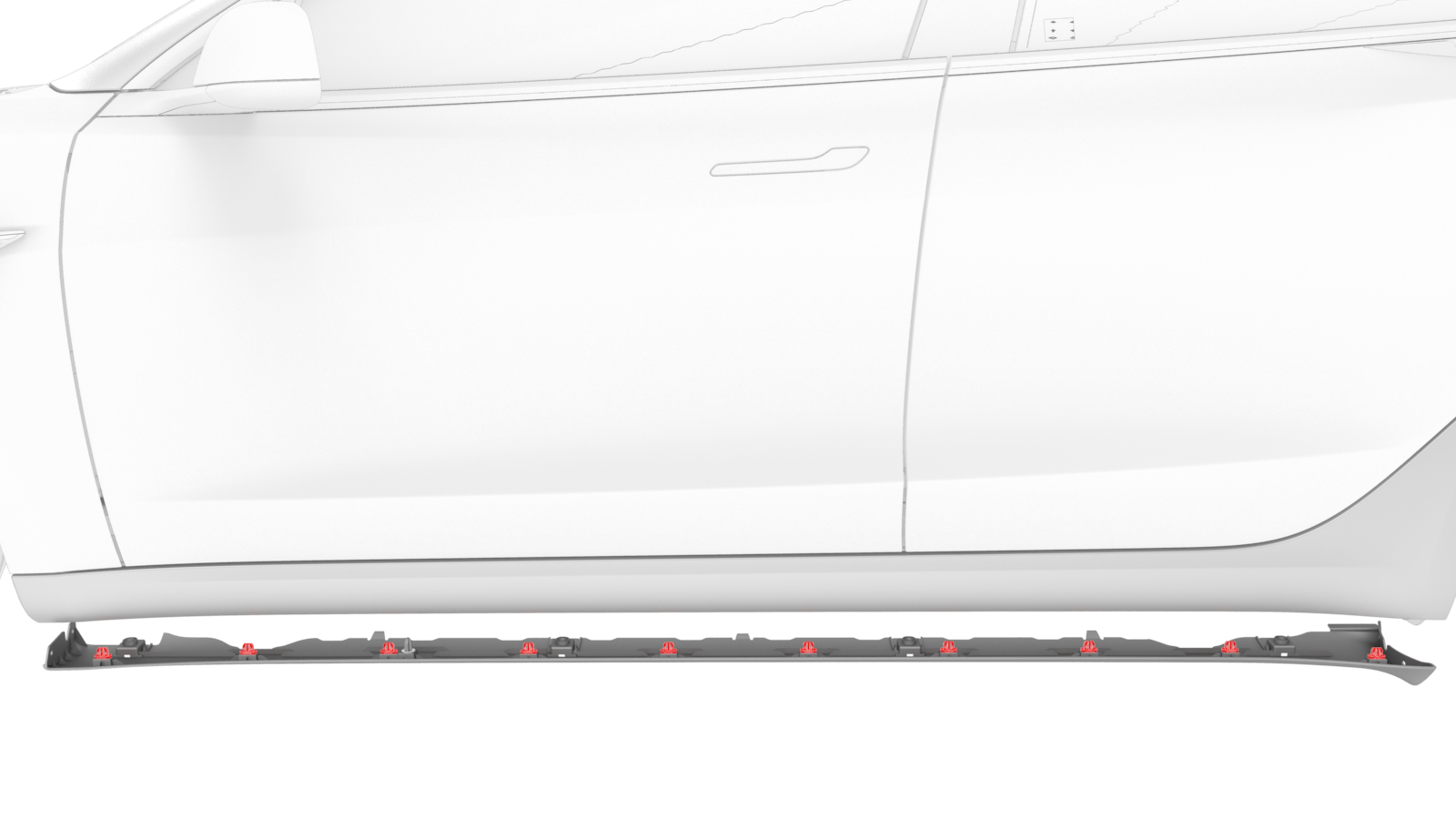

Remove the bolts that attach the LH lower rocker panel cover to the body.

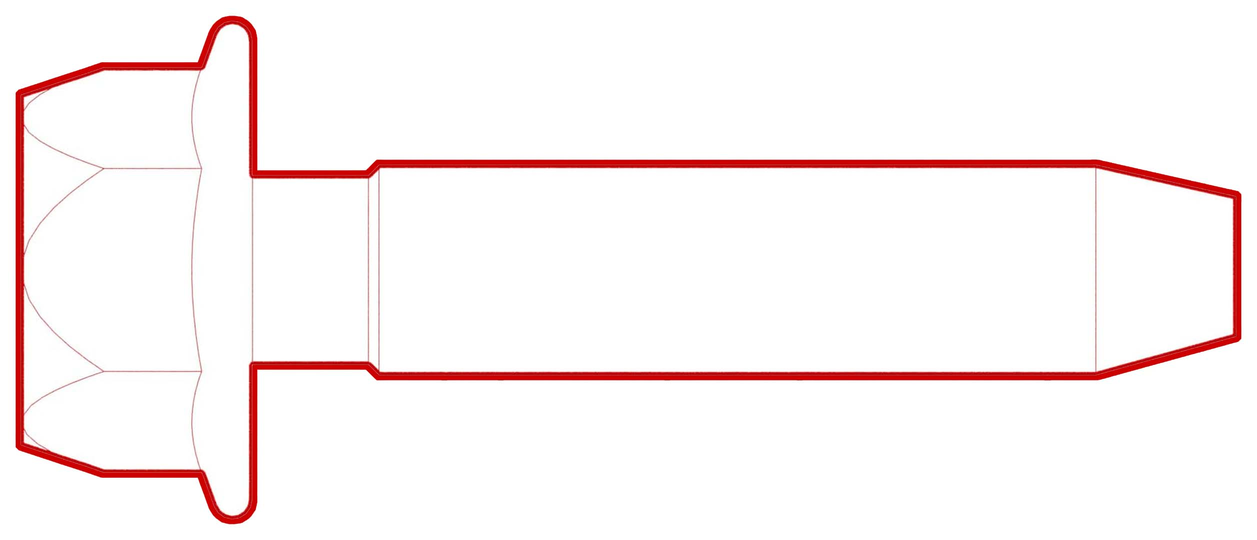

Torque 5 Nm

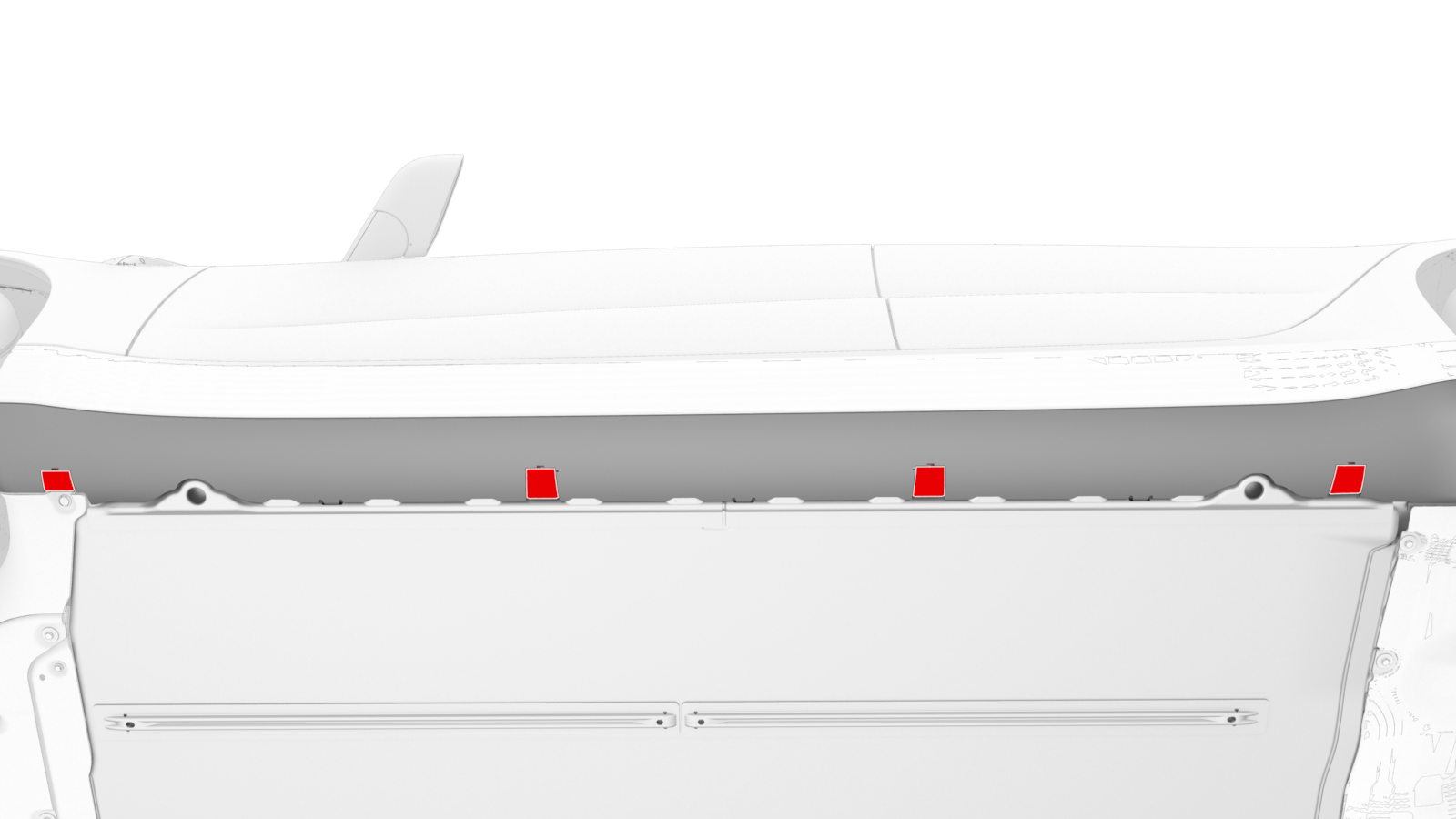

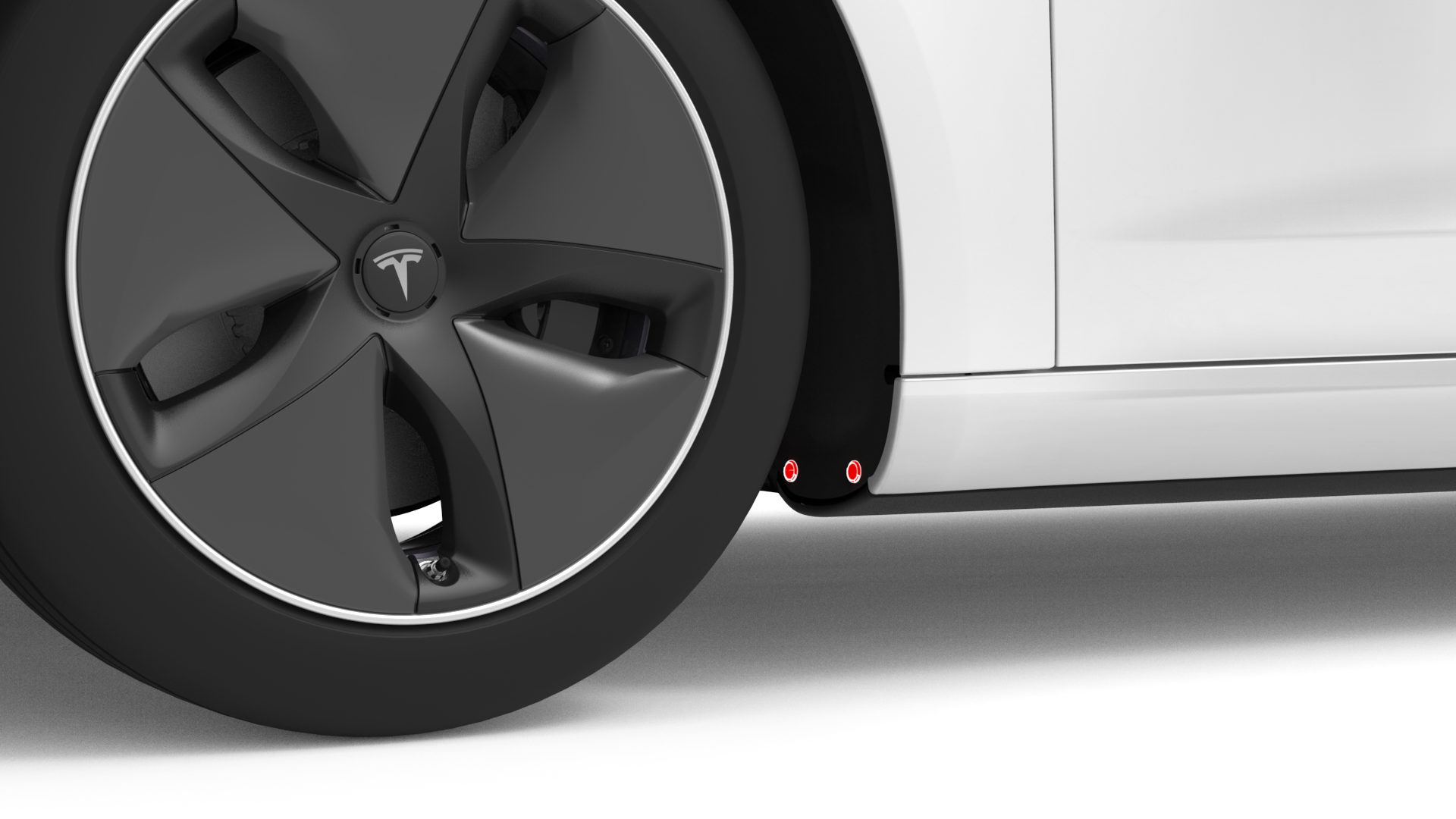

Release the clips that attach the LH lower rocker panel cover to the front and rear wheel arch liners.

Front

Rear

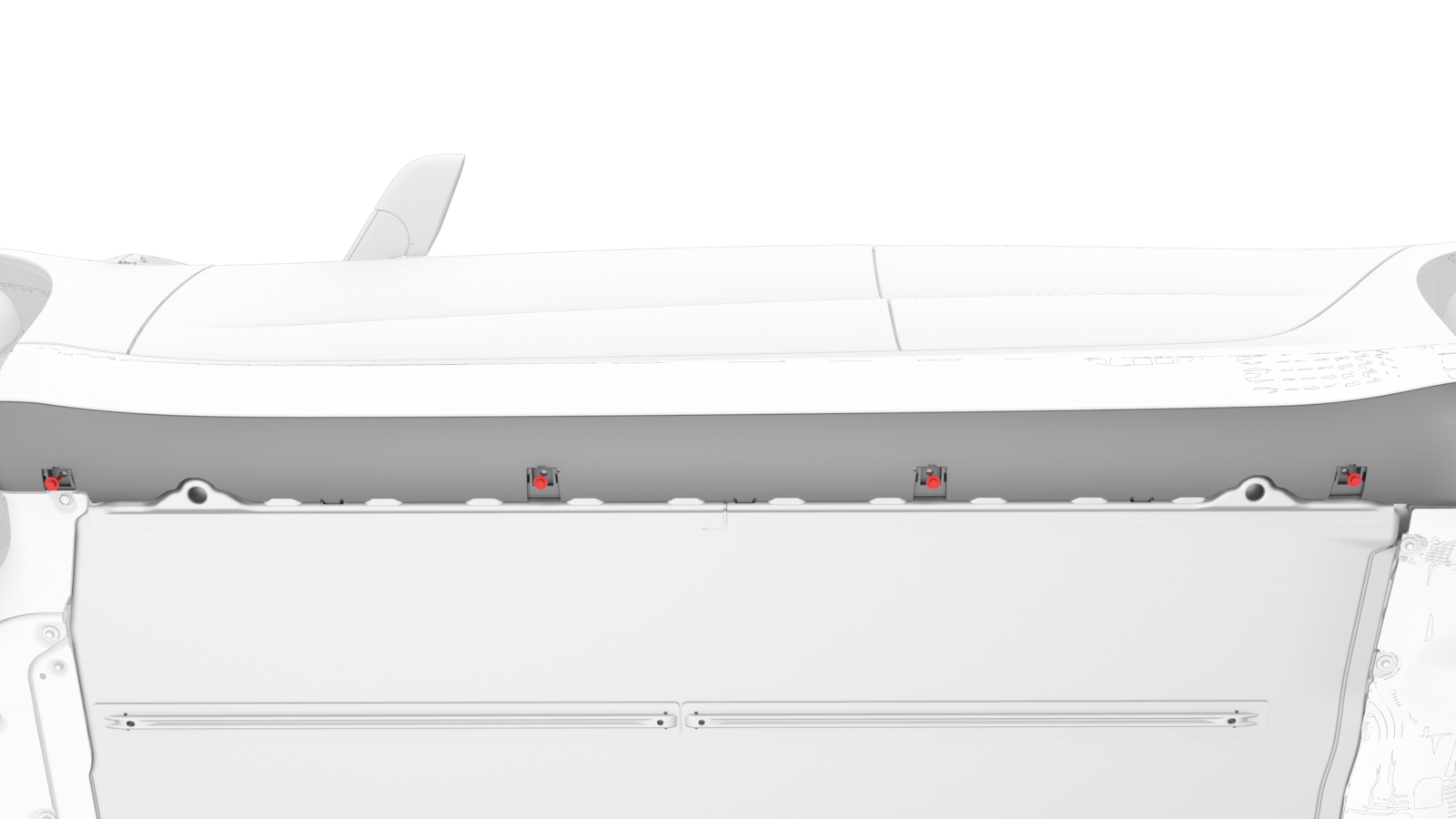

Release the clips that attach the LH lower rocker panel cover to the rocker panel, and then remove the cover from the panel.

	1	Release the LH lower rocker panel bolt covers.
	2	Remove the bolts that attach the LH lower rocker panel cover to the body. Torque 5 Nm
Front Rear	3	Release the clips that attach the LH lower rocker panel cover to the front and rear wheel arch liners.
	4	Release the clips that attach the LH lower rocker panel cover to the rocker panel, and then remove the cover from the panel.

Install

Installation procedure is the reverse of removal.
