Torque Specifications - Brakes

Table 1. Torque Specifications: Brake Caliper - Front
Description Torque Value Reuse/Replace Notes

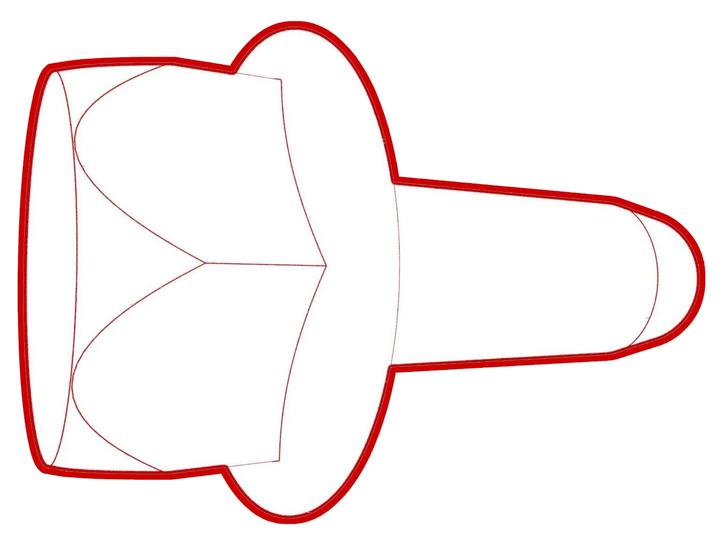

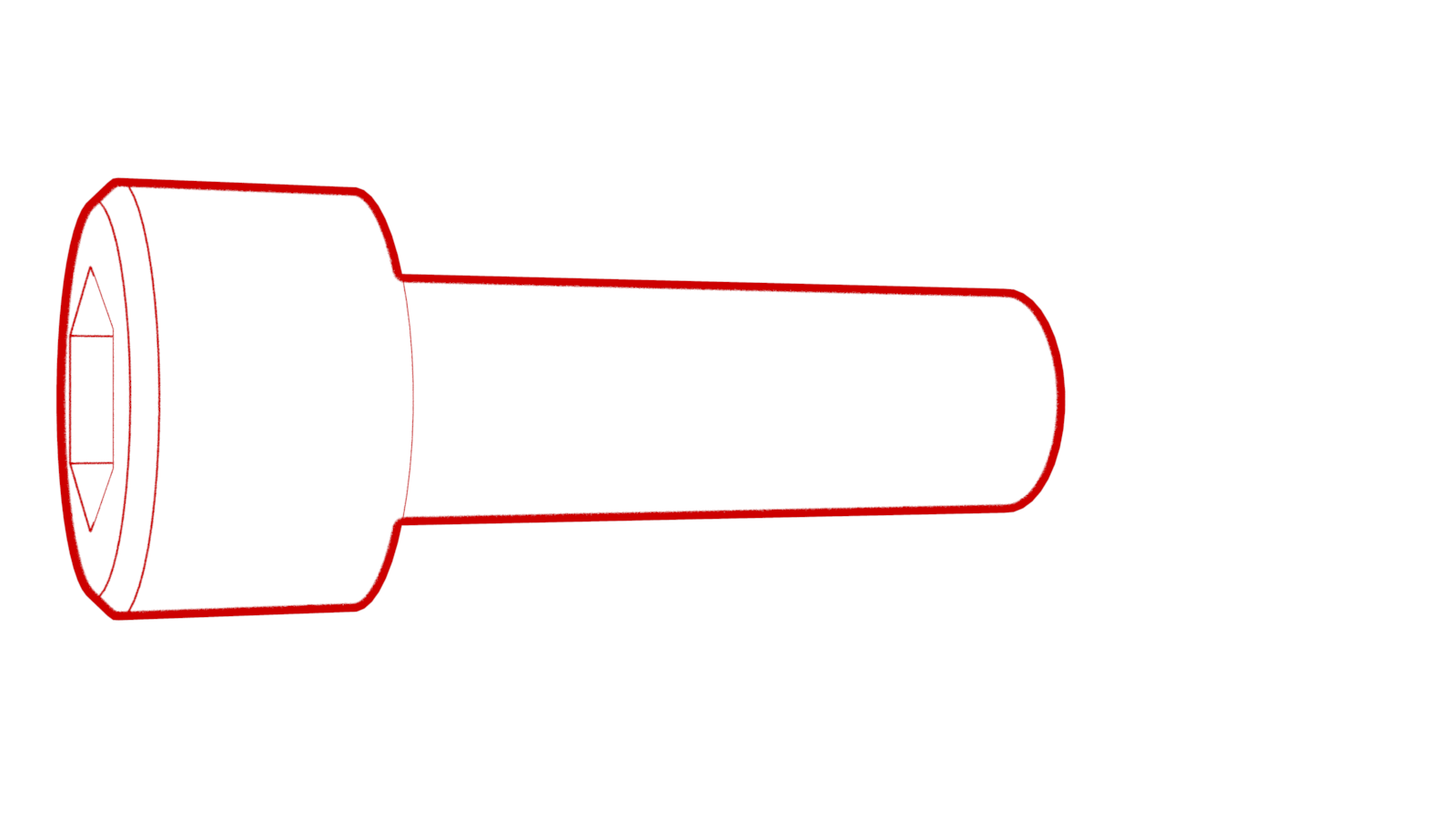

LH front brake caliper to the knuckle
Torque 94 Nm
 Replace

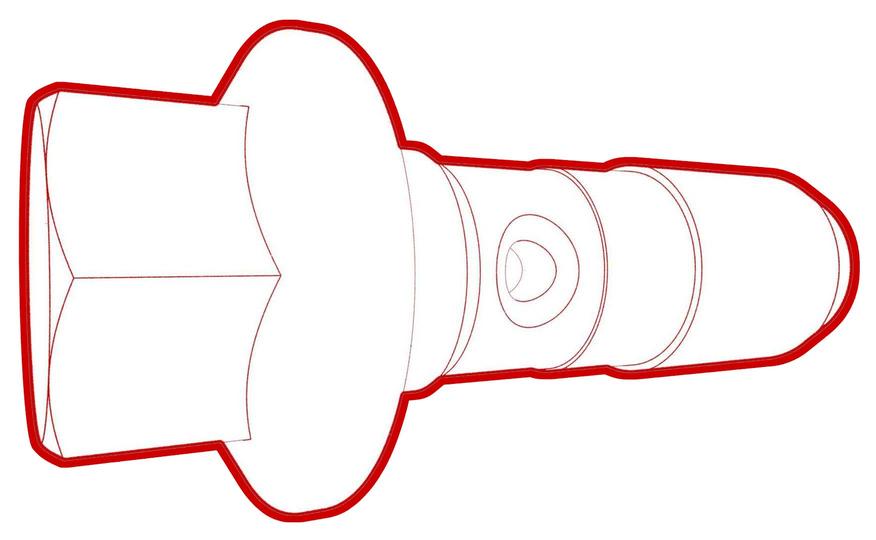

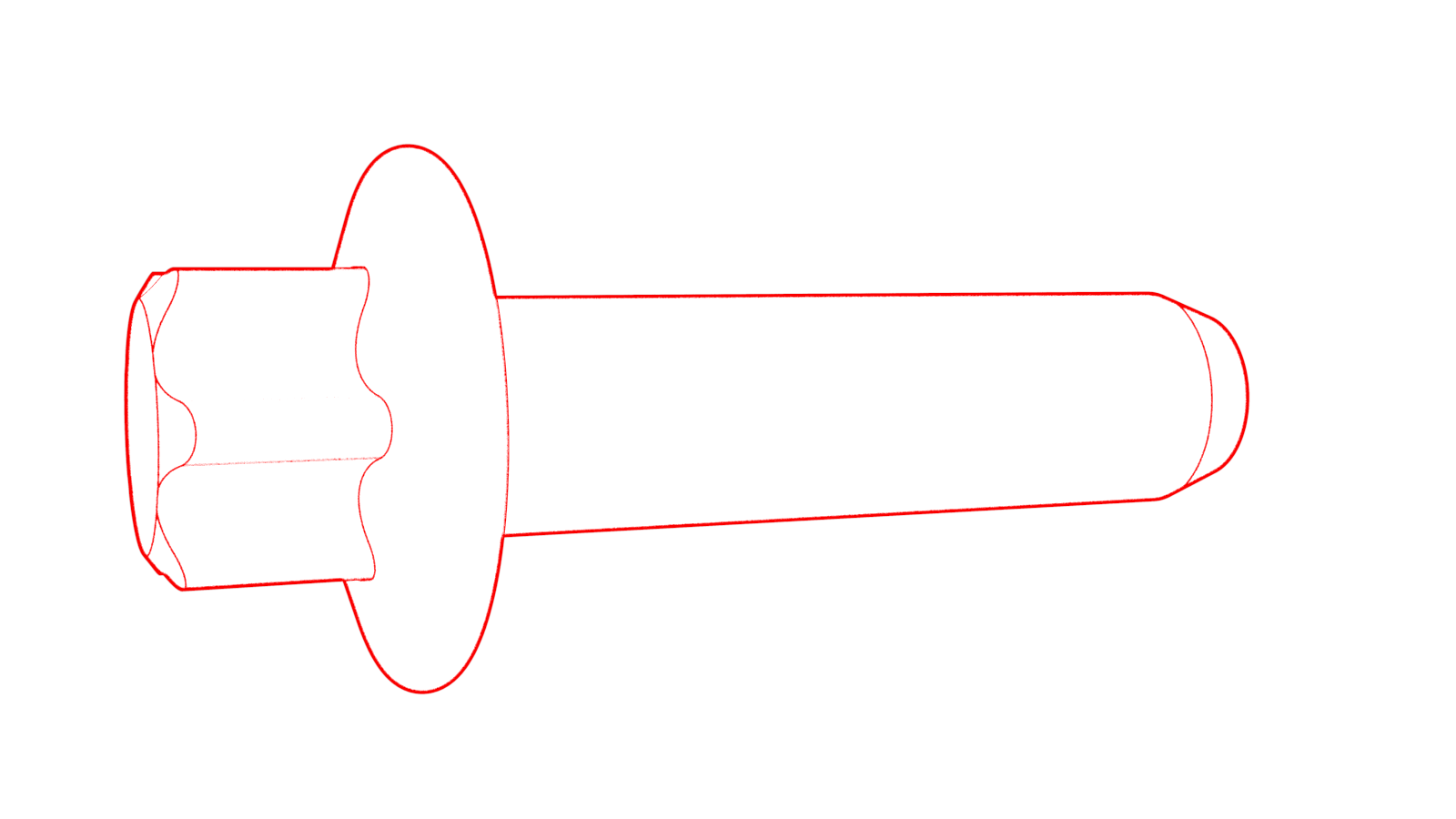

LH front brake hose to the LH front brake caliper
Torque 42 Nm
 Replace
Table 2. Torque Specifications: Brake Caliper - Rear
Description Torque Value Reuse/Replace Notes

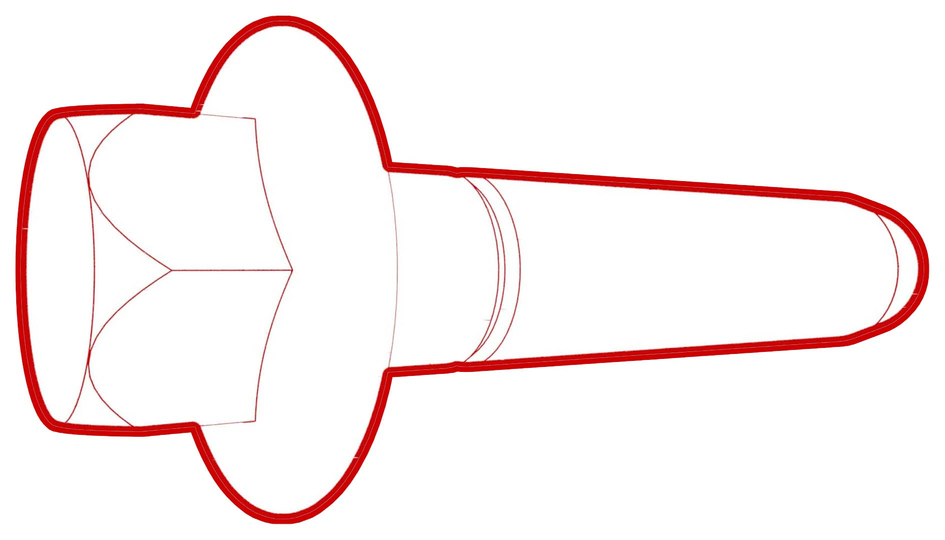

LH rear brake caliper bracket to the knuckle
Torque 83 Nm
 Replace
brake hose to the LH rear brake caliper
Torque 42 Nm
 Replace

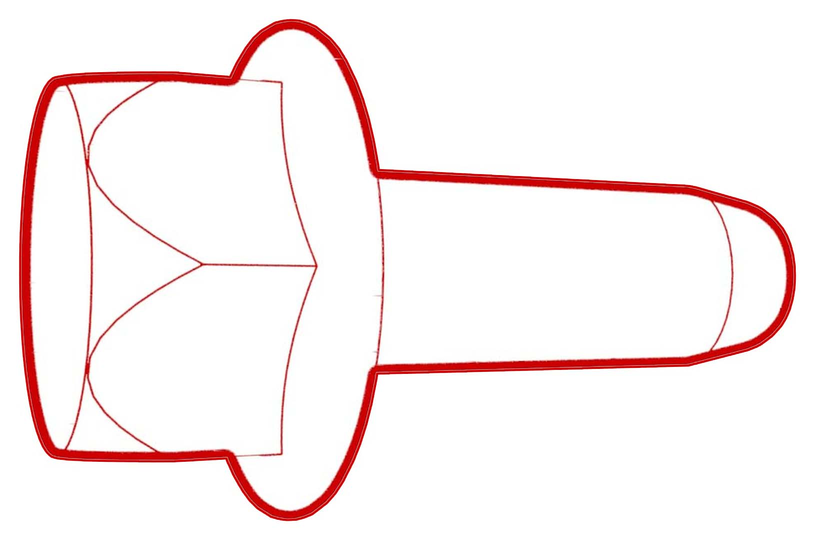

LH rear brake caliper electrical harness clips
Torque 5 Nm
 Reuse
Table 3. Torque Specifications: Brake Pad Kit - Front (Sport Brakes)
Description Torque Value Reuse/Replace Notes
LH front brake caliper on the LH front knuckle
Torque 94 Nm
 Replace

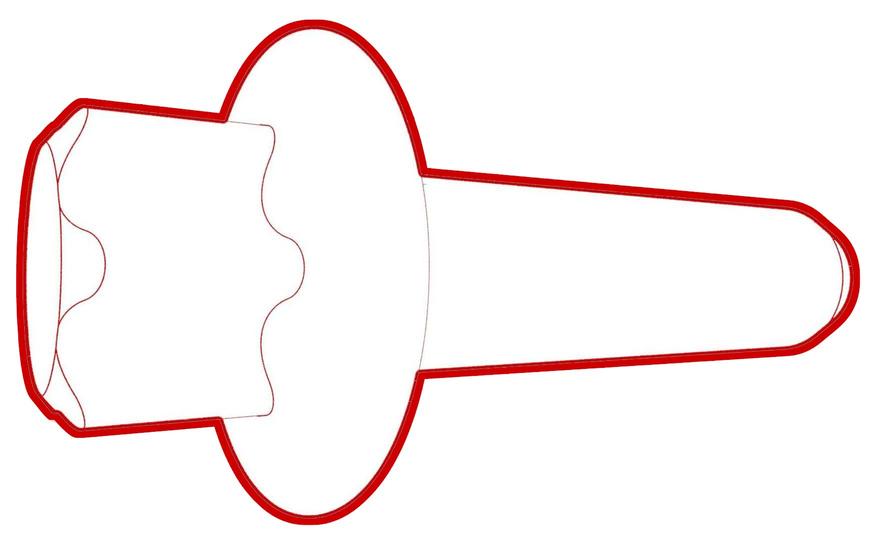

LH front brake hose bracket to the LH front knuckle
Torque 5 Nm
 Reuse
Table 4. Torque Specifications: Brake Pad Kit - Rear (Base Brakes)
Description Torque Value Reuse/Replace Notes

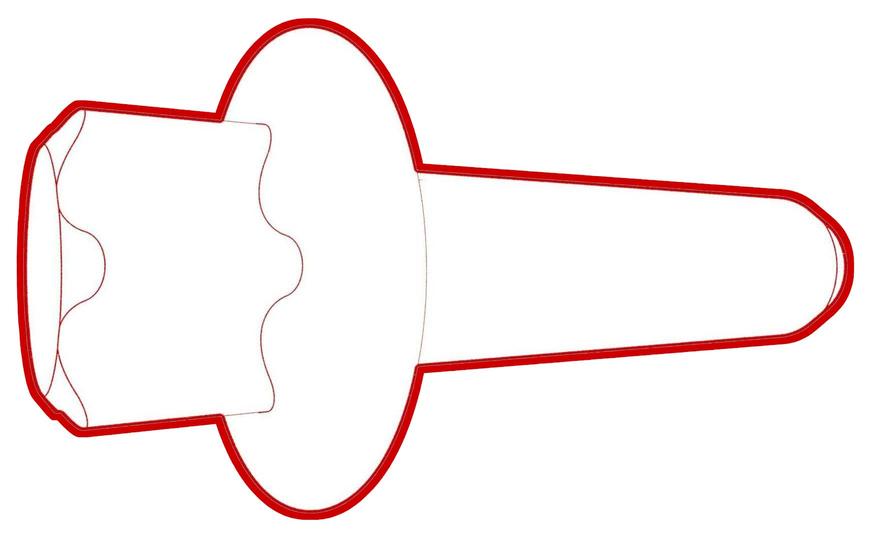

LH rear brake caliper to the LH rear brake caliper bracket
Torque 26.5 Nm
 Reuse
Table 5. Torque Specifications: Brake Pad Kit - Rear (Sports Brakes)
Description Torque Value Reuse/Replace Notes

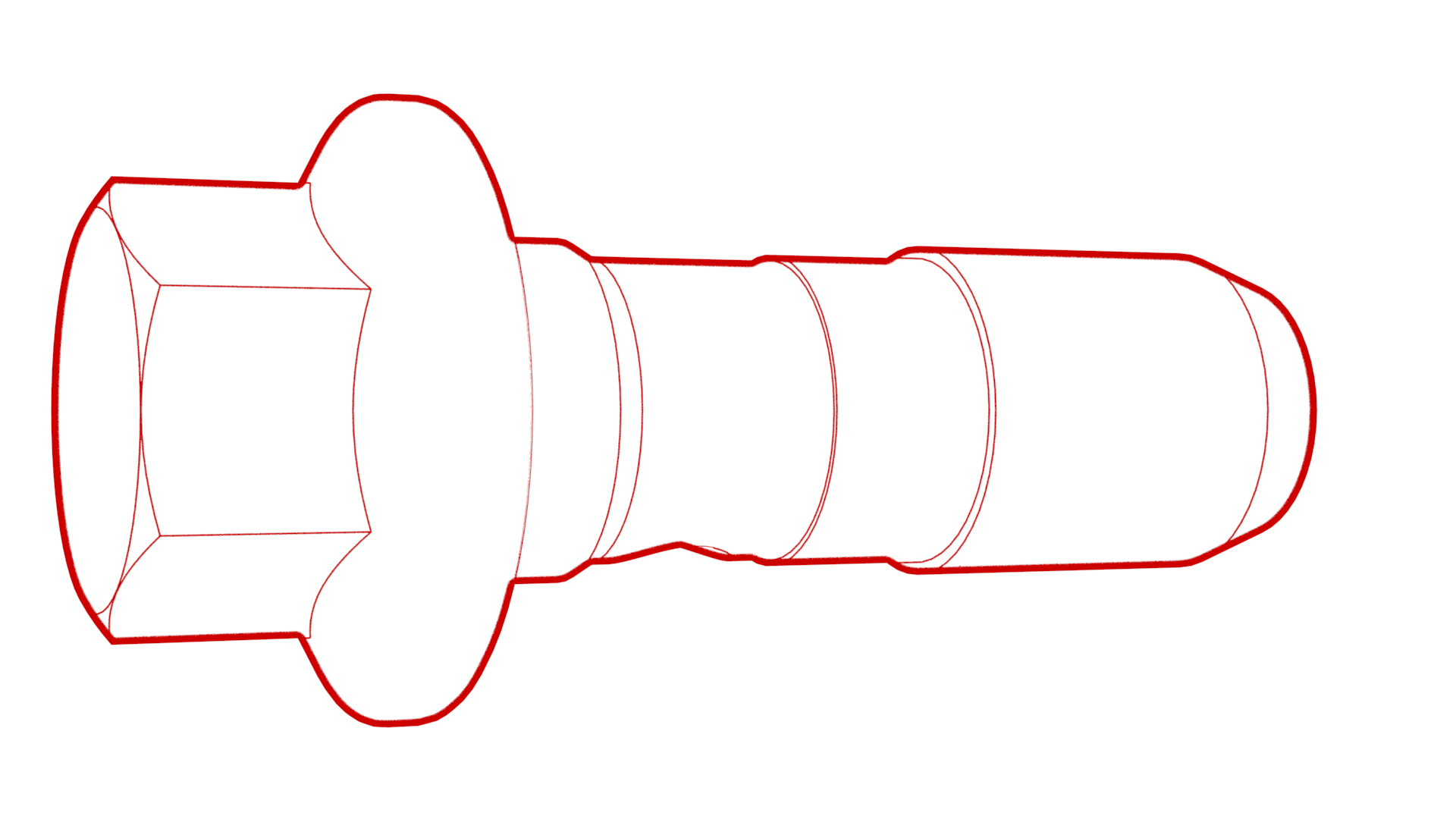

LH rear caliper to the LH rear caliper bracket
Torque 90 Nm
 Reuse

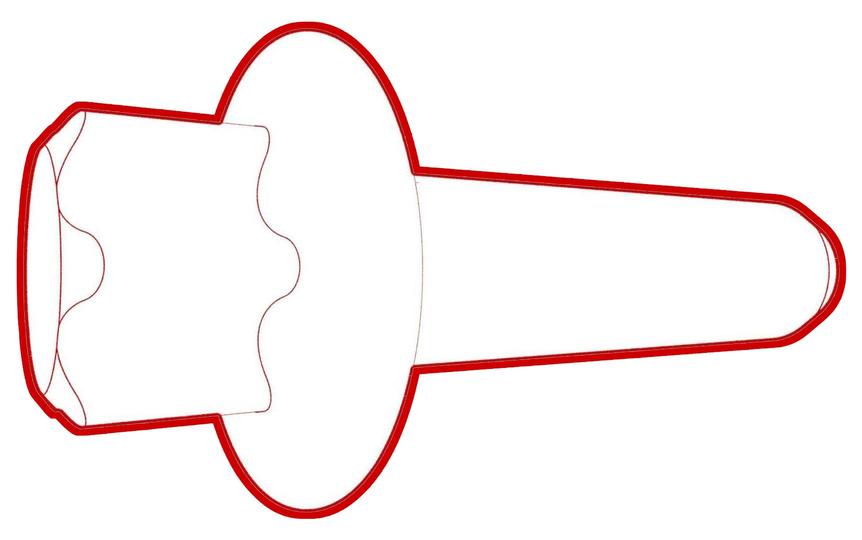

LH rear caliper to the LH rear caliper bracket
Torque 47.5 Nm
 Reuse
Table 6. Torque Specifications: Brake Rotor - Front - LH
Description Torque Value Reuse/Replace Notes
LH front brake hose bracket to the LH front knuckle
Torque 5 Nm
 Reuse
LH front caliper to the LH front knuckle
Torque 94 Nm
 Reuse

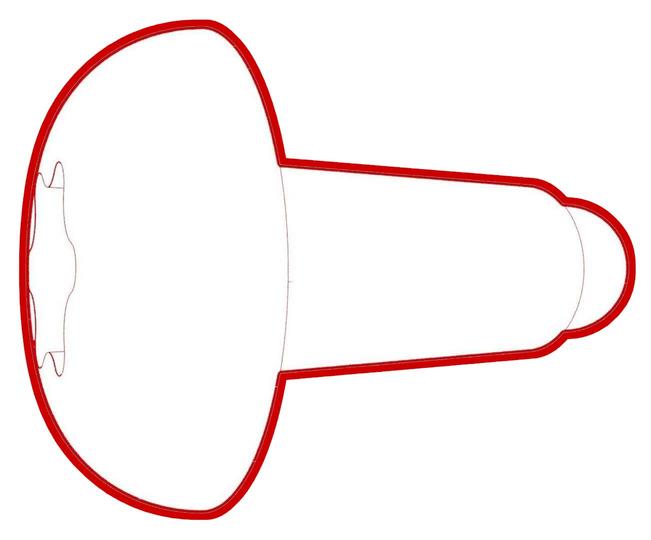

brake rotor to the hub
Torque 5 Nm
 Reuse
Table 7. Torque Specifications: Brake Rotors - Rear - LH
Description Torque Value Reuse/Replace Notes
LH rear caliper to the LH rear knuckle
Torque 83 Nm
 Replace
brake rotor to the hub
Torque 5 Nm
 Reuse
Table 8. Torque Specifications: Shield - Dust - Brake - Front - LH
Description Torque Value Reuse/Replace Notes
LH front brake dust shield to the knuckle
Torque 8 Nm
 Reuse
Table 9. Torque Specifications: Shield - Dust- Brake - Rear - LH
Description Torque Value Reuse/Replace Notes
LH rear brake dust shield to the knuckle
Torque 8 Nm
 Reuse
hub to the knuckle
Torque 78 Nm
 Replace
LH rear drive unit halfshaft nut
Torque 245 Nm
 Reuse
Table 10. Torque Specifications: Shield - Dust - Brake - Rear - LH and RH (Retrofit)
Description Torque Value Reuse/Replace Notes
LH rear brake dust shield to the knuckle
Torque 8 Nm
 Replace
hub to the knuckle
Torque 78 Nm
 Reuse
LH and RH rear drive unit halfshaft nuts
Torque 245 Nm
 Reuse
