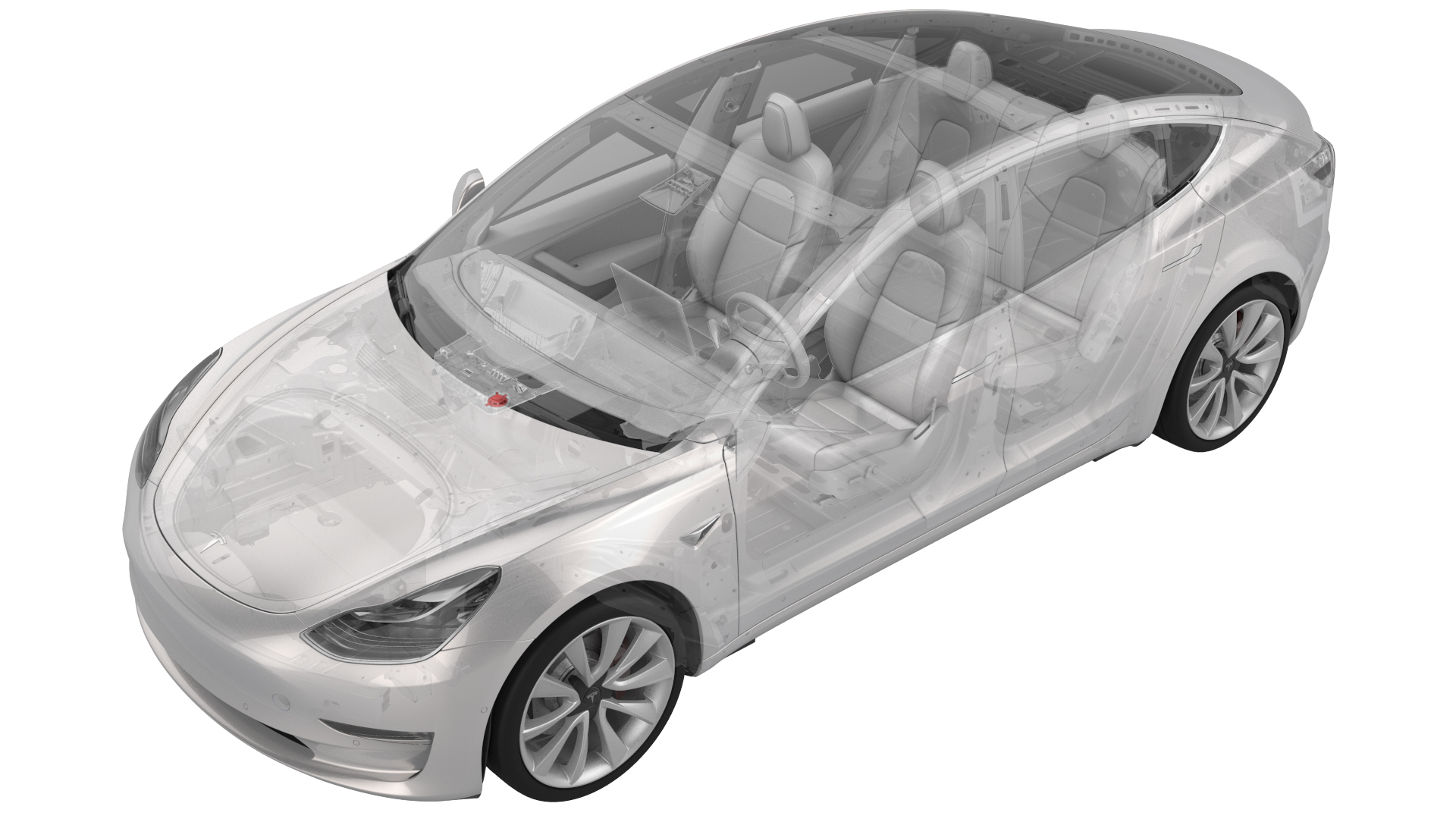

Speaker - Emergency (Remove and Replace)

Correction code 2121400221214002

Remove

Remove the RH footwell cover. See Cover - Footwell - Passenger (LHD) (Remove and Replace).

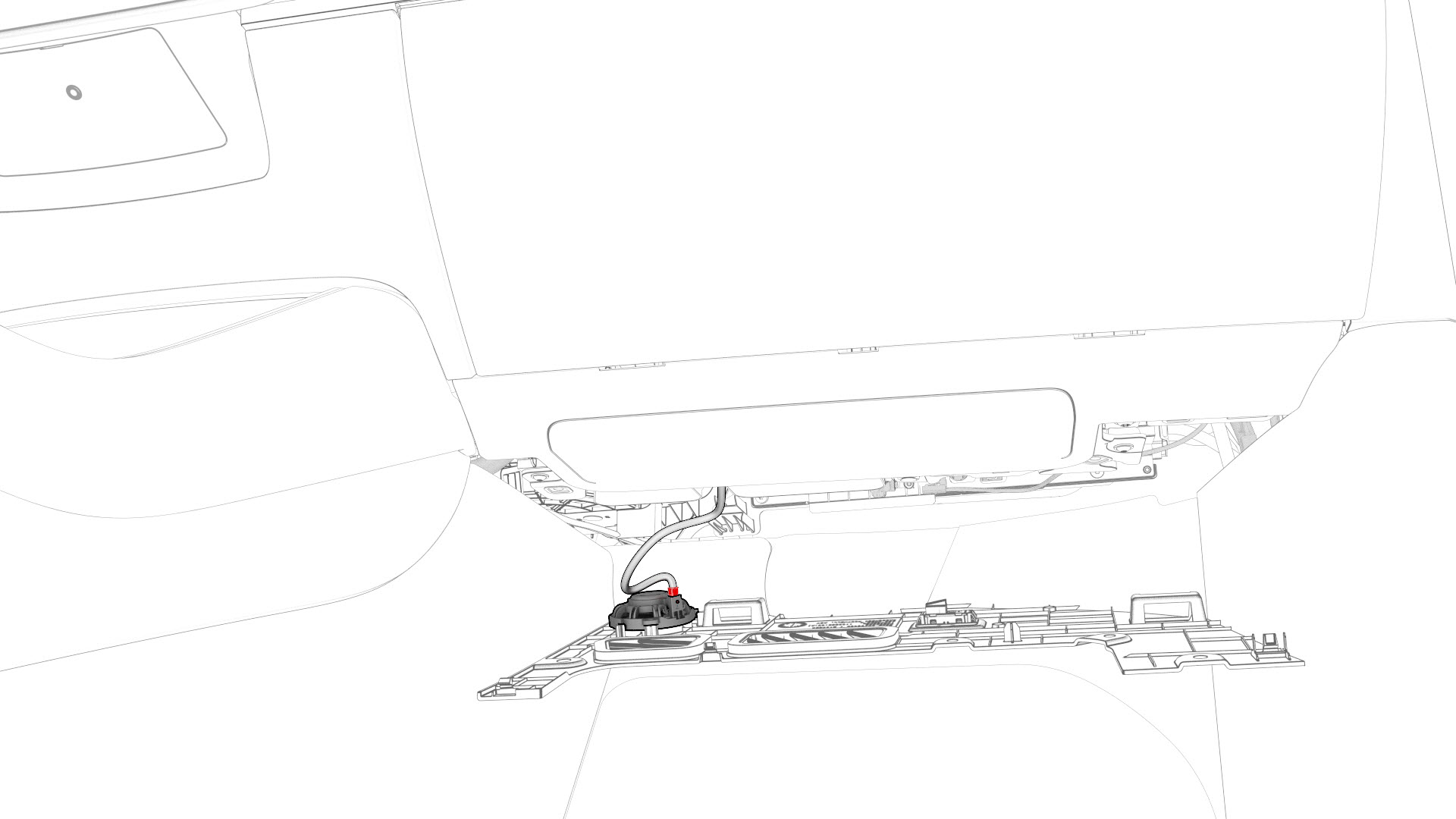

Disconnect the electrical connector for the emergency speaker.

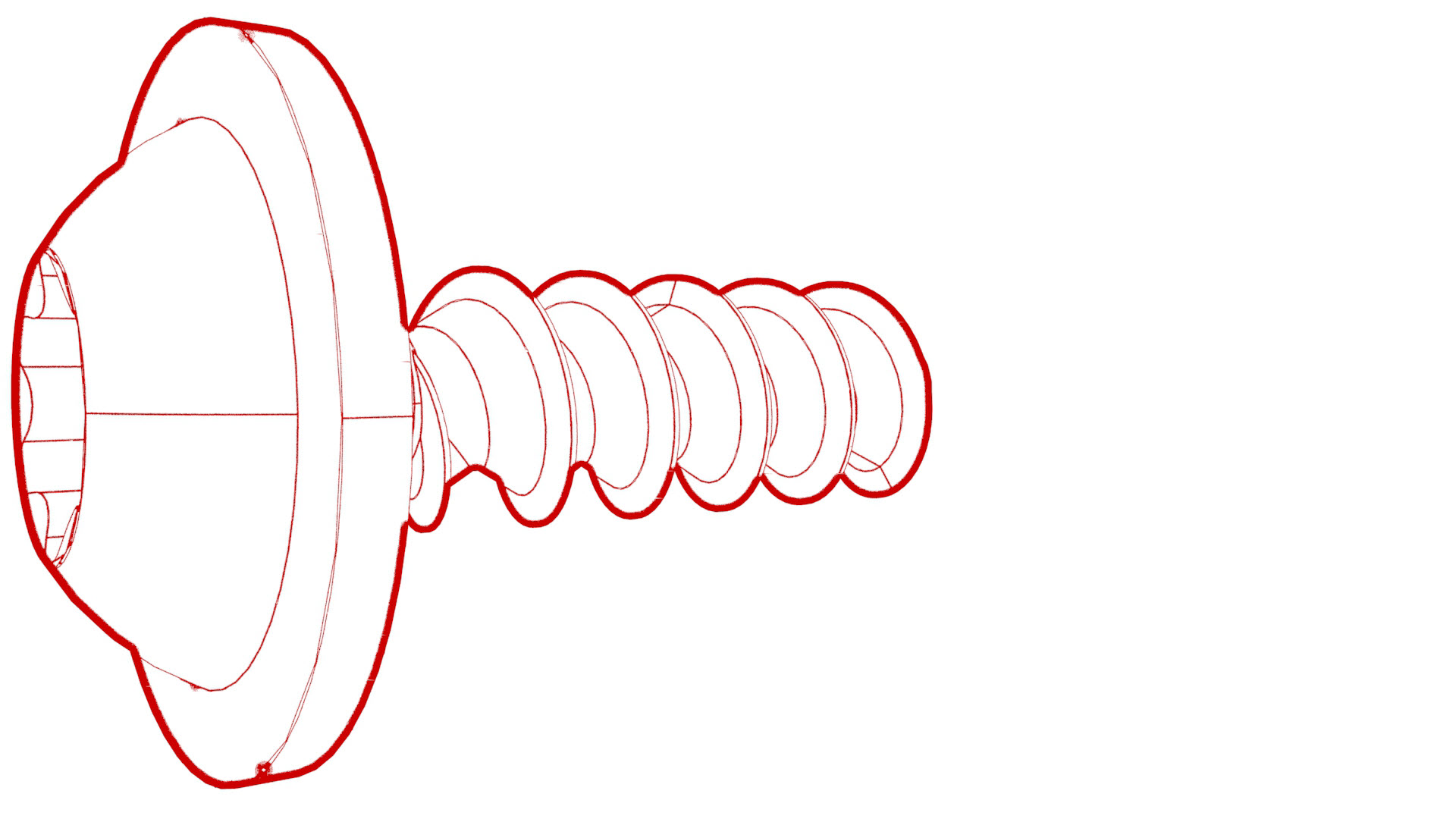

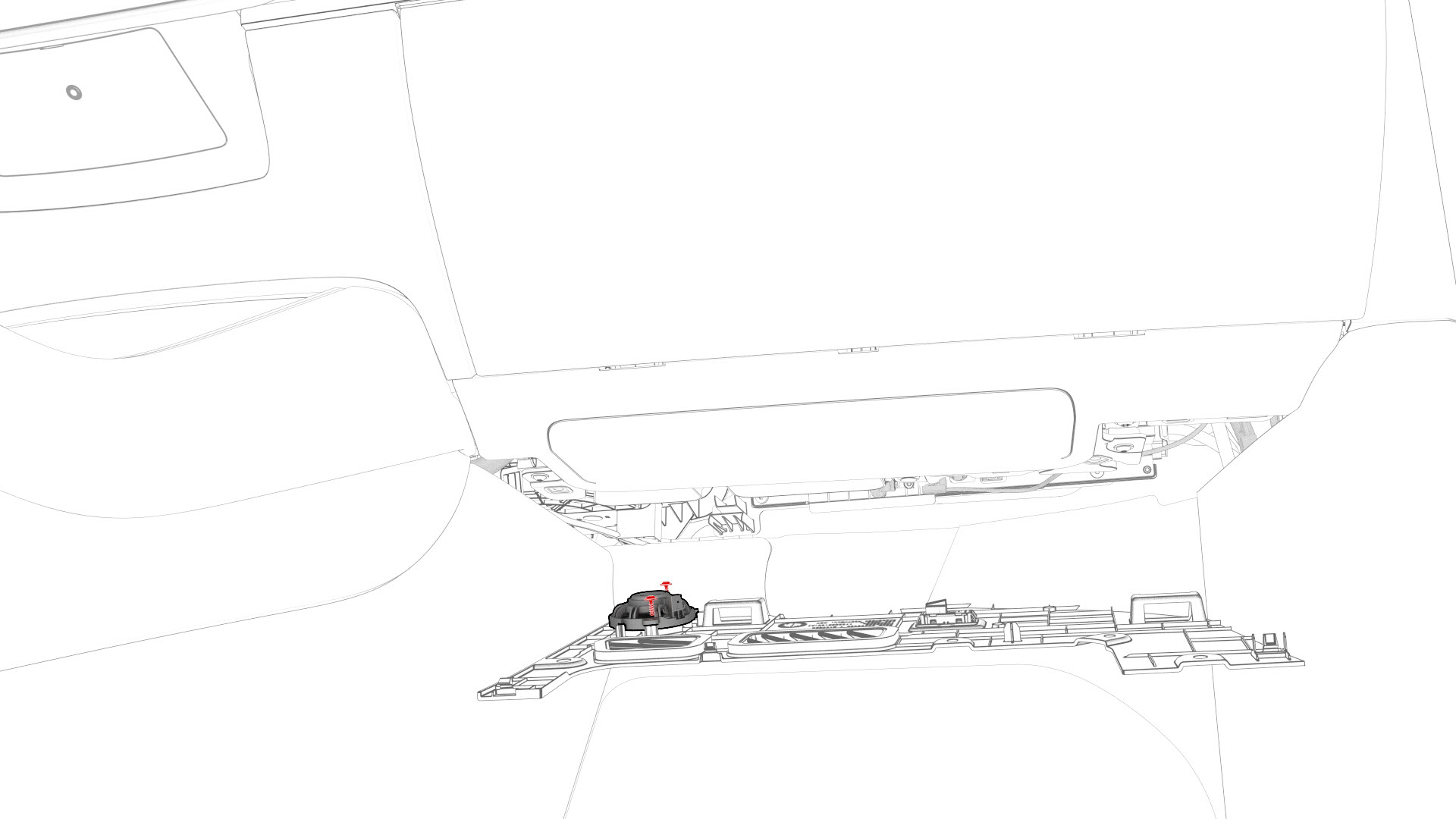

Release the screws that attach the emergency speaker to the RH footwell cover, and then remove the emergency speaker.
Torque 0.9 Nm

		1	Remove the RH footwell cover. See Cover - Footwell - Passenger (LHD) (Remove and Replace).
		2	Disconnect the electrical connector for the emergency speaker.
		3	Release the screws that attach the emergency speaker to the RH footwell cover, and then remove the emergency speaker. Torque 0.9 Nm

Install

Installation procedure is the reverse of removal.
