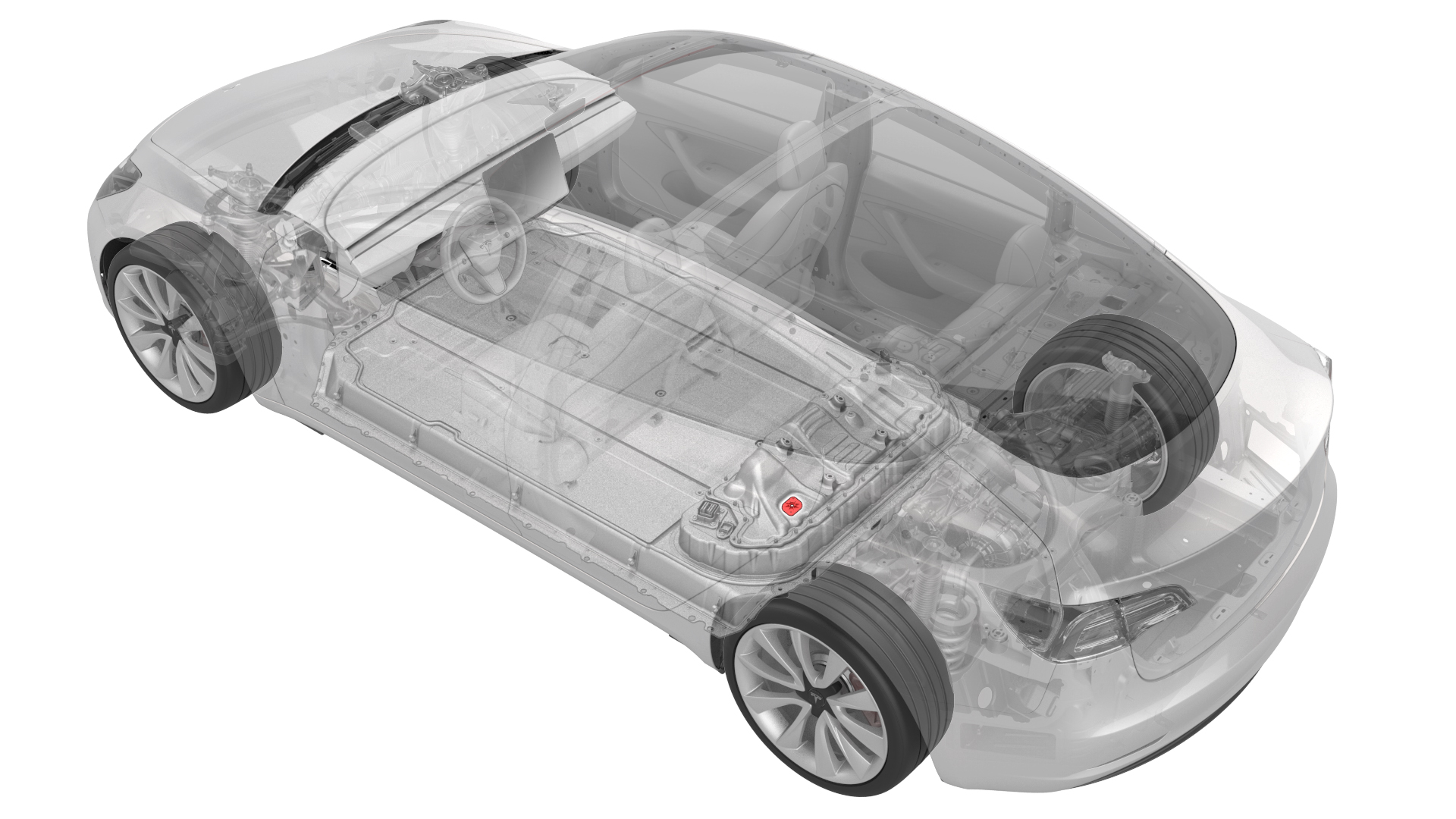

Cover - HV Probe - HV Battery (Remove and Replace)

Correction code 1610160216101602
  • 1059330-00-BSkt, 1/4in Dr, 5-Lobe Torx Plus External

SPECIAL TOOLS

Skt, 1/4in Dr, 5-Lobe Torx Plus External (1059330-00-B)
Warning:

Only technicians who have been trained in High Voltage Awareness are permitted to perform this procedure. Proper personal protective equipment (PPE) and insulating HV gloves with a minimum rating of class 0 (1000V) must be worn at all times a high voltage cable, busbar, or fitting is handled. Refer to Tech Note TN-15-92-003, "High Voltage Awareness Care Points" for additional safety information.

Parent topic: 1610 - HV Battery Enclosure

Remove

  1. Disconnect 12V power. See 12V Power (Disconnect and Connect).

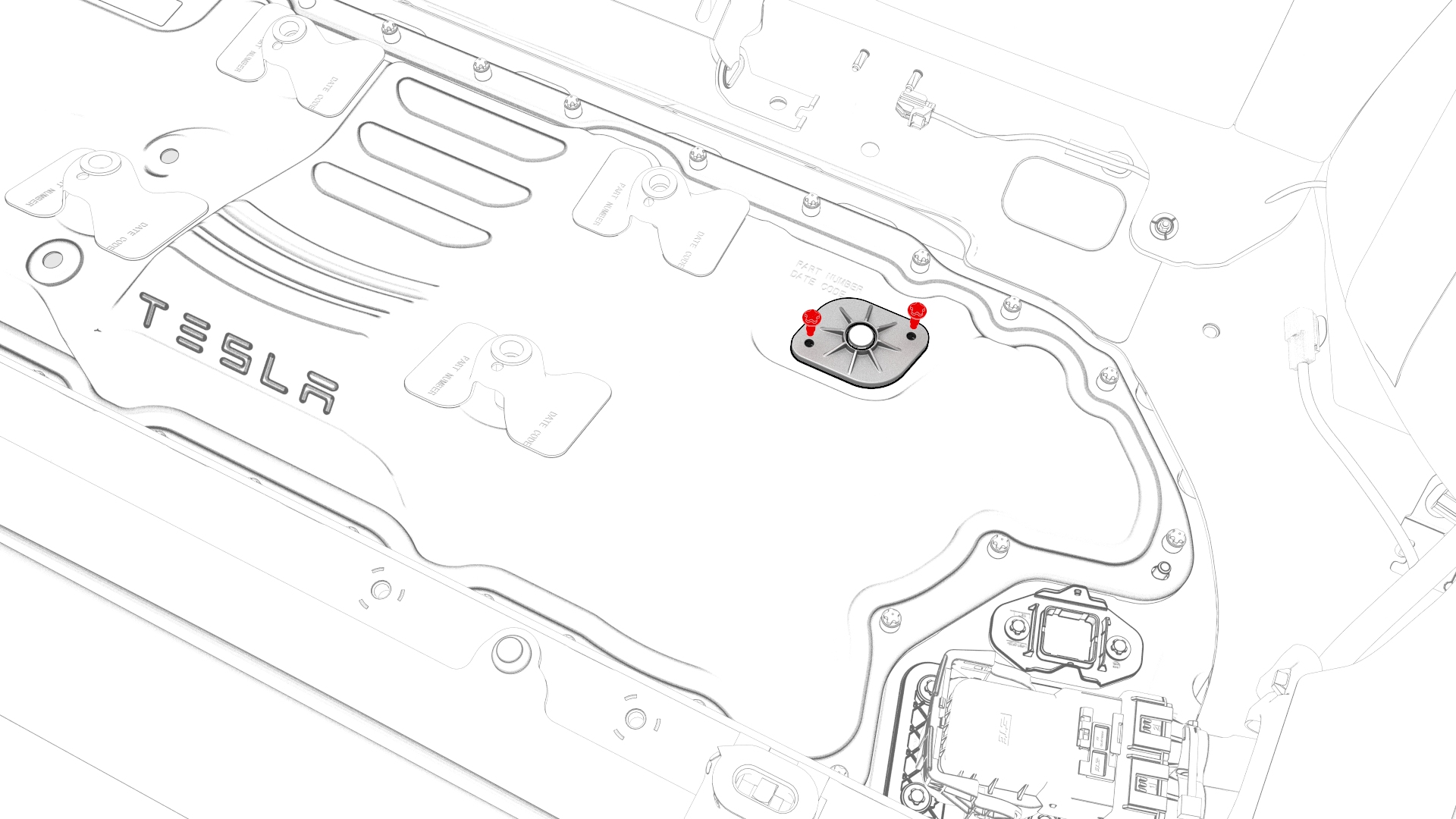

  2. Remove and discard the 5-lobe bolts (x2) that attach the HV probe cover to the penthouse cover, and then remove the HV probe cover from the penthouse cover.
1Disconnect 12V power. See 12V Power (Disconnect and Connect).
2Remove and discard the 5-lobe bolts (x2) that attach the HV probe cover to the penthouse cover, and then remove the HV probe cover from the penthouse cover.

Install

  1. Use an IPA wipe to clean the HV probe cover gasket surface, and the mating surface of the penthouse cover.
  2. Inspect the condition of the HV probe cover gasket, and if there is any cracking, cuts, or damage, install a new gasket into the HV probe cover.
  3. Install the HV probe cover onto the penthouse cover, install new 5-lobe bolts to attach the HV probe cover to the penthouse cover, and then mark the bolts with a paint pen after they are torqued.
    Torque 6 Nm
  4. Perform a penthouse air leak test. See Penthouse Air Leak Test.
  5. Connect 12V power. See 12V Power (Disconnect and Connect).
1Use an IPA wipe to clean the HV probe cover gasket surface, and the mating surface of the penthouse cover.
2Inspect the condition of the HV probe cover gasket, and if there is any cracking, cuts, or damage, install a new gasket into the HV probe cover.
3Install the HV probe cover onto the penthouse cover, install new 5-lobe bolts to attach the HV probe cover to the penthouse cover, and then mark the bolts with a paint pen after they are torqued.
Torque 6 Nm
4Perform a penthouse air leak test. See Penthouse Air Leak Test.
5Connect 12V power. See 12V Power (Disconnect and Connect).
