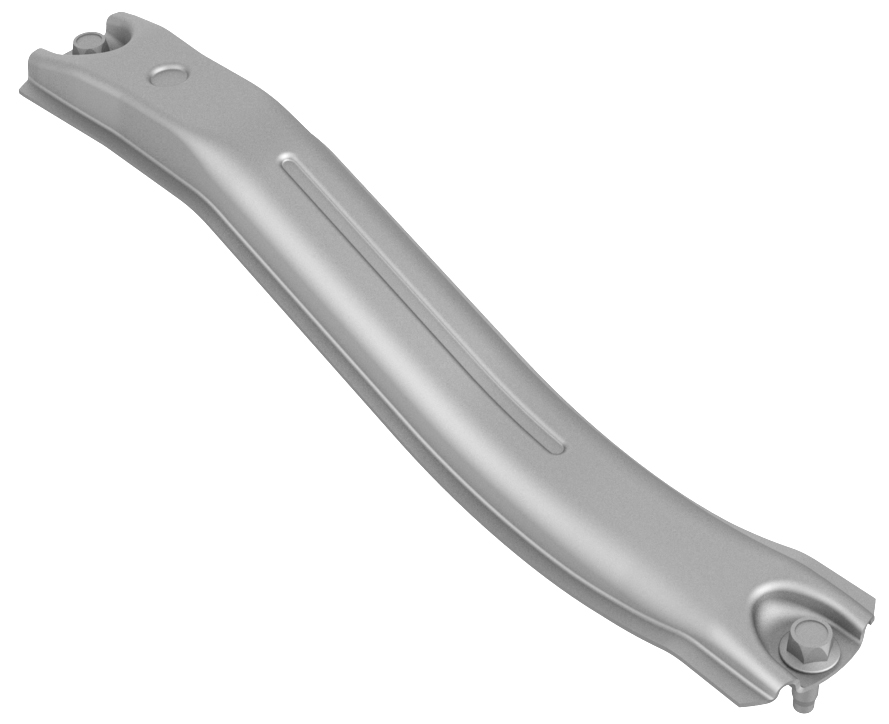

Rail - 2nd Row - Outer - LH (Remove and Replace)

Correction code 1305200213052002
Parent topic: 1305 - 2nd Row Seat Assemblies and Hardware

Remove

  1. Remove the 2nd row lower seat cushion. See Seat Cushion - Lower - 2nd Row (Remove and Replace).

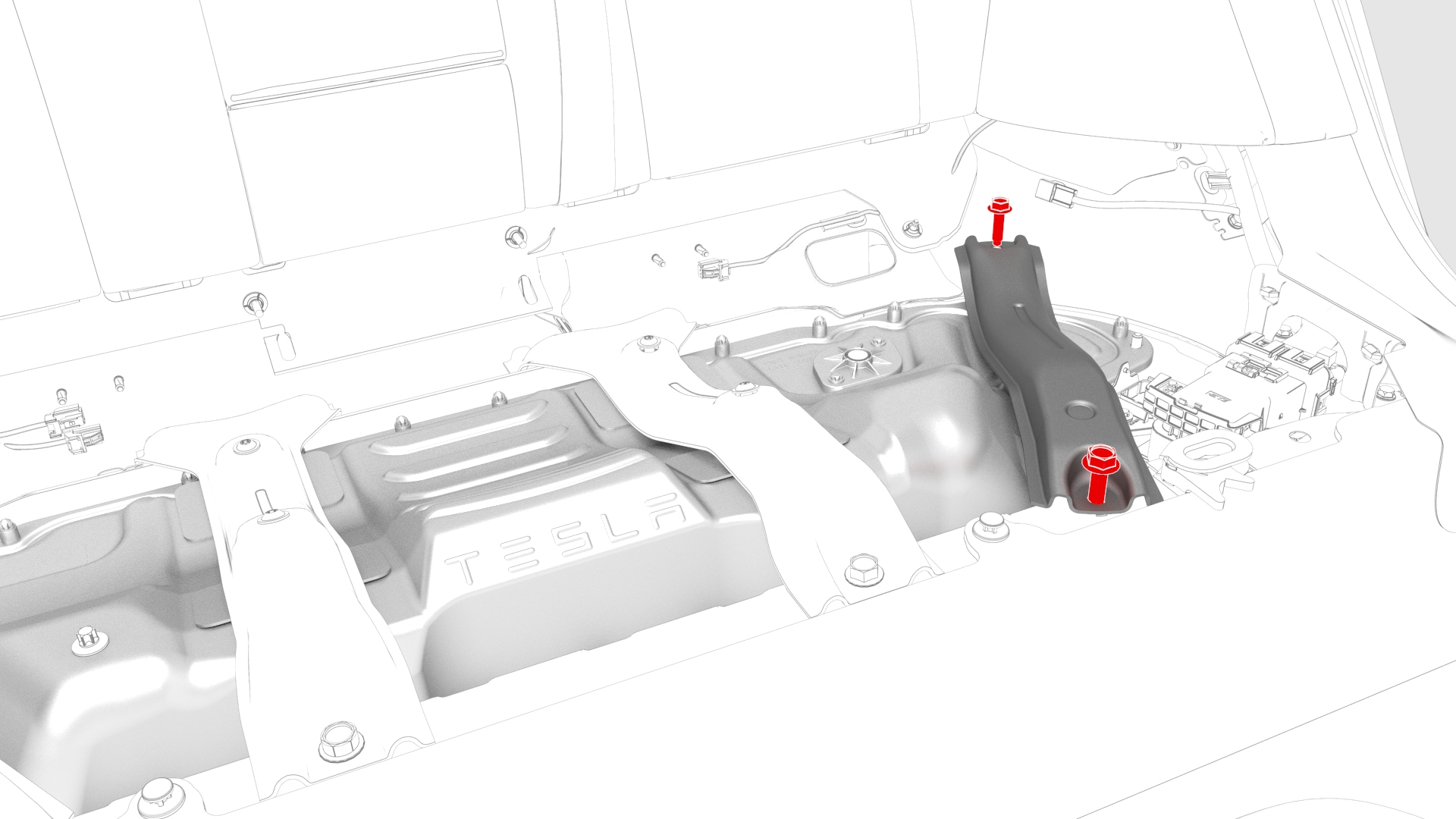

  2. Remove the bolts that attach the outer 2nd row rail to the body, and then remove the rail from the vehicle.
    Torque 24 Nm
1Remove the 2nd row lower seat cushion. See Seat Cushion - Lower - 2nd Row (Remove and Replace).
2Remove the bolts that attach the outer 2nd row rail to the body, and then remove the rail from the vehicle.
Torque 24 Nm

Install

Installation procedure is the reverse of removal.
