Speaker - Parcel Shelf - LH (Remove and Replace)

Correction code 2121380221213802
from-rc
Note:

This procedure was formulated using a release candidate or production model. Follow safety requirements and use extreme caution when working on or near high-voltage systems and components.

Provide corrections and feedback to servicemanualfeedback@tesla.com.

Parent topic: 2121 - Audio System - Speakers Subwoofer Amplifier

Remove

  1. Remove the 2nd row lower seat cushion. See Seat Cushion - Lower - 2nd Row (Remove and Replace).
  2. Remove the LH and RH 2nd row seat side bolsters. See Bolster - Side - Seat - 2nd Row - LH (Remove and Replace).
  3. Remove the LH and RH side rail trims. See Trim - Side Rail - LH (Remove and Replace).
  4. Remove the LH and RH upper C-pillar trims. See Trim - C-Pillar - Upper - LH (Remove and Replace).
  5. Remove the package tray trim. See Trim - Package Tray (Remove and Install).

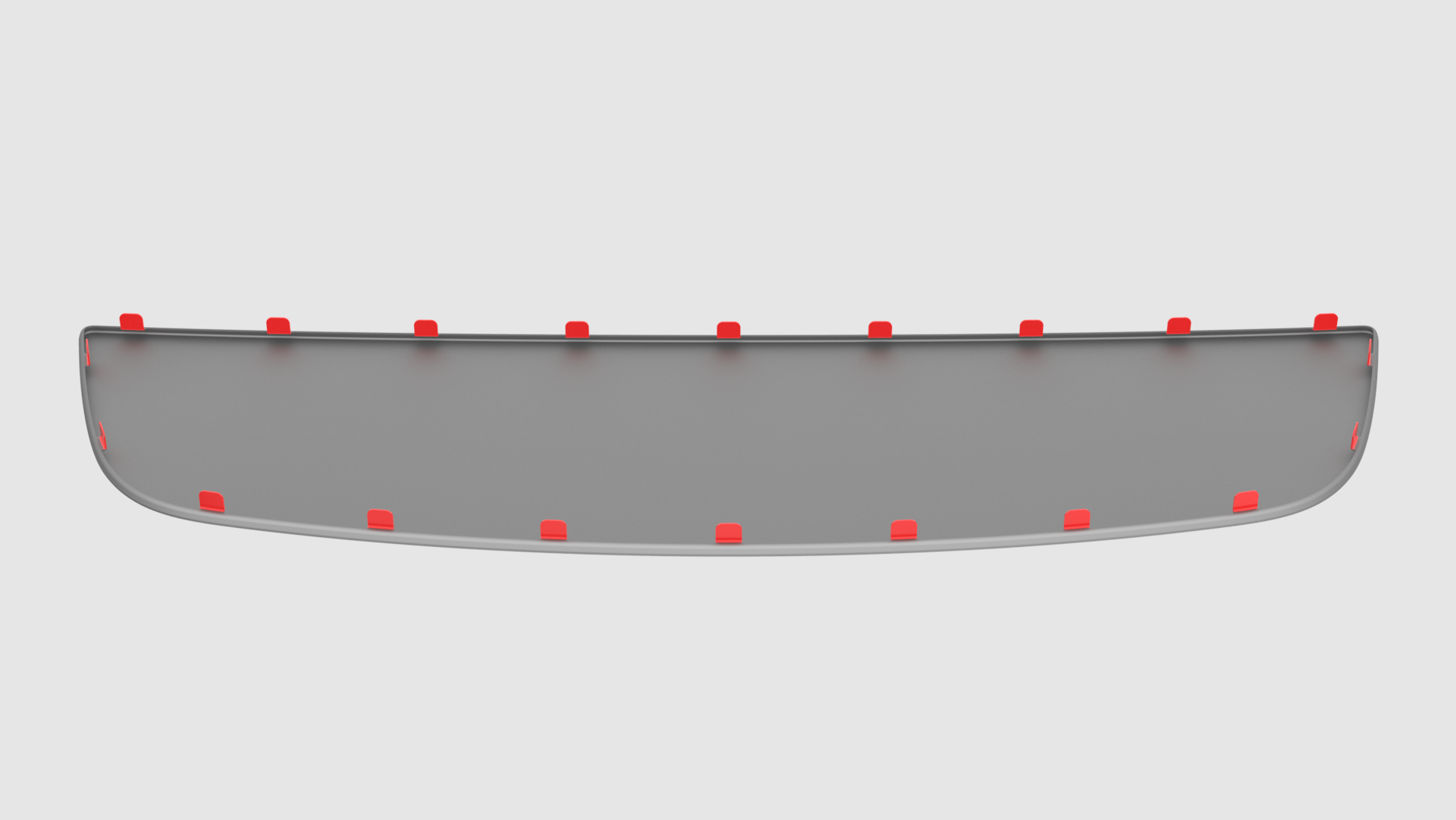

  6. Release the tabs that attach the parcel shelf speaker grille to the vehicle.

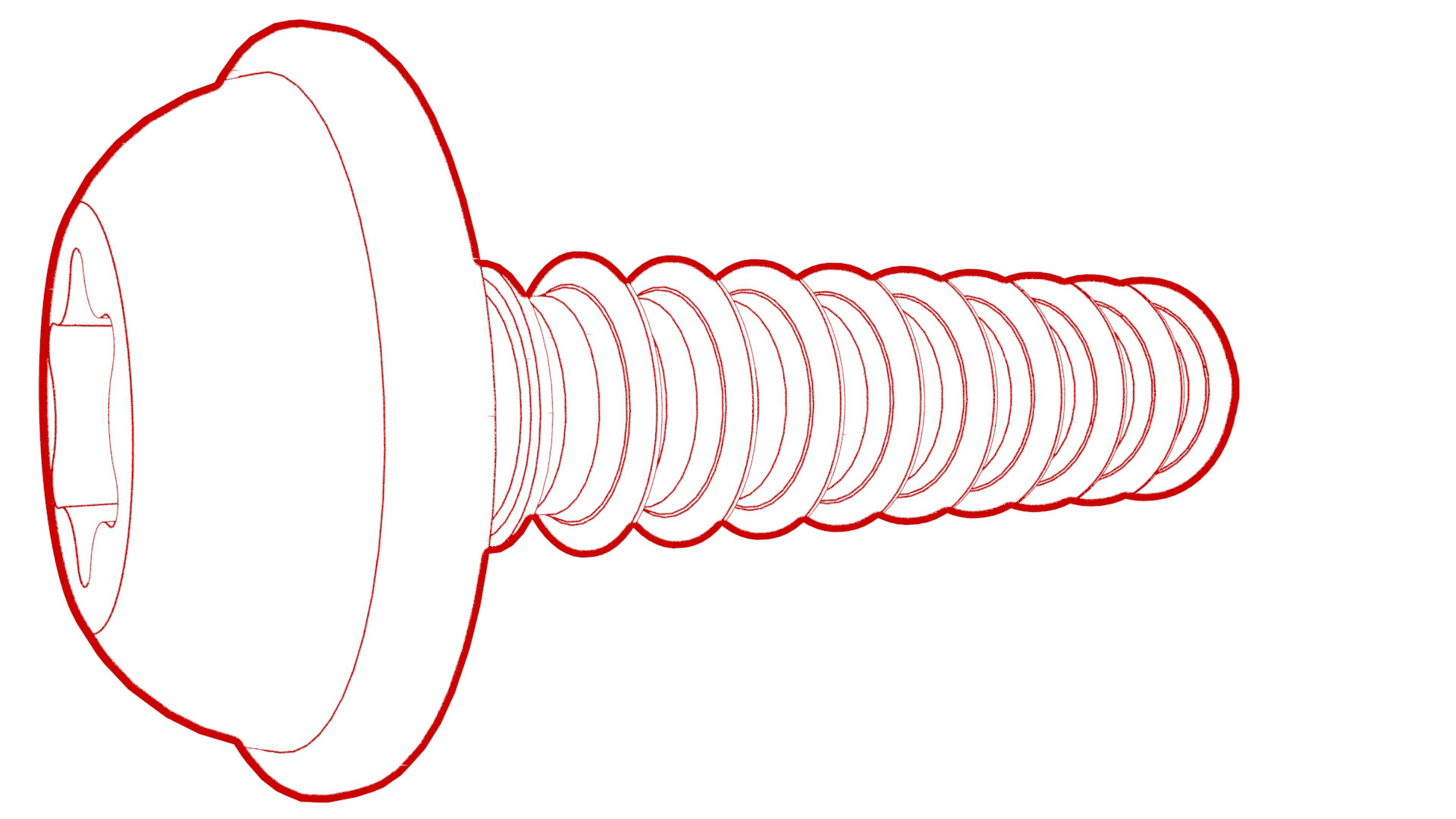

  7. Remove the screws that attach the LH parcel shelf speaker to the vehicle.
    Torque 2.3 Nm
    Note: Support and then remove the speaker bracket underneath.
  8. Lift the LH parcel shelf speaker from the vehicle, and then disconnect the electrical connector from the speaker.
  9. Remove the LH parcel shelf speaker from the vehicle.
1Remove the 2nd row lower seat cushion. See Seat Cushion - Lower - 2nd Row (Remove and Replace).
2Remove the LH and RH 2nd row seat side bolsters. See Bolster - Side - Seat - 2nd Row - LH (Remove and Replace).
3Remove the LH and RH side rail trims. See Trim - Side Rail - LH (Remove and Replace).
4Remove the LH and RH upper C-pillar trims. See Trim - C-Pillar - Upper - LH (Remove and Replace).
5Remove the package tray trim. See Trim - Package Tray (Remove and Install).
6Release the tabs that attach the parcel shelf speaker grille to the vehicle.
7Remove the screws that attach the LH parcel shelf speaker to the vehicle.
Torque 2.3 Nm
Note: Support and then remove the speaker bracket underneath.
8Lift the LH parcel shelf speaker from the vehicle, and then disconnect the electrical connector from the speaker.
9Remove the LH parcel shelf speaker from the vehicle.

Install

Installation procedure is the reverse of removal.
