Wheel Alignment
Note: All specifications given in degrees. To convert from degrees to minutes and seconds, multiple the decimal after the whole number by 60. The whole number becomes the minute. Take the remaining decimal and multiply it by 60 to get the second. For example, 1.75° would be 1° and 45 min (.75*60). 0.17° would be 10 min and 12 seconds. (0.17*60=10.2; .2*60=12).
| Location | Front | Rear |
|---|---|---|
| Camber |
-0.50° +/- 0.45° |
-1.00° +/- 1.0° |
| Camber Split |
+/- 0.60° |
+/- 0.80° |
| Caster |
5.70° +/- 1.0° |
Not applicable |
| Caster Split |
+/- 1.0° |
Not applicable |
| Individual Toe |
OUT 0.05° +/- 0.15° |
IN 0.20° +/- 0.15° |
| Toe Split |
+/- 0.10° |
+/- 0.10° |
| Track Width (at wheel center height) |
1580 mm |
1580 mm |
| Non-Performance Coil Ride Height (unladen) Note: When measuring the coil ride height, measure 75 mm inward from the ski hole in each corner of the Battery. See the image below.
|
153 +/- 5 mm |
157 +/- 5 mm |
| Performance Coil Ride Height (unladen) Note: When measuring the coil ride height, measure 75 mm inward from the ski hole in each corner of the Battery. See the image below.
|
151 +/- 3 mm |
155 +/- 3 mm |
| Wheelbase |
2875 mm |
|

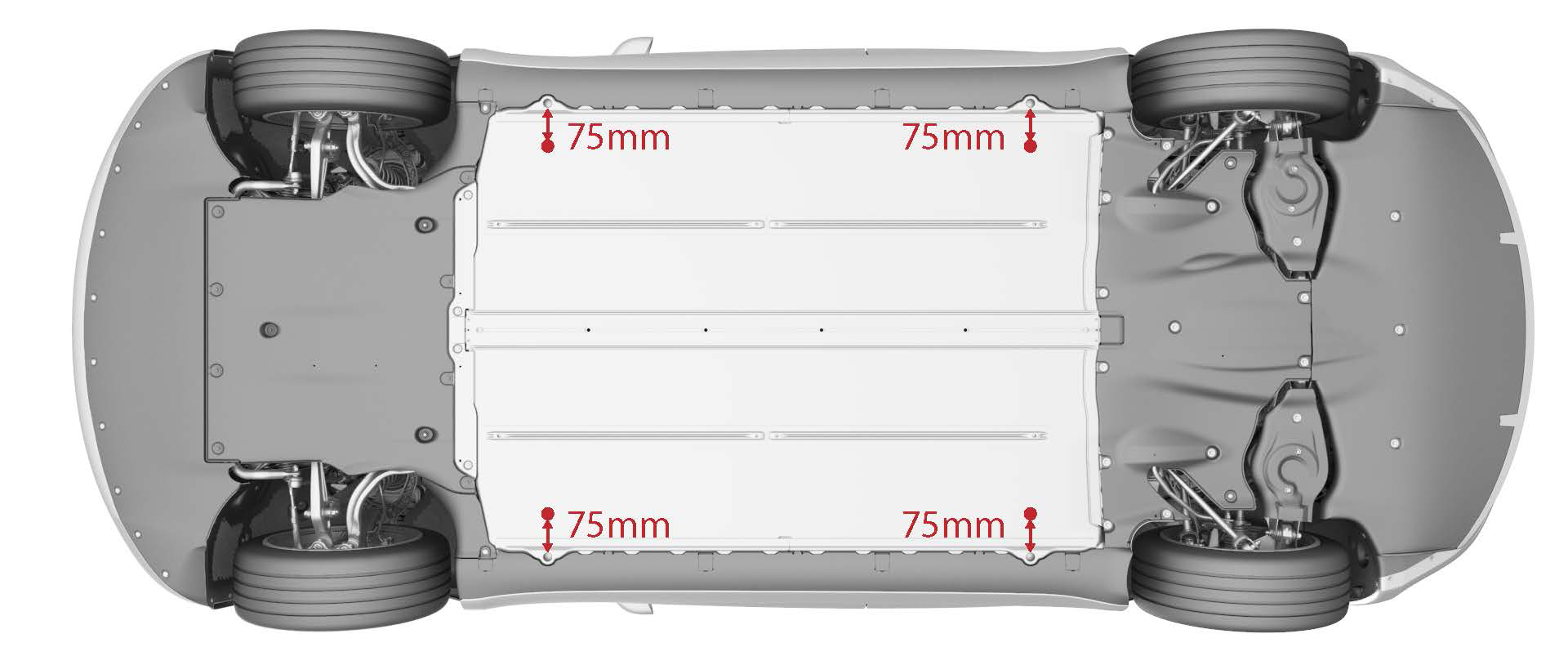

Location for measuring coil ride height
