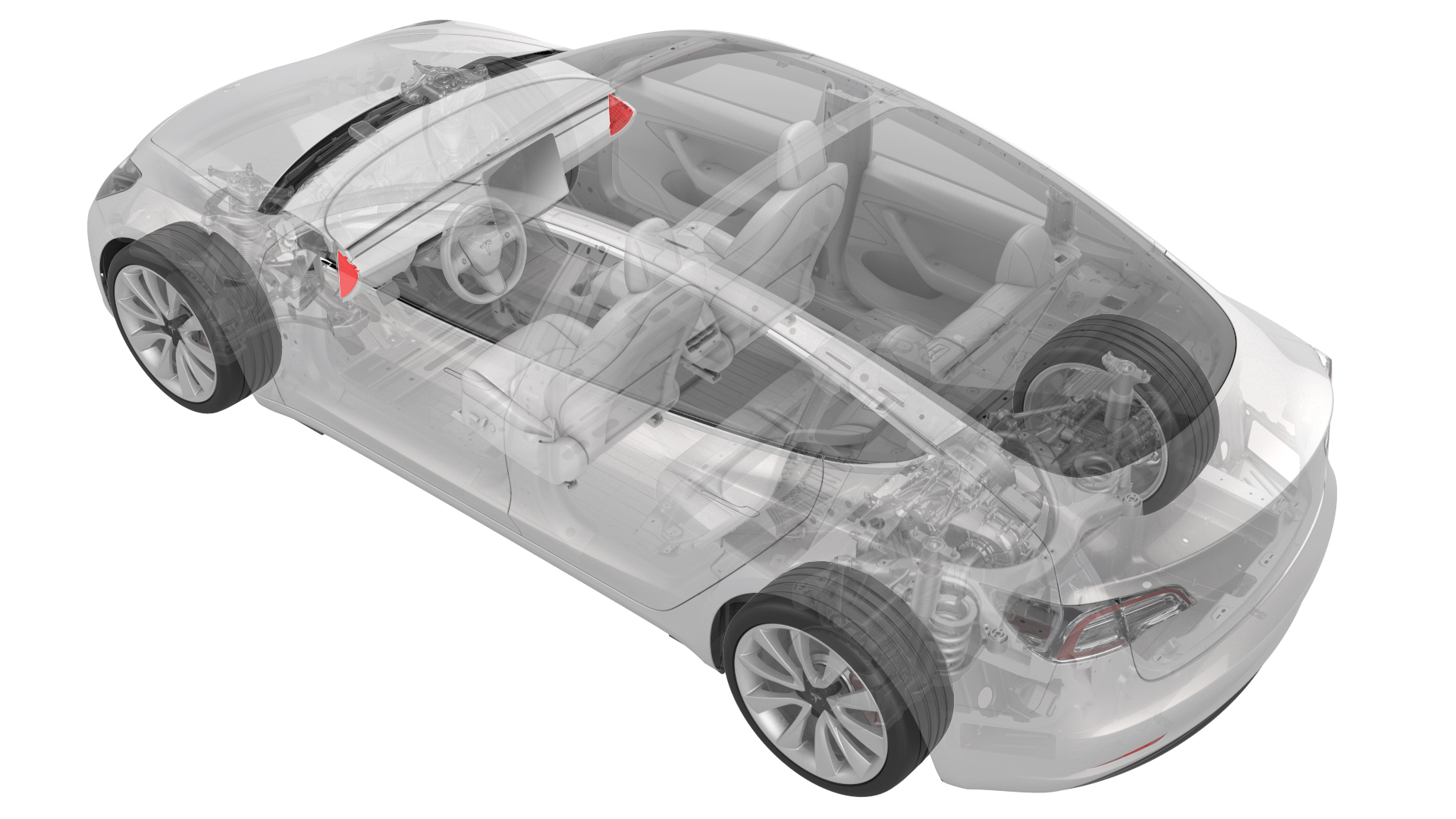

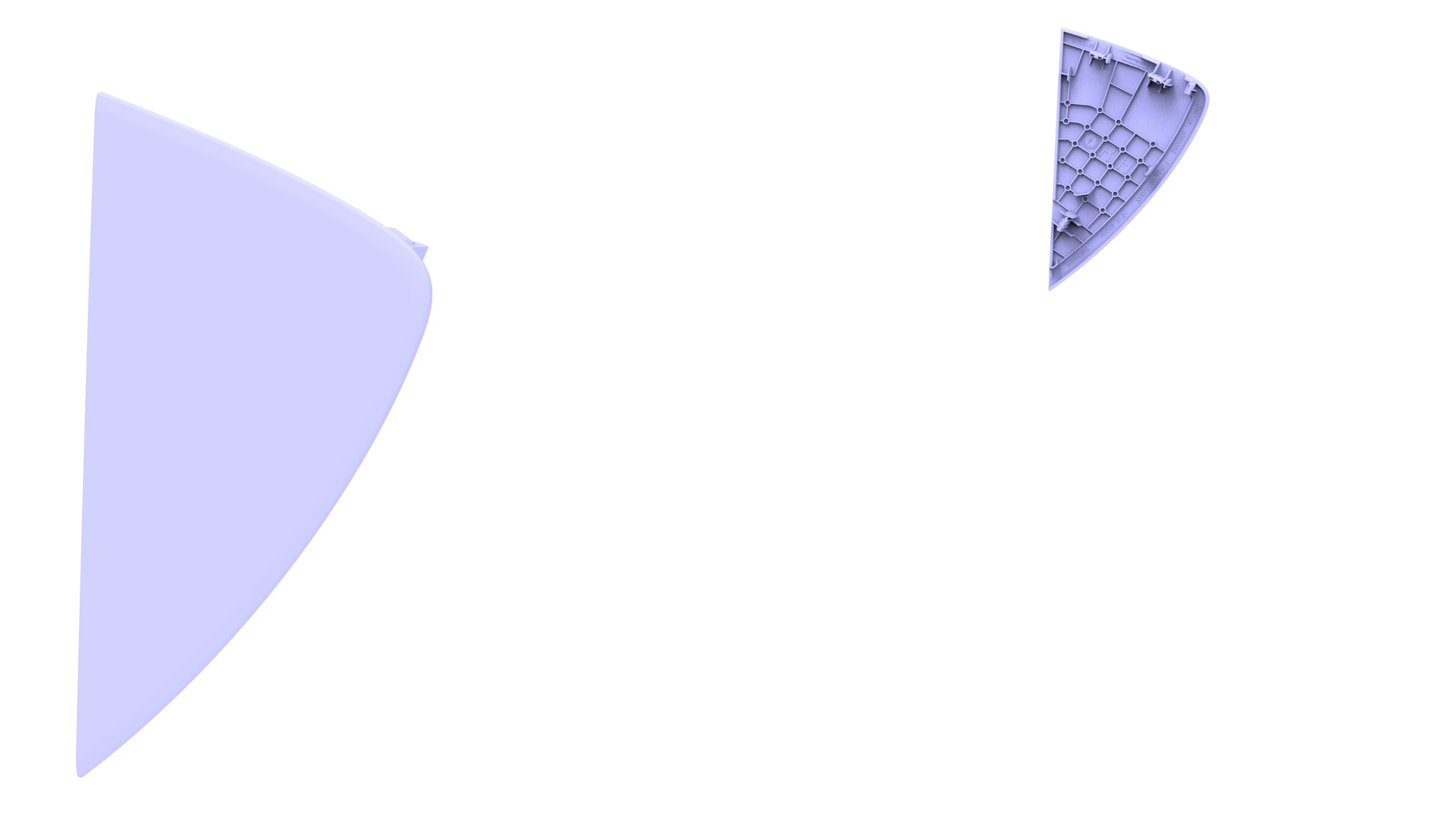

End Cap - Instrument Panel - LH (Remove and Replace)

Correction code 1405410214054102

Remove

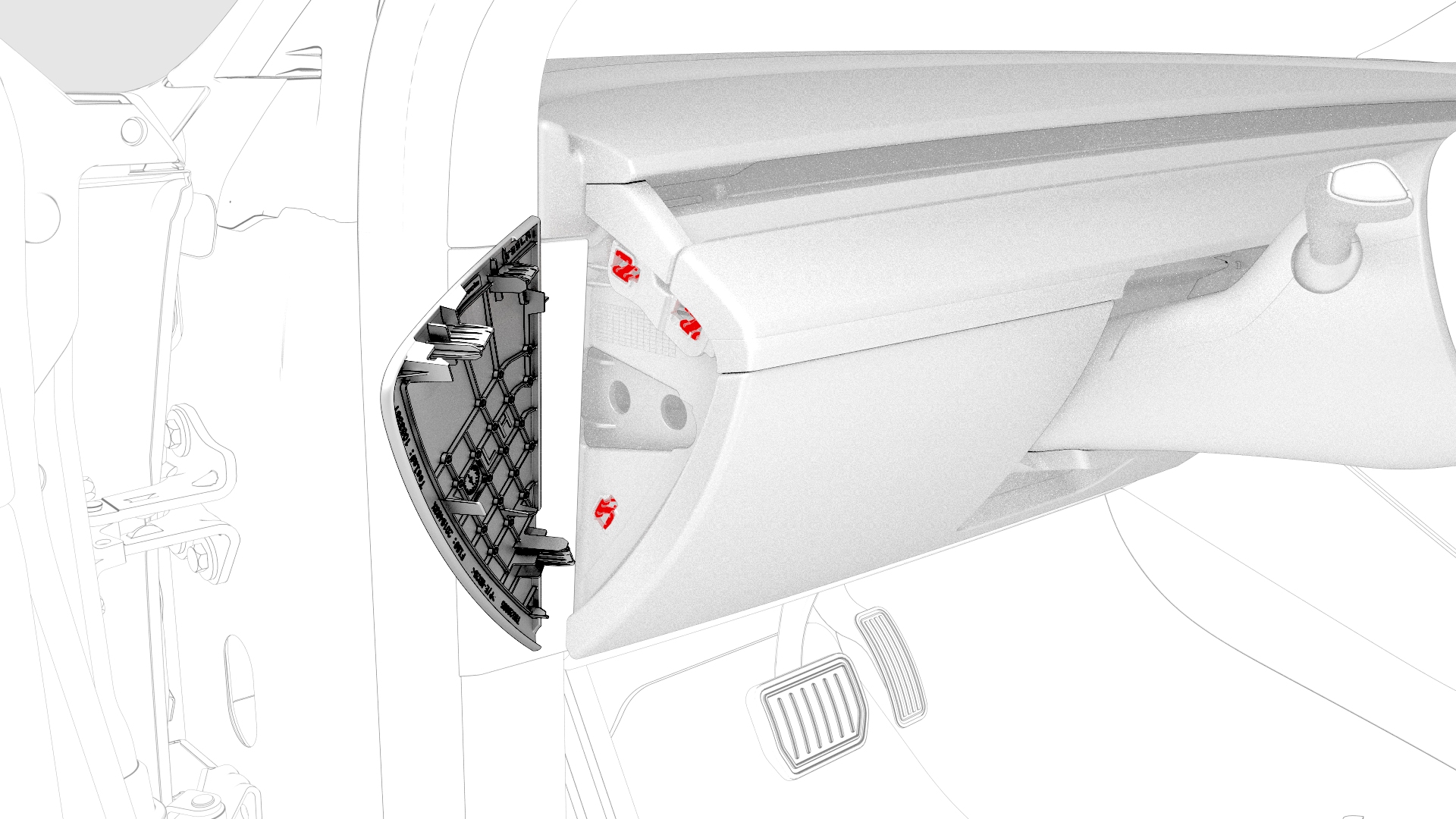

Release the clips that attach the end cap.
Remove the end cap from the vehicle.

		1	Release the clips that attach the end cap.
		2	Remove the end cap from the vehicle.

Install

Installation procedure is the reverse of removal.
