Motor - Seat Height - Driver Seat (Remove and Replace)
Correction code 1301160213011602
Remove
-

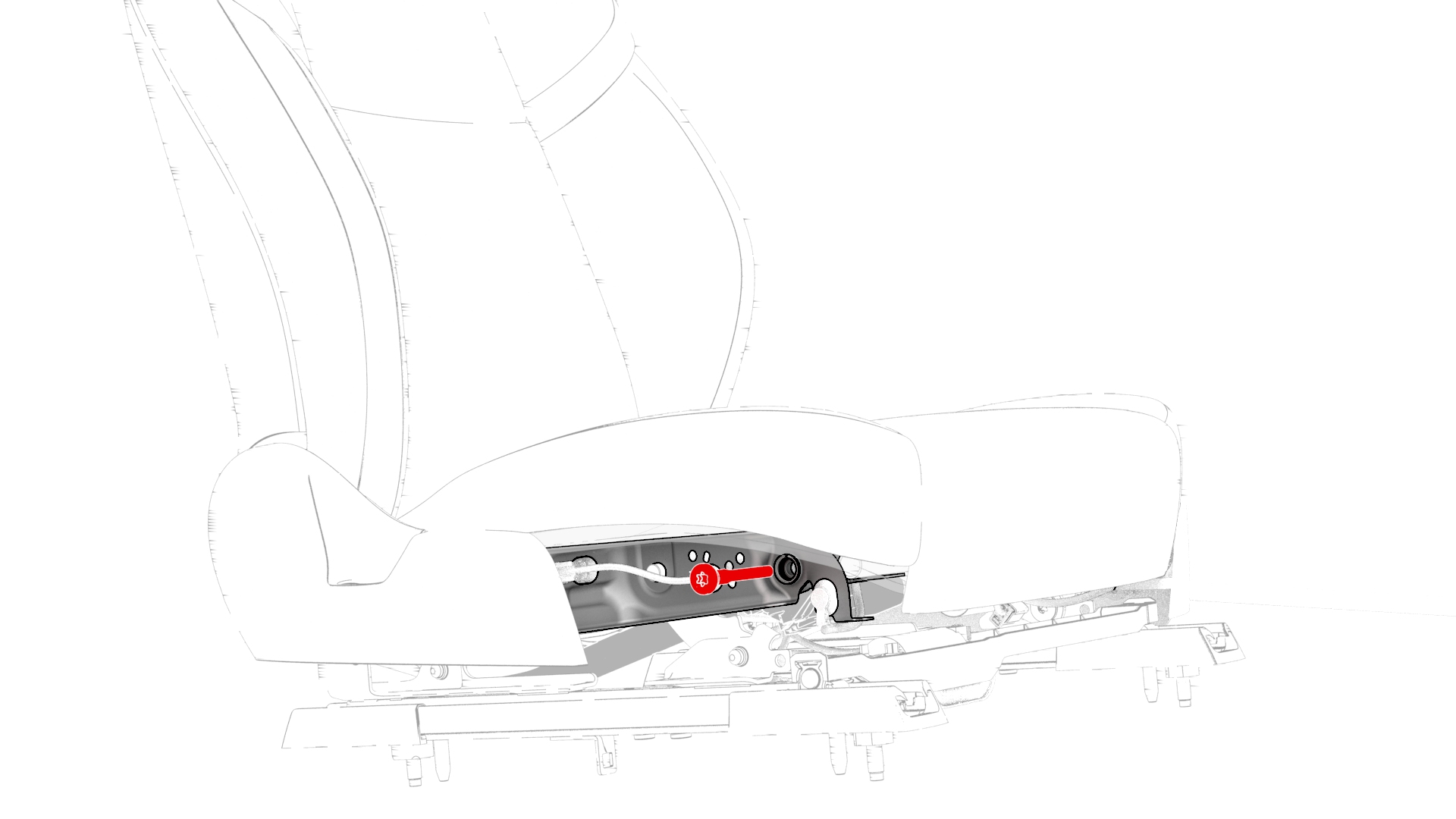

Disconnect the electrical harness from the seat height motor connector.
-
Remove and discard the patchbolt that attaches the seat height motor to the seat cushion frame.
Torque 23 Nm
-

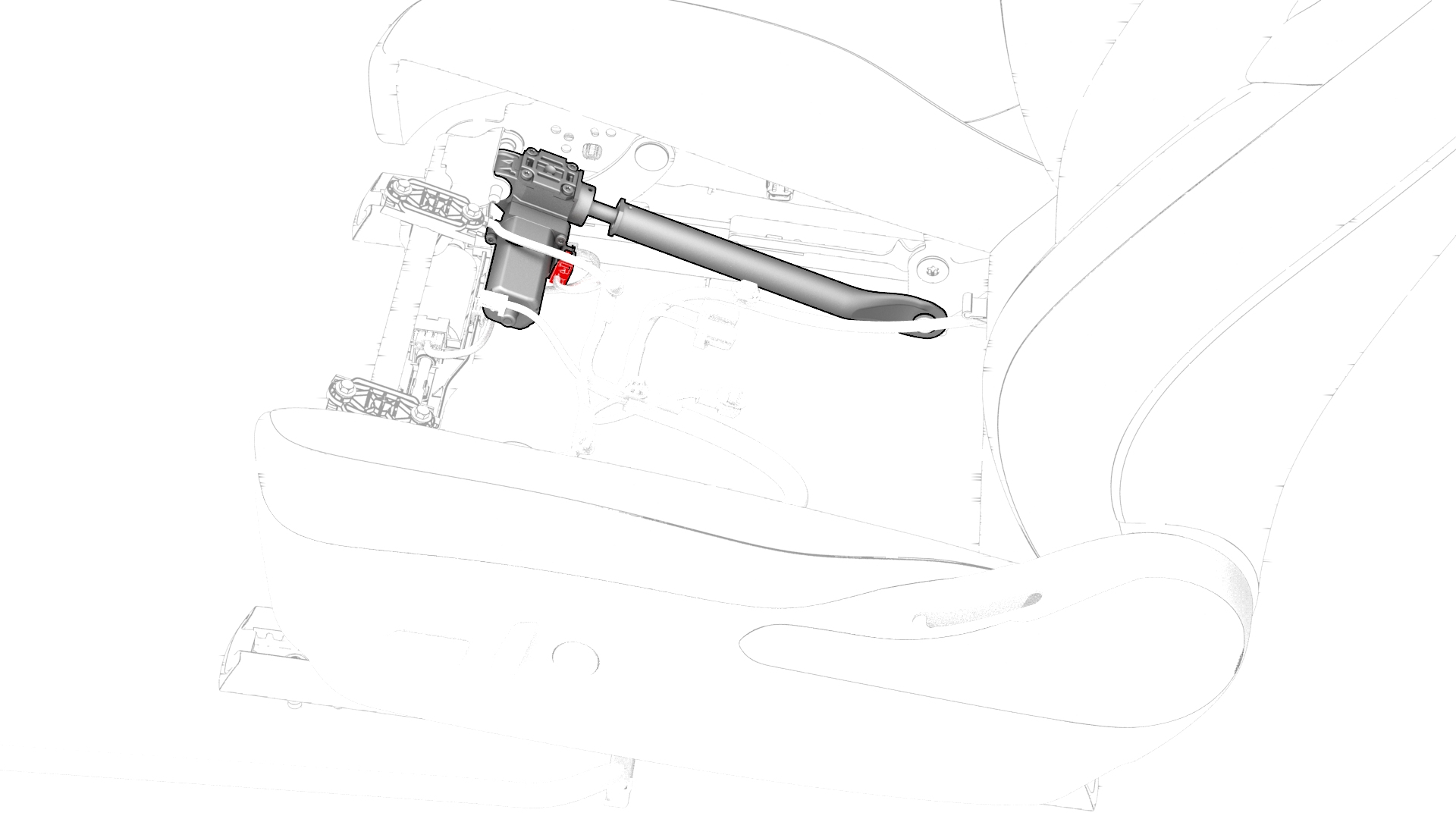

Remove and discard the patchbolt that attaches the seat height motor to the rear RH link, and then remove the motor from the seat.
Torque 18 Nm
Tip: Slide the seat height motor down and out, away from the wiring harness.
| 1 | Remove the 2nd row lower seat cushion. See Seat Cushion - Lower - 2nd Row (Remove and Replace). | ||
| 2 | Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace). | ||
| 3 | Remove the LH instrument panel end cap. See End Cap - Instrument Panel - LH (Remove and Replace). | ||
| 4 | Remove the middle A-Pillar trim panel. See Trim - A-Pillar - Middle - LH (Remove and Replace). | ||
| 5 | Remove the LH lower A-Pillar trim. See Trim - A-Pillar - Lower - LH (Remove and Replace). | ||
| 6 | Remove the driver seat. See Seat - Driver (Remove and Replace). | ||
| 7 | Disconnect the electrical harness from the seat height motor connector. | |
| 8 | Remove and discard the patchbolt that attaches the seat height motor to the seat cushion frame. Torque 23 Nm | |
| 9 | Remove and discard the patchbolt that attaches the seat height motor to the rear RH link, and then remove the motor from the seat. Torque 18 Nm Tip: Slide the seat height motor down and out, away from the wiring harness. |
Install
Installation procedure is the reverse of removal, except for the following:
- Replace all patchbolts.
