End Cap - Air Wave - LH (Remove and Replace)

Correction code 1405510214055102

Remove

Remove the LH instrument panel end cap. See End Cap - Instrument Panel - LH (Remove and Replace).

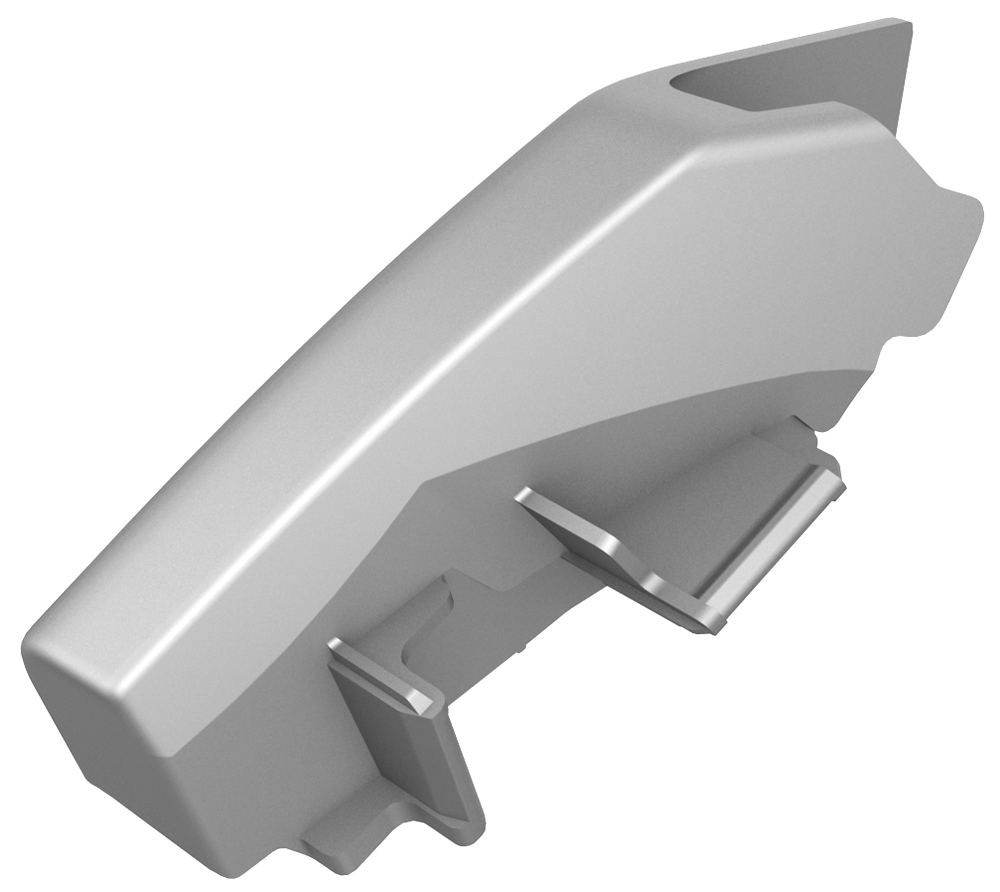

Release the clips that attach the LH air wave end cap to the main instrument panel decor trim, and then remove the cap from the vehicle.

		1	Remove the LH instrument panel end cap. See End Cap - Instrument Panel - LH (Remove and Replace).
		2	Release the clips that attach the LH air wave end cap to the main instrument panel decor trim, and then remove the cap from the vehicle.

Install

Installation procedure is the reverse of removal.
