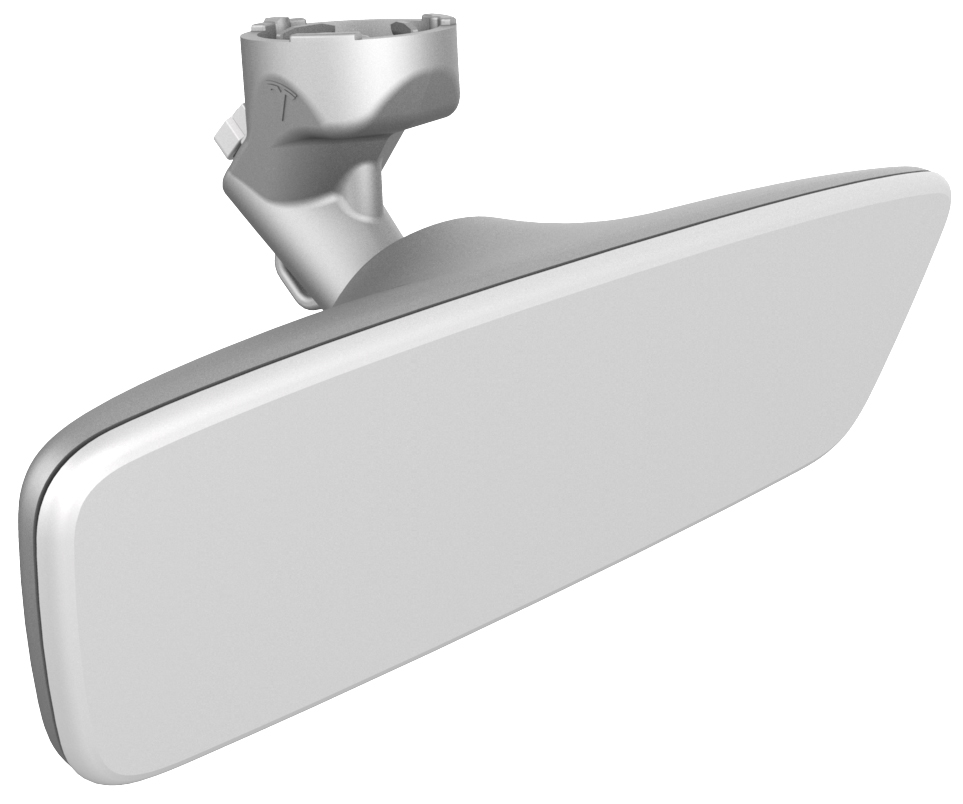

Mirror - Rear View (Remove and Replace)

Correction code 1505020215050202

Remove

Remove the lower quad camera cover. See Quad Camera Cover - Lower (Remove and Replace).
Grip the rear view mirror stalk, and then turn counterclockwise to release the rear view mirror.

Caution:
Do not turn the rear view mirror itself.

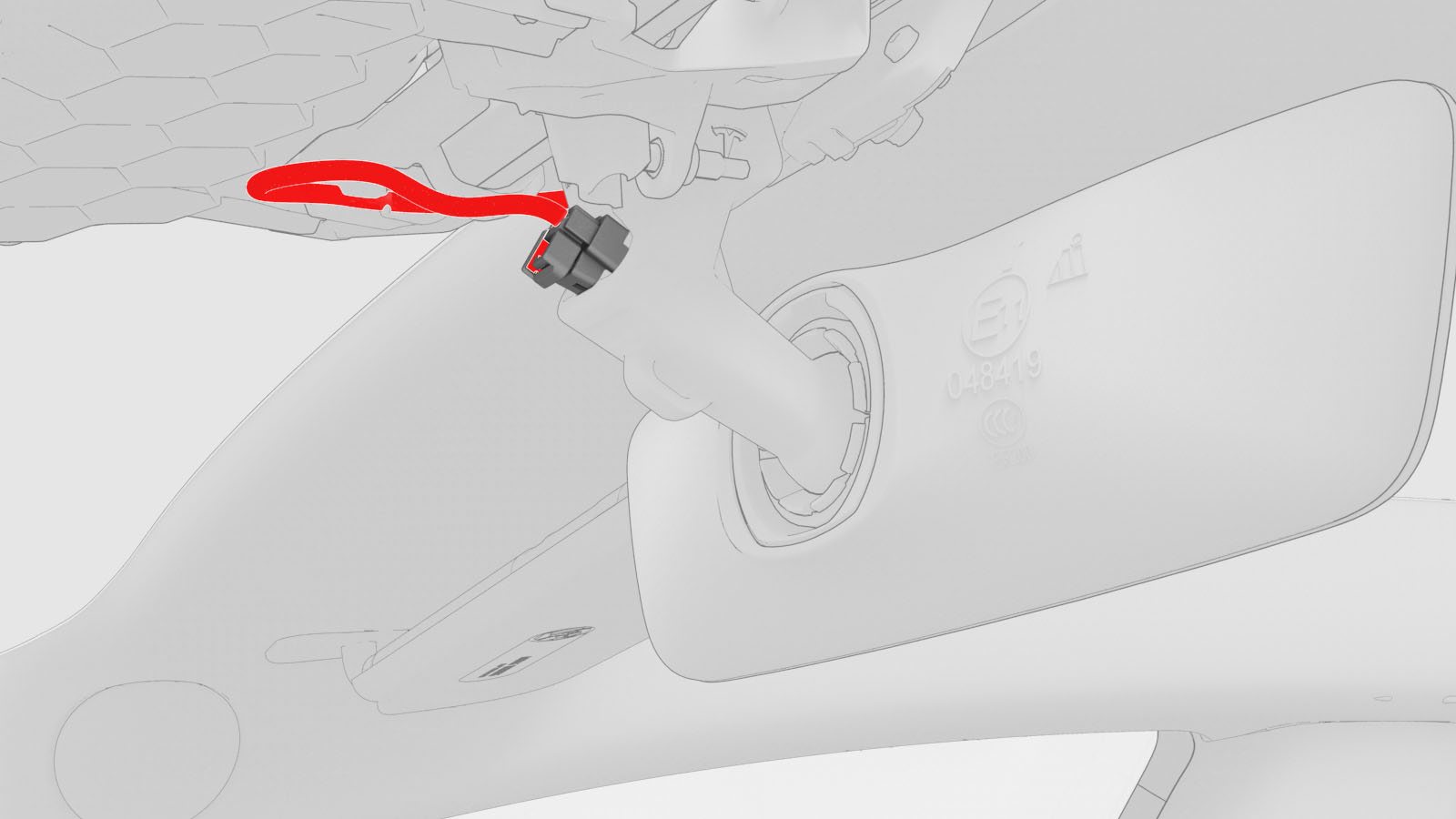

Disconnect the electrical connector from the rear view mirror, and then remove the mirror from the vehicle.

		1	Remove the lower quad camera cover. See Quad Camera Cover - Lower (Remove and Replace).
		2	Grip the rear view mirror stalk, and then turn counterclockwise to release the rear view mirror. Caution: Do not turn the rear view mirror itself.
		3	Disconnect the electrical connector from the rear view mirror, and then remove the mirror from the vehicle.

Install

Installation procedure is the reverse of removal.
