Window Motor / Regulator Assembly - Front - LH (Remove and Replace)

Correction code 1150200211502002
Warning: The side impact airbag deployment depends on the front door sensor's ability to detect a side impact from air pressure. Make sure that there are no uncovered holes in the front door shells. Additionally, always reinstall plugs or tape when servicing or inspecting the front doors and their components.
Parent topic: 1150 - Door Glass and Regulators

Remove

  1. Remove the front LH door glass. See Glass - Door - LH - Front (Remove and Replace)
  2. Remove the front LH door closeout panel. See Closeout Panel - Door - Front - LH (Remove and Install).

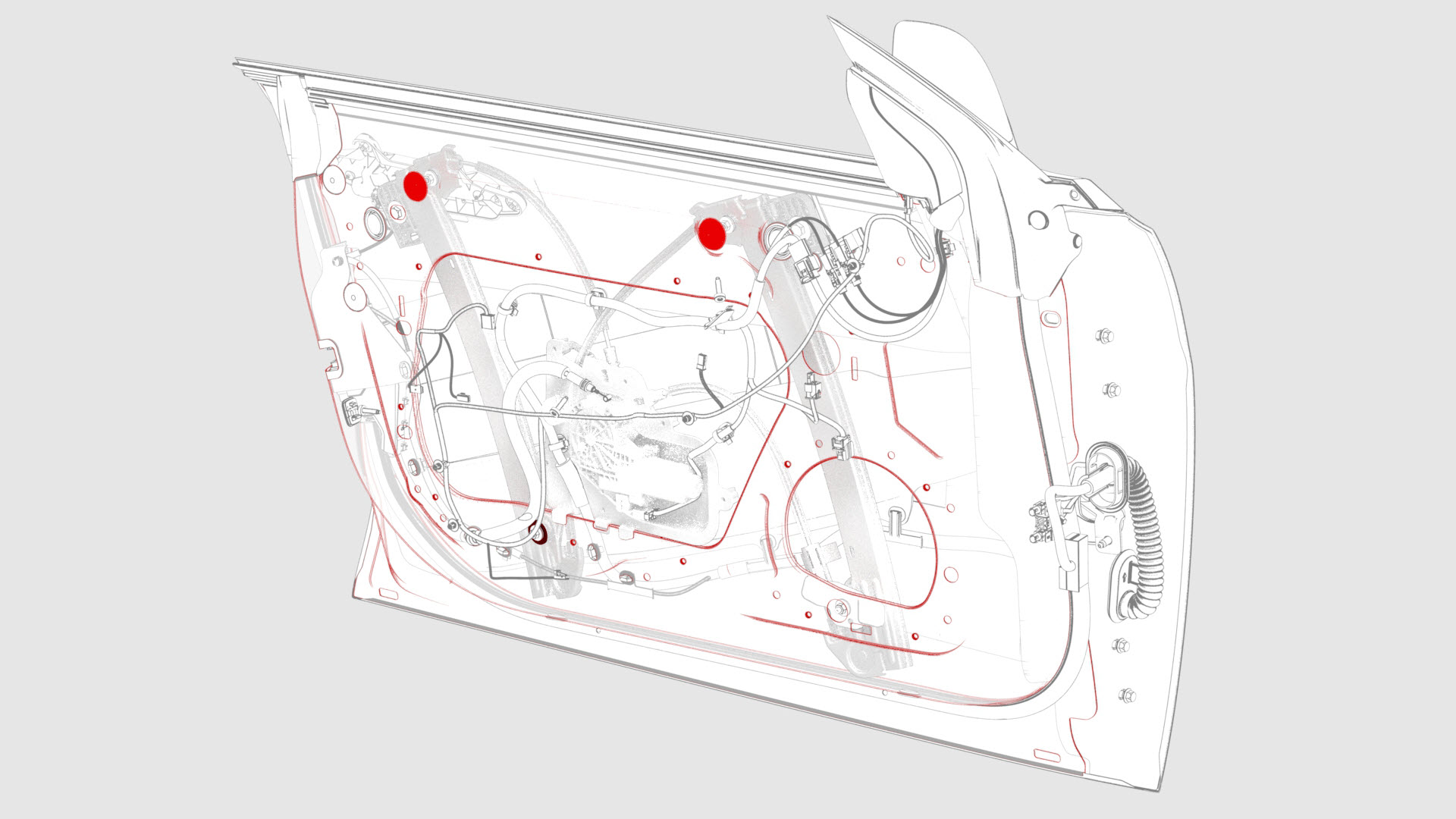

  3. Remove the plugs that allow access to the window motor/regulator assembly.

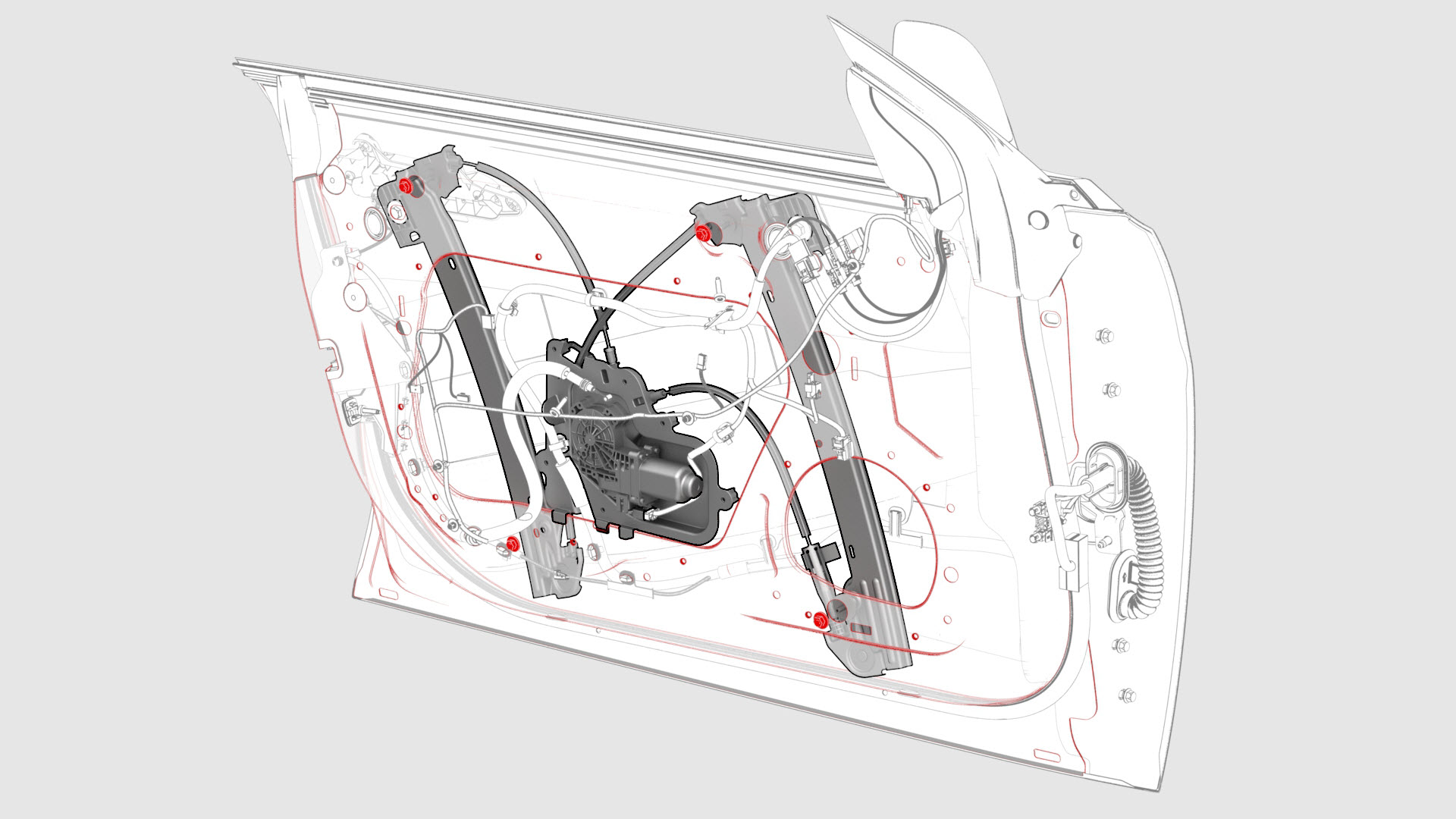

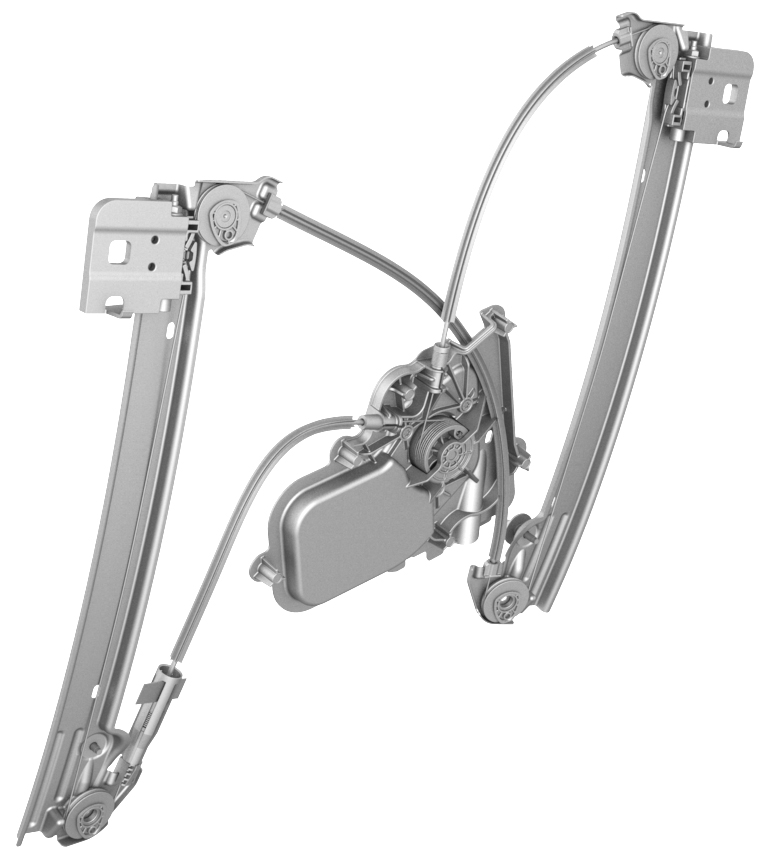

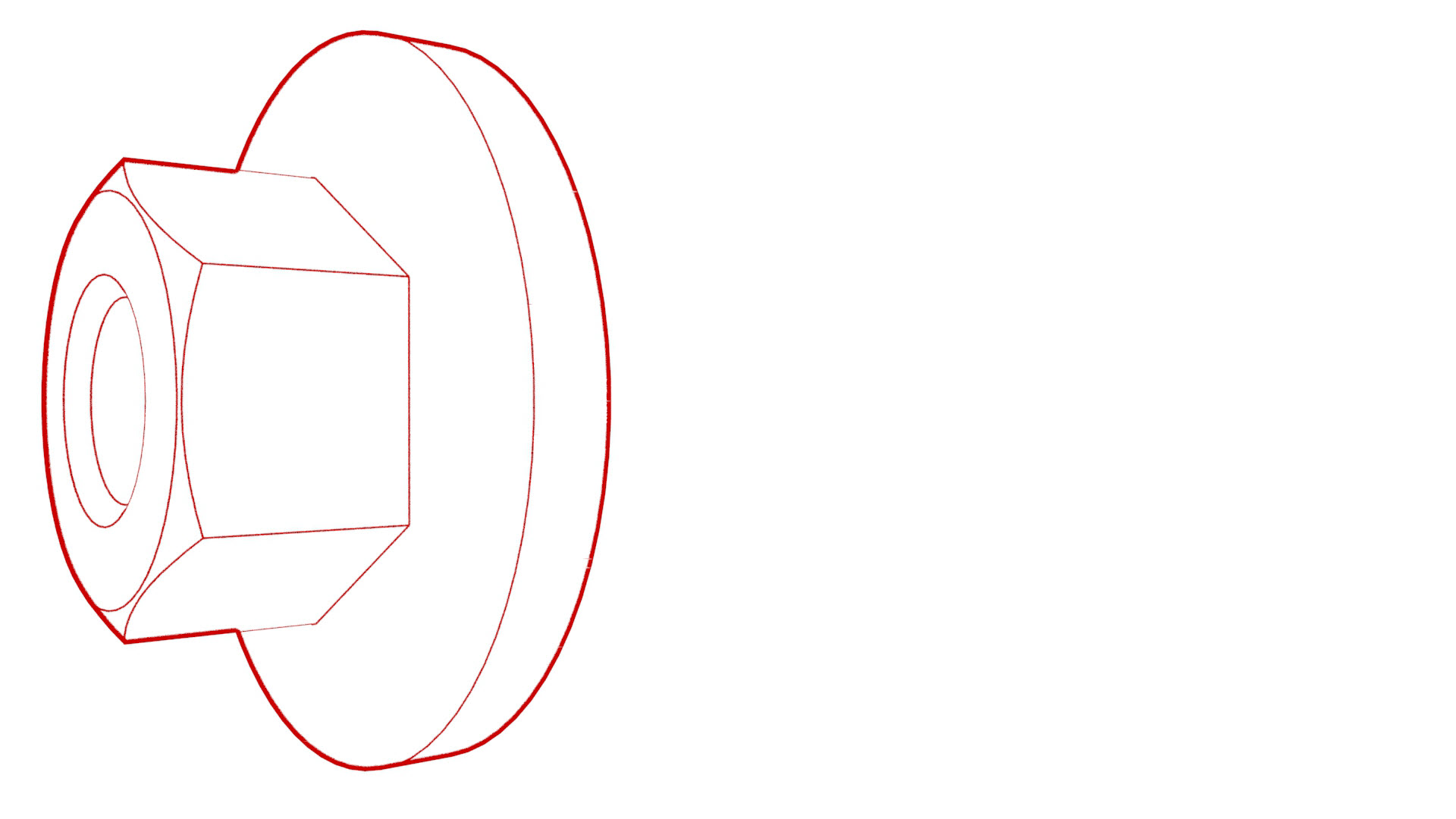

  4. Remove the nuts that attach the window motor/regulator assembly to the front LH door, and then remove the window motor/regulator assembly from the door.
    Torque 10 Nm
1Remove the front LH door glass. See Glass - Door - LH - Front (Remove and Replace)
2Remove the front LH door closeout panel. See Closeout Panel - Door - Front - LH (Remove and Install).
3Remove the plugs that allow access to the window motor/regulator assembly.
4Remove the nuts that attach the window motor/regulator assembly to the front LH door, and then remove the window motor/regulator assembly from the door.
Torque 10 Nm

Install

  1. Position the window motor/regulator assembly into the LH front door for installation.
  2. Install the nuts that attach the window motor/regulator assembly to the front LH door.
    Torque 10 Nm
  3. Install the plugs that allow for access to the window motor/regulator assembly.
  4. Install the front LH door closeout panel. See Closeout Panel - Door - Front - LH (Remove and Install).
  5. Install the front LH door glass. See Glass - Door - LH - Front (Remove and Replace)
  6. Adjust the front LH door glass. See Glass - Door - LH - Front (Adjust).
  7. Install the LH front door trim panel. See Panel - Door Trim - Front - LH (Remove and Install).
1Position the window motor/regulator assembly into the LH front door for installation.
2Install the nuts that attach the window motor/regulator assembly to the front LH door.
Torque 10 Nm
3Install the plugs that allow for access to the window motor/regulator assembly.
4Install the front LH door closeout panel. See Closeout Panel - Door - Front - LH (Remove and Install).
5Install the front LH door glass. See Glass - Door - LH - Front (Remove and Replace)
6Adjust the front LH door glass. See Glass - Door - LH - Front (Adjust).
7Install the LH front door trim panel. See Panel - Door Trim - Front - LH (Remove and Install).
