Speaker - Dash - Center (Remove and Replace)
Correction code 2121160221211602
Remove
-

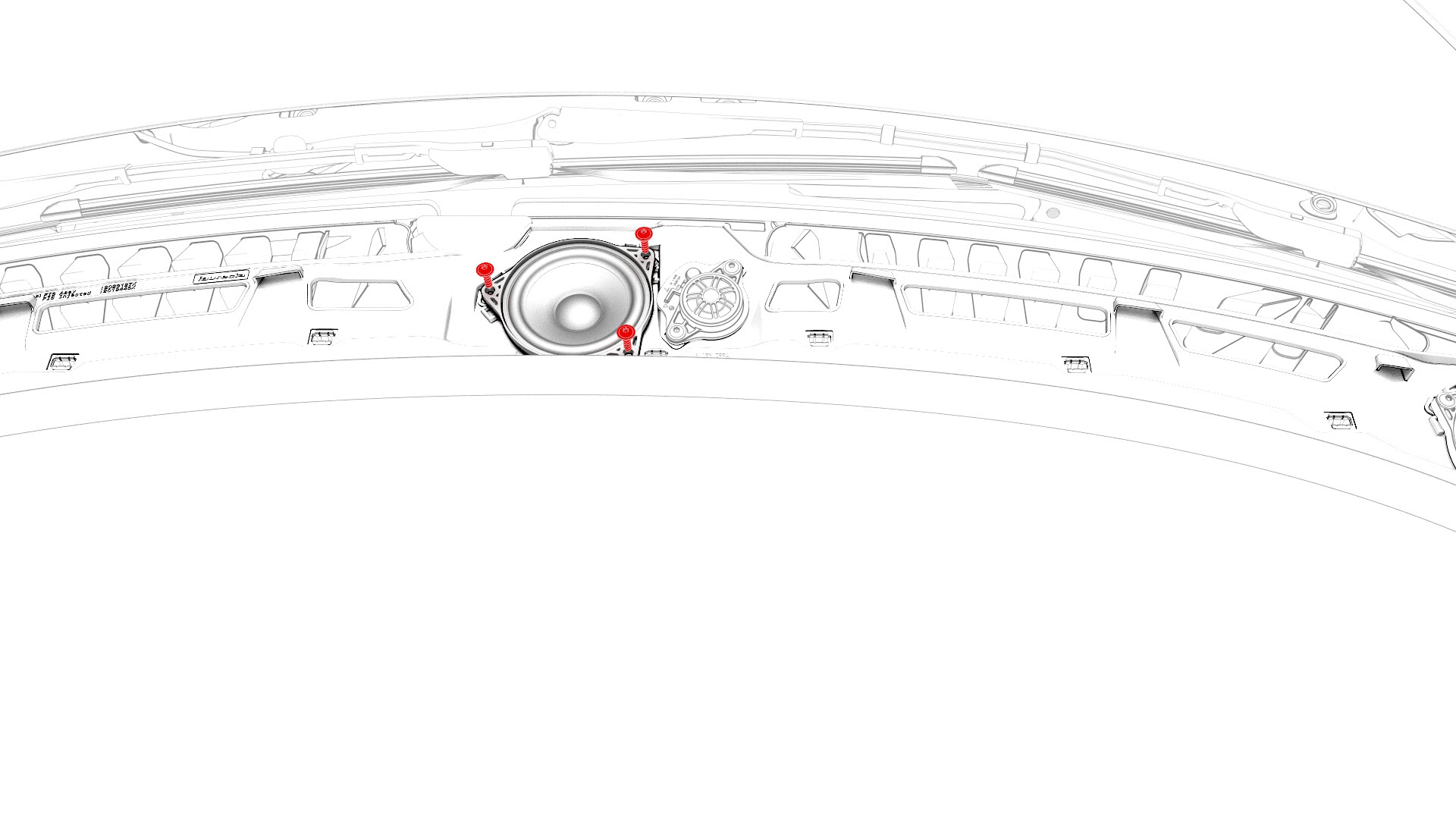

Remove the screws that attach the center dash speaker to the instrument panel, and then remove the speaker from the instrument panel.
Torque 2.3 Nm
-

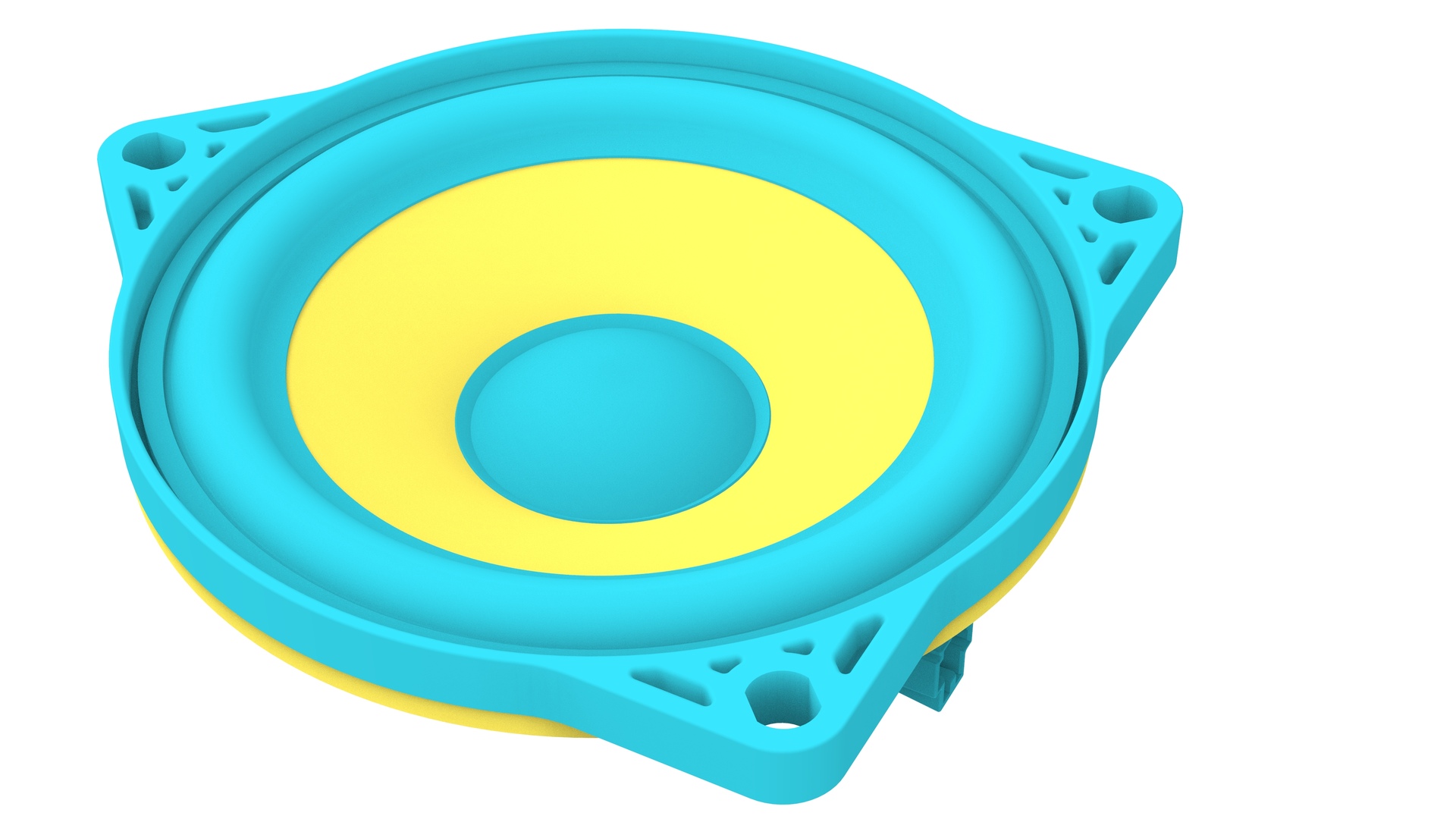

Disconnect the electrical connector from the center dash speaker connector, and then remove the speaker from the vehicle.
| 1 | Remove the LH and RH instrument panel end caps. See End Cap - Instrument Panel - LH (Remove and Replace). | ||
| 2 | Remove the LH and RH middle A-pillar trims. See Trim - A-Pillar - Middle - LH (Remove and Replace). | ||
| 3 | Remove the LH and RH upper A-pillar trims. See Trim - A-Pillar - Upper - LH (Remove and Replace). | ||
| 4 | Remove the instrument panel speaker grille. See Grille - Speaker - Instrument Panel (Remove and Replace). | ||
| 5 | Remove the screws that attach the center dash speaker to the instrument panel, and then remove the speaker from the instrument panel. Torque 2.3 Nm | |
| 6 | Disconnect the electrical connector from the center dash speaker connector, and then remove the speaker from the vehicle. |
Install
Installation procedure is the reverse of removal.
