Oil Screen - Front Drive Unit (Remove and Replace)

Correction code 3930500239305002

1134264-00-AKIT, DRIVE UNIT OIL DRAIN, MODEL 3
1139126-00-AKIT, DRIVE UNIT OIL FILL, MODEL 3
1446276-20-A Tool, DUF Dipstick, Model 3
1131264-00-ASWITCHBOX, OIL PUMP, MODEL 3
1129348-00-A JUMP START, XP-10
1130484-00-A Skt, Oil Filter, 63.5mm X 14
1140378-00-A Tool, Oil Pump Screen Removal, Model 3

SPECIAL TOOLS

KIT, DRIVE UNIT OIL DRAIN, MODEL 3 (1134264-00-A)

KIT, DRIVE UNIT OIL FILL, MODEL 3 (1139126-00-A)

Tool, DUF Dipstick, Model 3 (1446276-20-A)

SWITCHBOX, OIL PUMP, MODEL 3 (1131264-00-A)

JUMP START, XP-10 (1129348-00-A )

Skt, Oil Filter, 63.5mm X 14 (1130484-00-A)

Tool, Oil Pump Screen Removal, Model 3 (1140378-00-A)

Remove

Remove the front aero shield panel. See Panel - Aero Shield - Front (Remove and Replace).
Remove the front drive unit oil pump. See Oil Pump - Front Drive Unit (Remove and Replace).
Remove and discard the o-rings from the front drive unit oil pump.

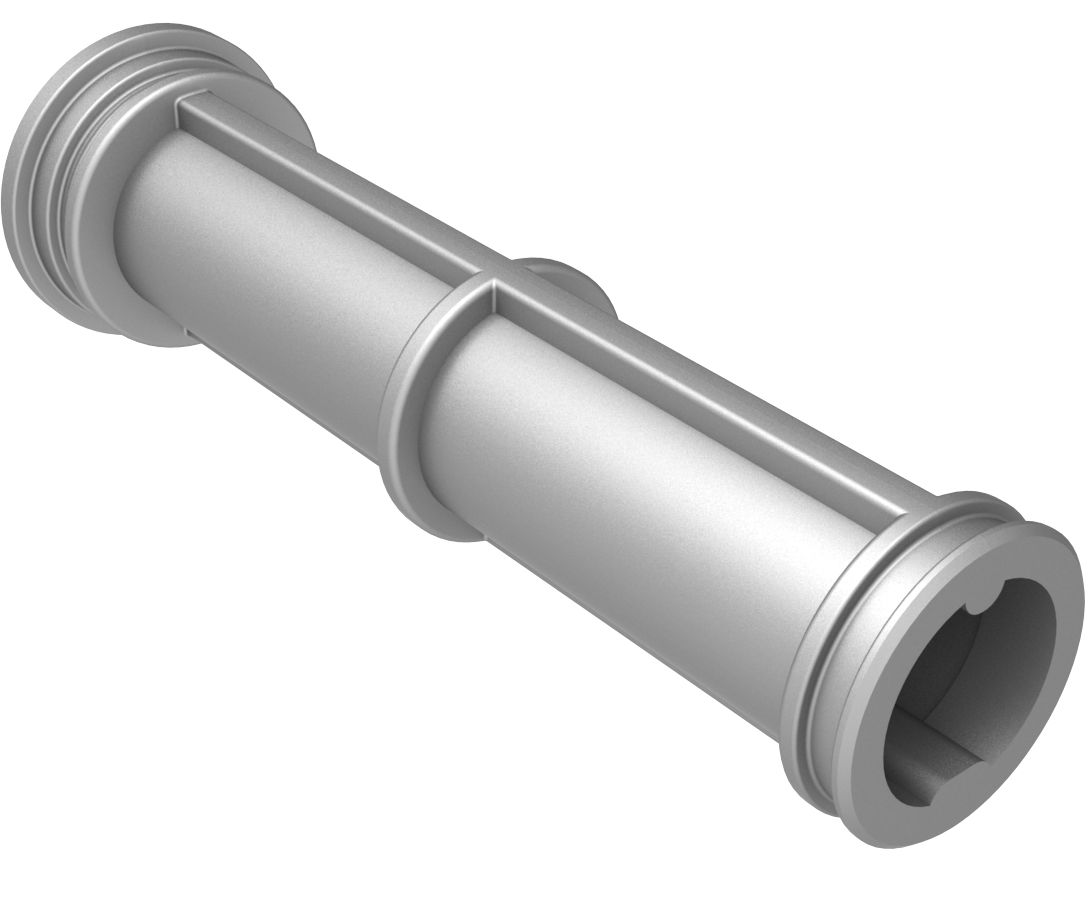

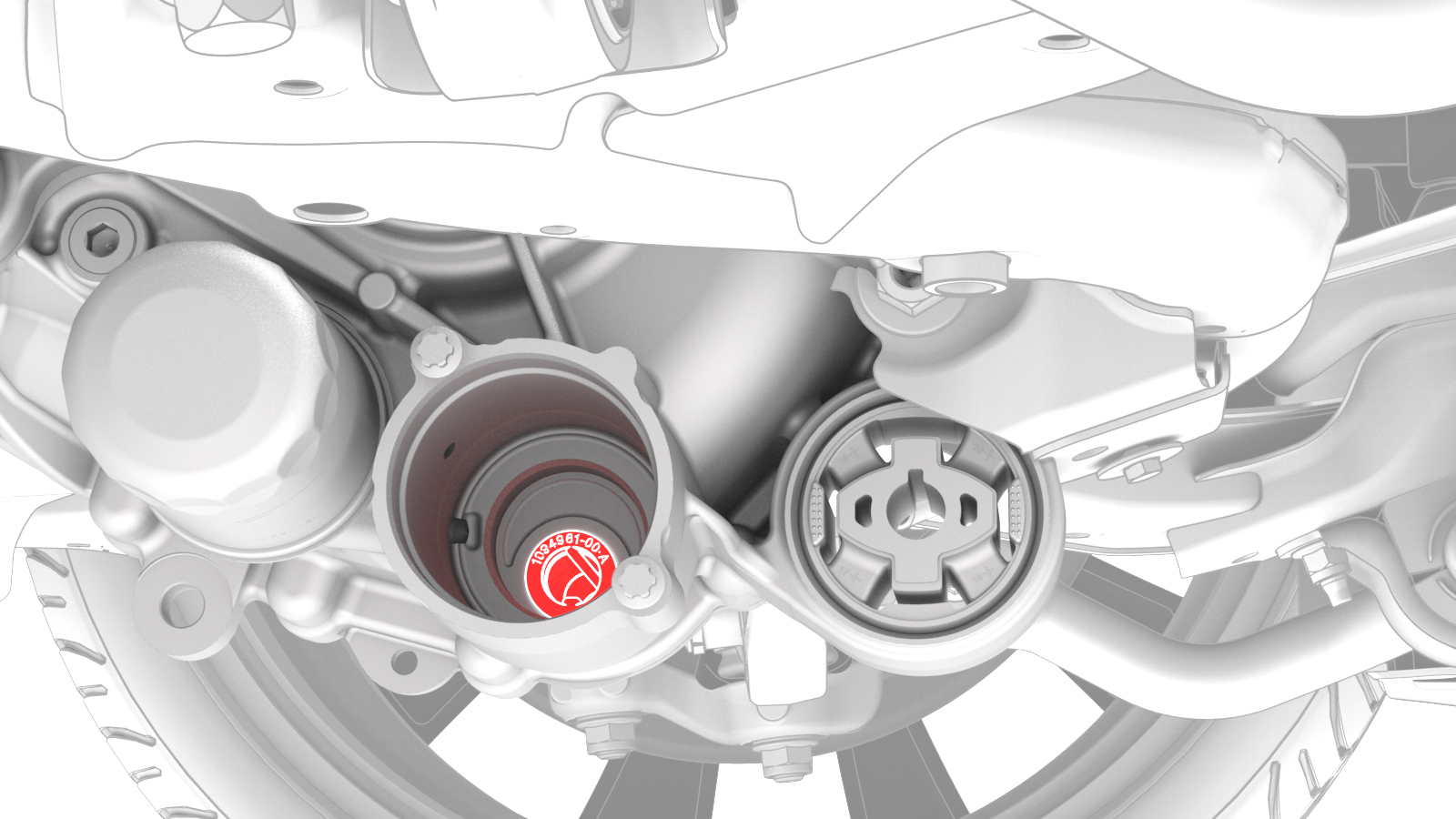

Remove the front drive unit oil screen from the front drive unit.

		1	Remove the front aero shield panel. See Panel - Aero Shield - Front (Remove and Replace).
		2	Remove the front drive unit oil pump. See Oil Pump - Front Drive Unit (Remove and Replace).
		3	Remove and discard the o-rings from the front drive unit oil pump.
		4	Remove the front drive unit oil screen from the front drive unit.

Install

Installation procedure is the reverse of removal, except for the following:

Lubricate the front drive unit oil screen o-rings with ATF-9.
Install new o-rings (part numbers 1108210-00-A, 1108211-00-A, and 1108214-00-A) on the front drive unit oil pump and lubricate the o-rings with ATF-9.
