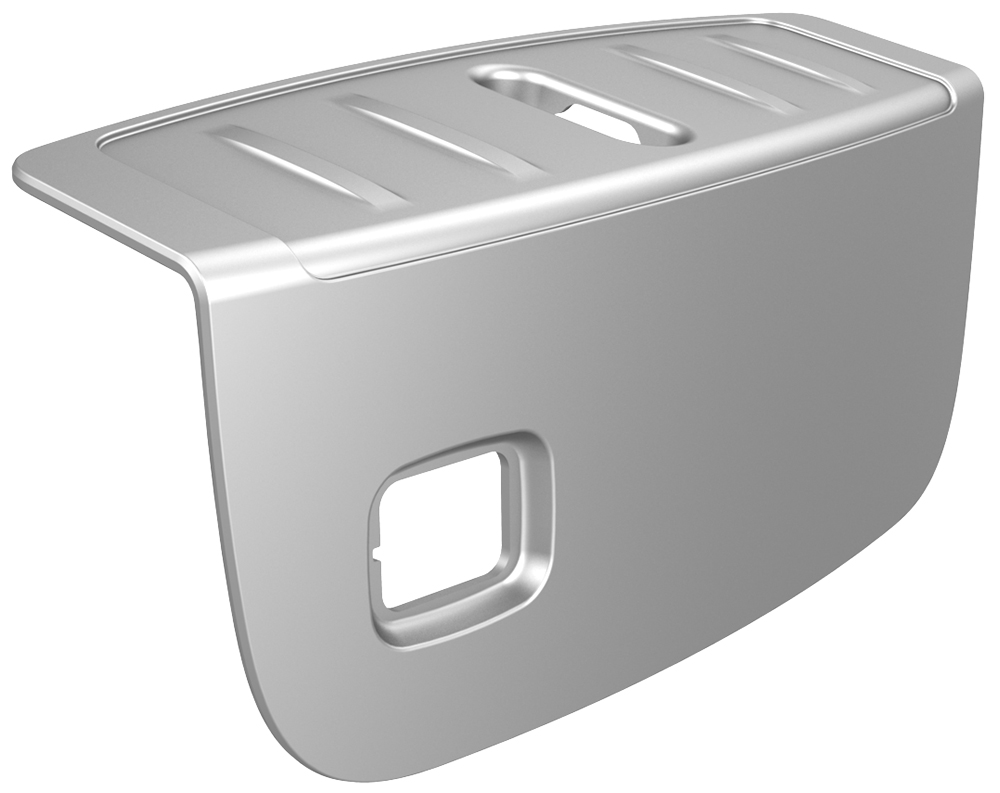

Cover - Hood Latch (Remove and Replace)

Correction code 1524110215241102

Remove

Open the hood.

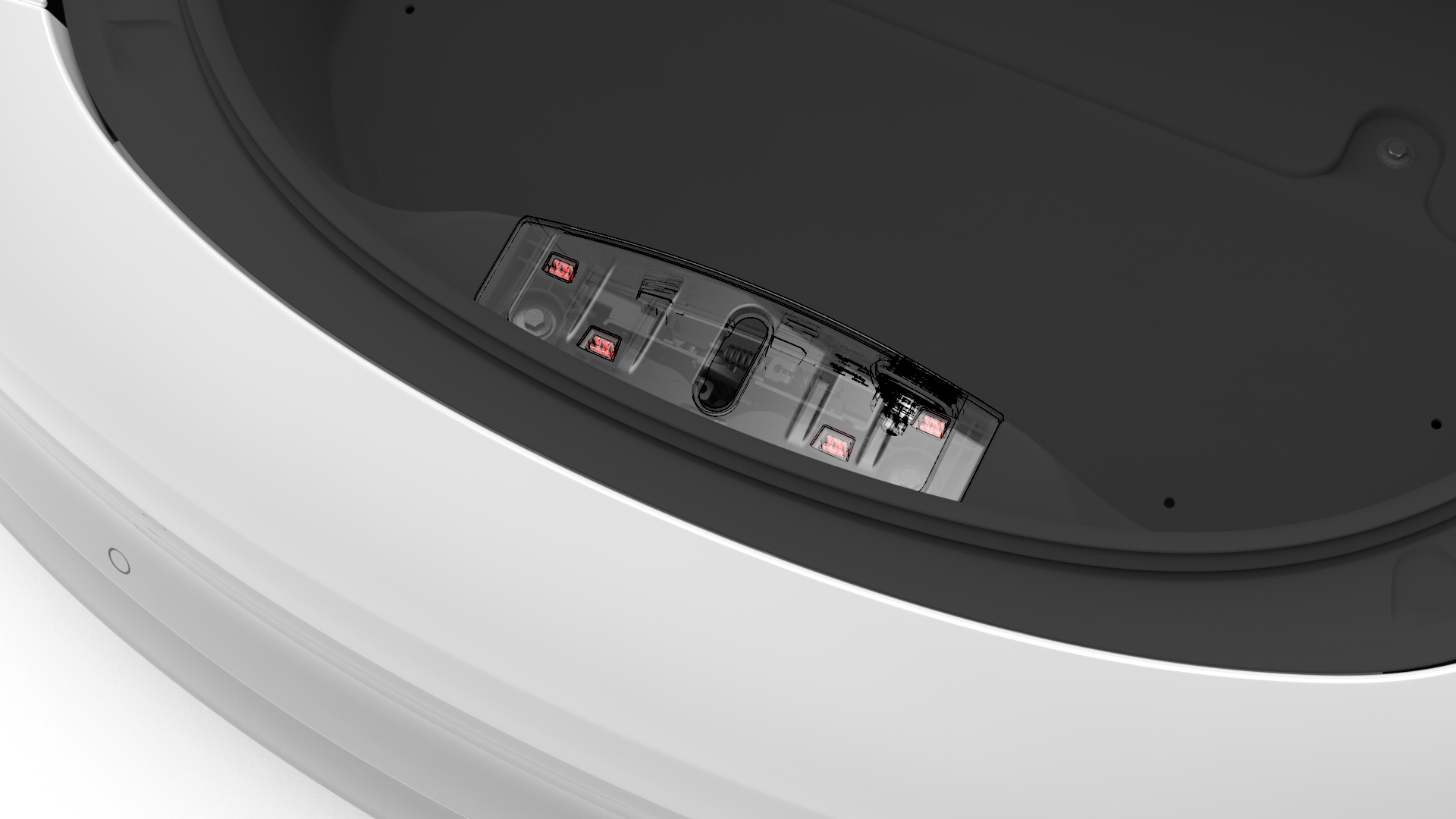

Release the clips that attach the hood latch cover to the body.

Tip: Grab the cover from the bottom, and then pull it upward to release the clips.
Disconnect the electrical harness from the child safety switch connector, and then remove the cover from the vehicle.

		1	Open the hood.
		2	Release the clips that attach the hood latch cover to the body. Tip: Grab the cover from the bottom, and then pull it upward to release the clips.
		3	Disconnect the electrical harness from the child safety switch connector, and then remove the cover from the vehicle.

Install

Installation procedure is the reverse of removal.
