Coolant Pump - HV Battery (Remove and Replace)

Correction code 1830850218308502
Parent topic: 1830 - Cooling System

Remove

  1. Remove the underhood storage unit. See Underhood Storage Unit (Remove and Replace).
  2. Disconnect 12V power. See 12V Power (Disconnect and Connect).
  3. Remove the front aero shield panel. See Panel - Aero Shield - Front (Remove and Replace).
  4. Position a coolant drain under the superbottle.
  5. If the vehicle is equipped with dual motors, perform these steps. Otherwise, go to step 6.
    1. Install a foldable funnel underneath the front drive unit heat exchanger.
      Note: Make sure the foldable funnel covers the front drive unit 12V connector, steering rack, and is positioned to catch fluid from the heat exchanger coolant outlet.
    2. Release the clip and disconnect the front drive unit heat exchanger to superbottle hose from the heat exchanger coolant outlet, and then drain the coolant into the coolant drain container.
    3. Install plugs into the front drive unit heat exchanger to superbottle hose and the heat exchanger coolant outlet.
  6. Release the clip that attaches the electrical harness to the superbottle.
  7. Disconnect the electrical harness from the HV battery coolant pump connector.

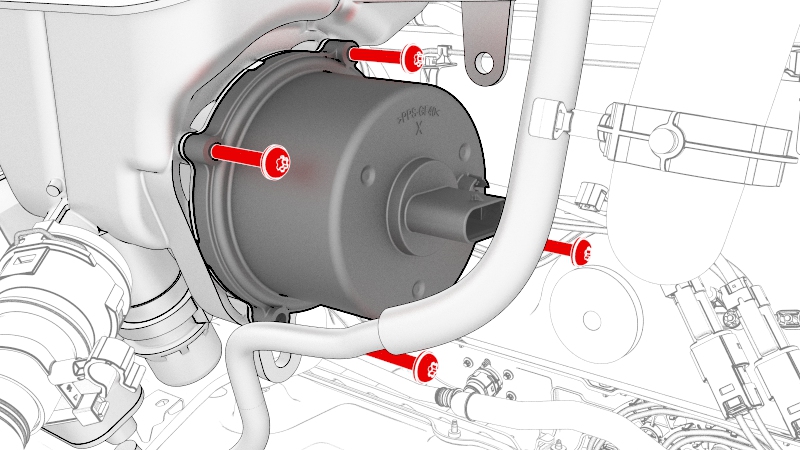

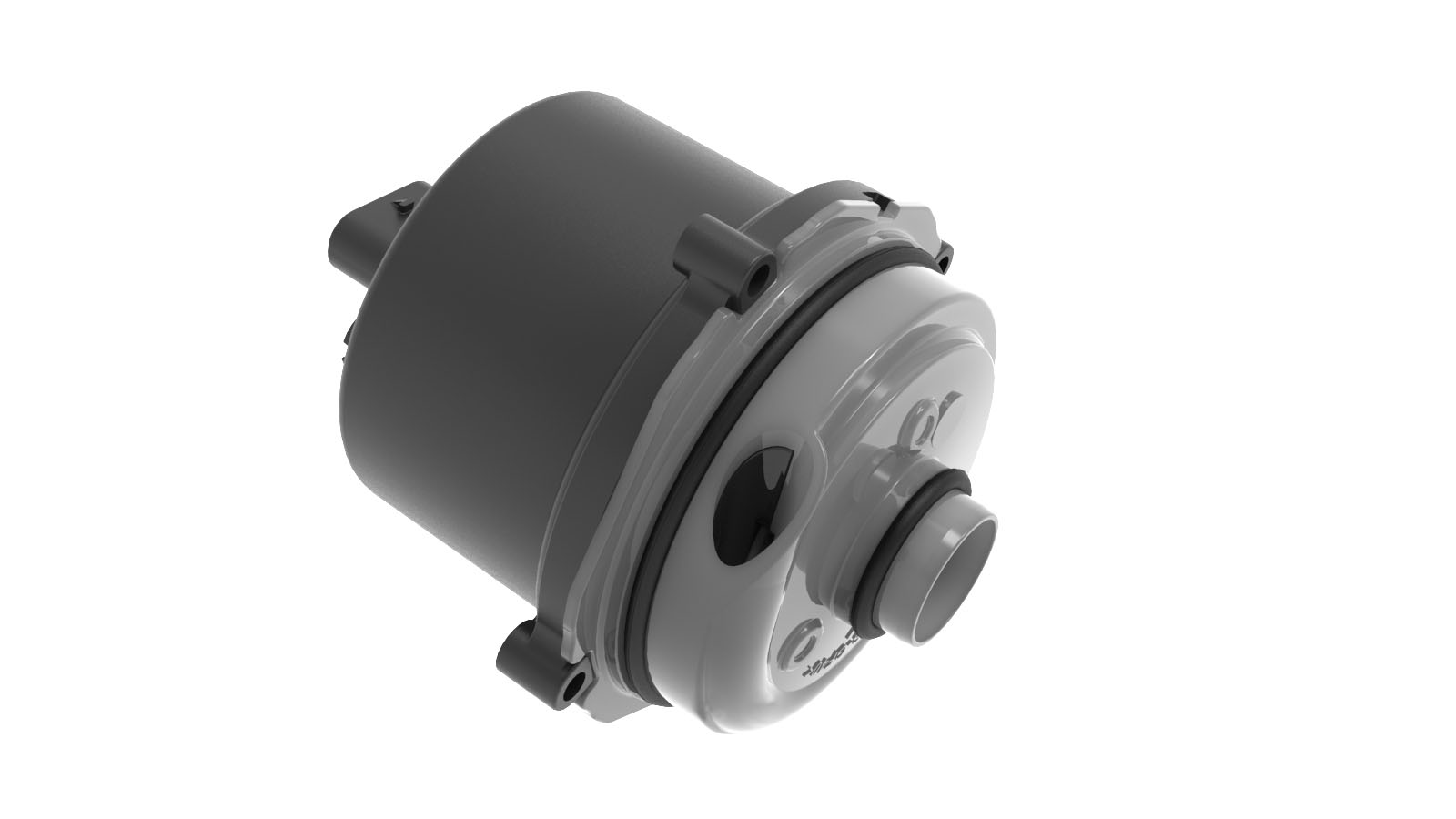

  8. Remove and discard the bolts that attach the HV battery coolant pump to the superbottle, and then remove the pump from the superbottle.
1Remove the underhood storage unit. See Underhood Storage Unit (Remove and Replace).
2Disconnect 12V power. See 12V Power (Disconnect and Connect).
3Remove the front aero shield panel. See Panel - Aero Shield - Front (Remove and Replace).
4Position a coolant drain under the superbottle.
5If the vehicle is equipped with dual motors, perform these steps. Otherwise, go to step 6.
  1. Install a foldable funnel underneath the front drive unit heat exchanger.
    Note: Make sure the foldable funnel covers the front drive unit 12V connector, steering rack, and is positioned to catch fluid from the heat exchanger coolant outlet.
  2. Release the clip and disconnect the front drive unit heat exchanger to superbottle hose from the heat exchanger coolant outlet, and then drain the coolant into the coolant drain container.
  3. Install plugs into the front drive unit heat exchanger to superbottle hose and the heat exchanger coolant outlet.
6Release the clip that attaches the electrical harness to the superbottle.
7Disconnect the electrical harness from the HV battery coolant pump connector.
8Remove and discard the bolts that attach the HV battery coolant pump to the superbottle, and then remove the pump from the superbottle.

Install

  1. Remove and discard any o-rings or debris in the superbottle where the coolant pump will install.
  2. Make sure that new o-rings are installed onto the new coolant pump.
  3. Lubricate the o-rings with Silaramic lubricant.
  4. Position the outlet of the coolant pump in the up position, and insert the coolant pump into the superbottle.
  5. Make sure that the coolant pump is fully seated in the superbottle.
  6. Hand-tighten new screws to attach the coolant pump to the superbottle.
  7. Tighten the coolant pump screws in a cross-pattern.
    Torque 1.8 Nm
  8. Connect the electrical harness to the coolant pump connector.
  9. Fasten the clip that attaches the electrical harness to the superbottle.
  10. Connect 12V power. See 12V Power (Disconnect and Connect).
  11. Perform a cooling system vacuum refill. See Cooling System (Vacuum Refill).
  12. Install the underhood storage unit. See Underhood Storage Unit (Remove and Replace).
  13. Install the cabin intake duct assembly. See Duct - Cabin Intake (Remove and Replace).
  14. Remove the coolant drain from under the vehicle.
  15. Install the front aero shield panel. See Panel - Aero Shield - Front (Remove and Replace).
1Remove and discard any o-rings or debris in the superbottle where the coolant pump will install.
2Make sure that new o-rings are installed onto the new coolant pump.
3Lubricate the o-rings with Silaramic lubricant.
4Position the outlet of the coolant pump in the up position, and insert the coolant pump into the superbottle.
5Make sure that the coolant pump is fully seated in the superbottle.
6Hand-tighten new screws to attach the coolant pump to the superbottle.
7Tighten the coolant pump screws in a cross-pattern.
Torque 1.8 Nm
8Connect the electrical harness to the coolant pump connector.
9Fasten the clip that attaches the electrical harness to the superbottle.
10Connect 12V power. See 12V Power (Disconnect and Connect).
11Perform a cooling system vacuum refill. See Cooling System (Vacuum Refill).
12Install the underhood storage unit. See Underhood Storage Unit (Remove and Replace).
13Install the cabin intake duct assembly. See Duct - Cabin Intake (Remove and Replace).
14Remove the coolant drain from under the vehicle.
15Install the front aero shield panel. See Panel - Aero Shield - Front (Remove and Replace).
