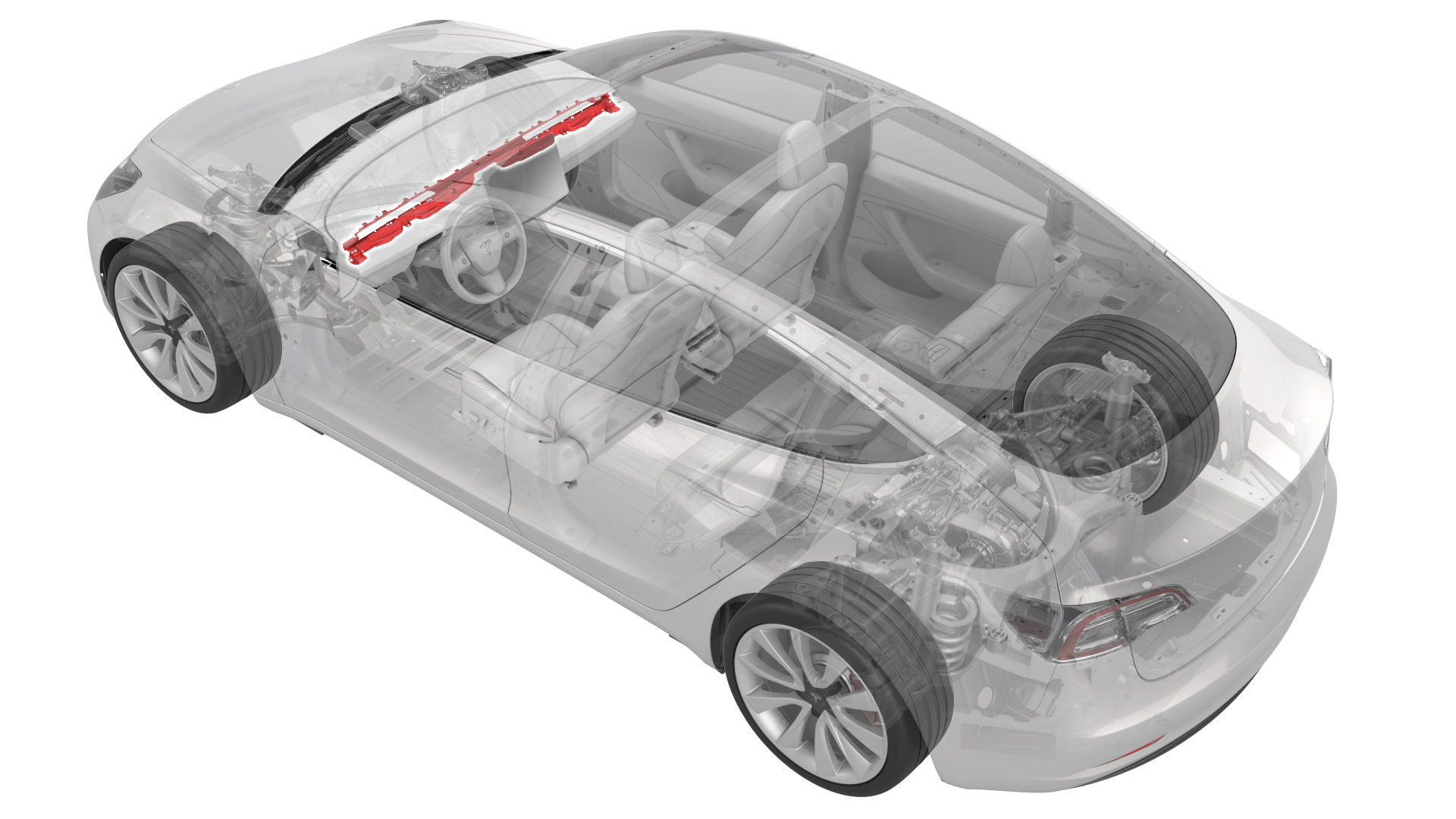

Finisher - Vent (Remove and Replace)
Correction code 1405750214057502
Remove
-

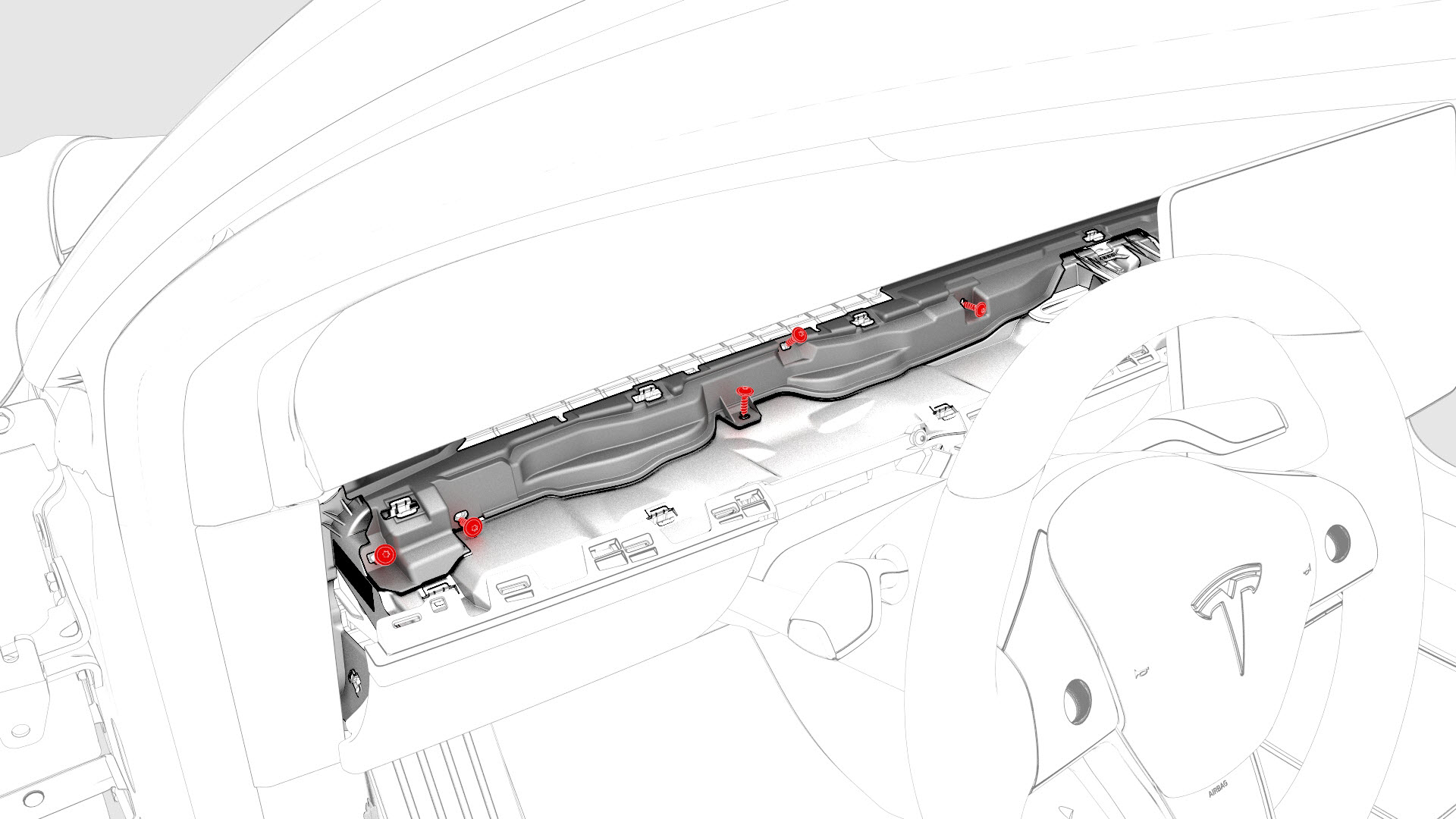

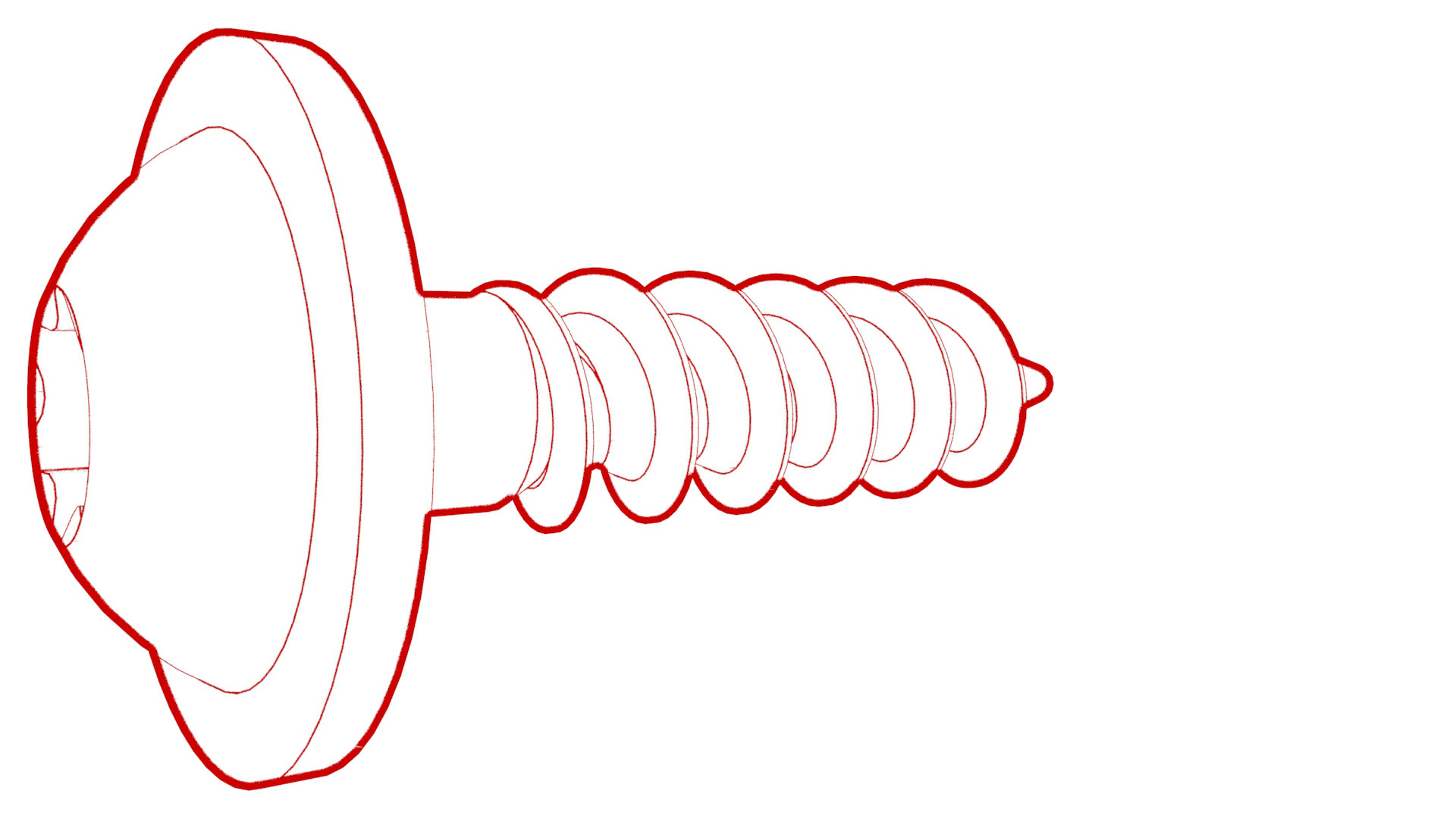

Remove the screws that attach the LH side of the vent finisher.
Torque 2.3 Nm
-

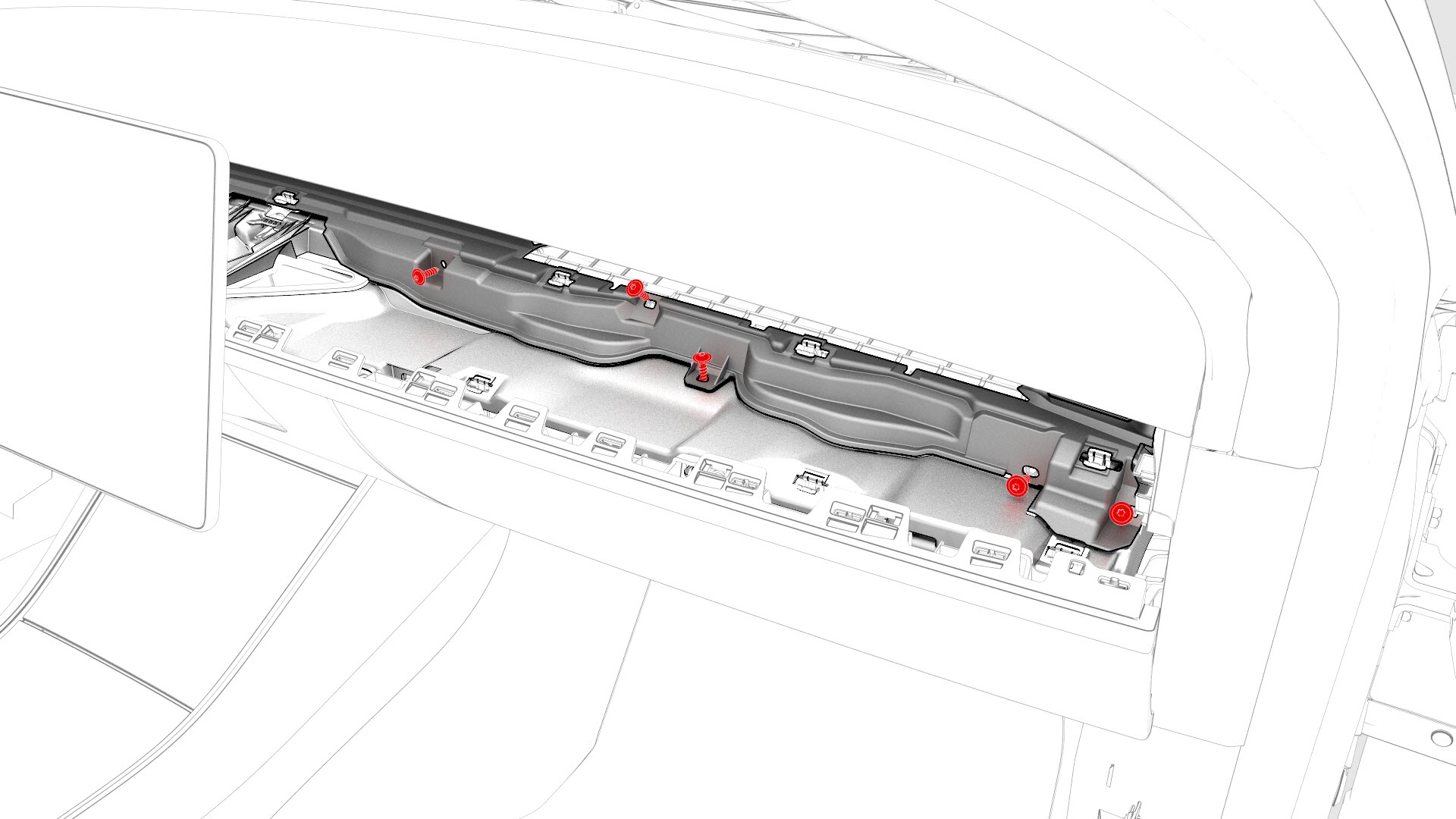

Remove the screws that attach the RH side of the vent finisher.Torque 2.3 Nm
-

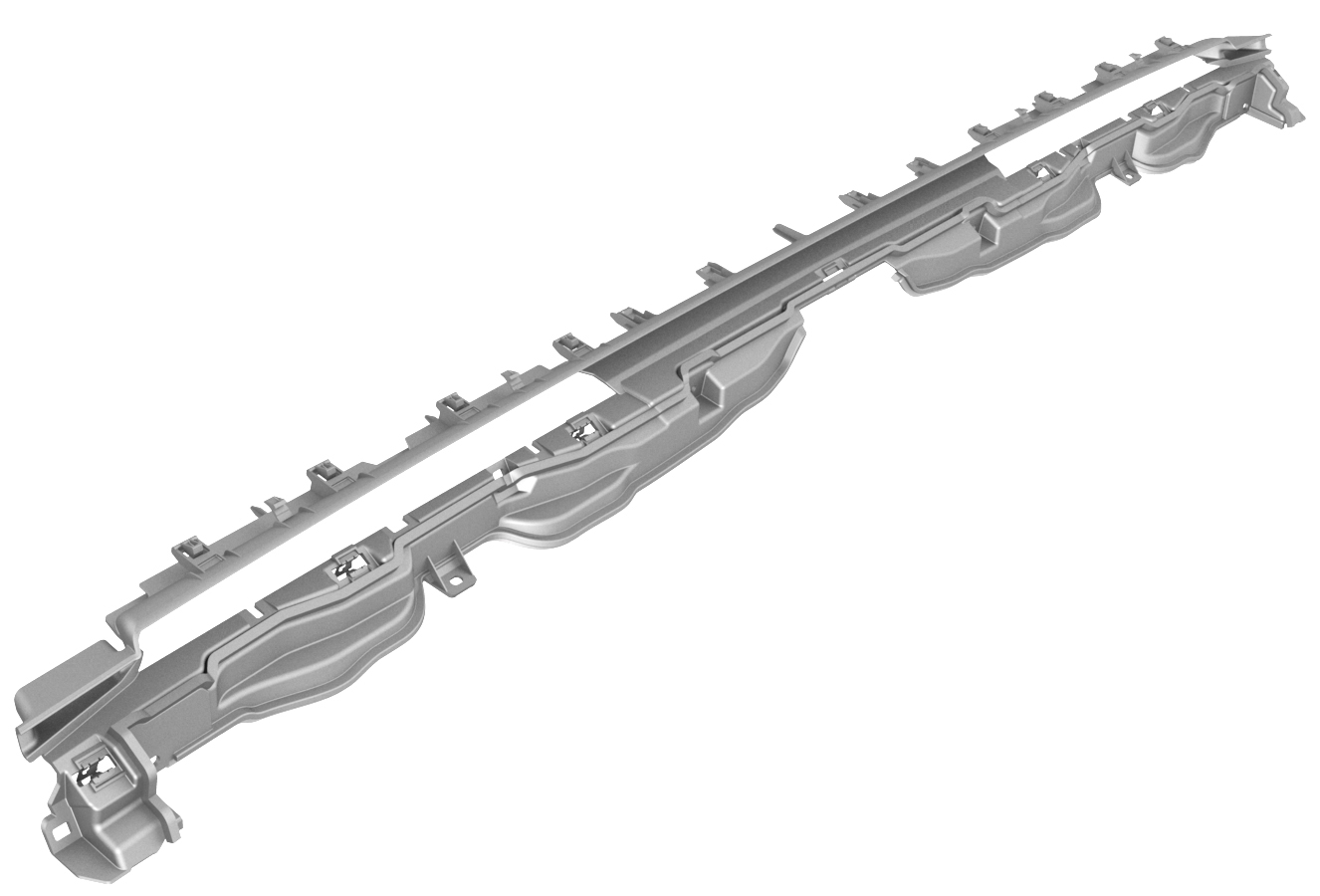

Release the clips (x16) that attach the vent finisher, and then pull the finisher toward the rear of the vehicle to remove it.
Note: The top pad must be lifted slightly in order to insert a trim tool, and then release the clips.
| 1 | Remove the LH instrument panel end cap. See End Cap - Instrument Panel - LH (Remove and Replace). | ||
| 2 | Remove both the LH and RH air wave end caps. See End Cap - Air Wave - LH (Remove and Replace). | ||
| 3 | Remove the main instrument panel decor trim. See Decor Trim - Instrument Panel - Main (Remove and Replace). | ||
| 4 | Remove the screws that attach the LH side of the vent finisher. Torque 2.3 Nm | |
| 5 | Remove the screws that attach the RH side of the vent finisher. Torque 2.3 Nm | |
| 6 | Release the clips (x16) that attach the vent finisher, and then pull the finisher toward the rear of the vehicle to remove it. Note: The top pad must be lifted slightly in order to insert a trim tool, and then release the clips.
|
Install
Installation procedure is the reverse of removal.
