Airbag - Front Passenger (Remove and Install)
Correction code 2001030120010301
DRAFT
from-cad
Warning:
This procedure was derived from pre-production computer models, and might not reflect the real-world situation. Warnings and cautions might be missing. Follow safety requirements and use extreme caution when working on or near high voltage systems and components.
Do not redistribute this content. Provide corrections and feedback to servicemanualfeedback@tesla.com.
Remove
-

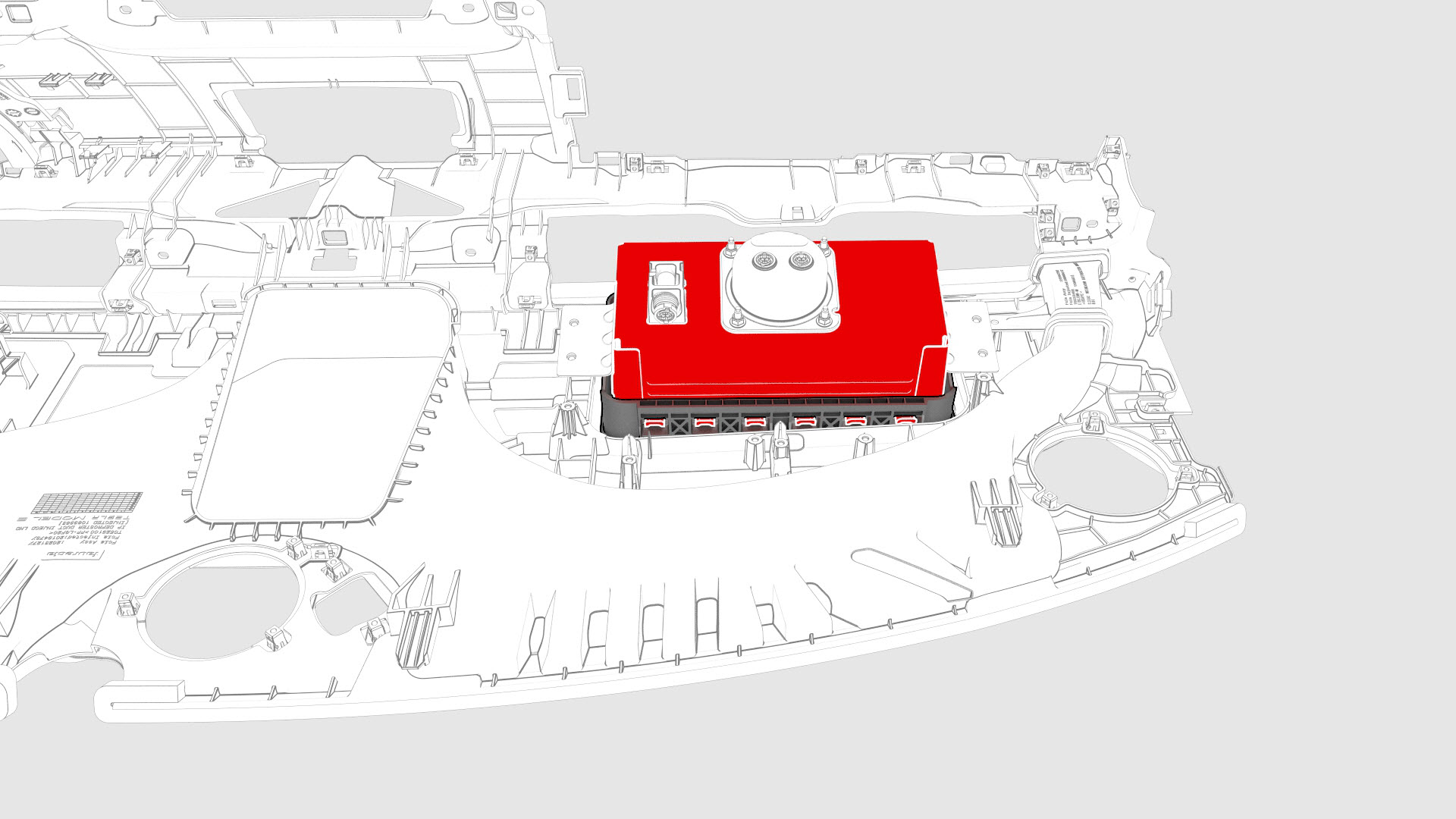

Pivot the airbag up, unhook the 7 tabs at the rear of the airbag from the IP carrier surround, and then remove the airbag from the IP carrier.
| 1 | Remove the IP carrier. See IP Carrier (Remove and Replace). | ||
| 2 | Apply pressure along the front edge of the airbag assembly, and while doing so, flex the IP passenger airbag surround to release each of the 6 airbag tabs from the IP carrier surround. | ||
| 3 | Pivot the airbag up, unhook the 7 tabs at the rear of the airbag from the IP carrier surround, and then remove the airbag from the IP carrier. |
Install
- Insert the 7 tabs of the rear of the airbag into the matching openings of the IP carrier surround.
- Pivot the airbag into the IP carrier until the 6 tabs at the front of the airbag lock into place.
- Install the IP carrier. See IP Carrier (Remove and Replace).
| 1 | Insert the 7 tabs of the rear of the airbag into the matching openings of the IP carrier surround. |
| 2 | Pivot the airbag into the IP carrier until the 6 tabs at the front of the airbag lock into place. |
| 3 | Install the IP carrier. See IP Carrier (Remove and Replace). |
