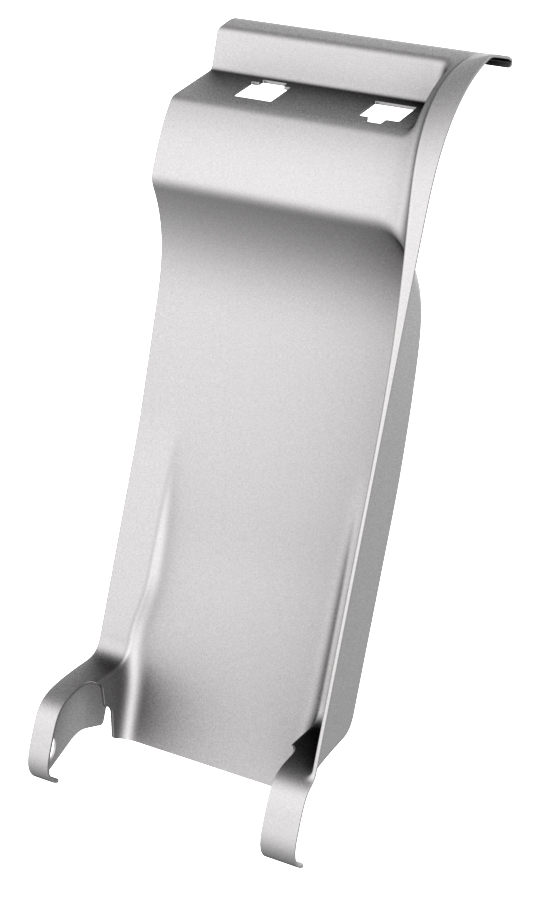

Closeout - Armrest - 2nd Row (Remove and Replace)

Correction code 1305801213058012

Remove

Remove the 2nd row armrest. See Armrest - 2nd Row (Remove and Replace).

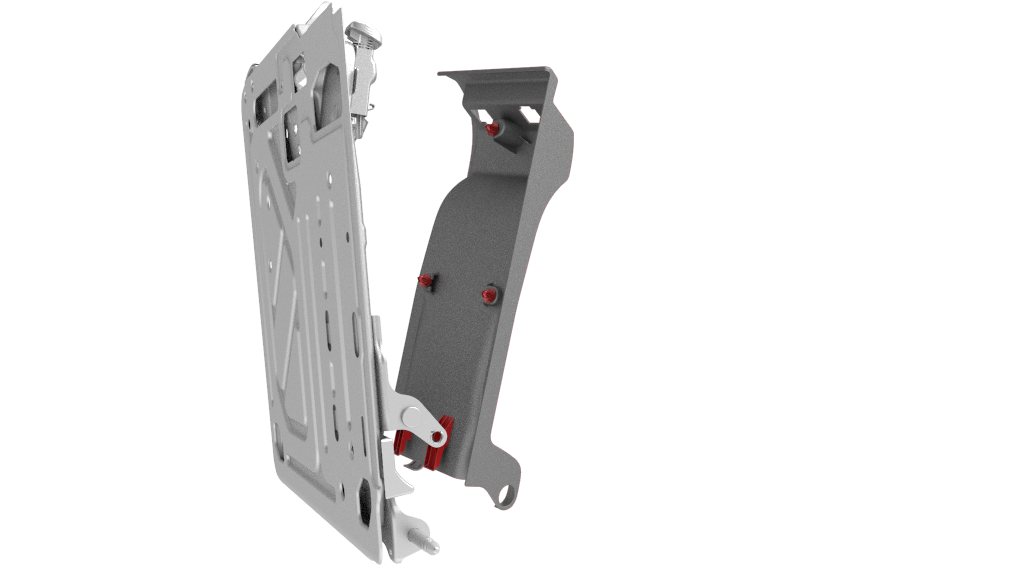

Release the clips and tabs that attach the 2nd row armrest closeout to the 2nd row seat, and then remove the armrest closeout.

		1	Remove the 2nd row armrest. See Armrest - 2nd Row (Remove and Replace).
		2	Release the clips and tabs that attach the 2nd row armrest closeout to the 2nd row seat, and then remove the armrest closeout.

Install

Installation procedure is the reverse of removal.
