Latch - Seat Back - 2nd Row - LH (Remove and Replace)

Correction code 1305590213055902
Parent topic: 1305 - 2nd Row Seat Assemblies and Hardware

Remove

  1. Remove the 2nd row center seatbelt assembly. See Seatbelt - 2nd Row - Center (Remove and Replace).

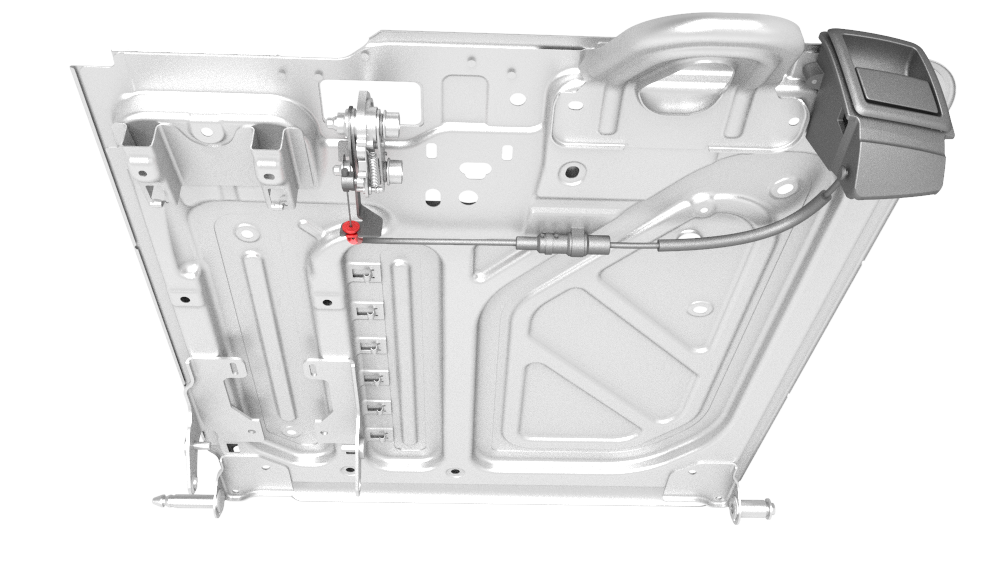

  2. Release the cable clip that attaches the latch bracket to the seat back.

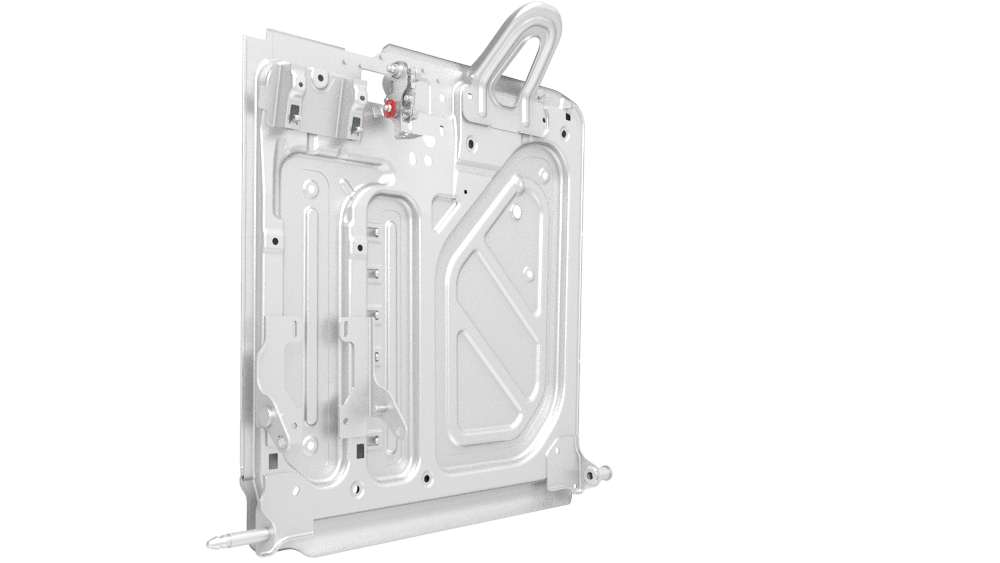

  3. Release the clip that attaches the bracket stud to the seat back.

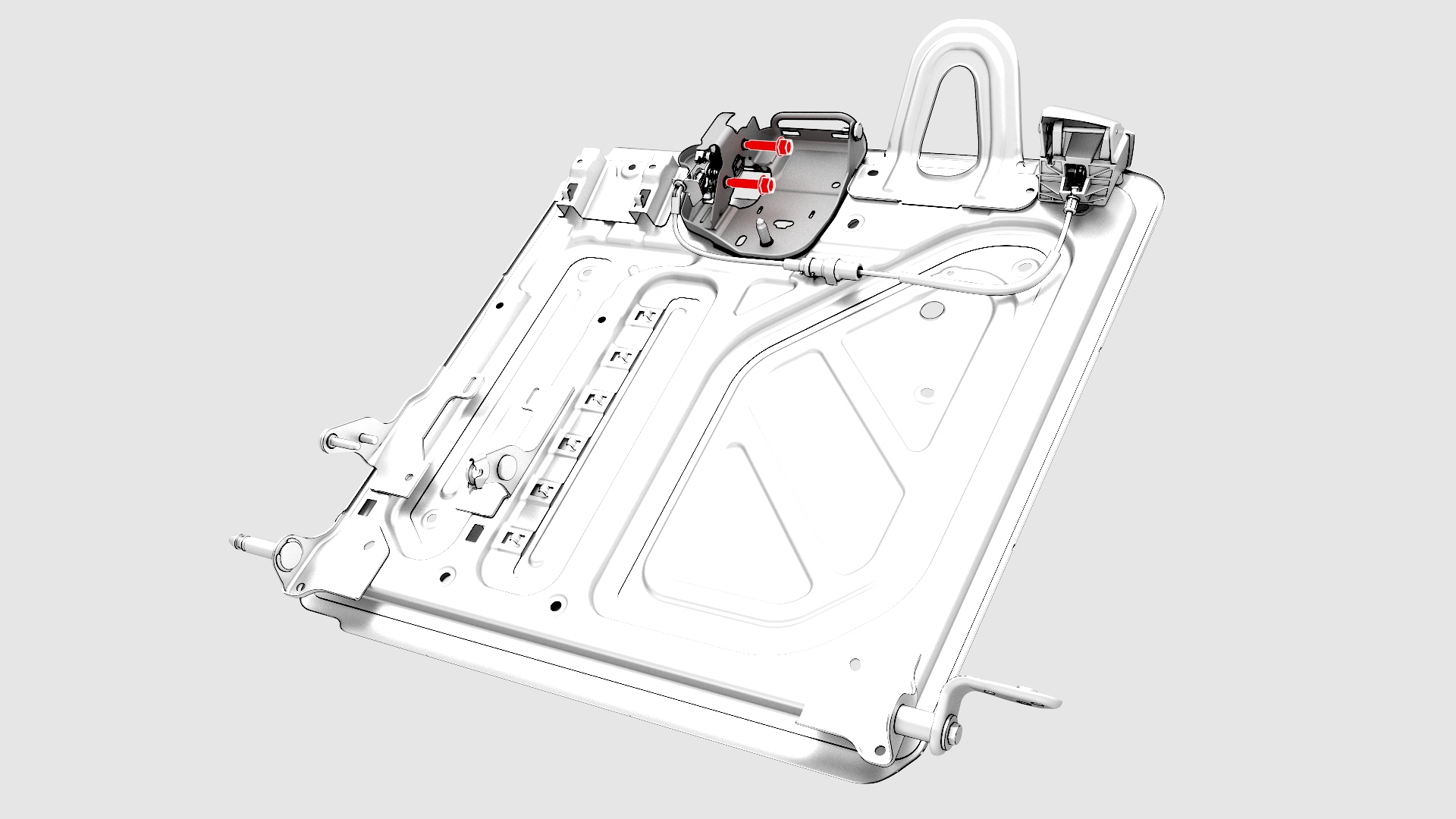

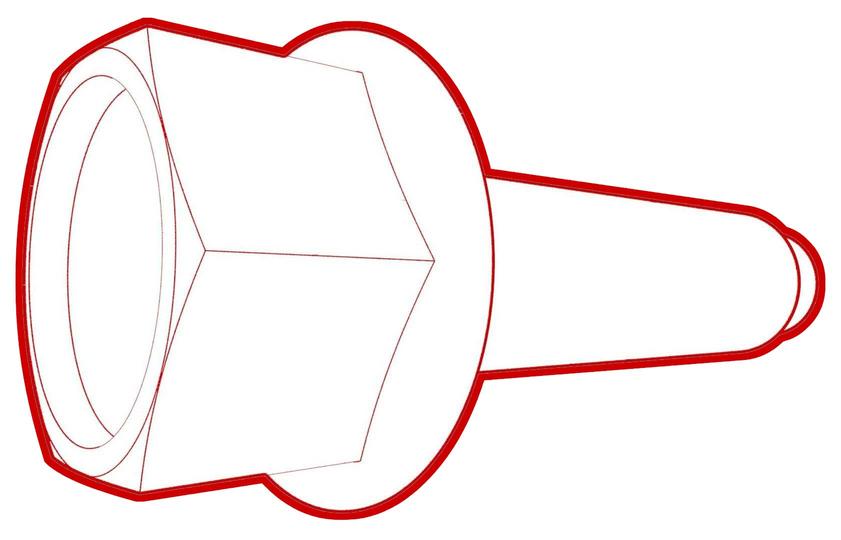

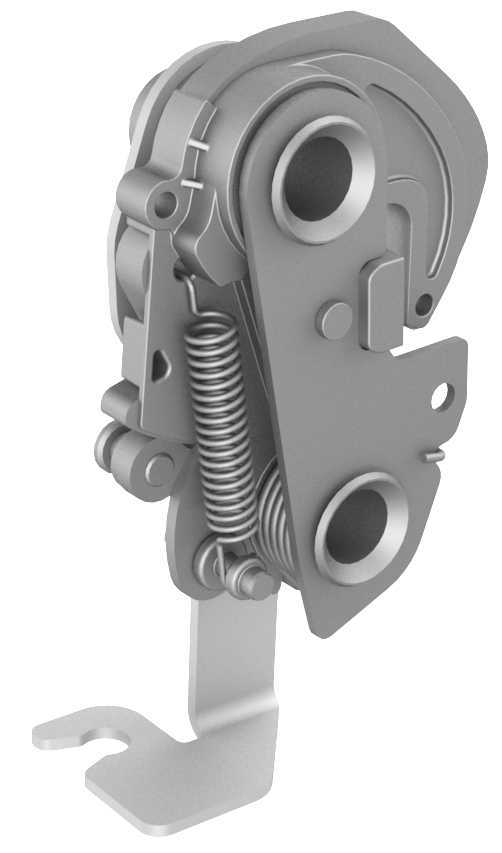

  4. Remove the bolts that attach the 2nd row LH seat back latch to the seat back, and then remove the latch from the seat back.
    Torque 40 Nm
1Remove the 2nd row center seatbelt assembly. See Seatbelt - 2nd Row - Center (Remove and Replace).
2Release the cable clip that attaches the latch bracket to the seat back.
3Release the clip that attaches the bracket stud to the seat back.
4Remove the bolts that attach the 2nd row LH seat back latch to the seat back, and then remove the latch from the seat back.
Torque 40 Nm

Install

Installation procedure is the reverse of removal.
