Light - Fog / Reverse - Rear - LH (Remove and Replace)

Correction code 1740270217402702
Parent topic: 1740 - Exterior Lights

Remove

  1. Remove the trunk lid trim. See Trim - Lid - Trunk (Remove and Replace).

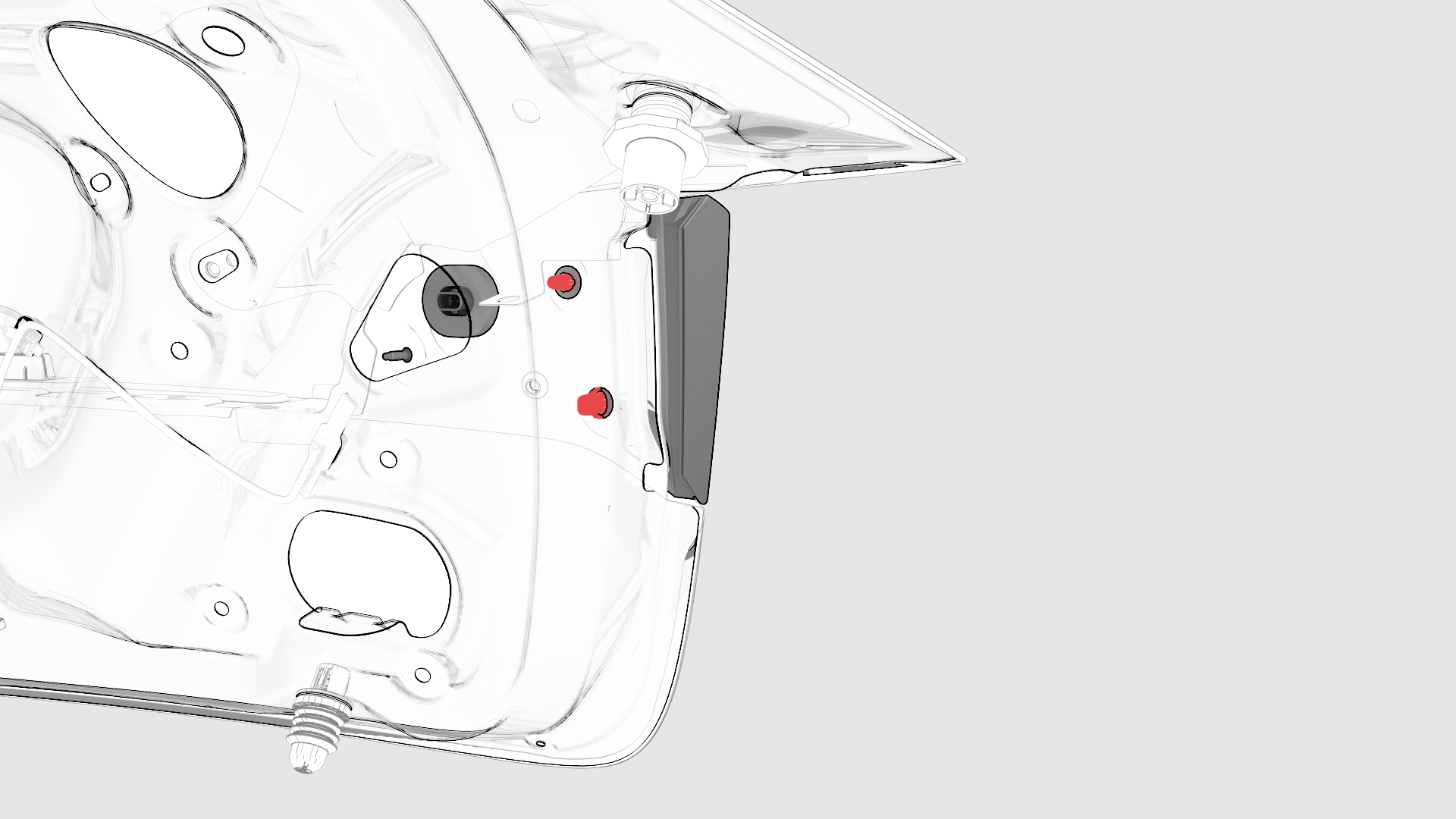

  2. Disconnect the electrical wiring harness connector from the LH rear fog/reverse light.

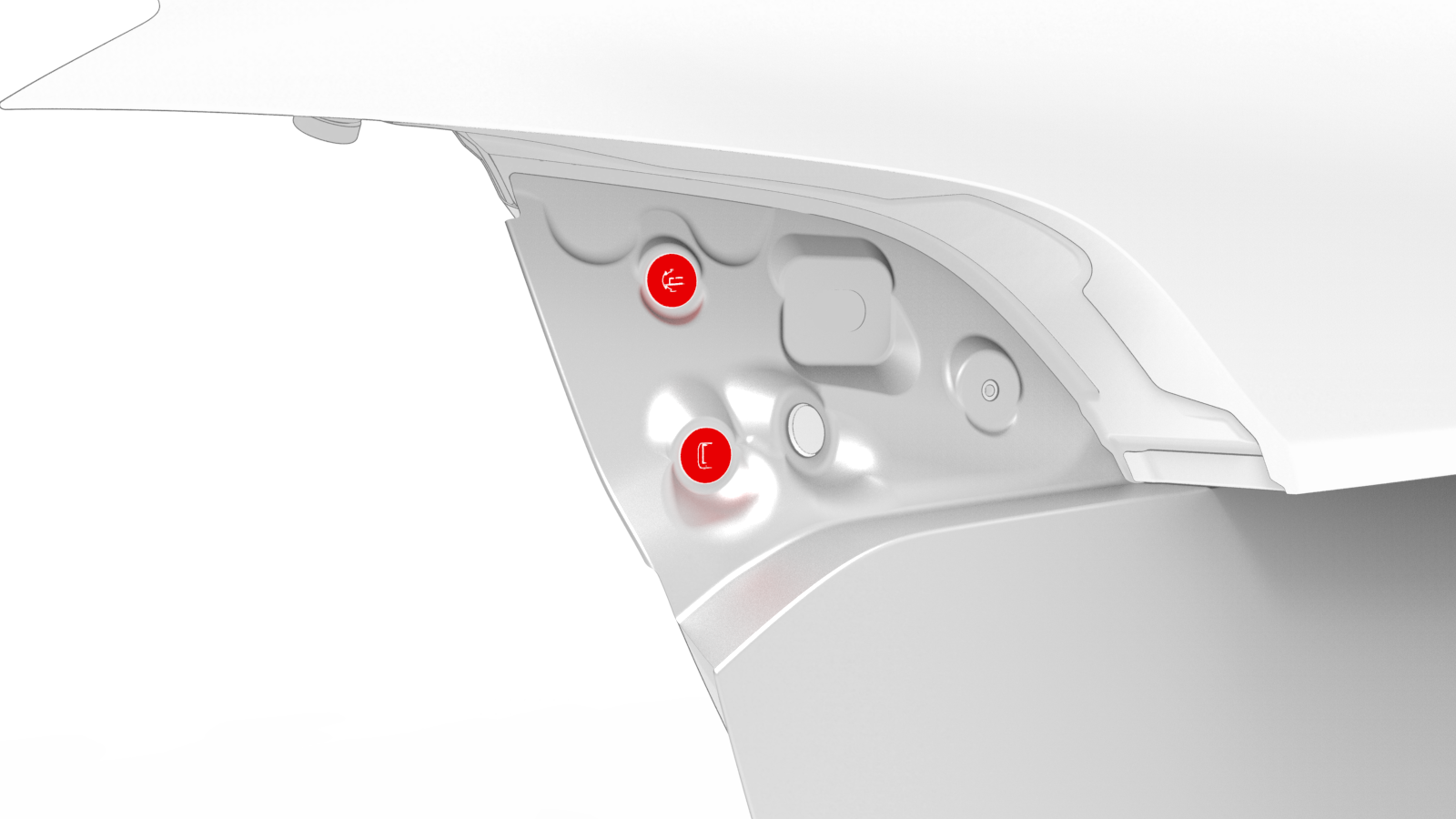

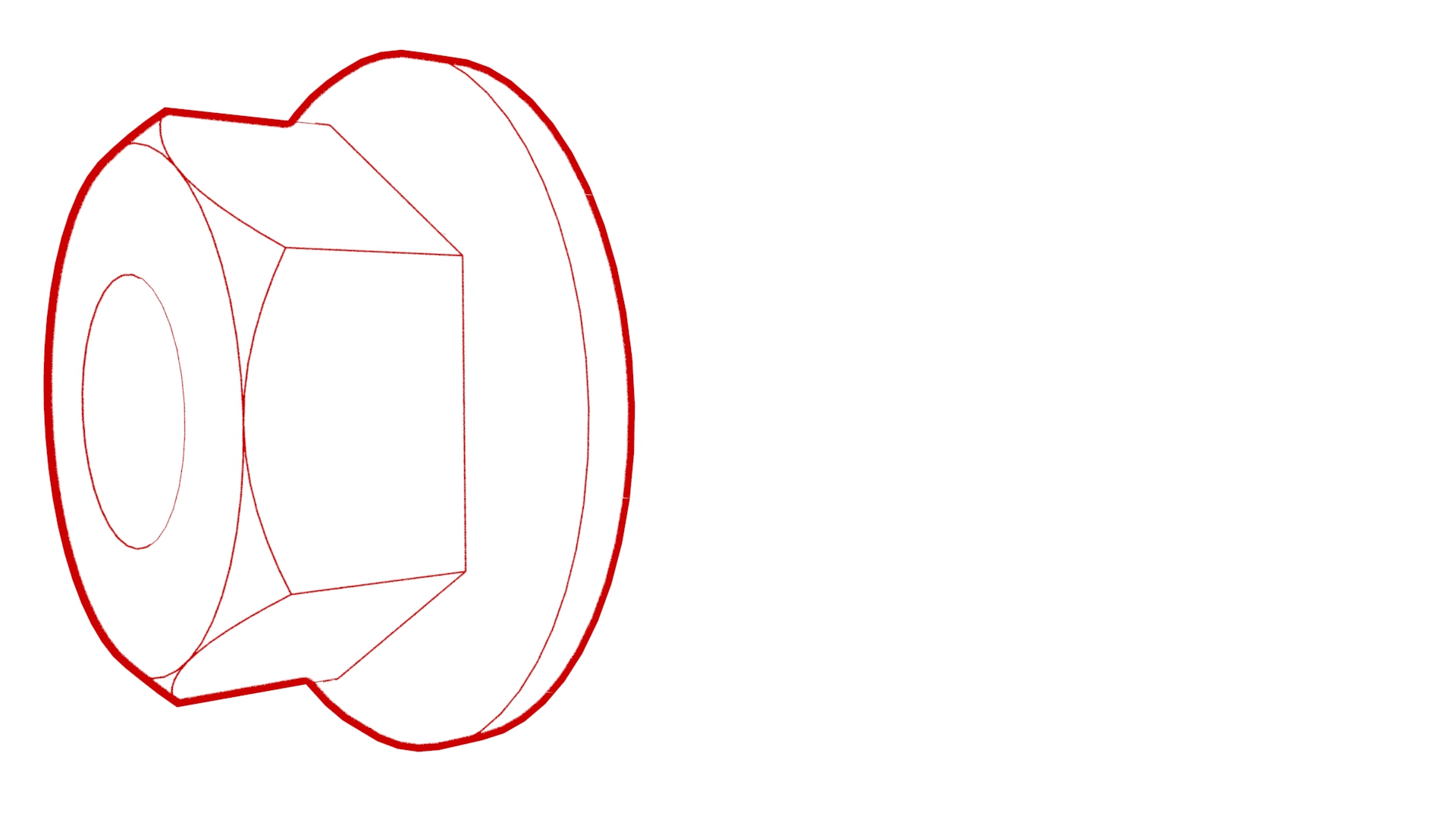

  3. Remove the nut that attaches the LH rear fog/reverse light to the trunk lid.
    Torque 3.2 Nm

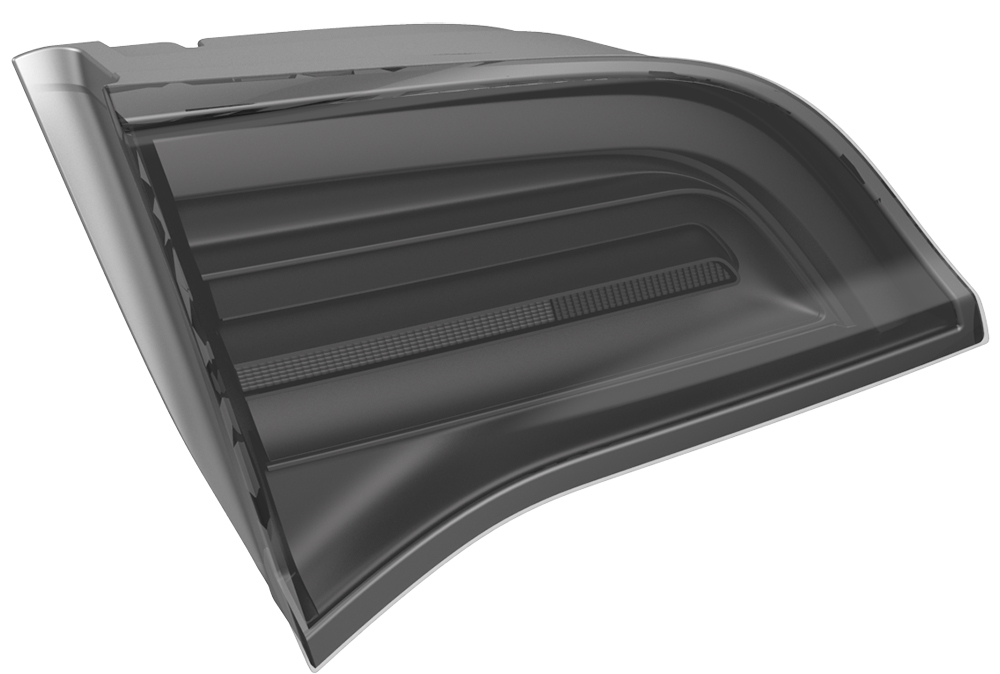

  4. Remove the LH rear fog/reverse light from the trunk lid.
    Note: Carefully pry on the exterior of the LH rear fog/reverse light to release it.
  5. Remove and discard the grommets from the trunk lid.
  6. If the fog/reverse light is to be reinstalled, remove the gaskets from around the threaded mounting stud and the light connector.
1Remove the trunk lid trim. See Trim - Lid - Trunk (Remove and Replace).
2Disconnect the electrical wiring harness connector from the LH rear fog/reverse light.
3Remove the nut that attaches the LH rear fog/reverse light to the trunk lid.
Torque 3.2 Nm
4Remove the LH rear fog/reverse light from the trunk lid.
Note: Carefully pry on the exterior of the LH rear fog/reverse light to release it.
5Remove and discard the grommets from the trunk lid.
6If the fog/reverse light is to be reinstalled, remove the gaskets from around the threaded mounting stud and the light connector.

Install

Installation procedure is the reverse of removal, except for the following:

  • Install new grommets into the trunk lid where the light installs.
  • If the fog/reverse light is to be reinstalled, install new gaskets around the threaded mounting stud and light connector.
