Mount - Front Drive Unit - LH (Remove and Replace)

Correction code 3901260039012600

Remove

Remove the front subframe assembly from the vehicle. See Subframe Assembly - Front (Dual Motor) (Remove and Install).

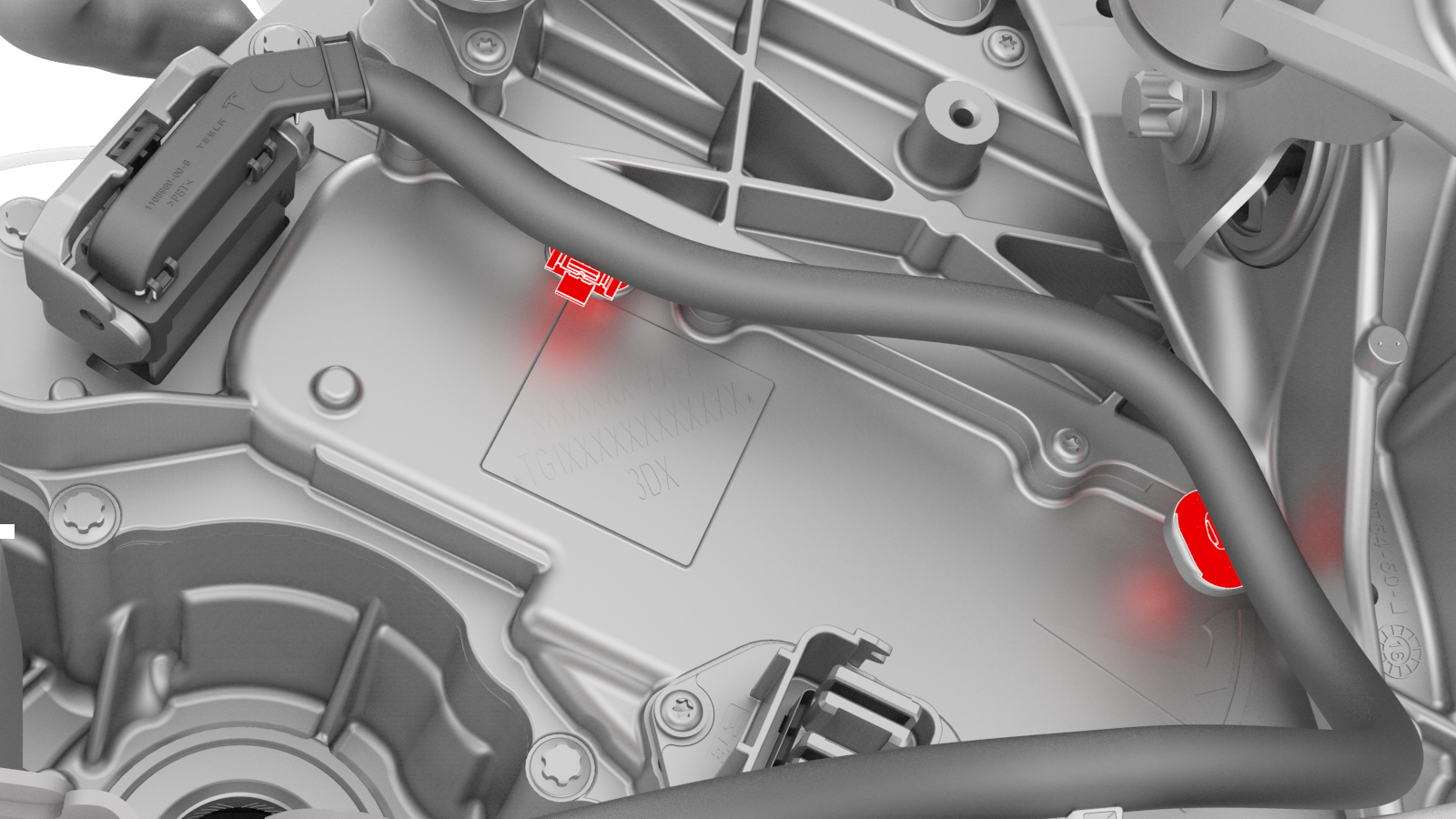

Release the clips that attach the front drive unit harness to the front drive unit inverter.

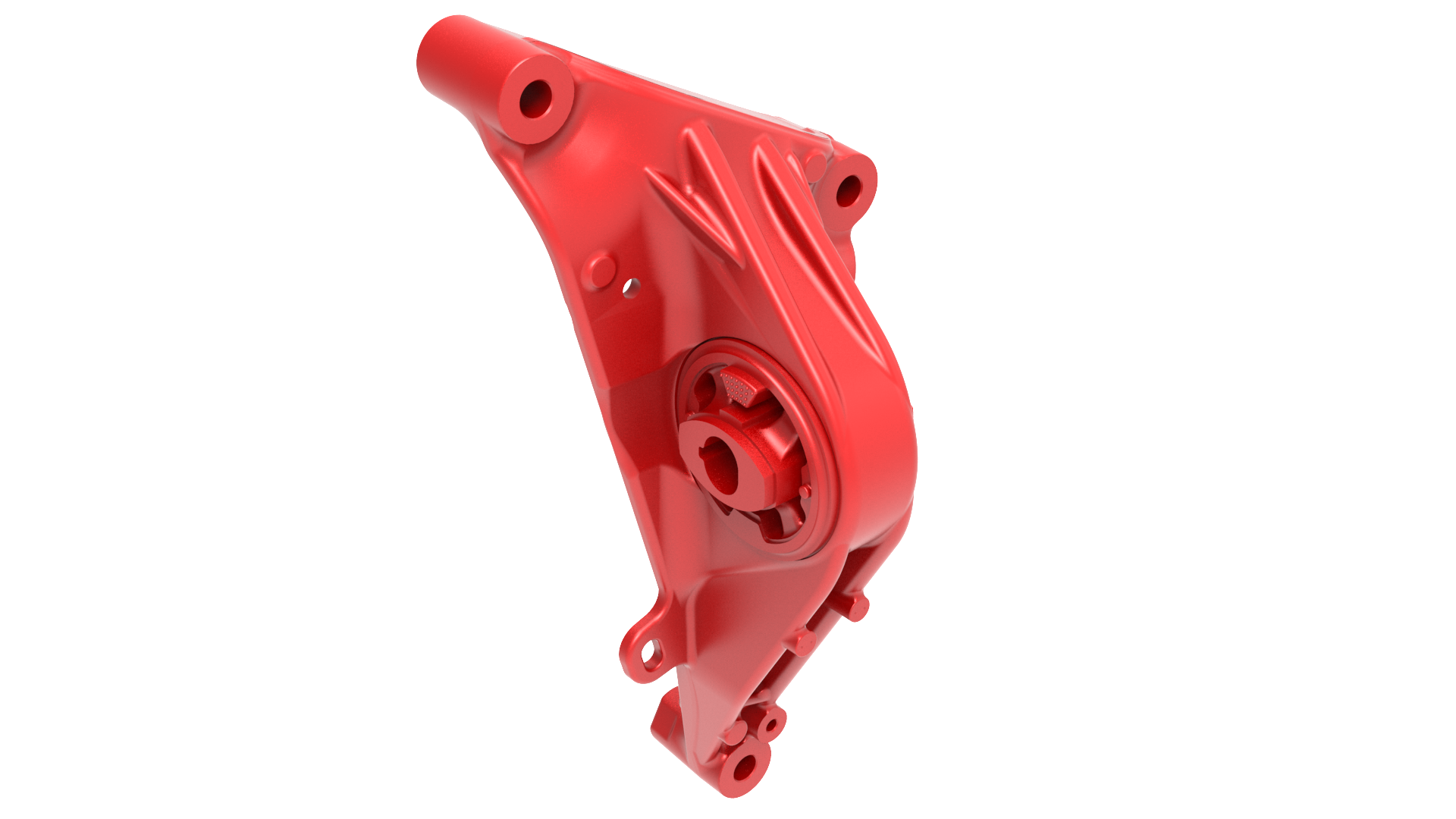

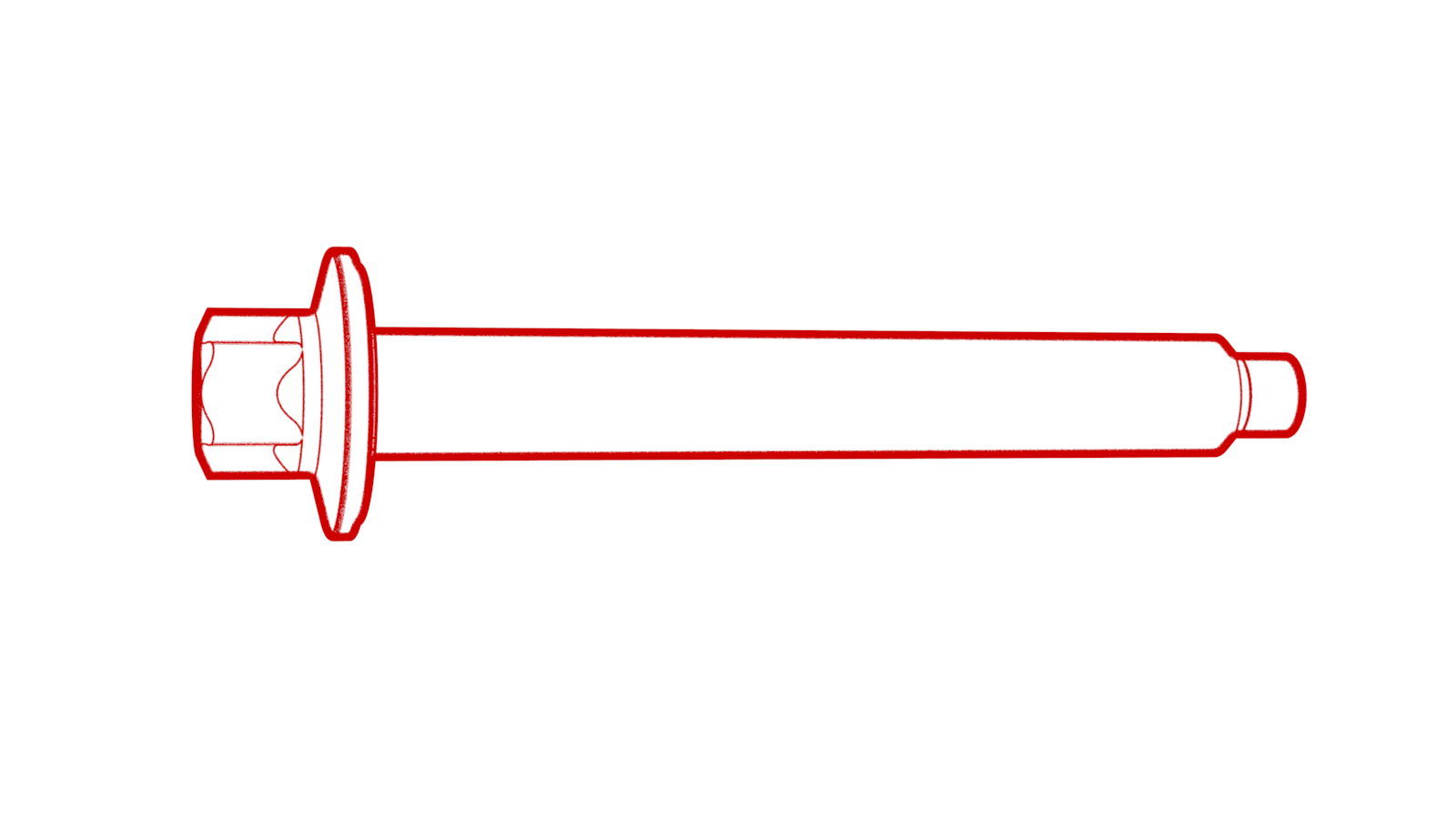

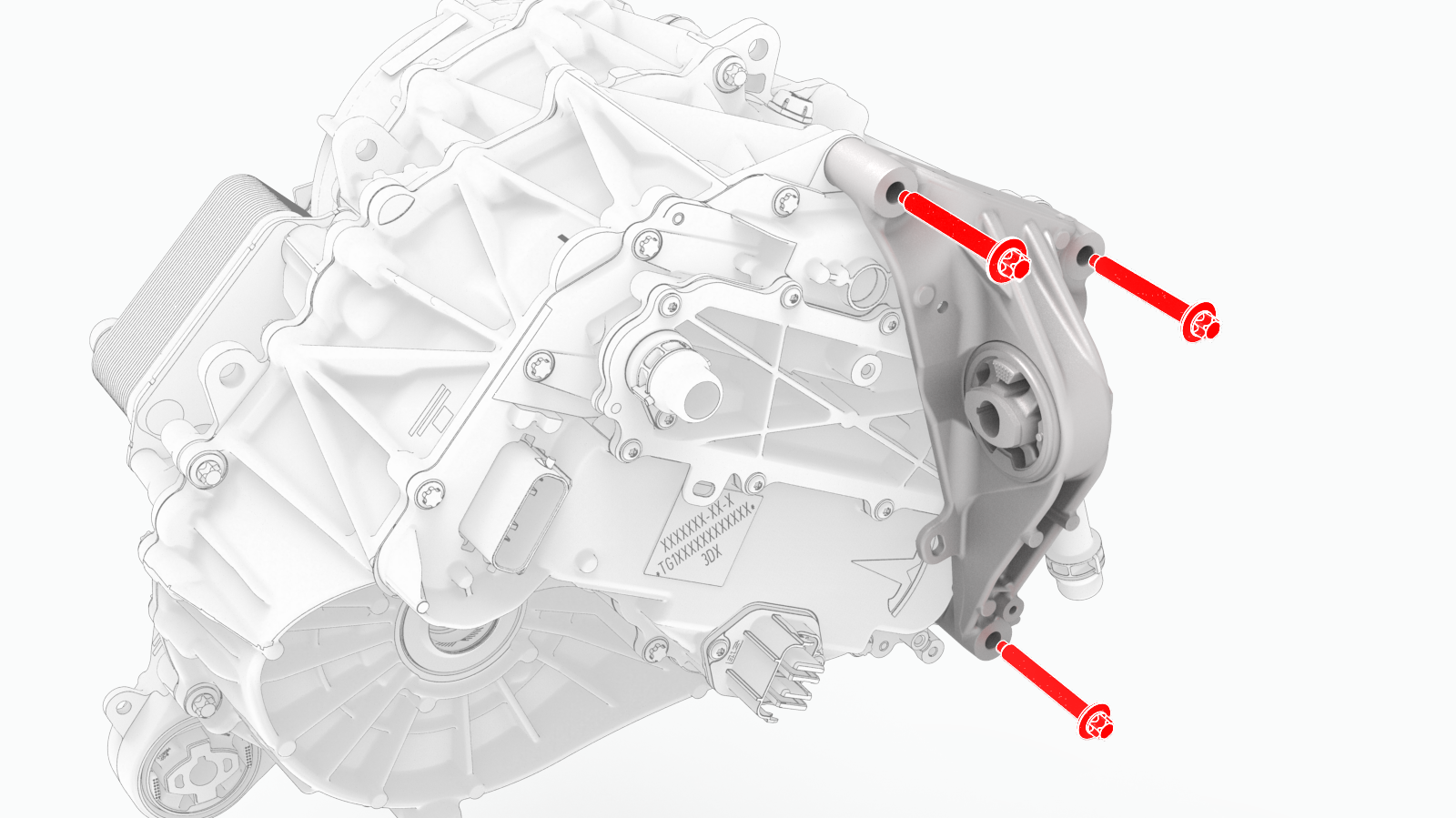

Remove the bolts that attach the LH front drive unit mount to the front drive unit, and then remove the mount from the front drive unit.
Torque 35 Nm + 55 degrees

		1	Remove the front subframe assembly from the vehicle. See Subframe Assembly - Front (Dual Motor) (Remove and Install).
		2	Release the clips that attach the front drive unit harness to the front drive unit inverter.
		3	Remove the bolts that attach the LH front drive unit mount to the front drive unit, and then remove the mount from the front drive unit. Torque 35 Nm + 55 degrees

Install

Installation procedure is the reverse of removal.
