Pressure Transducer - High Pressure (Remove and Replace)
Correction code 1820550218205502
Remove
-

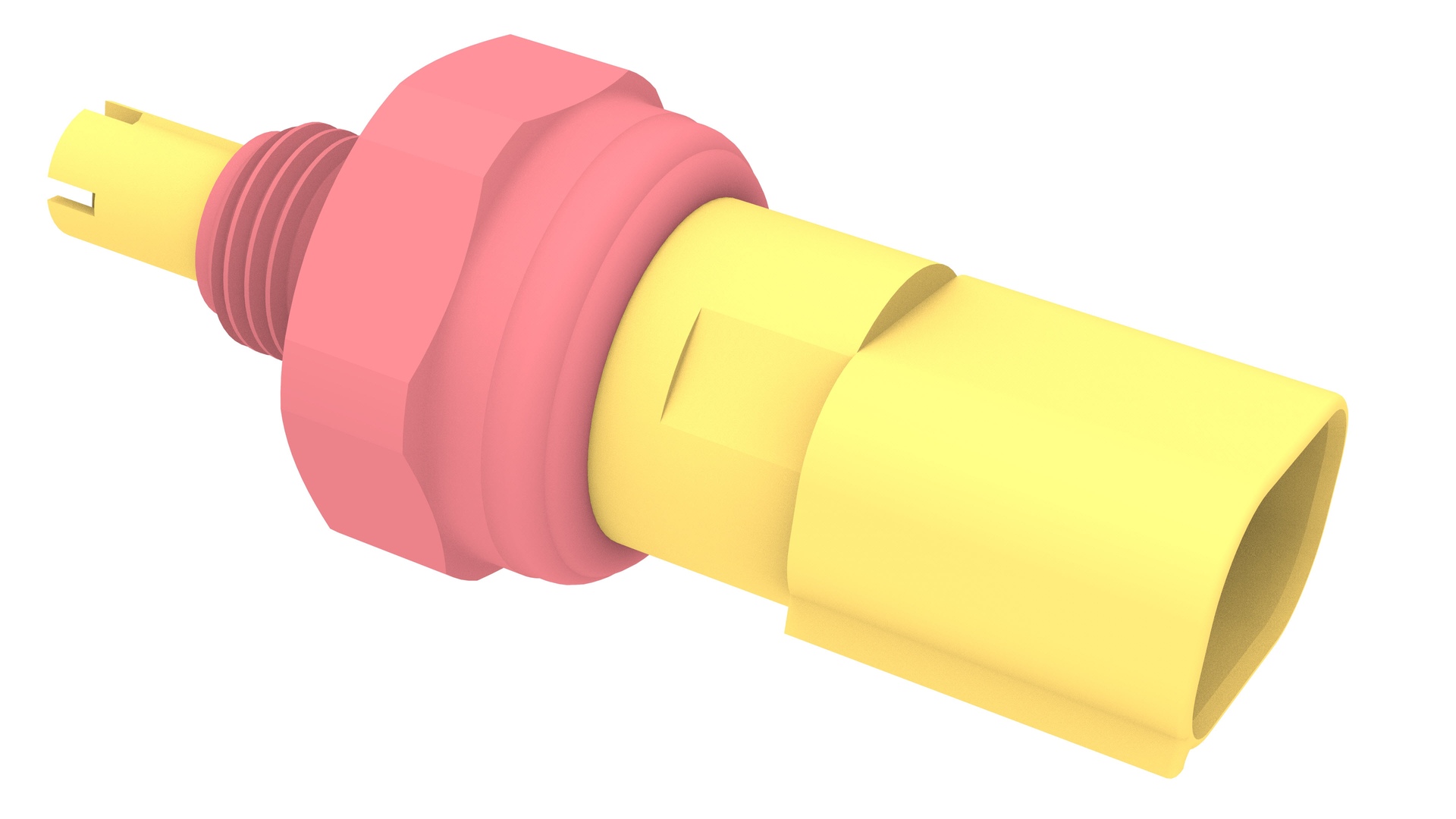

Remove the high pressure transducer from the discharge pipe.
Torque 7 Nm
| 1 | Remove the underhood storage unit. See Underhood Storage Unit (Remove and Replace). | ||
| 2 | Perform the A/C refrigerant recovery. See A/C Refrigerant (Recovery and Recharge). | ||
| 3 | Remove the outer HVAC plenum duct. See Duct - HVAC Plenum - Outer (Remove and Replace). | ||
| 4 | Disconnect the electrical harness from the high pressure transducer connector. | ||

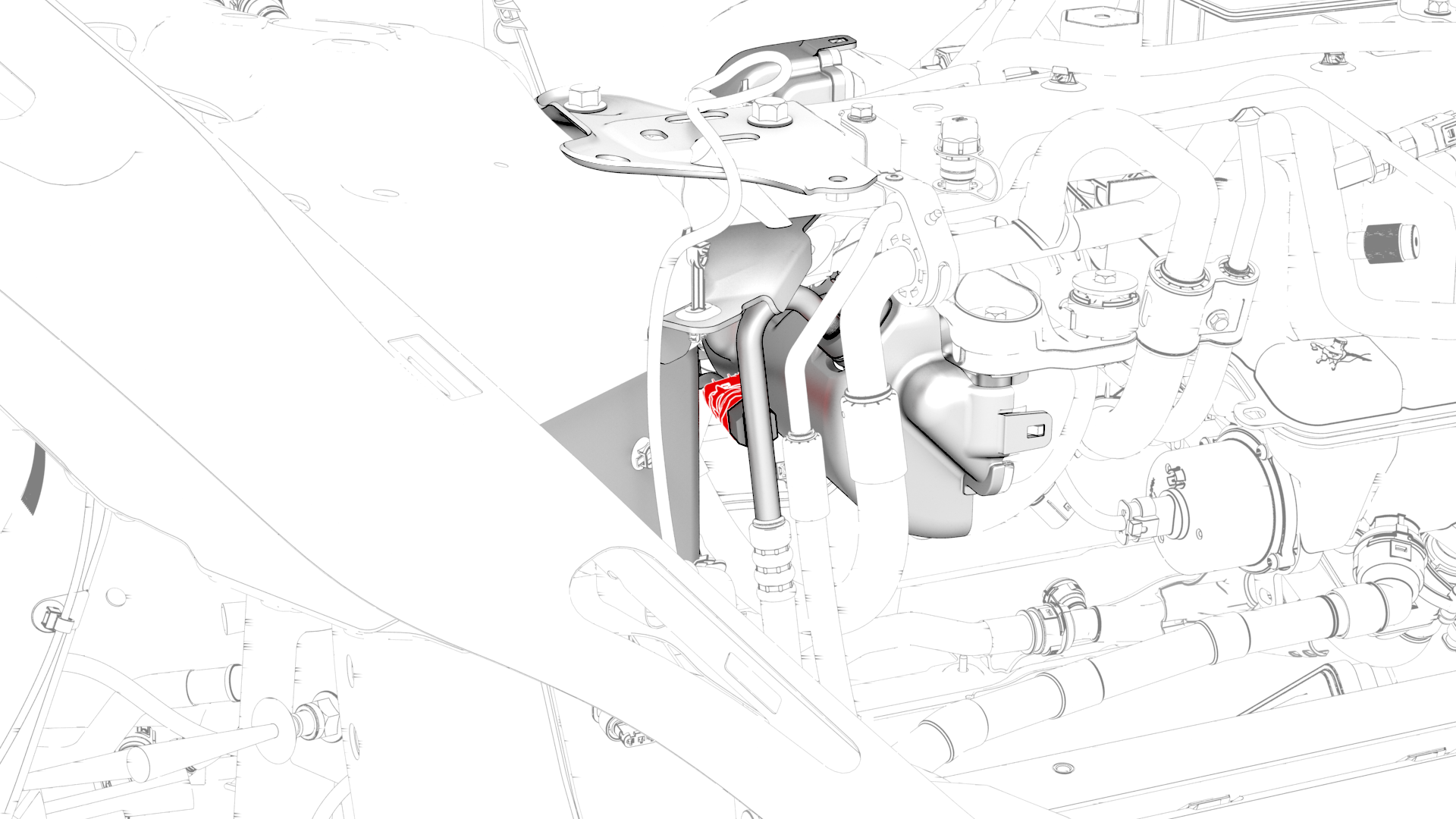

| 5 | Remove the high pressure transducer from the discharge pipe. Torque 7 Nm |
Install
Installation procedure is the reverse of removal, except for the following:
Perform the A/C refrigerant recharge. See A/C Refrigerant (Recovery and Recharge).
