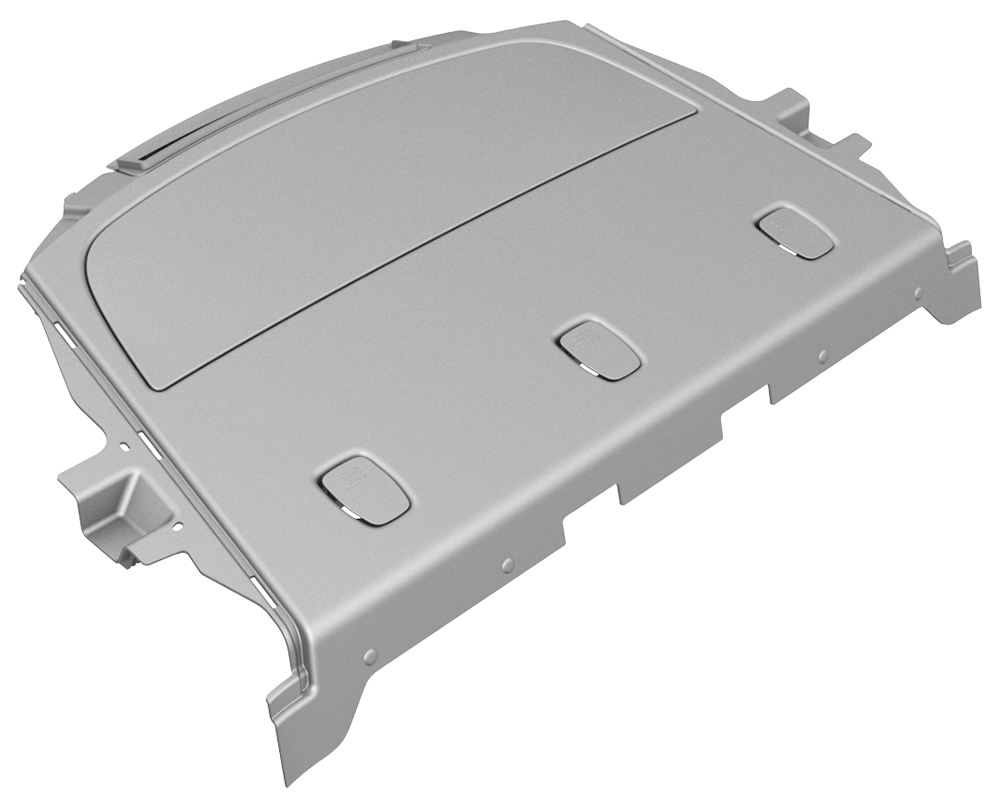

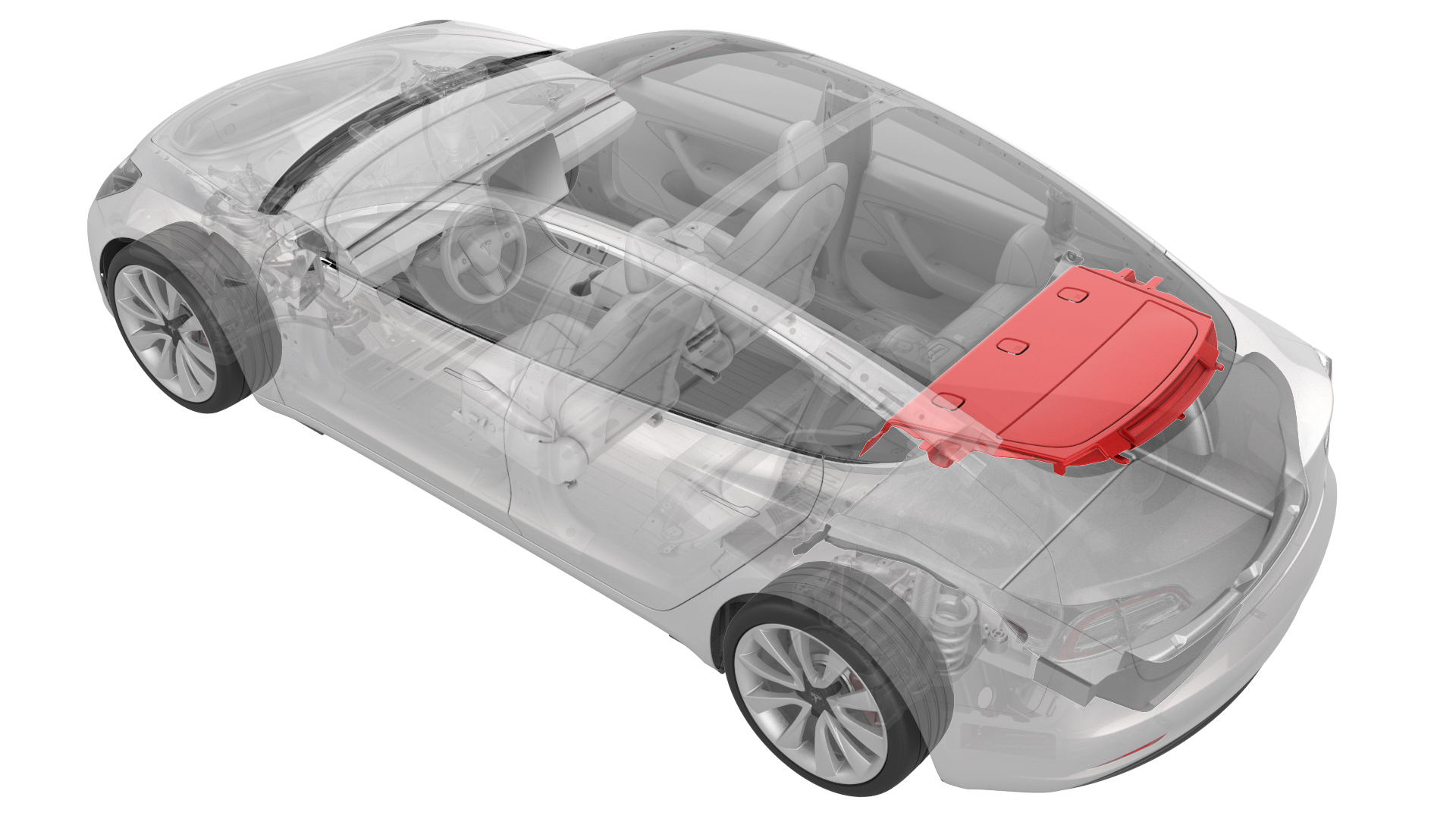

Trim - Package Tray (Remove and Install)

Correction code 1524300115243001
Parent topic: 1524 - Luggage Compartment Trim

Remove

  1. Remove the 2nd row lower seat cushion. See Seat Cushion - Lower - 2nd Row (Remove and Replace).
  2. Remove the LH 2nd row seat side bolster. See Bolster - Side - Seat - 2nd Row - LH (Remove and Replace).
  3. Remove the LH side rail trim. See Trim - Side Rail - LH (Remove and Replace).
  4. Remove the LH upper C-pillar trim. See Trim - C-Pillar - Upper - LH (Remove and Replace).
  5. Remove the LH rear C-pillar trim. See Trim - C-Pillar - Rear - LH (Remove and Replace).
  6. Remove the RH 2nd row seat side bolster. See Bolster - Side - Seat - 2nd Row - LH (Remove and Replace).
  7. Remove the RH side rail trim. See Trim - Side Rail - LH (Remove and Install).
  8. Remove the RH rear C-pillar trim. See Trim - C-Pillar - Rear - LH (Remove and Replace).

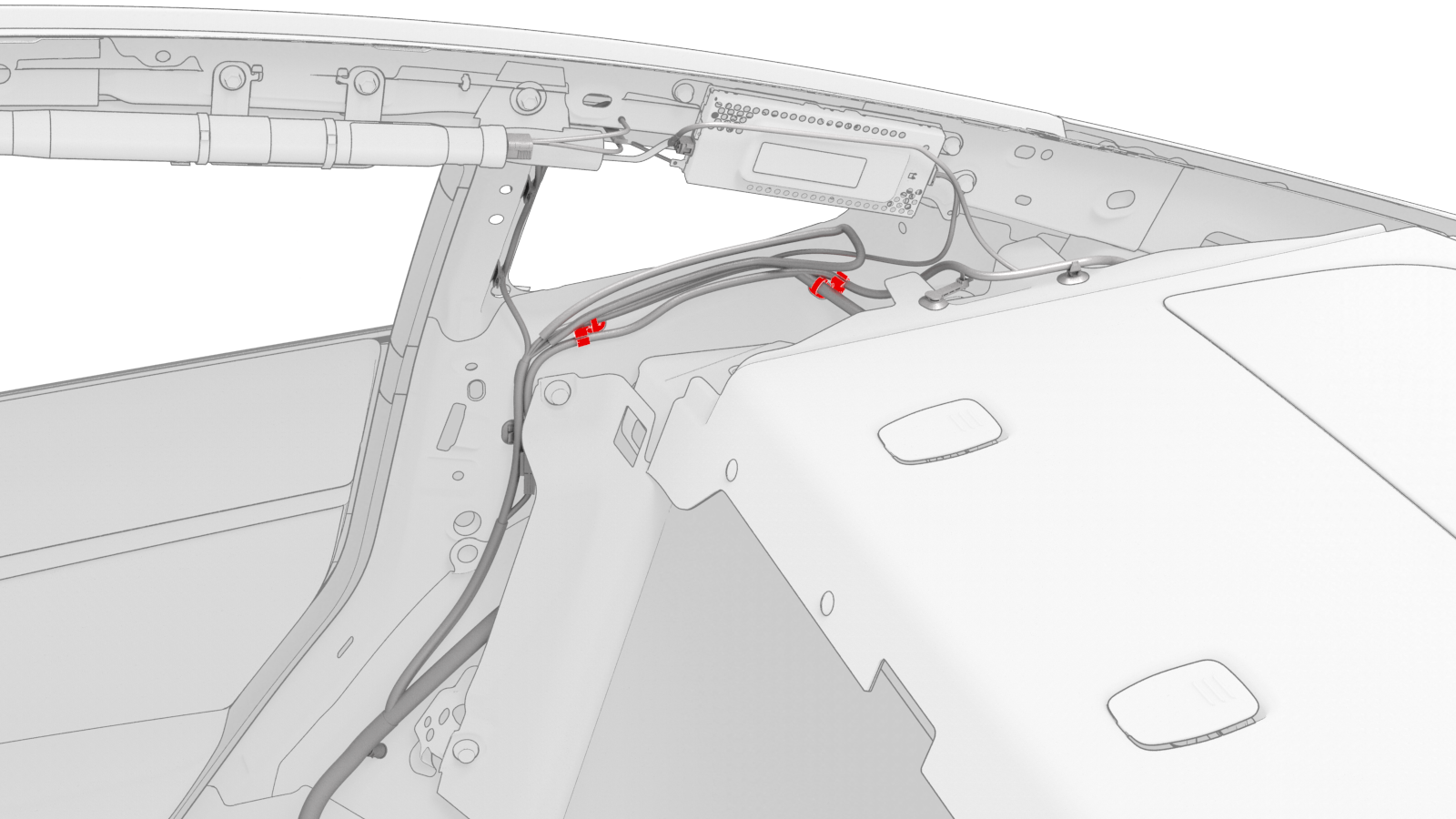

  9. Release the clips that attach the package tray wiring harness to the C-pillar.
  10. Disconnect the package tray harness connector from the RH body electrical harness.
  11. Release the clip that attaches the speaker wiring harness to the tuner.
  12. Disconnect the speaker harness connector from the tuner.

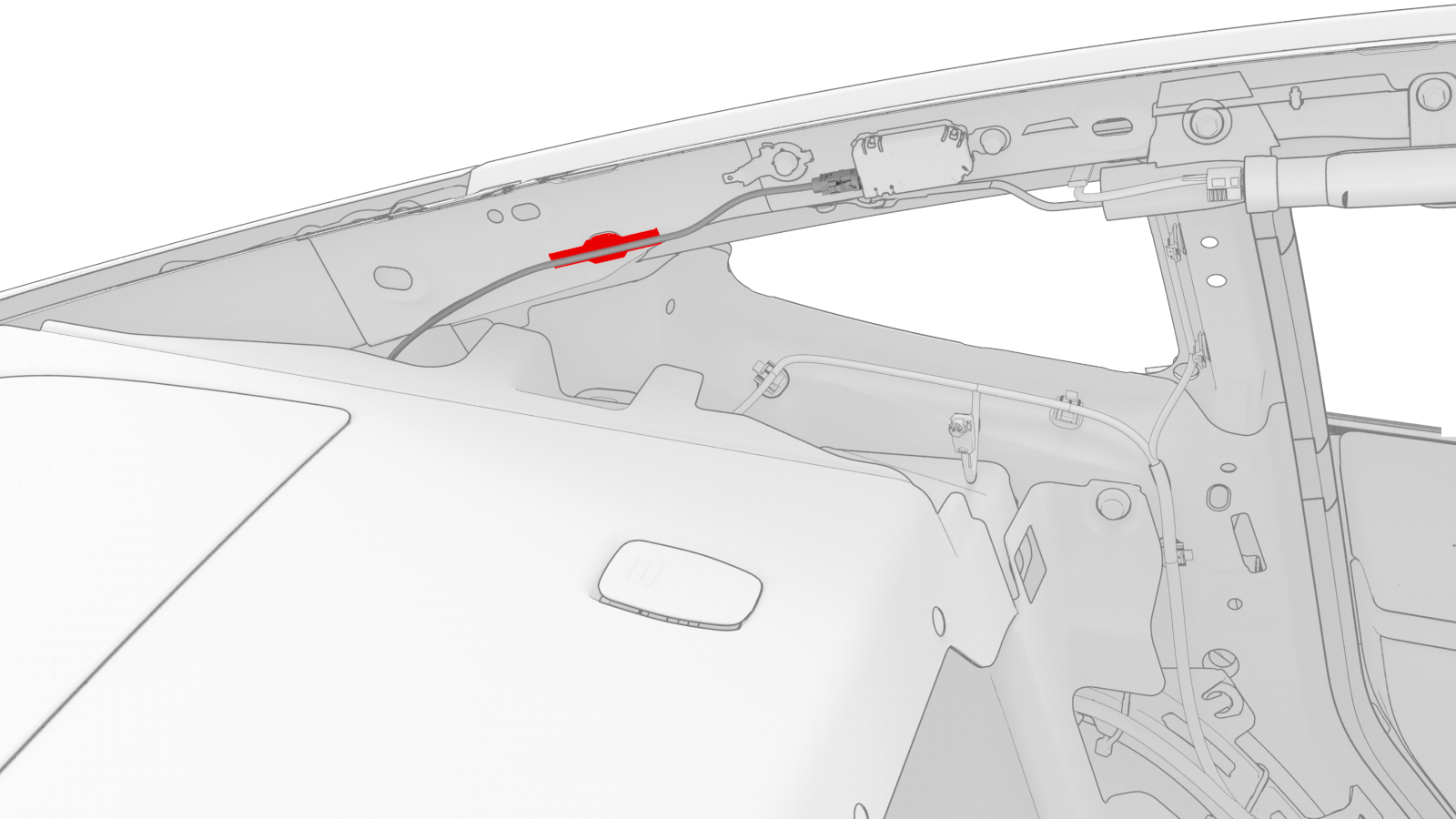

  13. Release the clip that attaches the antenna amplifier wiring harness to the body.

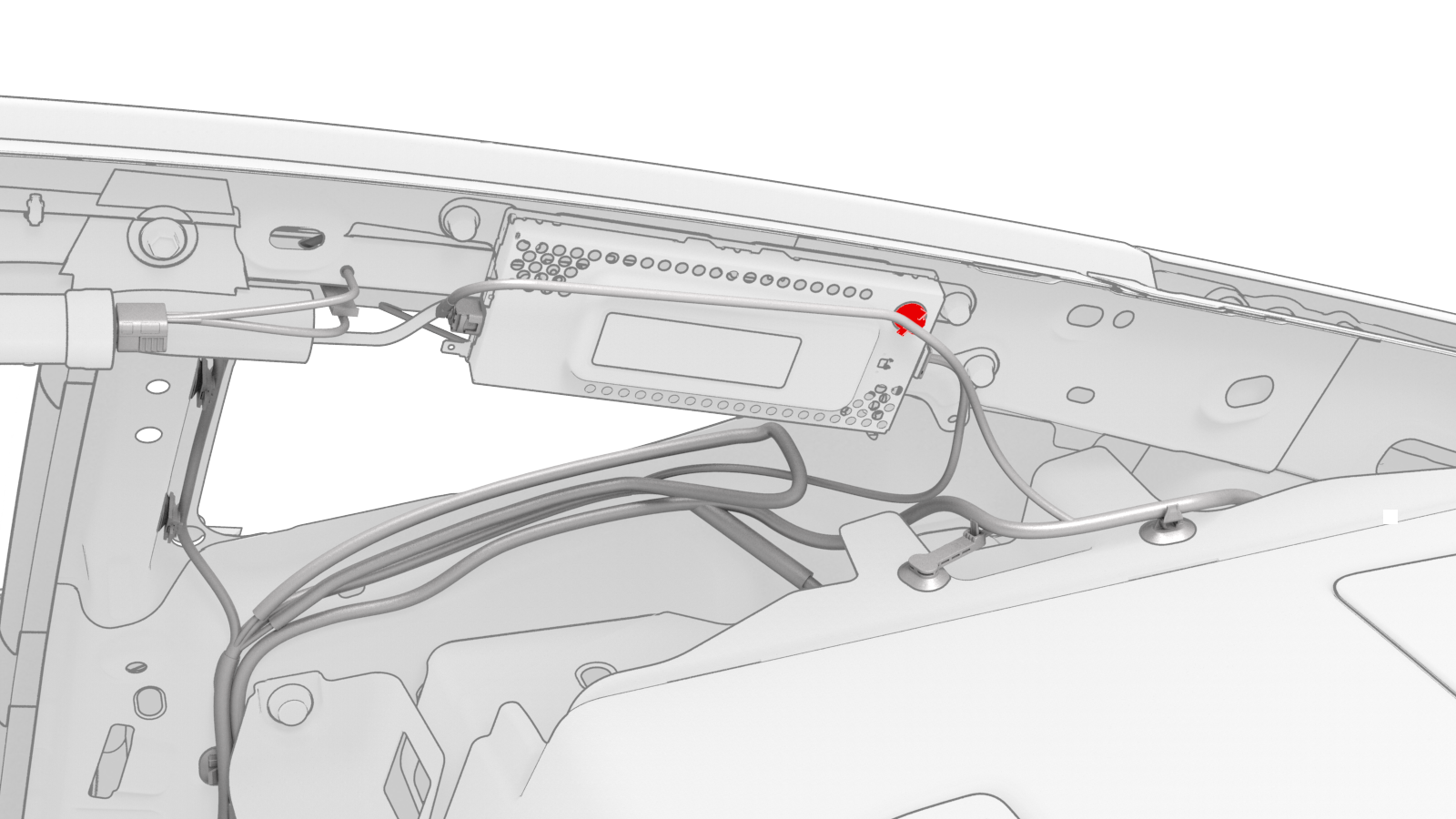

  14. Disconnect the electrical connector from the antenna amplifier.

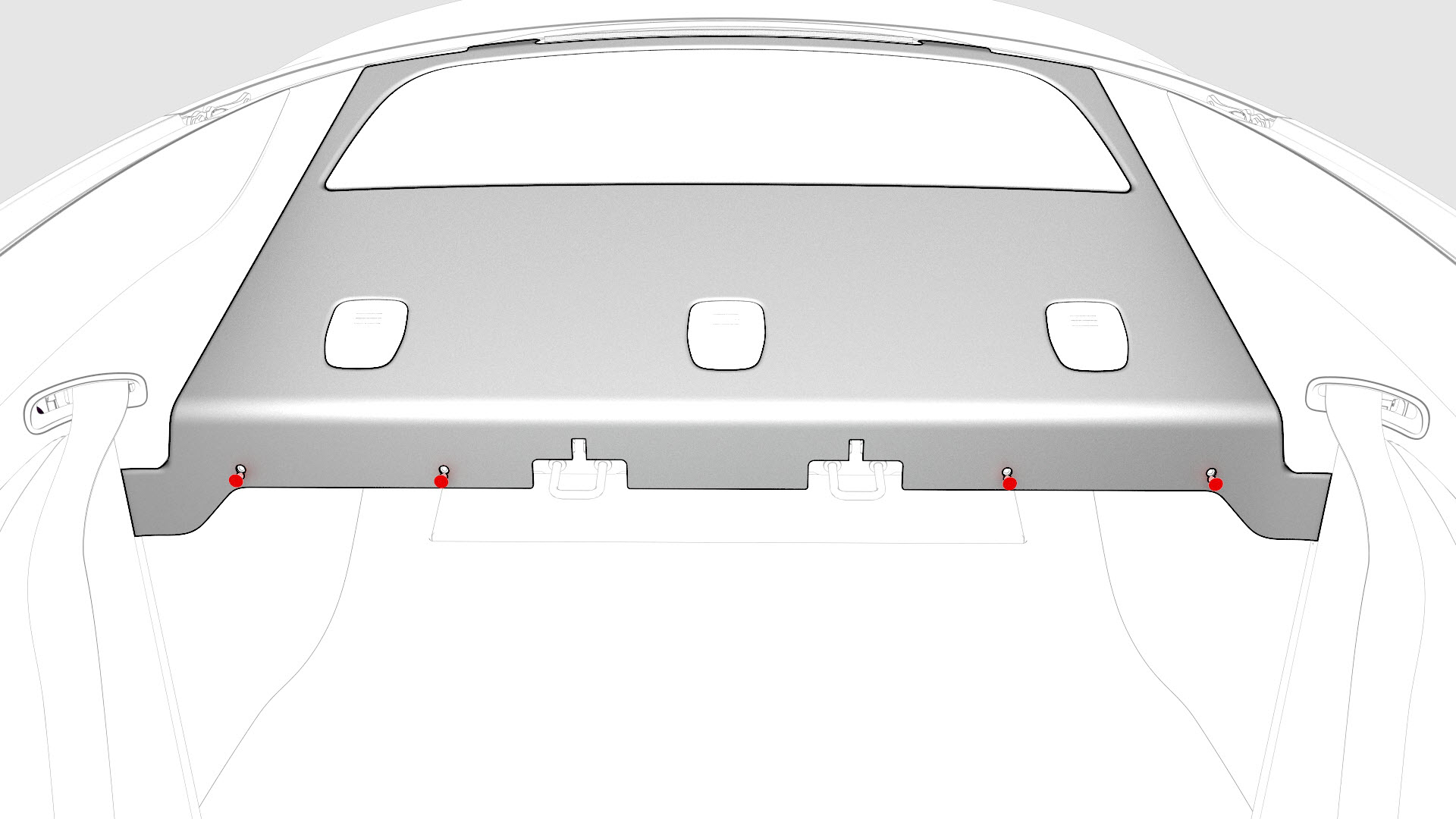

  15. Release the clips that attach the package tray trim to the body.

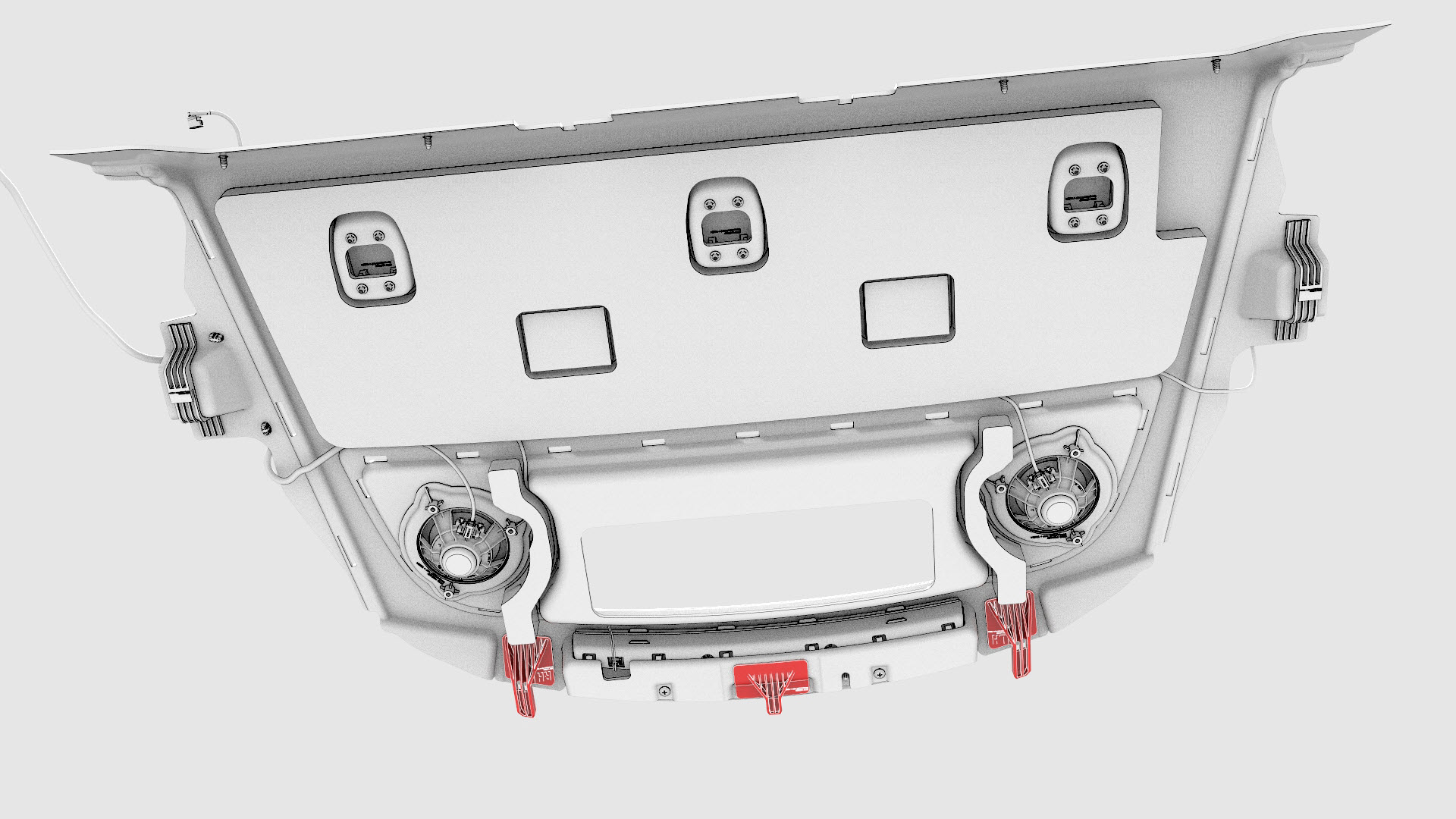

  16. Release the tabs that attach the package tray trim to the body, and then slide the package tray forward to remove it from the vehicle.
1Remove the 2nd row lower seat cushion. See Seat Cushion - Lower - 2nd Row (Remove and Replace).
2Remove the LH 2nd row seat side bolster. See Bolster - Side - Seat - 2nd Row - LH (Remove and Replace).
3Remove the LH side rail trim. See Trim - Side Rail - LH (Remove and Replace).
4Remove the LH upper C-pillar trim. See Trim - C-Pillar - Upper - LH (Remove and Replace).
5Remove the LH rear C-pillar trim. See Trim - C-Pillar - Rear - LH (Remove and Replace).
6Remove the RH 2nd row seat side bolster. See Bolster - Side - Seat - 2nd Row - LH (Remove and Replace).
7Remove the RH side rail trim. See Trim - Side Rail - LH (Remove and Install).
8Remove the RH rear C-pillar trim. See Trim - C-Pillar - Rear - LH (Remove and Replace).
9Release the clips that attach the package tray wiring harness to the C-pillar.
10Disconnect the package tray harness connector from the RH body electrical harness.
11Release the clip that attaches the speaker wiring harness to the tuner.
12Disconnect the speaker harness connector from the tuner.
13Release the clip that attaches the antenna amplifier wiring harness to the body.
14Disconnect the electrical connector from the antenna amplifier.
15Release the clips that attach the package tray trim to the body.
16Release the tabs that attach the package tray trim to the body, and then slide the package tray forward to remove it from the vehicle.

Install

  1. Install the package tray trim to the vehicle.
    Note: Slide the package tray rearwards to install it to the vehicle, and then attach the package tray to the body with tabs.
  2. Install the clips that attach the package tray trim to the body.
  3. Connect the electrical connector to the antenna amplifier.
  4. Install the clip that attaches the antenna amplifier wiring harness to the body.
  5. Connect the speaker harness connector to the tuner.
  6. Install the clip that attaches the speaker wiring harness to the tuner.
  7. Connect the package tray harness connector to the RH body electrical harness.
  8. Install the clips that attach the package tray wiring harness to the C-pillar.
  9. Install the RH rear C-pillar trim. See Trim - C-Pillar - Rear - LH (Remove and Replace).
  10. Install the RH side rail trim. See Trim - Side Rail - LH (Remove and Install).
  11. Install the RH 2nd row seat side bolster. See Bolster - Side - Seat - 2nd Row - LH (Remove and Replace).
  12. Install the LH rear C-pillar trim. See Trim - C-Pillar - Rear - LH (Remove and Replace).
  13. Install the LH upper C-pillar trim. See Trim - C-Pillar - Upper - LH (Remove and Replace).
  14. Install the LH side rail trim. See Trim - Side Rail - LH (Remove and Replace).
  15. Install the LH 2nd row seat side bolster. See Bolster - Side - Seat - 2nd Row - LH (Remove and Replace).
  16. Install the 2nd row lower seat cushion. See Seat Cushion - Lower - 2nd Row (Remove and Replace).
1Install the package tray trim to the vehicle.
Note: Slide the package tray rearwards to install it to the vehicle, and then attach the package tray to the body with tabs.
2Install the clips that attach the package tray trim to the body.
3Connect the electrical connector to the antenna amplifier.
4Install the clip that attaches the antenna amplifier wiring harness to the body.
5Connect the speaker harness connector to the tuner.
6Install the clip that attaches the speaker wiring harness to the tuner.
7Connect the package tray harness connector to the RH body electrical harness.
8Install the clips that attach the package tray wiring harness to the C-pillar.
9Install the RH rear C-pillar trim. See Trim - C-Pillar - Rear - LH (Remove and Replace).
10Install the RH side rail trim. See Trim - Side Rail - LH (Remove and Install).
11Install the RH 2nd row seat side bolster. See Bolster - Side - Seat - 2nd Row - LH (Remove and Replace).
12Install the LH rear C-pillar trim. See Trim - C-Pillar - Rear - LH (Remove and Replace).
13Install the LH upper C-pillar trim. See Trim - C-Pillar - Upper - LH (Remove and Replace).
14Install the LH side rail trim. See Trim - Side Rail - LH (Remove and Replace).
15Install the LH 2nd row seat side bolster. See Bolster - Side - Seat - 2nd Row - LH (Remove and Replace).
16Install the 2nd row lower seat cushion. See Seat Cushion - Lower - 2nd Row (Remove and Replace).
