Trim - Side - Trunk - LH (Remove and Replace)

Correction code 1524500215245002
Parent topic: 1524 - Luggage Compartment Trim

Remove

  1. Remove the 2nd row lower seat cushion. See Seat Cushion - Lower - 2nd Row (Remove and Replace).
  2. Remove the LH 2nd row seat side bolster. See Bolster - Side - Seat - 2nd Row - LH (Remove and Replace).
  3. Remove the LH 2nd row seat back. See Seat Back - 2nd Row - LH (Remove and Install).
  4. Working in the 2nd row area, release the clips that attach the LH side of the trunk carpet.

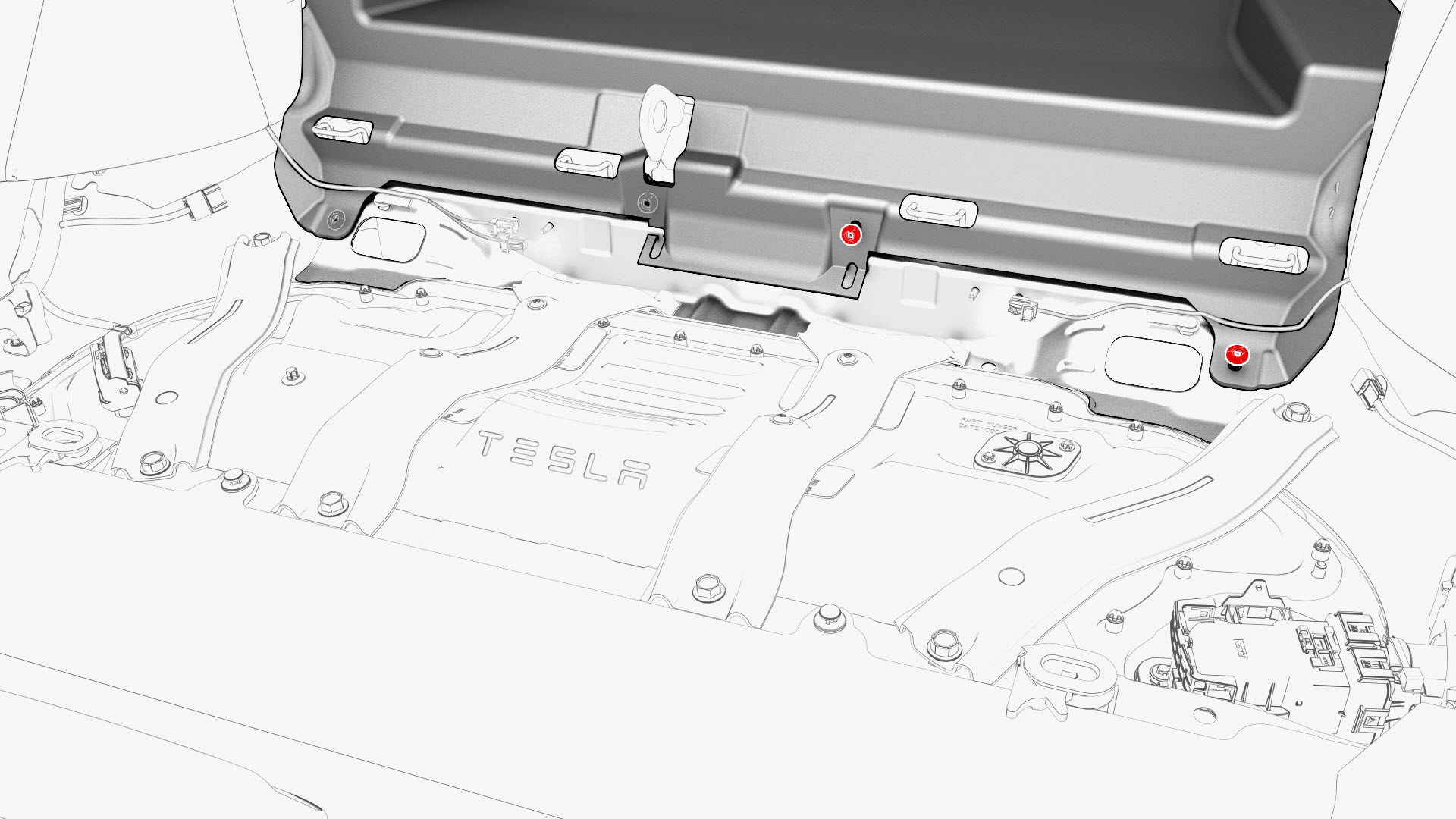

  5. Lift the LH side of the trunk carpet off of the ISOFIX bars.
  6. Remove the trunk floor trim. See Trim - Floor - Trunk (Remove and Replace).
  7. Remove the trunk sill trim panel. See Trim - Sill - Trunk (Remove and Replace).
  8. Remove the trunk garnish. See Garnish - Trunk (Remove and Replace).

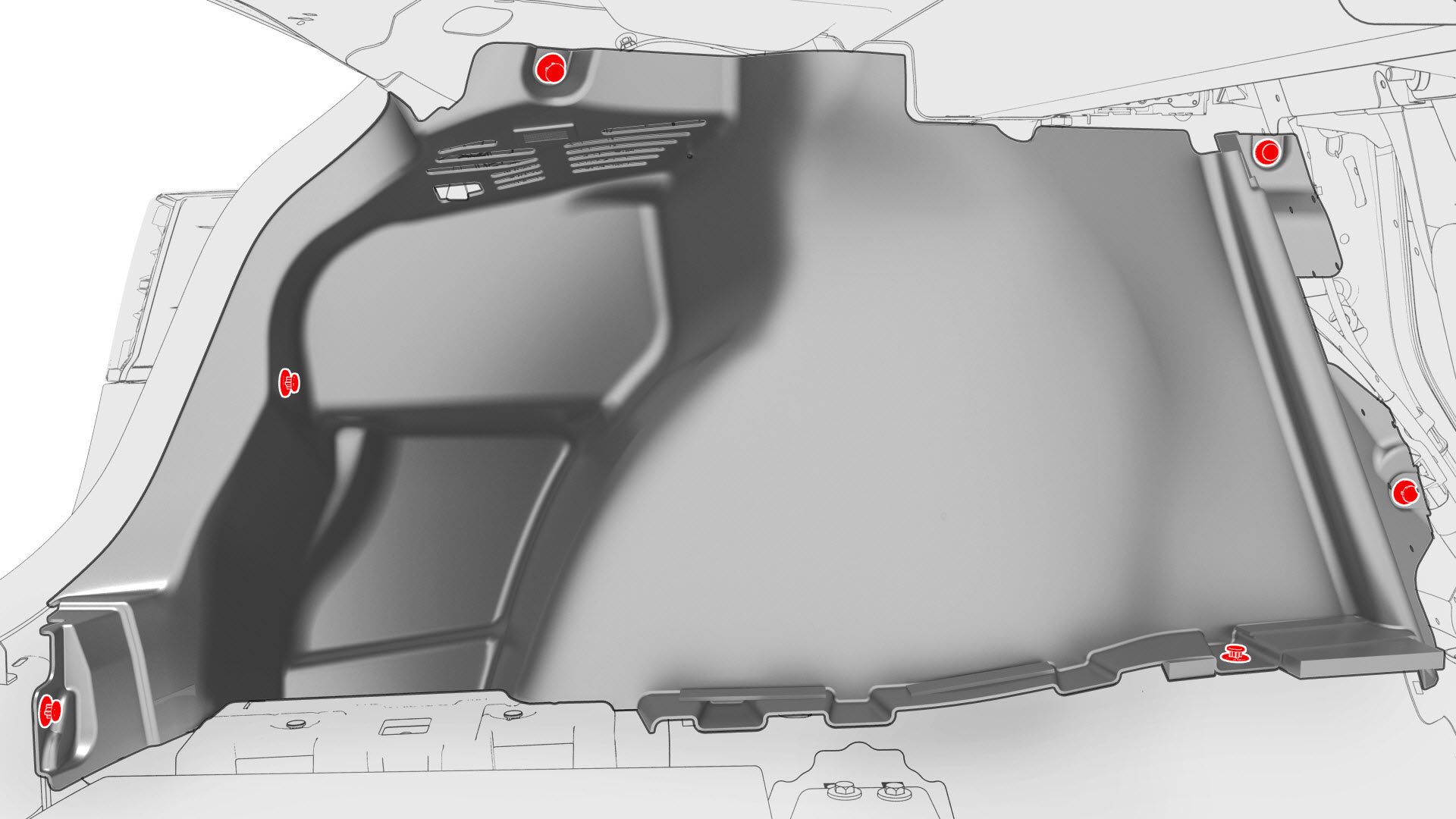

  9. Release the push clips that attach the LH trunk side trim to the vehicle.

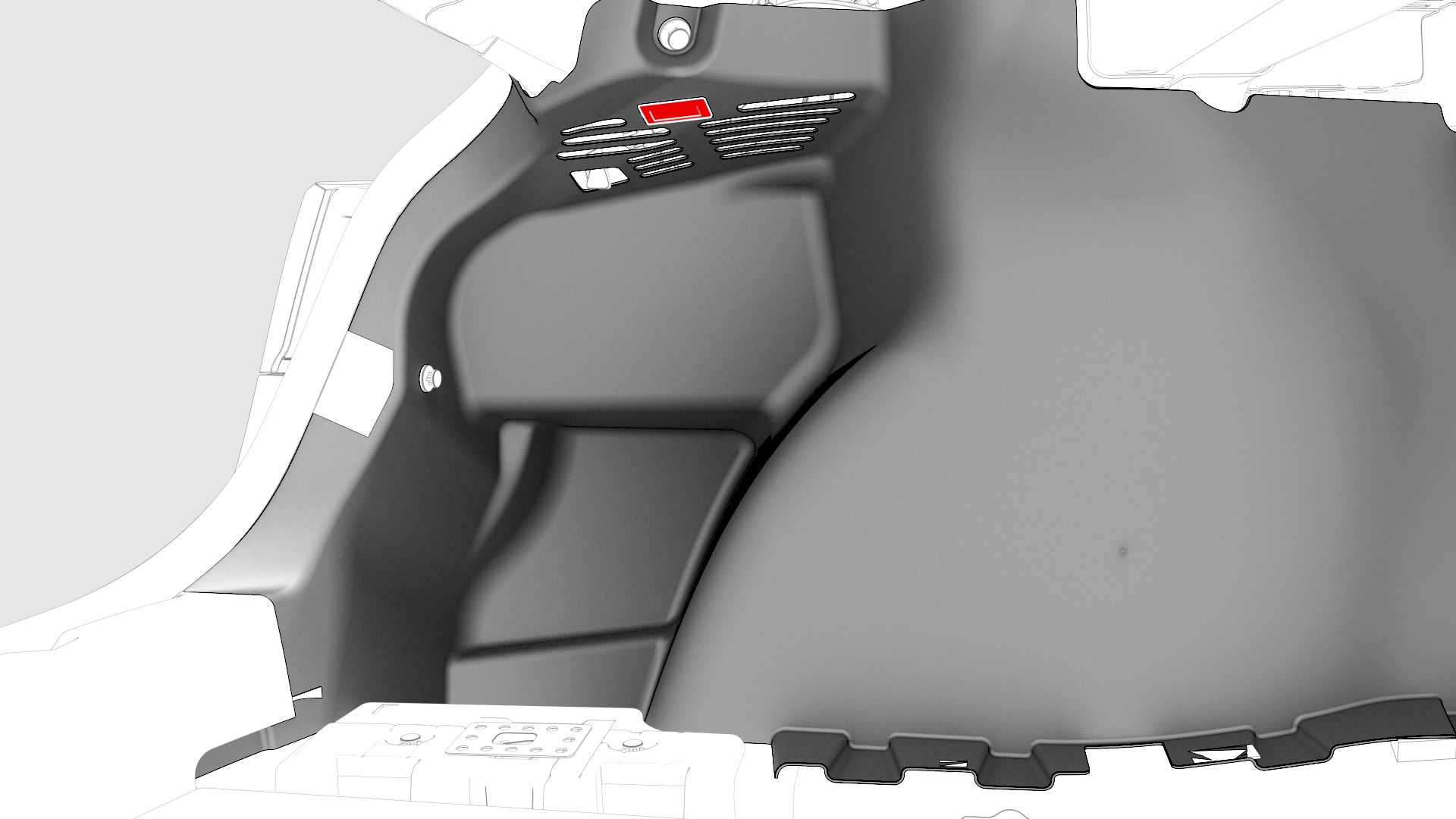

  10. Disconnect the electrical connector from the puddle lamp.

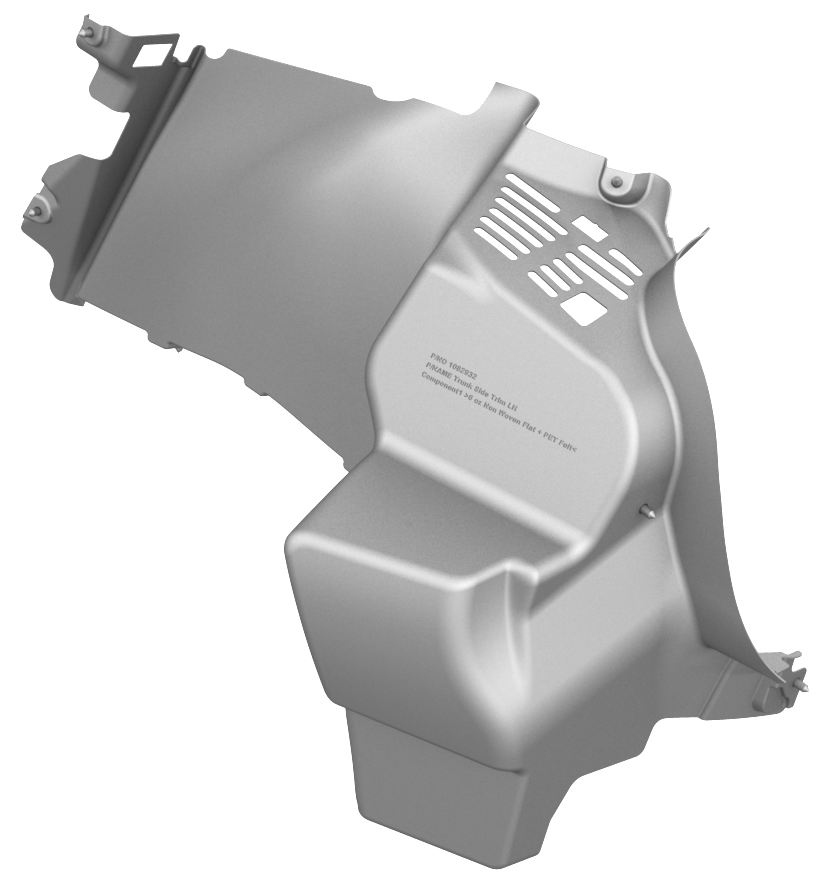

  11. Remove the LH trunk side trim from the vehicle.
1Remove the 2nd row lower seat cushion. See Seat Cushion - Lower - 2nd Row (Remove and Replace).
2Remove the LH 2nd row seat side bolster. See Bolster - Side - Seat - 2nd Row - LH (Remove and Replace).
3Remove the LH 2nd row seat back. See Seat Back - 2nd Row - LH (Remove and Install).
4Working in the 2nd row area, release the clips that attach the LH side of the trunk carpet.
5Lift the LH side of the trunk carpet off of the ISOFIX bars.
6Remove the trunk floor trim. See Trim - Floor - Trunk (Remove and Replace).
7Remove the trunk sill trim panel. See Trim - Sill - Trunk (Remove and Replace).
8Remove the trunk garnish. See Garnish - Trunk (Remove and Replace).
9Release the push clips that attach the LH trunk side trim to the vehicle.
10Disconnect the electrical connector from the puddle lamp.
11Remove the LH trunk side trim from the vehicle.

Install

  1. Connect the electrical connector to the puddle lamp.
  2. Install the push clips that attach the LH trunk side trim to the vehicle.
  3. Install the trunk garnish. See Garnish - Trunk (Remove and Replace).
  4. Install the trunk sill trim panel. See Trim - Sill - Trunk (Remove and Replace).
  5. Install the trunk floor trim. See Trim - Floor - Trunk (Remove and Replace).
  6. Install the LH side trunk carpet clips onto the body studs under the 2nd row seat cushion.
  7. Install the LH 2nd row seat back. See Seat Back - 2nd Row - LH (Remove and Install).
  8. Install the LH 2nd row seat side bolster. See Bolster - Side - Seat - 2nd Row - LH (Remove and Replace).
  9. Install the 2nd row lower seat cushion. See Seat Cushion - Lower - 2nd Row (Remove and Replace).
1Connect the electrical connector to the puddle lamp.
2Install the push clips that attach the LH trunk side trim to the vehicle.
3Install the trunk garnish. See Garnish - Trunk (Remove and Replace).
4Install the trunk sill trim panel. See Trim - Sill - Trunk (Remove and Replace).
5Install the trunk floor trim. See Trim - Floor - Trunk (Remove and Replace).
6Install the LH side trunk carpet clips onto the body studs under the 2nd row seat cushion.
7Install the LH 2nd row seat back. See Seat Back - 2nd Row - LH (Remove and Install).
8Install the LH 2nd row seat side bolster. See Bolster - Side - Seat - 2nd Row - LH (Remove and Replace).
9Install the 2nd row lower seat cushion. See Seat Cushion - Lower - 2nd Row (Remove and Replace).
