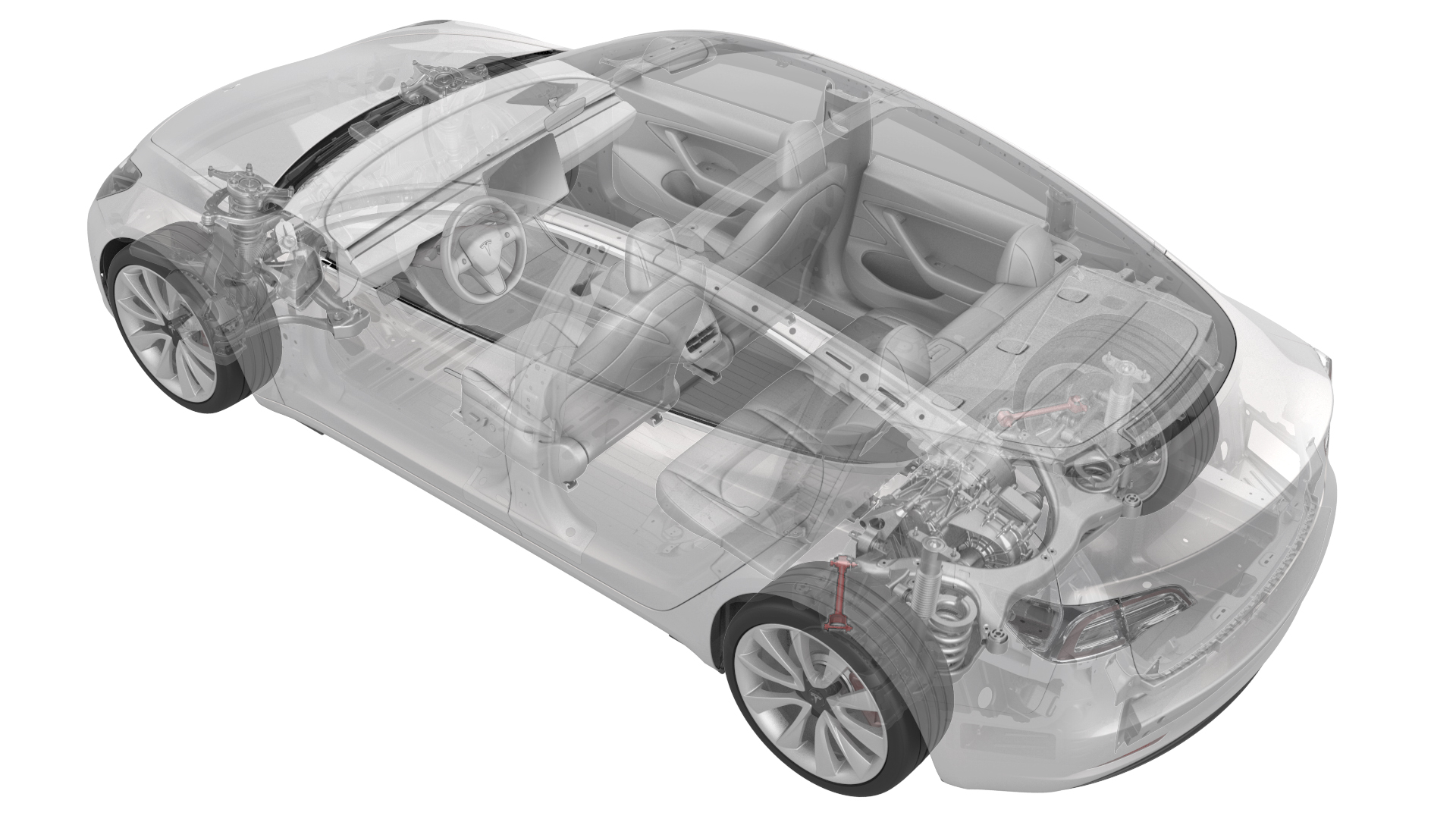

Link - Fore - Upper - Rear - LH (Remove and Replace)

Correction code 3103140231031402

1135103-00-ATool, Spring Compressor, Hook, Model 3

SPECIAL TOOLS

Tool, Spring Compressor, Hook, Model 3 (1135103-00-A)

Remove

Remove the rear subframe assembly. See Subframe Assembly - Rear (Remove and Install).

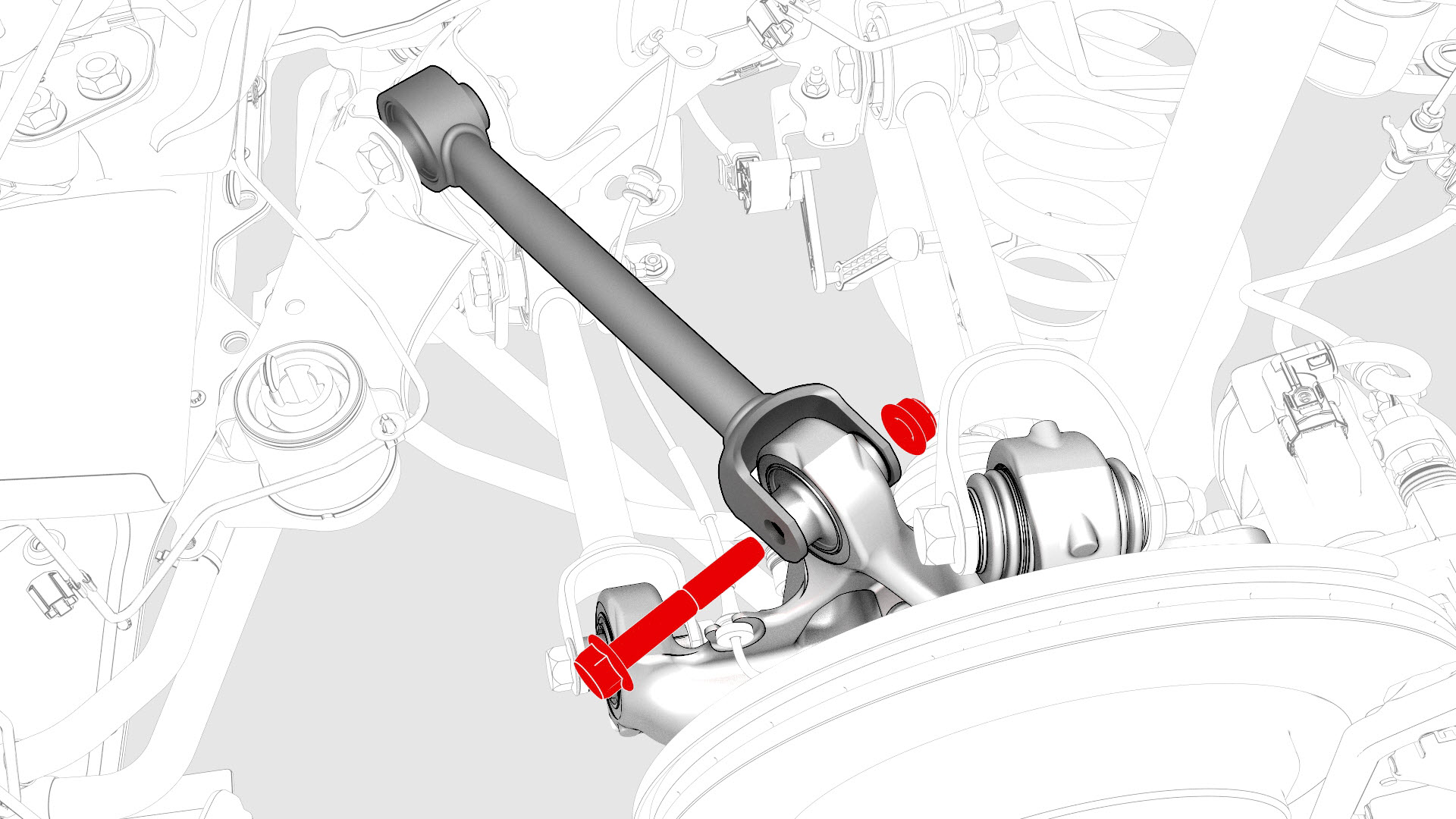

Remove the bolt and nut that attach the LH rear upper fore link to the knuckle.

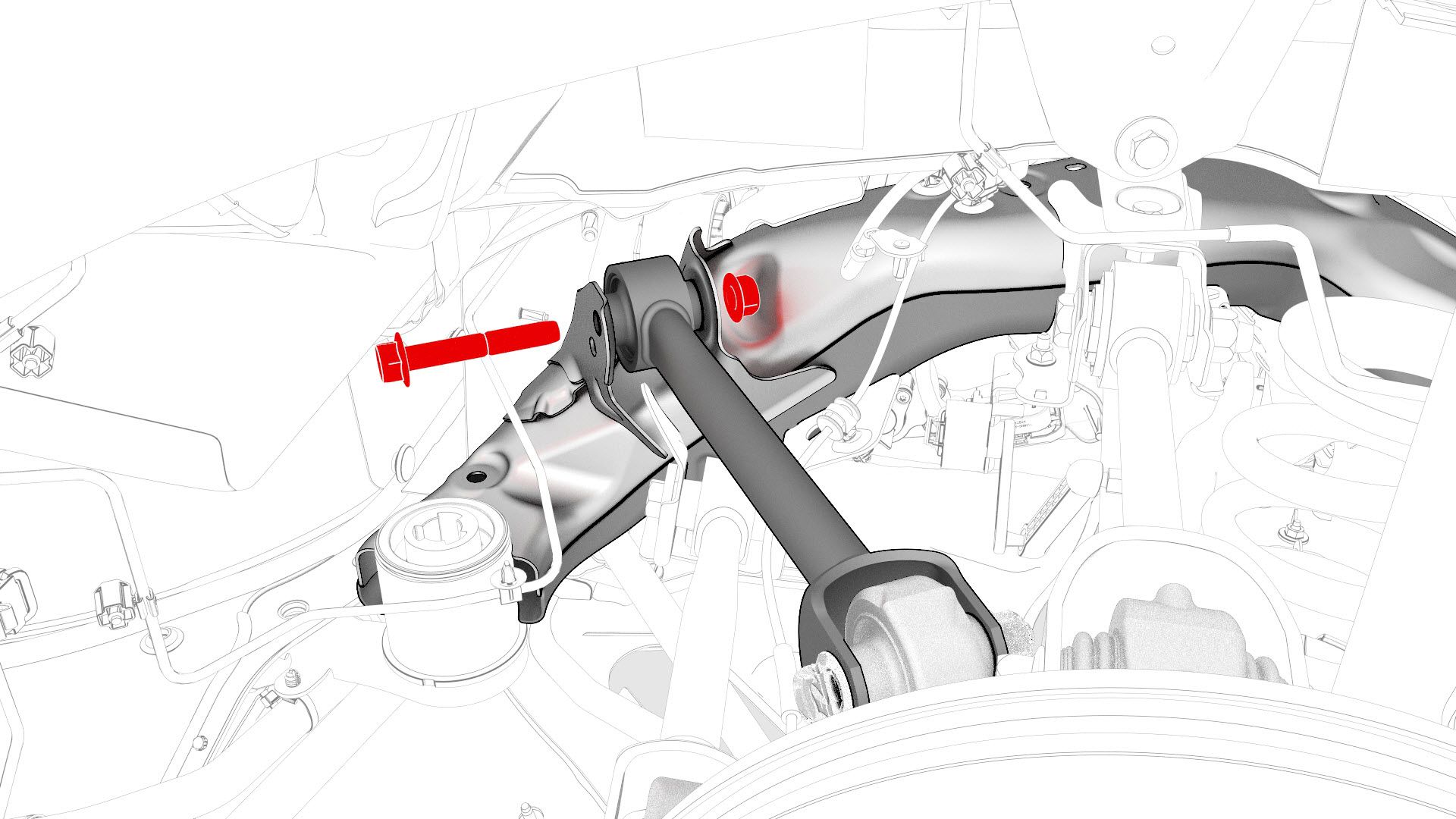

With an assistant, remove the bolt and nut that attach the LH rear upper fore link to the subframe.

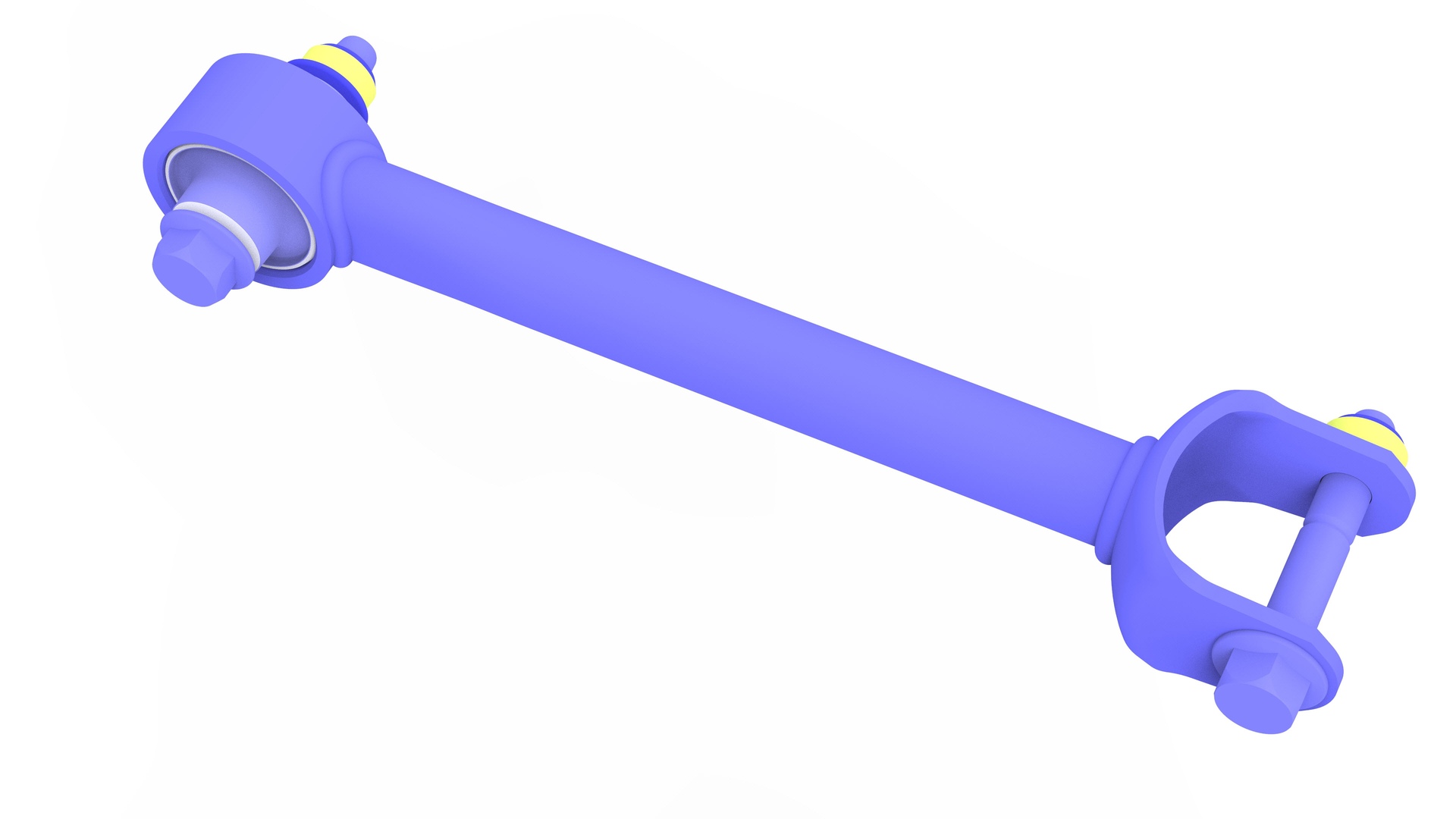

Remove the LH rear upper fore link from the vehicle.

		1	Remove the rear subframe assembly. See Subframe Assembly - Rear (Remove and Install).
		2	Remove the bolt and nut that attach the LH rear upper fore link to the knuckle.
		3	With an assistant, remove the bolt and nut that attach the LH rear upper fore link to the subframe.
		4	Remove the LH rear upper fore link from the vehicle.

Install

With an assistant, hand-tighten the bolt and nut that attach the LH rear upper fore link to the subframe.
With an assistant, hand-tighten the bolt and nut that attach the LH rear upper fore link to the knuckle.

Note: The tightening of the LH rear upper fore link bolts will take place during the installation of the rear subframe assembly onto the vehicle.
Install the rear subframe assembly. See Subframe Assembly - Rear (Remove and Install).

		1	With an assistant, hand-tighten the bolt and nut that attach the LH rear upper fore link to the subframe.
		2	With an assistant, hand-tighten the bolt and nut that attach the LH rear upper fore link to the knuckle. Note: The tightening of the LH rear upper fore link bolts will take place during the installation of the rear subframe assembly onto the vehicle.
		3	Install the rear subframe assembly. See Subframe Assembly - Rear (Remove and Install).
