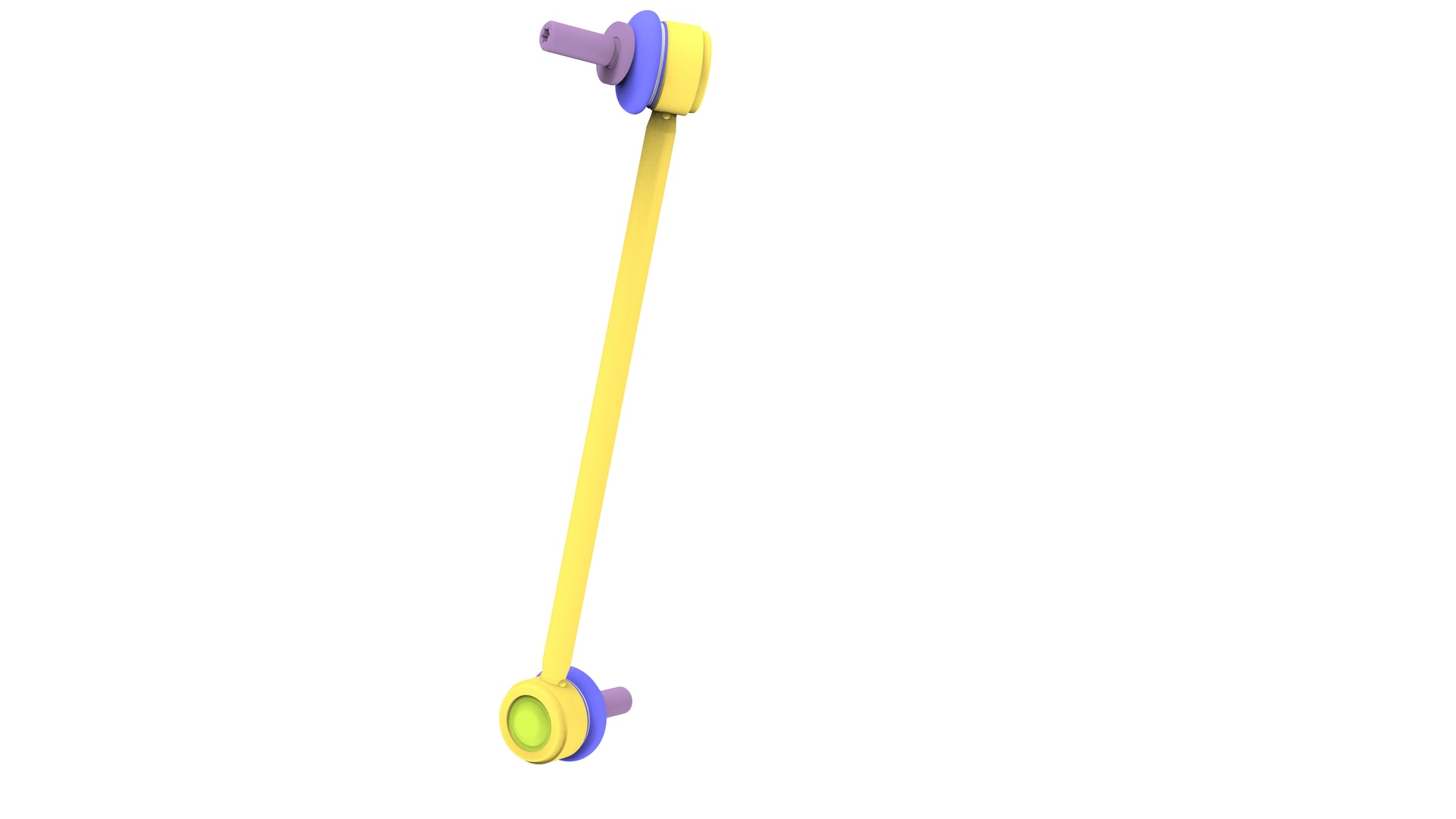

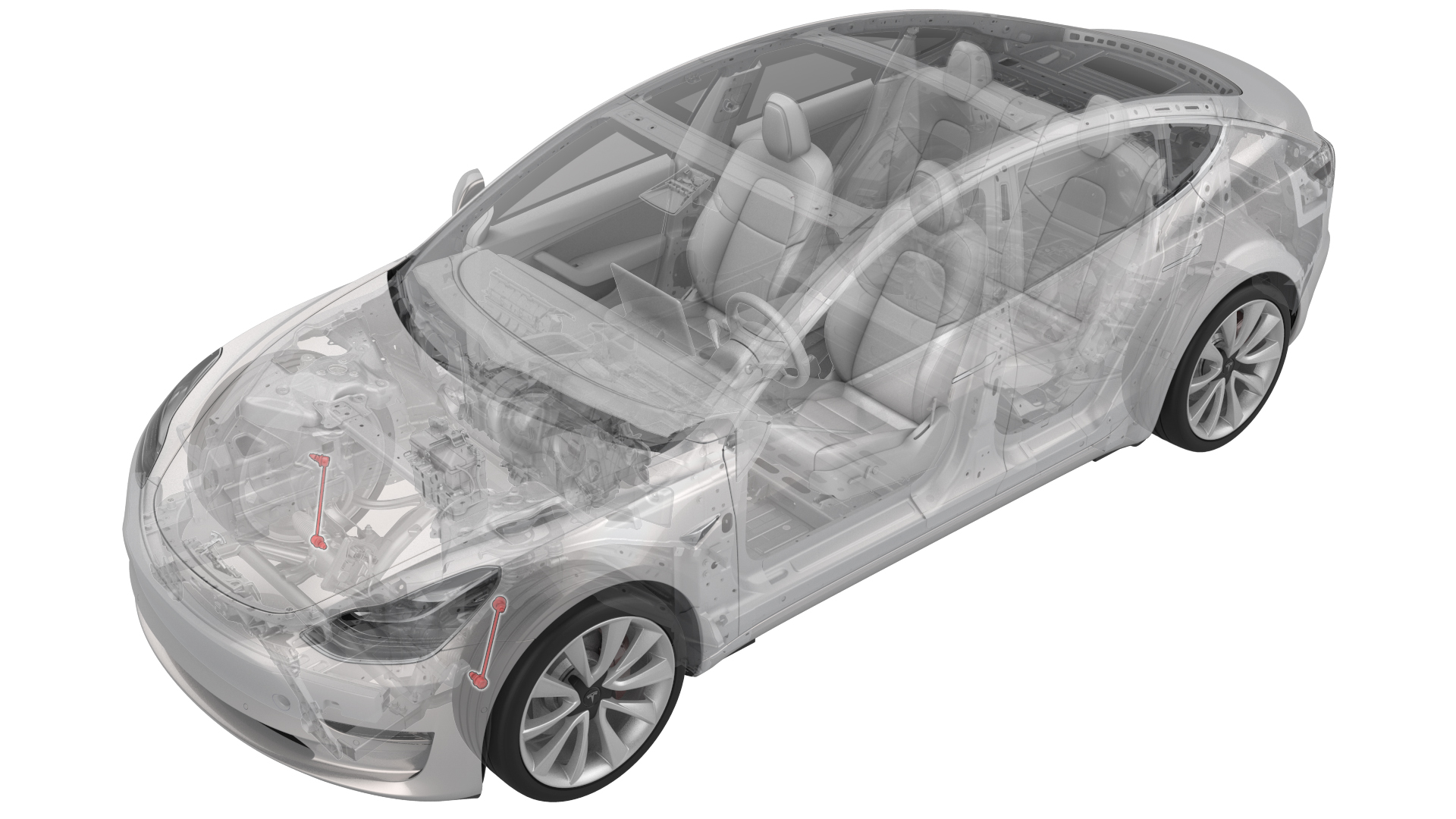

Link - Stabilizer Bar - Front - LH (Remove and Replace)

Correction code 3101200231012002
Parent topic: 3101 - Front Suspension (Including Hubs)

Remove

  1. Remove the LH front wheel. See Wheel (Remove and Install).

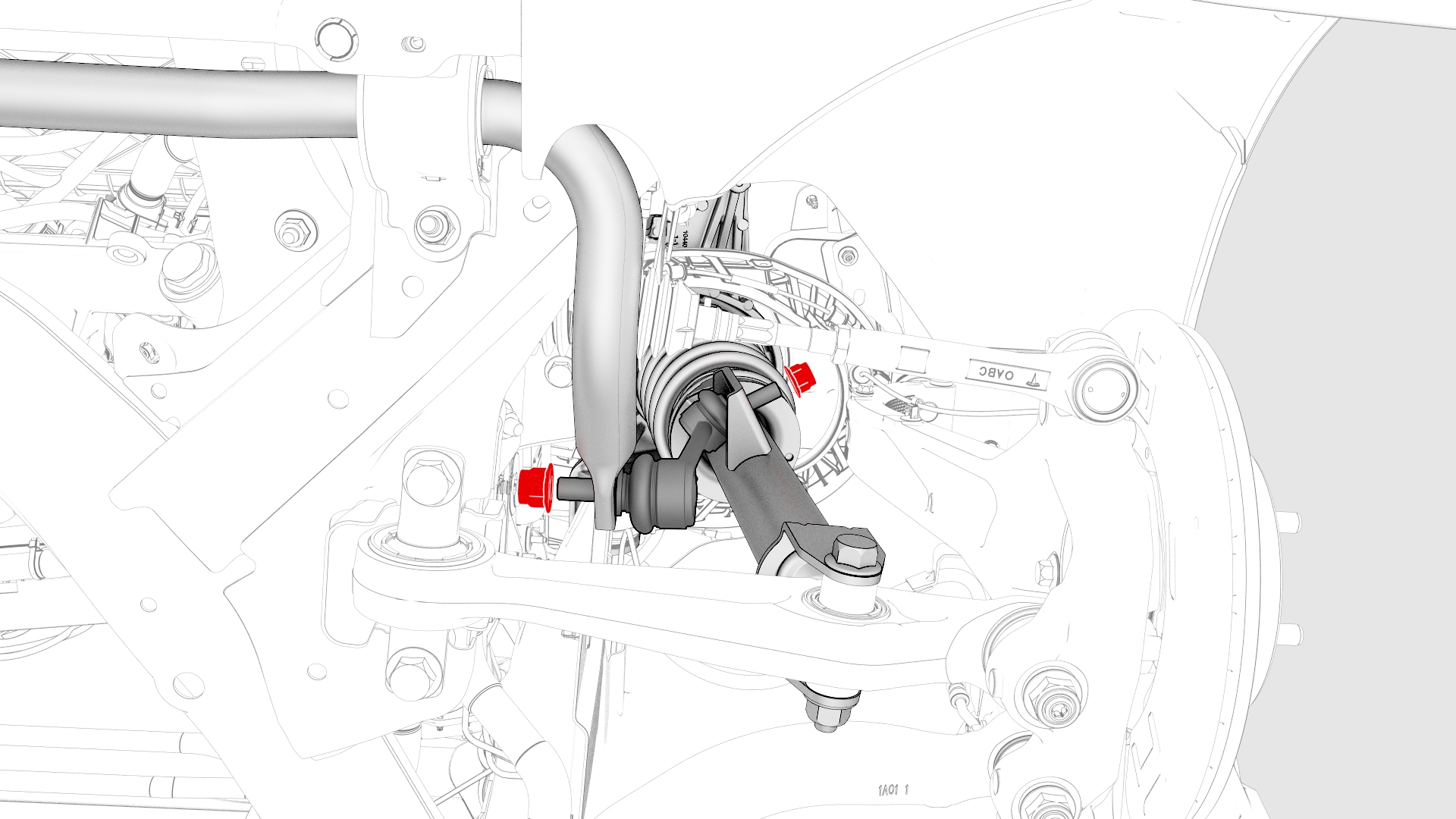

  2. Remove and discard the nuts that attach the front LH stabilizer bar link to the stabilizer bar and damper, and then remove the link from the vehicle.
    Torque 98 Nm
1Remove the LH front wheel. See Wheel (Remove and Install).
2Remove and discard the nuts that attach the front LH stabilizer bar link to the stabilizer bar and damper, and then remove the link from the vehicle.
Torque 98 Nm

Install

Installation procedure is the reverse of removal, except for the following:

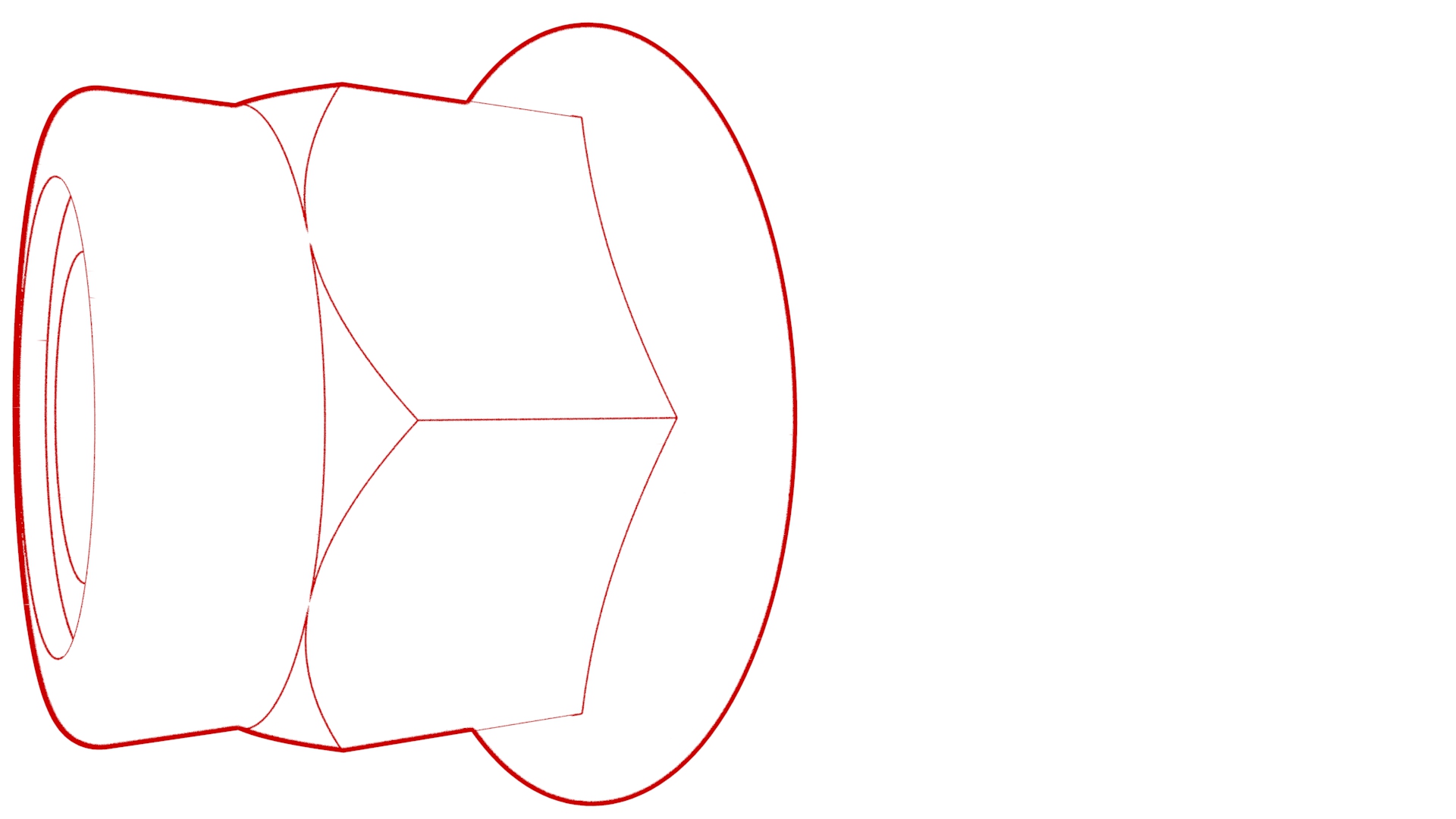

Replace all nyloc nuts.
