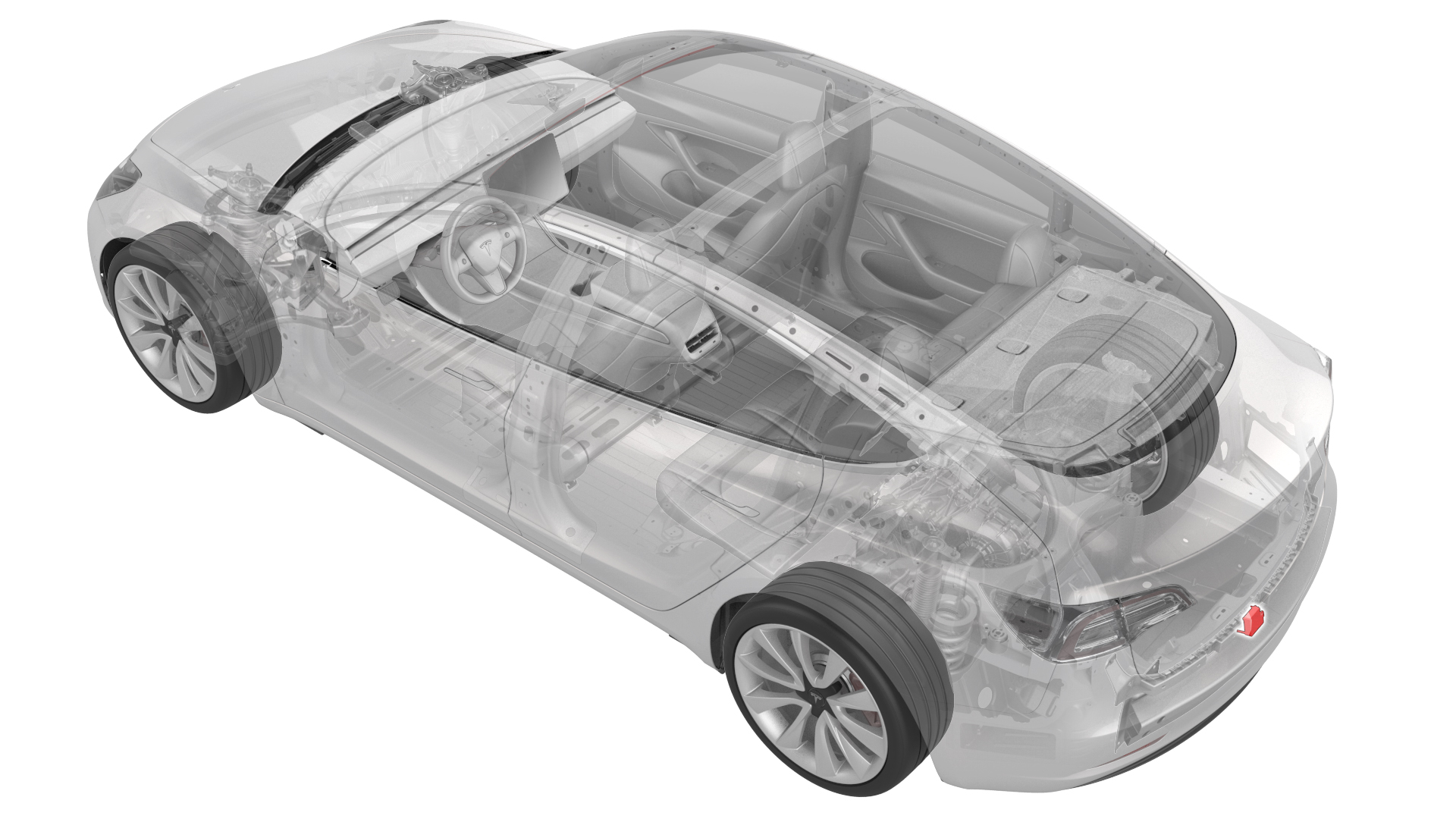

Antenna - Bluetooth Passive Entry - Rear (Remove and Replace)

Correction code 1745180217451802
Parent topic: 1745 - Keyless Entry and Security

Remove

  1. Remove the rear fascia. See Fascia - Rear (Remove and Install).

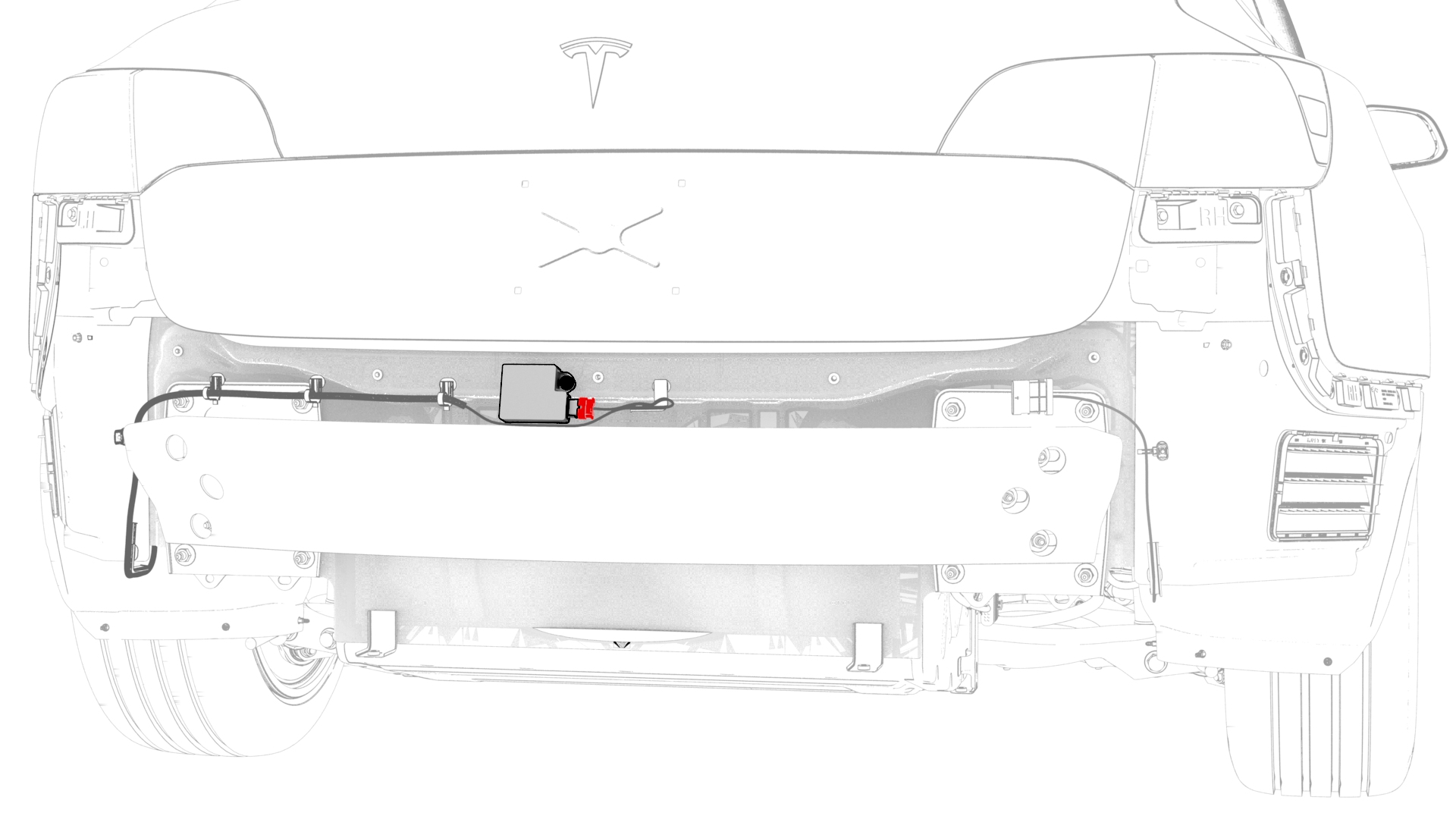

  2. Disconnect the electrical wiring harness connector from the rear Bluetooth passive entry module.
  3. Remove the bolt and release the clip that attach the Bluetooth passive entry module to the body, and remove the module from the body.
    Torque 3.5 Nm
1Remove the rear fascia. See Fascia - Rear (Remove and Install).
2Disconnect the electrical wiring harness connector from the rear Bluetooth passive entry module.
3Remove the bolt and release the clip that attach the Bluetooth passive entry module to the body, and remove the module from the body.
Torque 3.5 Nm

Install

Installation procedure is the reverse of removal, except for the following:

Caution:

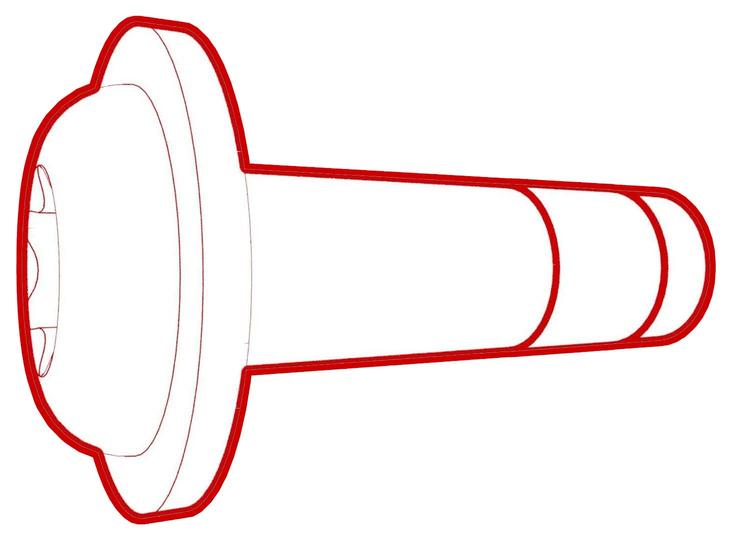

Replace all patchbolts.
