Airbag - Knee - Driver (Remove and Replace)
Correction code 2001020220010202
from-rc
Note:
This procedure was formulated using a release candidate or production model. Follow safety requirements and use extreme caution when working on or near high-voltage systems and components.
Provide corrections and feedback to servicemanualfeedback@tesla.com.
Remove
-

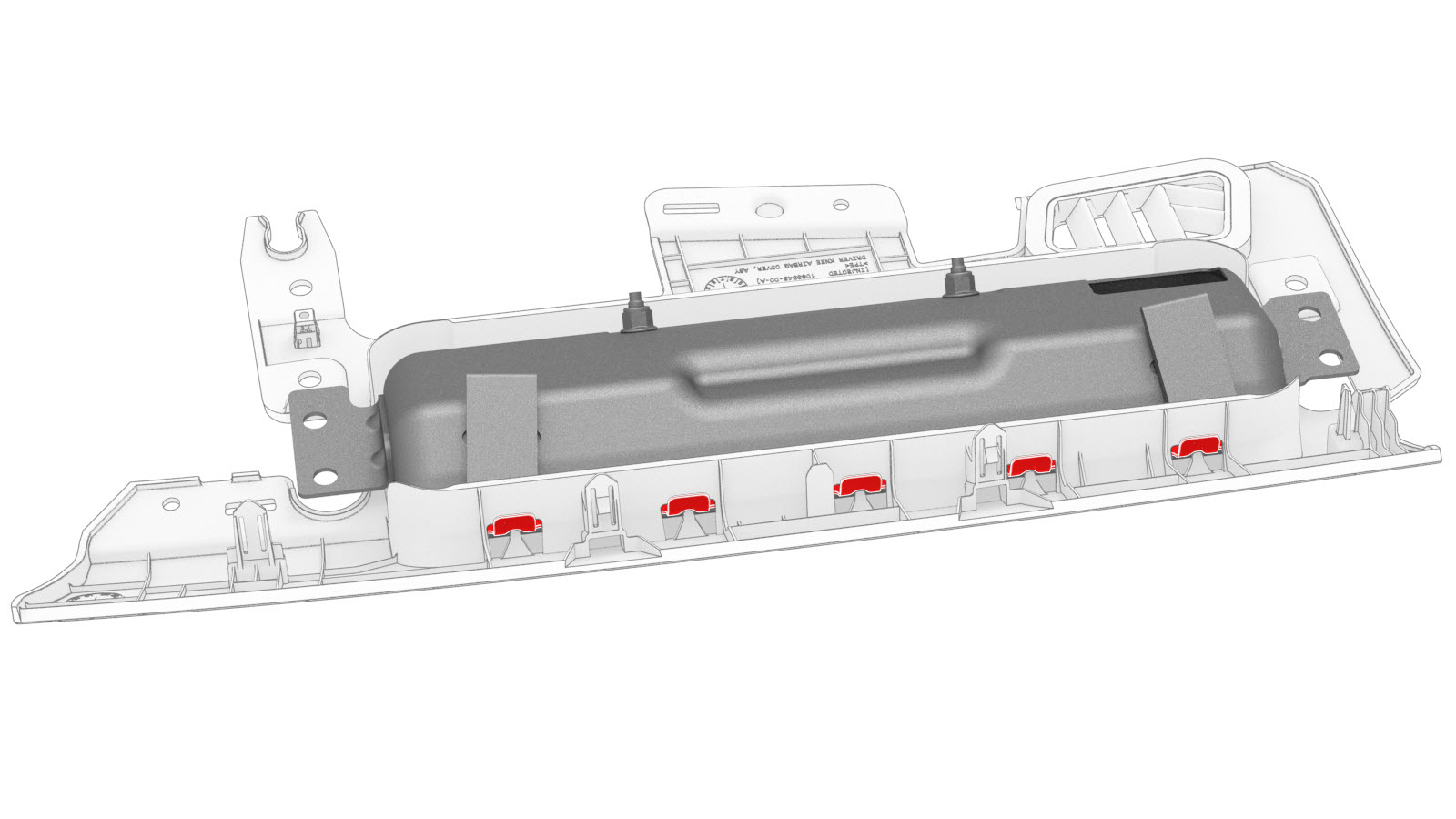

Use a flat head screwdriver to apply pressure along the rear edge of the airbag assembly, and while doing so, flex the knee airbag cover surround to release each of the 5 airbag tabs from the cover surround.
-

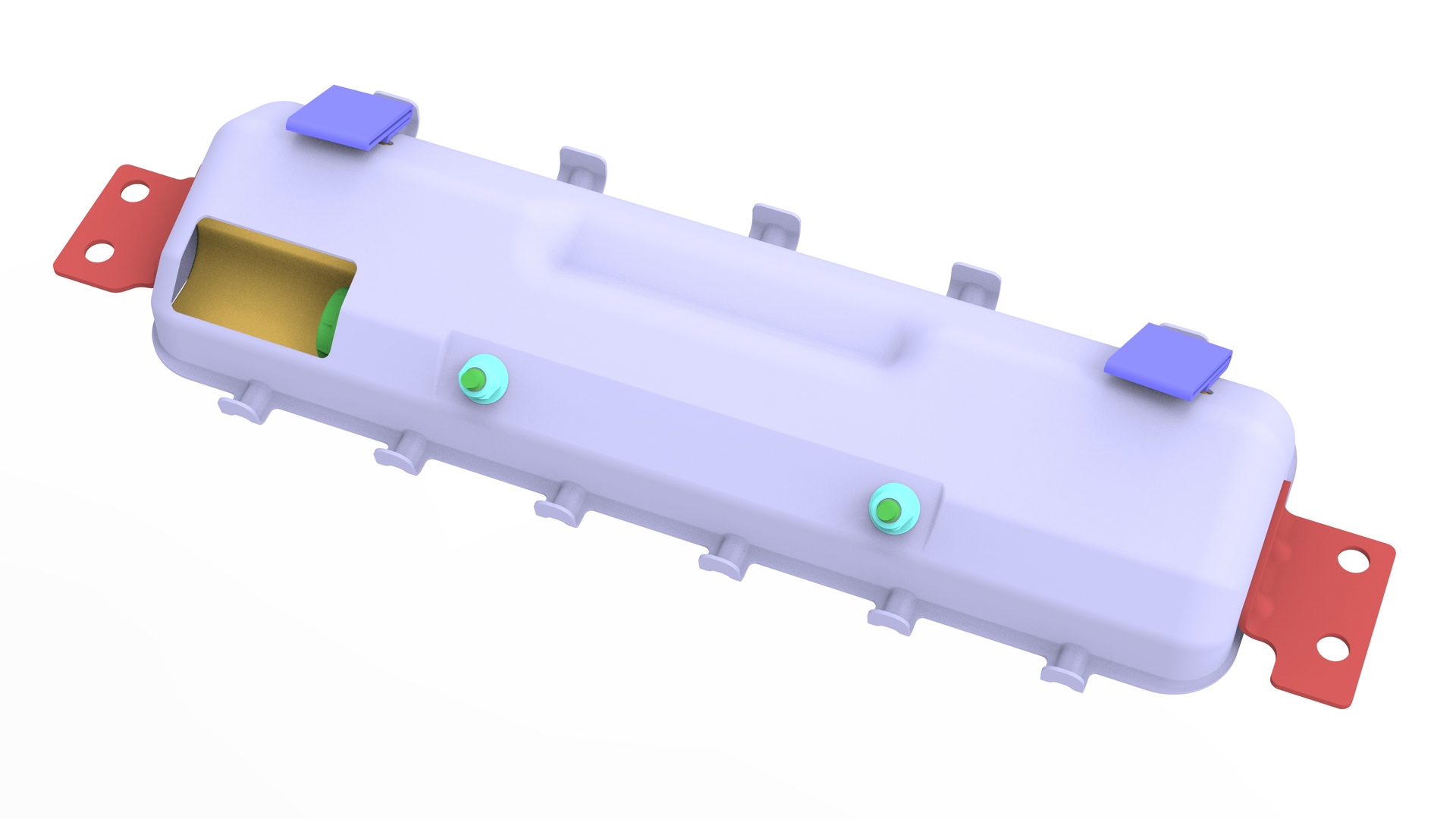

Pivot the airbag up, unhook the 6 tabs at the front of the airbag from the cover surround, and then remove the airbag from the cover.
Caution:Properly dispose of the airbag.
| 1 | Remove the driver knee airbag. See Airbag - Knee - Driver (Remove and Install). | ||
| 2 | Use a flat head screwdriver to apply pressure along the rear edge of the airbag assembly, and while doing so, flex the knee airbag cover surround to release each of the 5 airbag tabs from the cover surround. | |
| 3 | Pivot the airbag up, unhook the 6 tabs at the front of the airbag from the cover surround, and then remove the airbag from the cover. Caution: Properly dispose of the airbag.
|
Install
Installation procedure is the reverse of removal.
