Puddle Light - Front Door - LH (Remove and Replace)
Correction code 1735120217351202
Remove
-

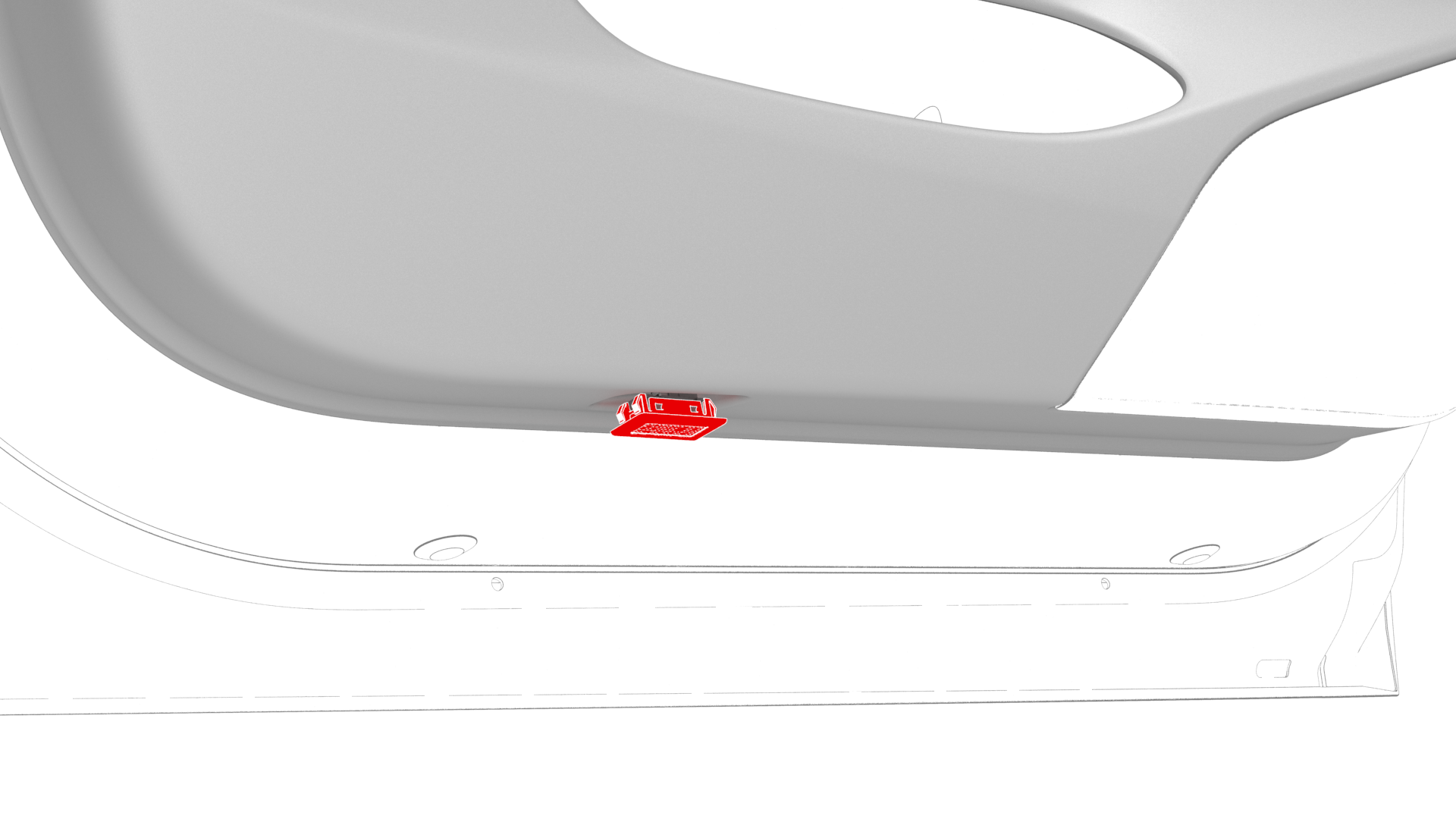

Use a small screwdriver or pry tool in the slot at the front of the puddle light to pry the light out of the bottom of the front LH door trim panel.
-
Release the clips that attach the front of the puddle light to the bottom of the door trim panel, and then separate the light from the panel.
Caution:Do not pull the puddle light too far from the door panel, as the puddle light connector is still attached.
-

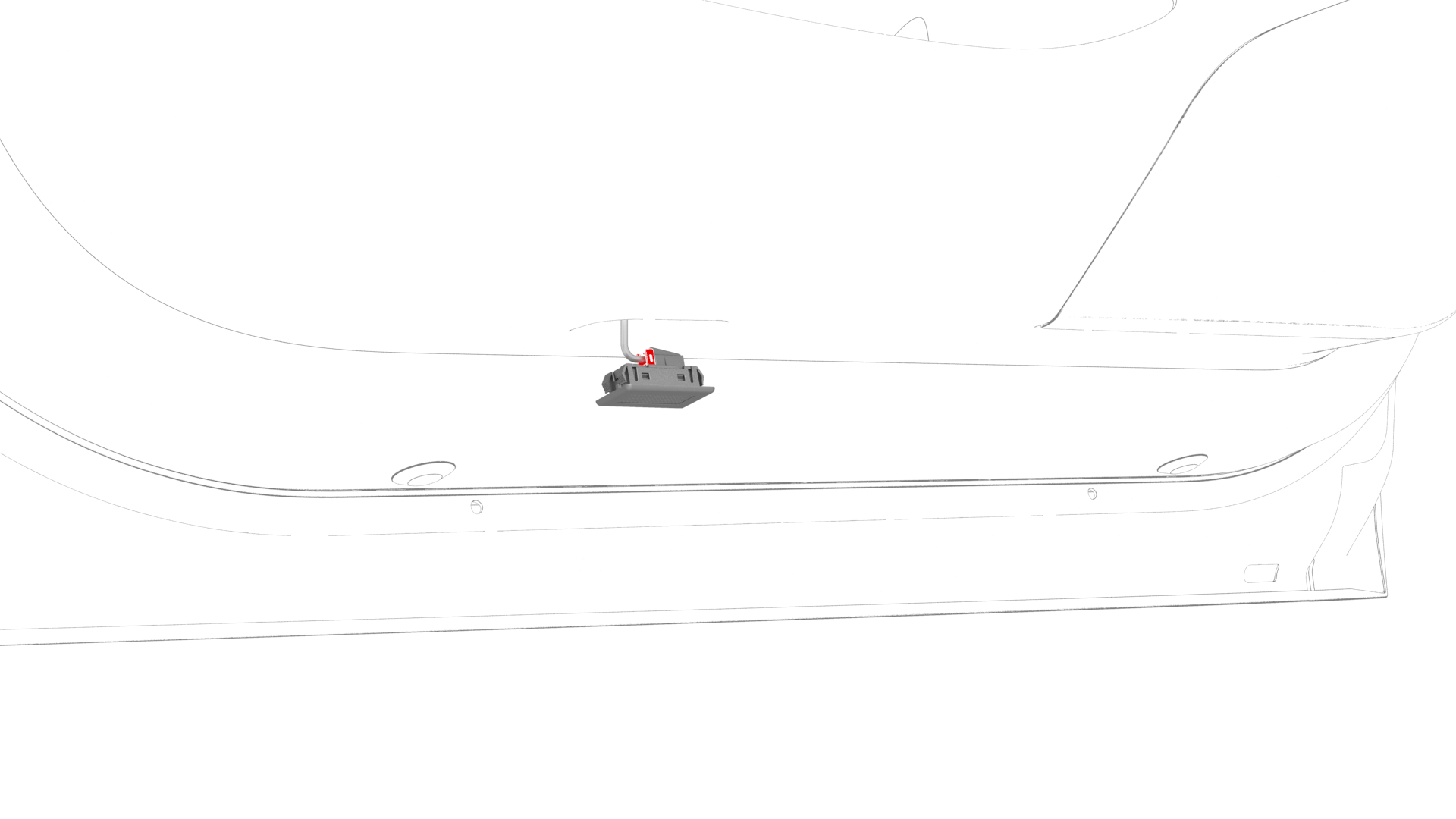

Disconnect the electrical wiring harness from the puddle light connector, and then remove the light from the vehicle.
| 1 | Use a small screwdriver or pry tool in the slot at the front of the puddle light to pry the light out of the bottom of the front LH door trim panel. | |
| 2 | Release the clips that attach the front of the puddle light to the bottom of the door trim panel, and then separate the light from the panel. Caution: Do not pull the puddle light too far from the door panel, as the puddle light connector is still attached.
| |
| 3 | Disconnect the electrical wiring harness from the puddle light connector, and then remove the light from the vehicle. |
Install
Installation procedure is the reverse of removal, except for the following:
Align the slot of the light toward the front of the vehicle.
