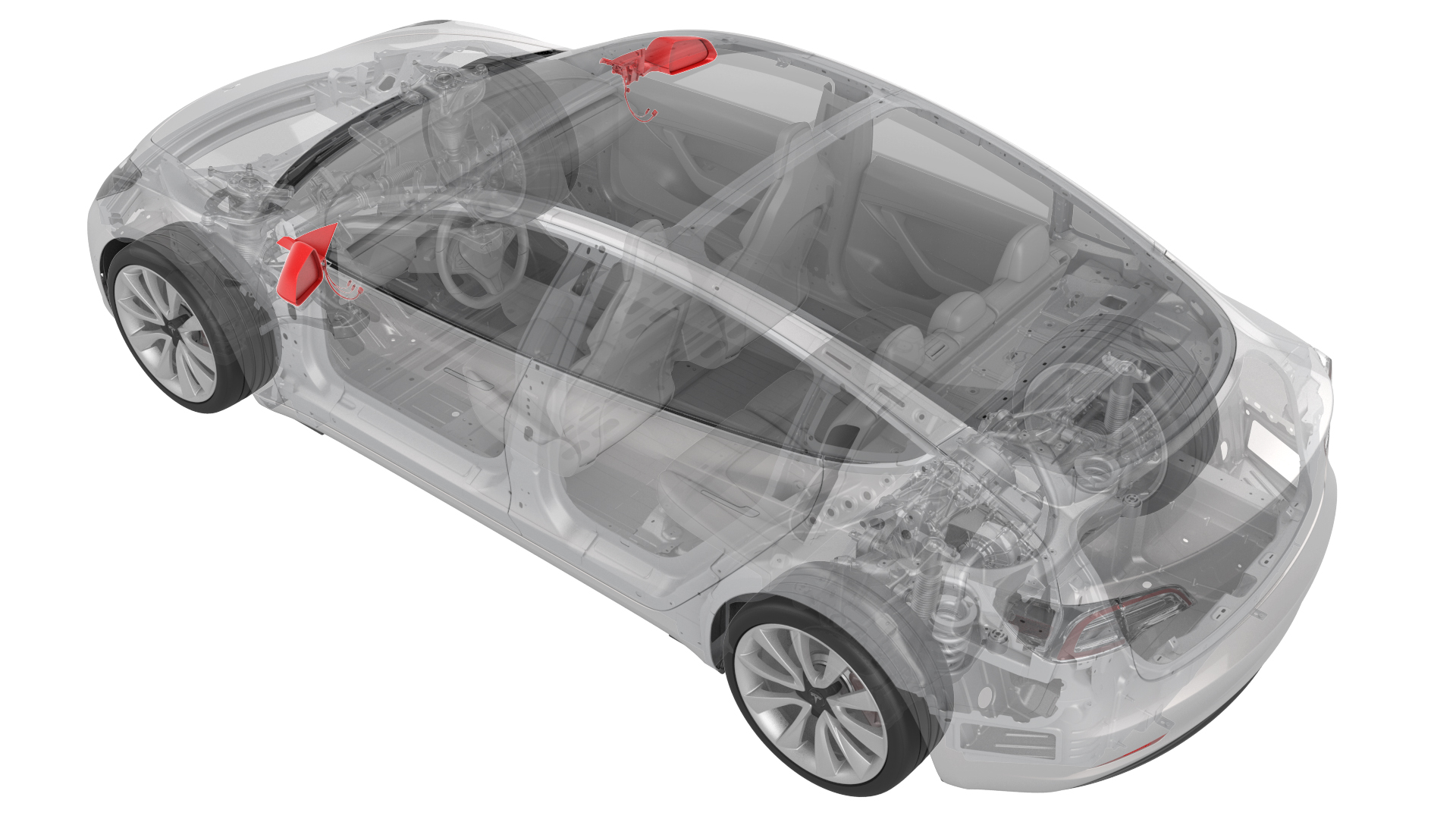

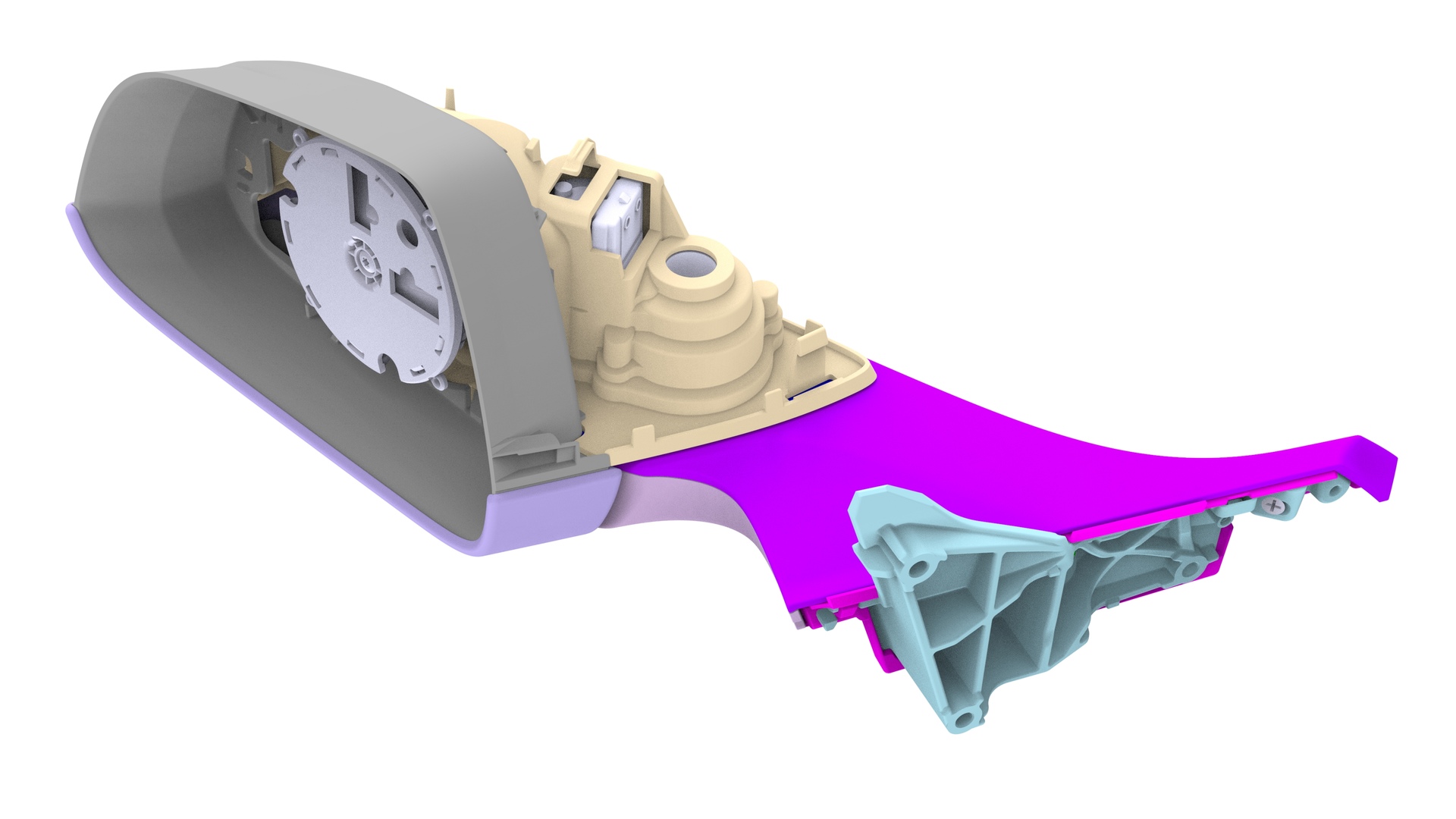

Mirror - Door - LH (Remove and Replace)

Correction code 1209110212091102

Remove

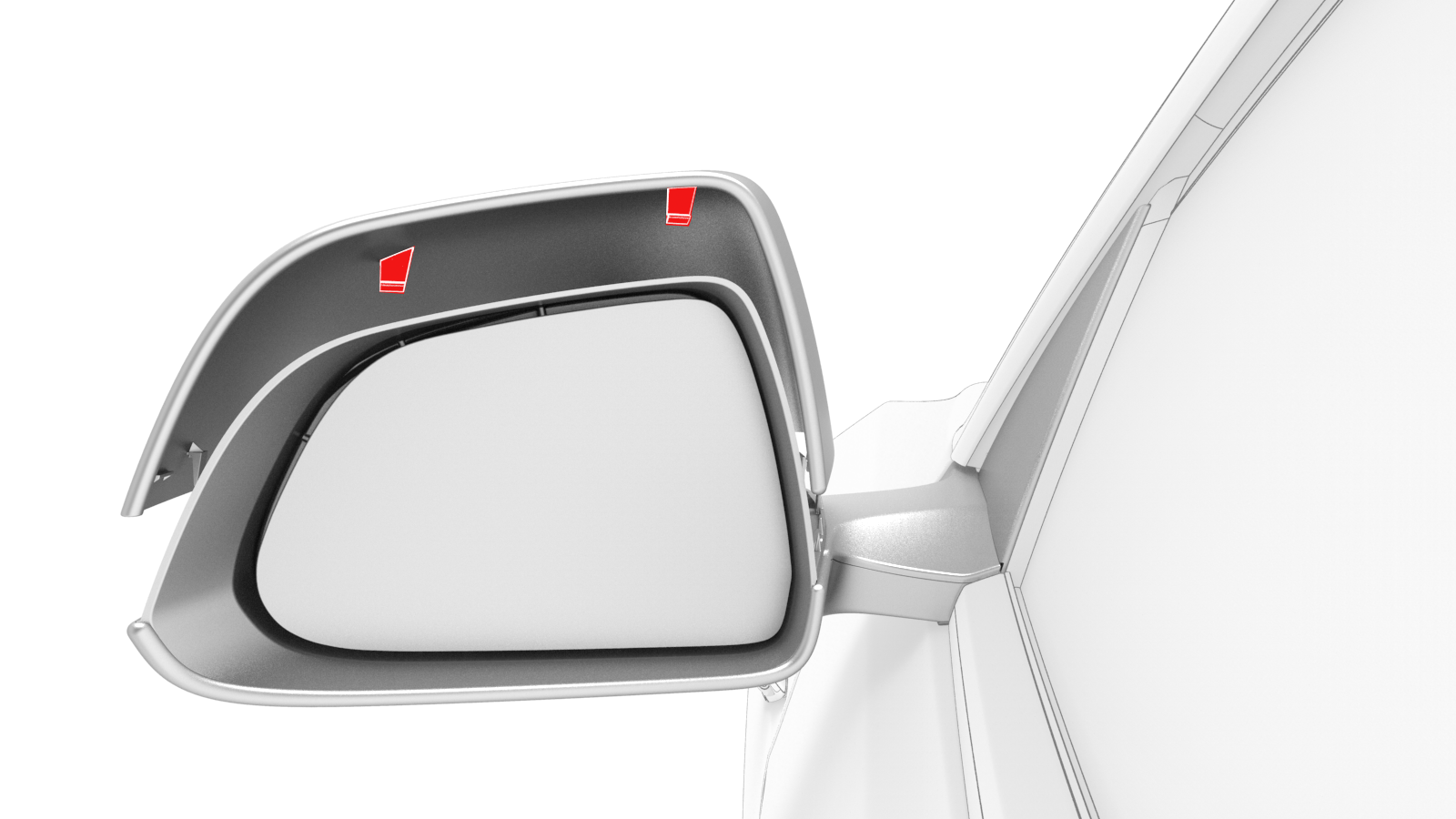

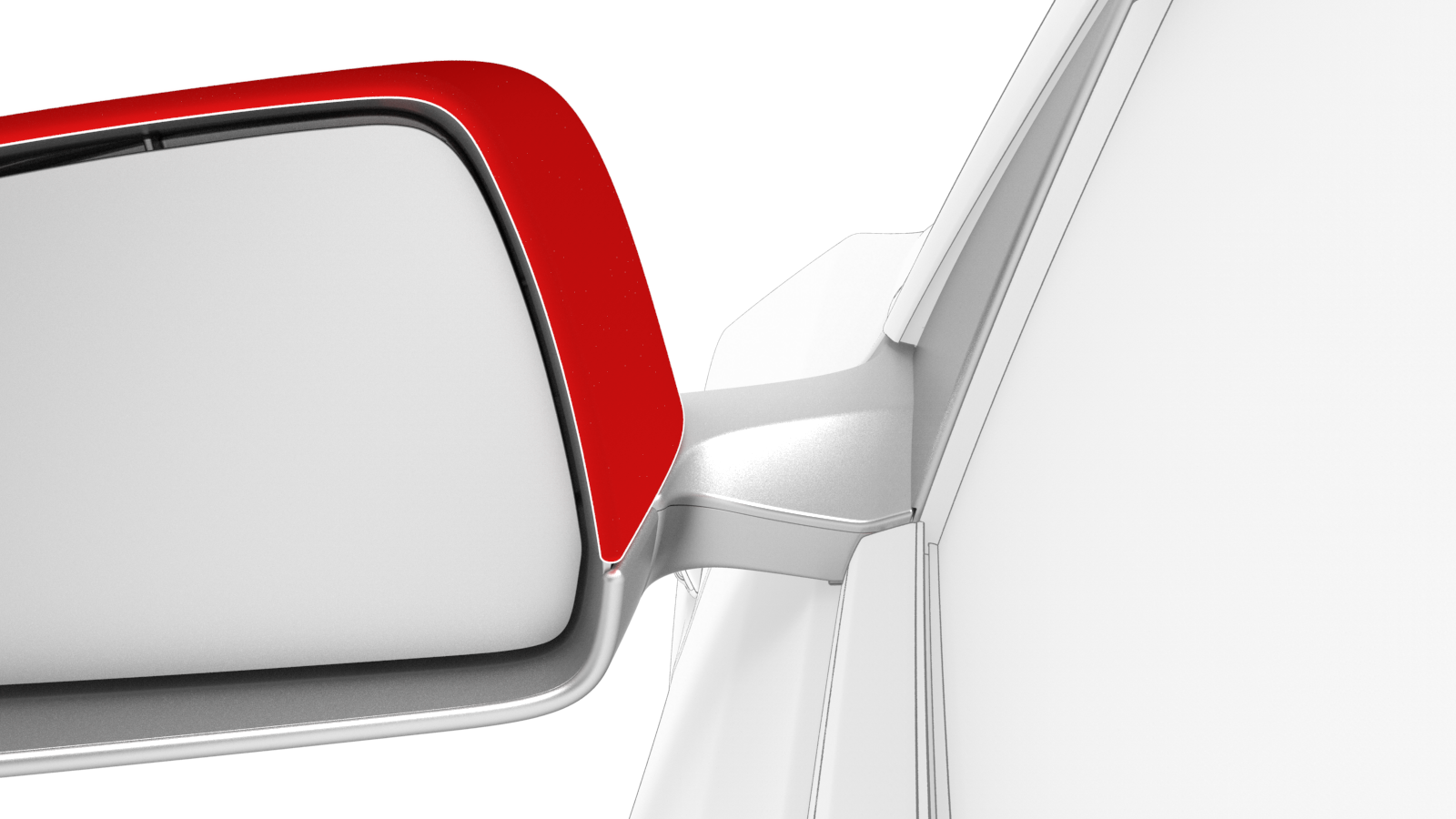

Use a plastic trim tool to pry up along the inner edge of the mirror cover.
Lift upward to release the tabs that attach the mirror cover to the LH door mirror, and then remove the mirror cover.
Remove the LH front door trim panel. See Panel - Door Trim - Front - LH (Remove and Install).

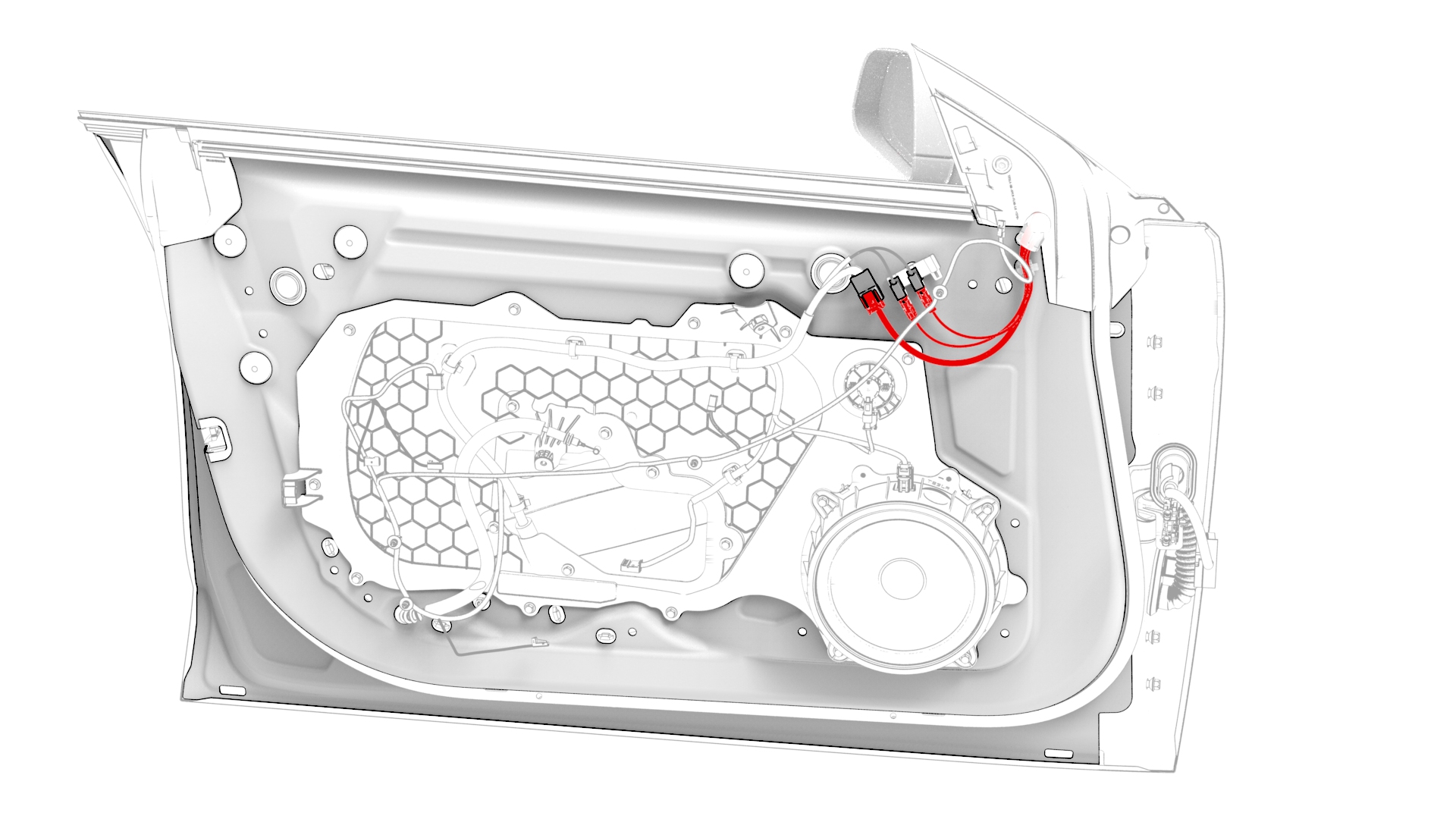

Disconnect the mirror electrical harness from the connectors.
Release the forward clip of the door glass run seal to expose the mirror mounting bolt.

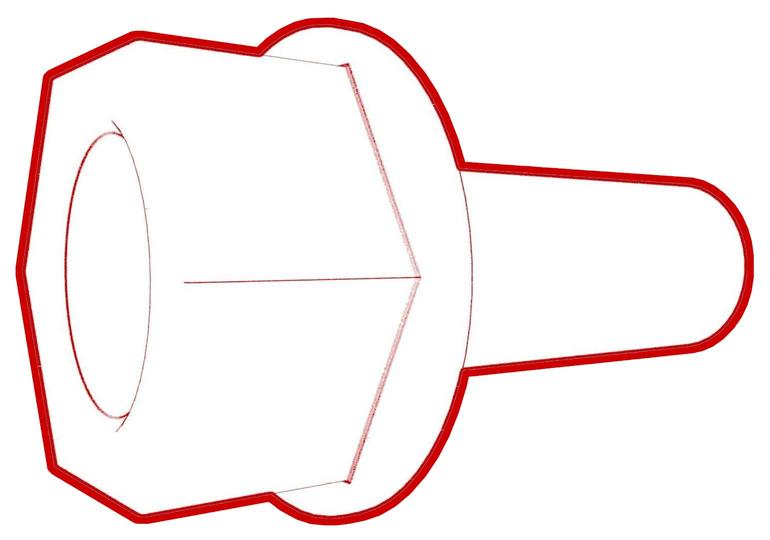

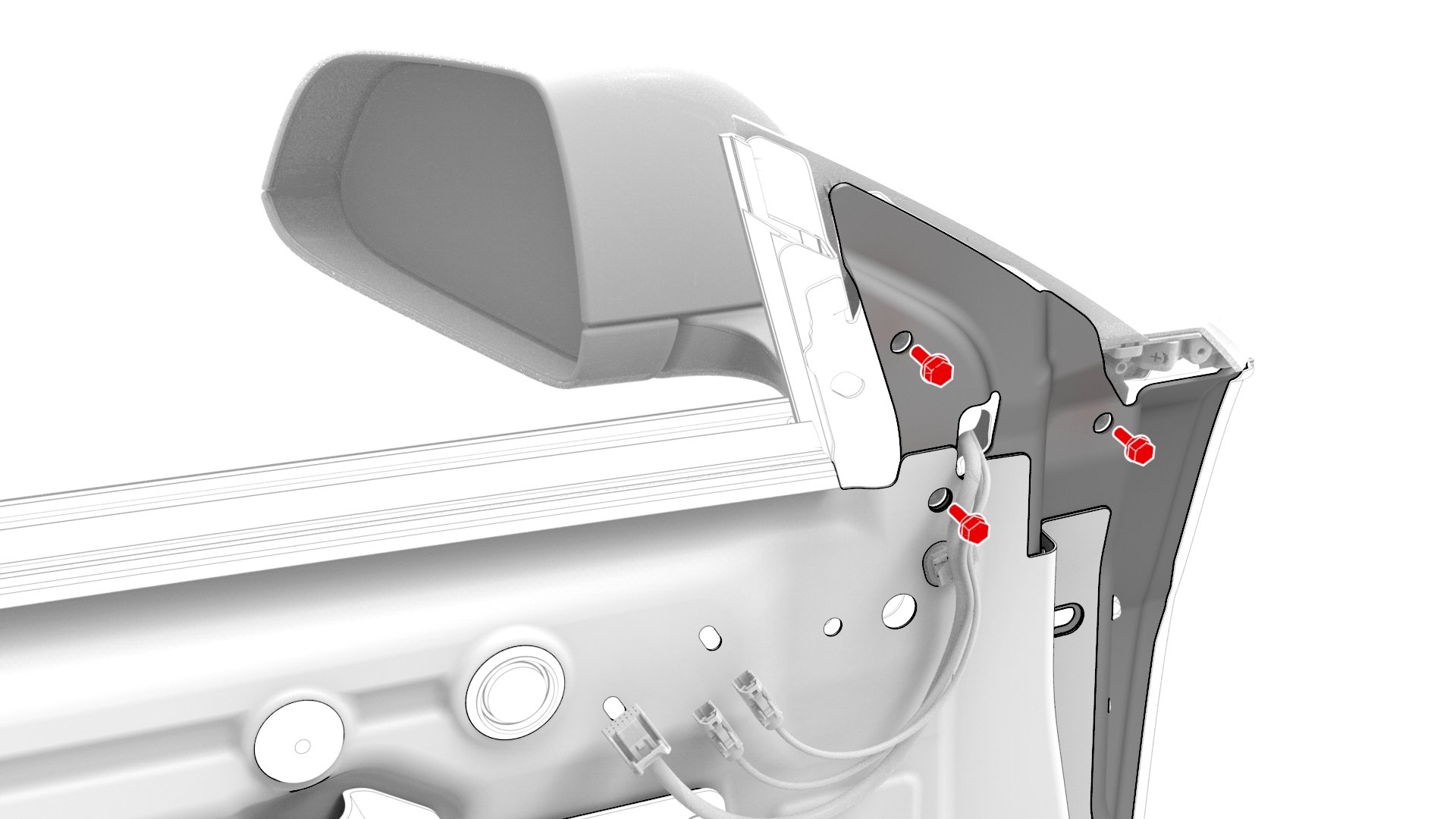

Remove the bolts that attach the LH door mirror to the door.
Torque 15 Nm

Note:
Use only hand tools to remove or install the fasteners. Do not use impact or power tools.

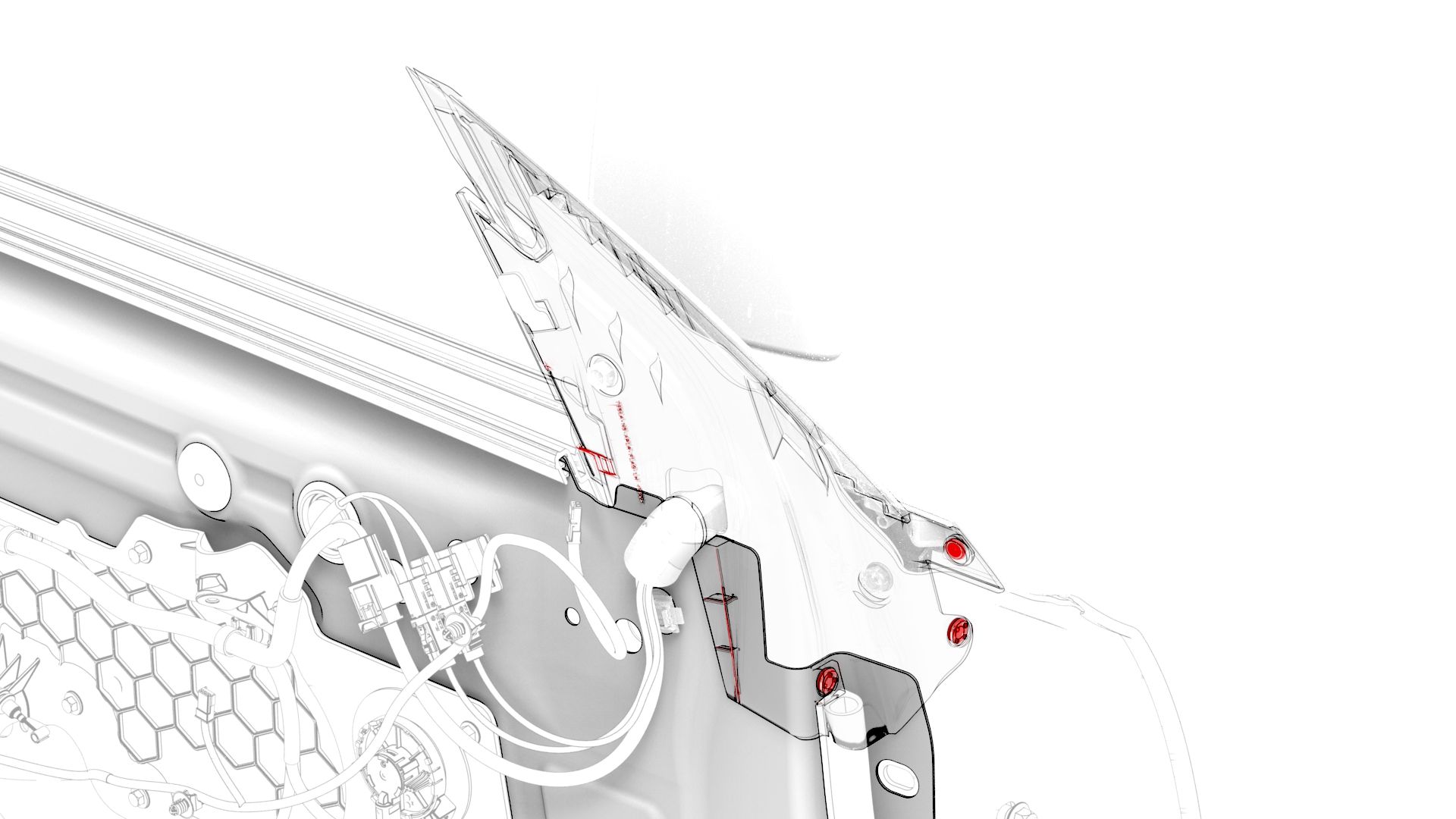

Release the remaning clips that attach the door glass run seal to the door, and then remove the seal from the door.

Caution:
To prevent glass run clip damage, gently pry the clips one at a time using a trim removal tool.

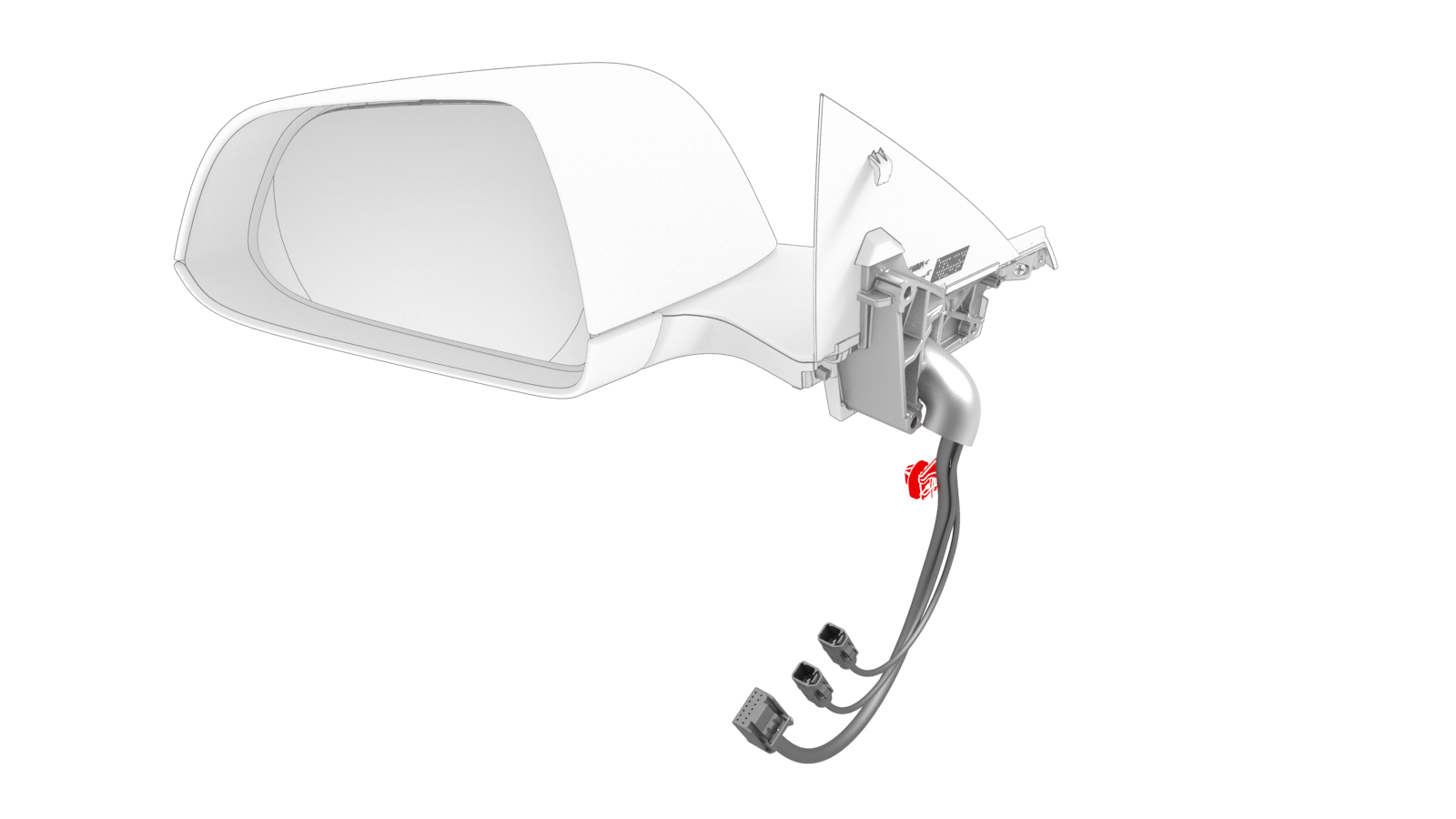

Release the clip that attaches the LH door mirror to the door, and then remove the mirror from the door.

		1	Use a plastic trim tool to pry up along the inner edge of the mirror cover.
		2	Lift upward to release the tabs that attach the mirror cover to the LH door mirror, and then remove the mirror cover.
		3	Remove the LH front door trim panel. See Panel - Door Trim - Front - LH (Remove and Install).
		4	Disconnect the mirror electrical harness from the connectors.
		5	Release the forward clip of the door glass run seal to expose the mirror mounting bolt.
		6	Remove the bolts that attach the LH door mirror to the door. Torque 15 Nm Note: Use only hand tools to remove or install the fasteners. Do not use impact or power tools.
		7	Release the remaning clips that attach the door glass run seal to the door, and then remove the seal from the door. Caution: To prevent glass run clip damage, gently pry the clips one at a time using a trim removal tool.
		8	Release the clip that attaches the LH door mirror to the door, and then remove the mirror from the door.

Install

Installation procedure is the reverse of removal.
